Table of Contents

1) Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2) Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

3) Package Contents . . . . . . . . . . . . . . . . . . . . . . . . 2

4) Unit Layout & Description . . . . . . . . . . . . . . . . . . . 3

5) Connection andOperation . . . . . . . . . . . . . . . . . . . 3

6) ConnectionDiagram. . . . . . . . . . . . . . . . . . . . . . . 4

7) Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Notice

KanexPro™ reserves the right to make changes in the hardware, packaging and any accompanying docu-

mentation without prior written notice.

1x4 VGA Extender over CAT5/6 with Audio up to 1,000ft. (300m)

e KanexPro 1x4 VGA extender over CAT5e/6 cable is designed for routing and distributing four

high-resolution VGA signals and stereo audio over remote distances up to 1,000ft. (300m). Each receiver

set features a separate gain and peaking rotary switch used in adjusting brightness and skew over long

distances. e 15-pin HD connectors are convenient and cost-eective for all input/ output connec-

tions supporting full bandwidth. Fully compatible with VGA to WUXGA graphics cardresolution

and HDTV’s to projectors. In addition, each output performs a separate buering to maintain signal

integrity and reject noise interference.



Features:

• Extendfourindependenthigh-resolutionVGAsignalswithaudiooverCat5E/6cablesupto

1,000 feet (300m)

•AdjustGAINandPEAKlevelstoadaptforvariablelengthsofUTPcableonthereceiverside

•SupportsmaximumresolutionsuptoWUXGA(1920x1200@60Hz)

•Stereoaudiothrough3.5mmjack

•Dualoutputfortransmitter:VGAforlocaldisplayand4xCat5e/6

•EDIDCompliant

•Rackorunder-deskmountable

•5VDCexternalpowersupplyincluded

Interface: Transmitter(TX)

Input: VGA x1/3.5mm Stereo x1

Output: Cat 5e/6 x4/VGA Output (Local) x1/3.5mm Stereo x1

Receiver(Rx)

Input: Cat 5e/6 x1

Output: VGA x1/3.5mm Stereo x1

Operating Frequency: VerticalFrequencyRange60/75/85Hz

Resolutions (PC):

 640x480 800x600 1024x768

 1280x720 1280x768 1280x960

 1280x1024 1600x900 1600x1200

 1920x1080 19200x1200

Power Supply: Transmitter:5VDC@2A,10W

 Receiver:5VDC@2A,5W

Environmental: Operating Temperature: 0°C to +70°C

 OperatingHumidity:10%to85%RH(nocondensation)

 StorageTemperature:-10°Cto+80°C

 StorageHumidity:5%to90%RH(nocondensation)

Regulatory Approvals Converter: FCC, CE, UL

Regulatory Approvals Power Supply: FCC, CE, UL

Dimensions: VGA Transmitter: 5.75”x2.75”x1” (146x70x25.5mm)

 Receiver:3.25”x1.4”x0.8”(82.6x35.6x20mm)

Weight: VGA Transmitter: 0.7lbs (320g)

Receiver:0.25lbs(115g)

Warranty: 1 Year limited

1)VGA UTP Extender Transmitter x1

2)VGAUTPExtenderReceiverx4

3)5VDC@2A/5WPowerSupplyx4

4)5VDC@2A/10WPowerSupplyx1

4)Mounting Kit x1

1) Power LED

a. LED will be active when unit is powered on

2) Video/Audio Input

a. Connect to VGA source (TV, Monitor, Projector, etc) using a VGA 15 pin Male to Male cable for video and

3.5mm Stereo Male to Male cable for audio.

3) Video/Audio Out

a. Connect to VGA display (TV, Monitor, Projector, etc) using a VGA 15 pin Male to Male cable for video

and 3.5mm Stereo Male to Male cable for audio.

4) Cat5e/6 Output

 a. ConnecttotheCat5e/6(UTP)inputontheReceiverunit.

5) DC/5V Connector

a. Connect the 5V Switch Splitter power supply to this port

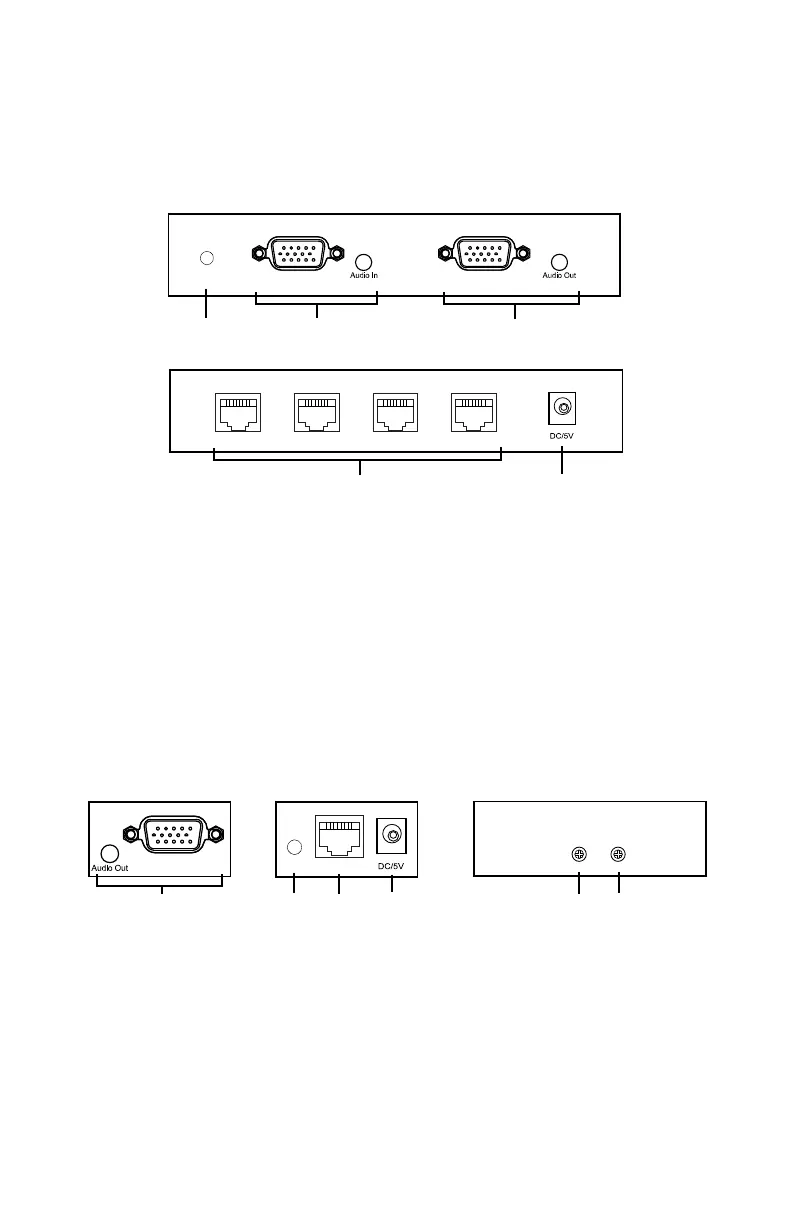

Transmitter

Front

Power VGA Input VGA Output

Output 4 Output 3 Output 2 Output 1

Back

4 5

Receiver

InputPower

VGA Output

Back

Front

1) Video/Audio Output

a. Connect to VGA display (TV, Monitor, Projector, etc) using a VGA 15 pin Male to Male cable for video

and 3.5mm Stereo Male to Male cable for audio.

2) Power LED

a. LED will be active when unit is powered on

3) Cat5e/6(UTP)input

a. Connect to the Cat5e/6 output on the Transmitter

4) DC/5V Connector

a. Connect the 5V Switch Splitter power supply to this port

5) Gain

 a. Rotarydialusedforadjustingthebrightnessonthedisplays

6) Peak

 a. Rotarydialusedforadjustingtheskewforlongcableruns

1 2

GAIN PEAK

Side
