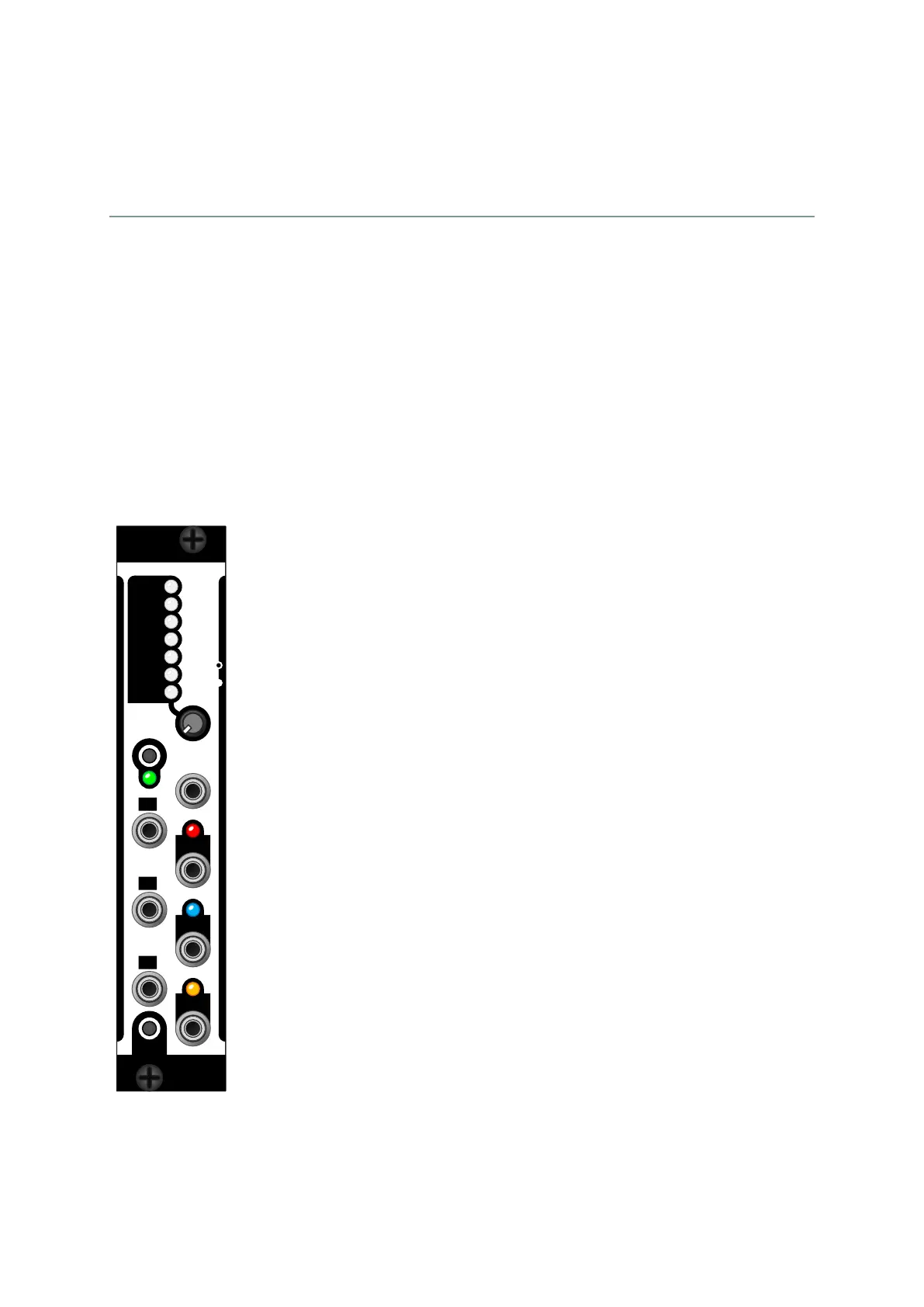

KlavisLogica XTuser manual V1.1 Page 1 of 11

LogicaXT

Voltage-controlled multiple-input logic and gate processor

Introduction

Built upon the foundations of its acclaimed predecessor, this new version drastically expands the

feature set within the same footprint. All the original goodies are still there, now enriched by a

full list of state-based logic functions including a delay line. Faster processing allows perfect

handling of audio signals. User editable settings are stored in non-volatile memory.

With its versatility and features never seen before, the Klavis Logica XT will arouse your creativity

and bring inventiveness to your soundscapes.

Logica

Klavis

Div/2

Mode

& CV

Out

Inv.

XT

Manual

On

Or

And

Xor

1 Low

Even

Xtra

1

2

3

Clk

In

Clr

Clk

Set

Rst

Gater

1,2,3

Coin

D.S&H

1 High

Off

Gt~Tr

S/R. C

Features at a glance

14 modes of operation:

o6 basic logic functions

o2 forced states

o6 advanced logic functions:

The Gater adds-up multiple gate signals while

maintaining each triggering with adjustable retrigger

gap time

Gate to trigger with adjustable pulse length

Chronological sequence validation (safe locker)

Toss a coin with different chance weighs from the 3

inputs

Flip-flop with separate Set and Reset

Digital Sample & hold, with adjustable delay/memory

line (from milliseconds to several seconds)

3 normalized input jacks + user defined manual button for quad

signal handling

Settings stored in non-volatile memory

Simultaneously normal and inverted outputs (e.g. And & Nand)

Dedicated divider by two output

Continuous manual + Bipolar CV control of the mode

LED column telling the current operation mode

LEDs on all outputs indicating the state

LED on manual button indicating its default status

Low consumption, skiff-friendly & compact module
