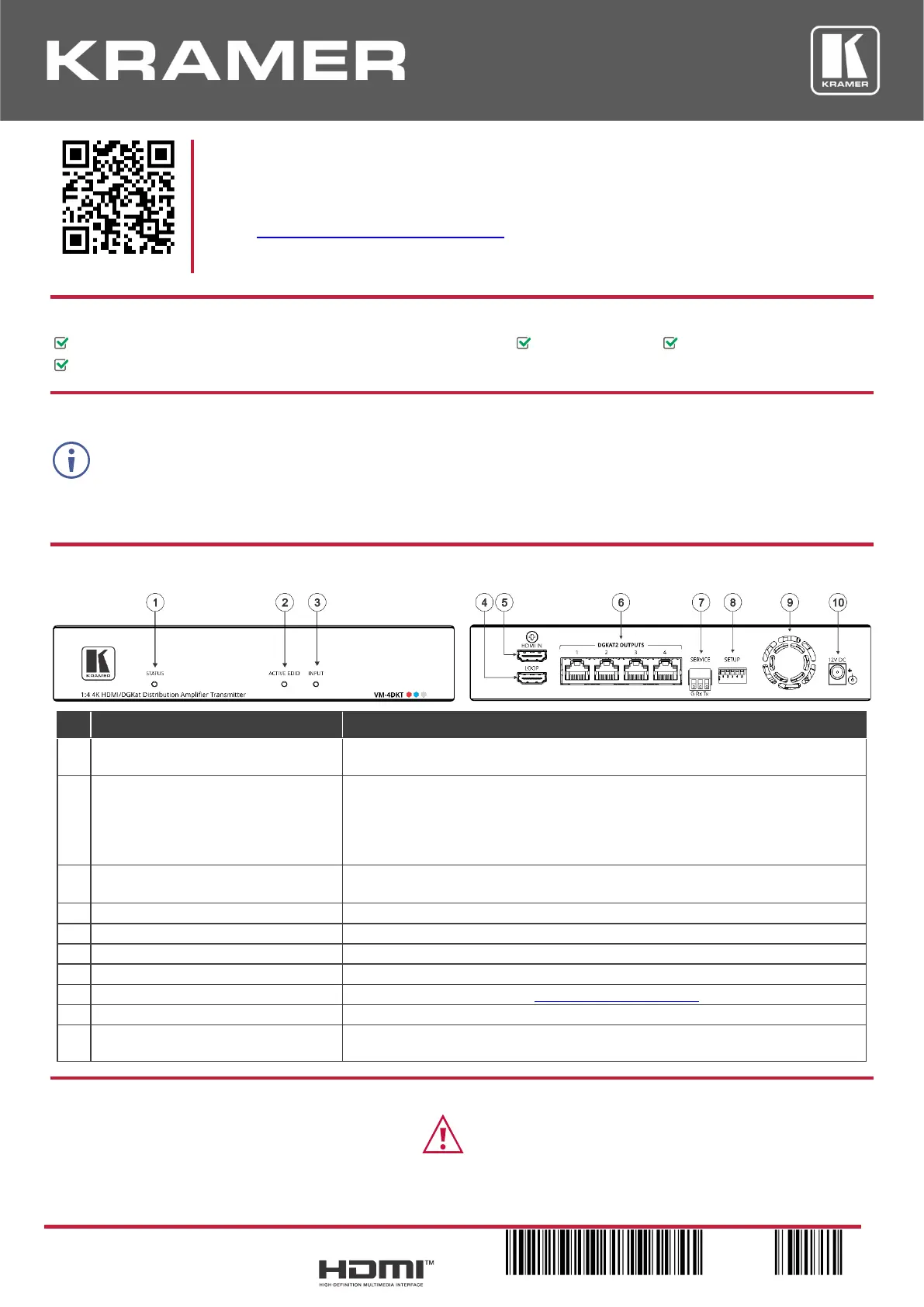

VM-4DKT Quick Start

P/N:

2900-301544QS

Rev:

1

Scan for full manual

VM-4DKT Quick Start Guide

This guide HELPS you install and use your VM-4DKT for the first time.

Go to www.kramerav.com/downloads/VM-4DKTto download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

VM-4DKT1:4 4K HDMI/DGKAT Distribution Amplifier Transmitter

4 Rubber feet

1 Quick start guide

1 Power cord and adapter

IMPORTANT NOTICE!

We highly recommend using only Kramer UNIKAT cables with these products. If using 3

rd

party shielded CAT-6A cables, both ends of the

shield must be soldered to the connectors for the products to function properly. Do not use any jumpers, unshielded wall plates or mid-

span cable connections. These extenders are not compatible with HDBaseT technologies. Prior to signal extension, ensure that the

extension line cable is lying straight and not coiled.

Step 2: Get to know your VM-4DKT

#

Feature

Function

1

STATUS LED

Red – Power up.

Green – Power is on.

2

ACTIVE EDID LED

The LED color indicates the active EDID type. When flashing, the state is in the

process of being activated.

Yellow – Default EDID.

Blue – Output-acquired EDID.

Green – Custom EDID.

3

INPUT LED

On– Input signal detected.

Flashing – Source connected, but no signal detected.

4

HDMI IN Connector

Connect to an HDMI source.

5

LOOP Connector

Connect to a local HDMI display.

6

DGKAT2 OUTPUTS Connectors (x4)

Connect to a DGKat-2.0 receiver (for example, PT-872xr) using twisted pair cable.

7

SERVICE 3-pin terminal block

Connect to a serial controller.

8

SETUP DIP-switches

Sets the device behavior (see Step 6: Operate VM-4DKT).

9

Fan Vent

For heat ventilation.

10

12V DC Power Connector

Connect the 12V DC power adapter into the device and then connect it to the

mains.

Step 3: Mount VM-4DKT

Install VM-4DKT using one of the following methods:

•Attach the rubber feet and place the unit on a flat

surface.

•Ensure that the environment (e.g., maximum ambient temperature & air flow) is

compatible for the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate ratings should be used for avoiding

overloading of the circuits.

•Reliable earthing of rack-mounted equipment should be maintained.

•Maximum mounting height for the device is 2 meters.
