Oldal 1/8
Questions? Comments?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
www.PyleUSA.com
2
www.PyleUSA.com
3
ATTENTION
To avoid the possibility of malfunction/damage to the product, damage to data, or damage
to other property, please follow the points as below.
Operation and maintenance
• Do not use the device in the vicinity of a TV, radio, stereo equipment, mobile phone, or
other electric devices. Otherwise, the device, TV, or radio may generate noise.
• In order to prevent the possibility of panel disguration, unstable operation, or damage to
the internal components. Do not expose the device to excessive dust or vibration, or
extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day).
• Do not place vinyl, plastic or rubber objects on the device, since this might discolor the panel.
• When cleaning the device, use a dry and soft cloth. Do not use paint thinners, solvents,
cleaning uids, or chemical impregnated wiping cloths.
• Condensation can occur in the device due to rapid, drastic changes in ambient temperature
when the device is moved from one location to another, or air conditioner is turned on or o.
For example, using the device while condensation is present can cause damage. If there is
reason to believe that condensation might have occurred, leave the device for several hours
without turning on the power until the condensation has completely dried out.
• Avoid setting all controls to their maximum. Depending on the condition of the connected
devices, doing so may cause feedback and may damage the speakers.
• When turning on the power in your audio system, always turn on the power amplier LAST,
to avoid speaker damage. When turning the power o, the power amplier should be turned
o FIRST for the same reason.
Precautions when using the USB 2.0 and 5V DC terminals
When connecting the USB2.0 connector to computer, please must abide by following points.
If not, it may cause computer crash, breakdown, or losing data. If the computer or unit crash,
please restart the application software or computer operating system, or disconnect the unit,
then power on again.
• Use an AB type USB cable. USB 3.0 cable cannot be used.
• Before connecting the computer to the USB 2.0 terminal, exit from any power-saving mode
of the computer (such as suspend, sleep, standby).

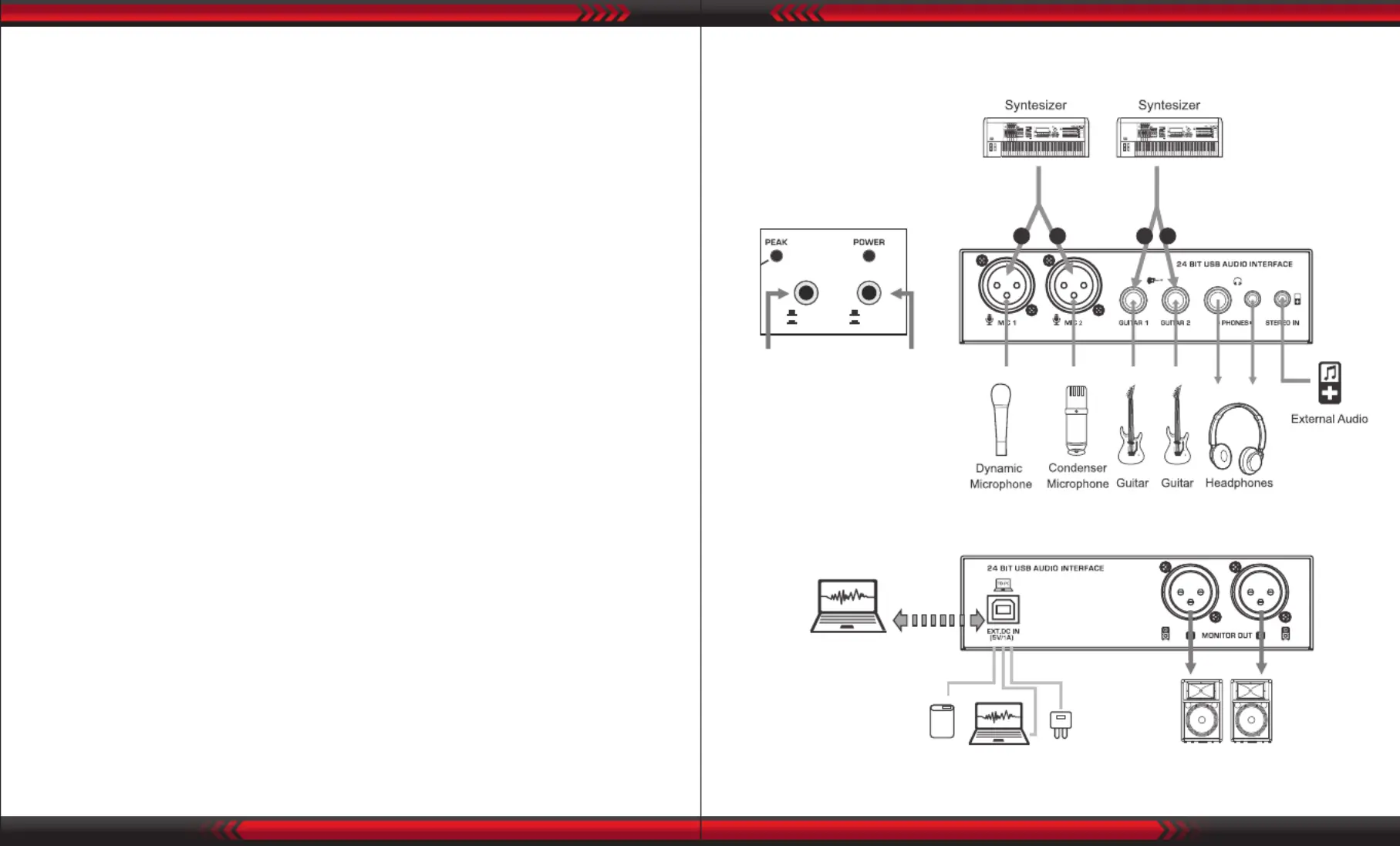

CONNECTION DIAGRAM
L R L R
For MIC & GUITAR inputs
*Keep the buttons bounce
up, for STEREO inputs.
*Press down the buttons,
for MONO inputs.
MONO
ST
MONO
ST
GUITAR INPUT
MIC INPUT
Stereo
Transfer
and
Record
Power Supply:DC 5V,1A
Power Socket
Power Bank
PC USB Power Supply
Active Speakers
www.PyleUSA.com
4
www.PyleUSA.com
5

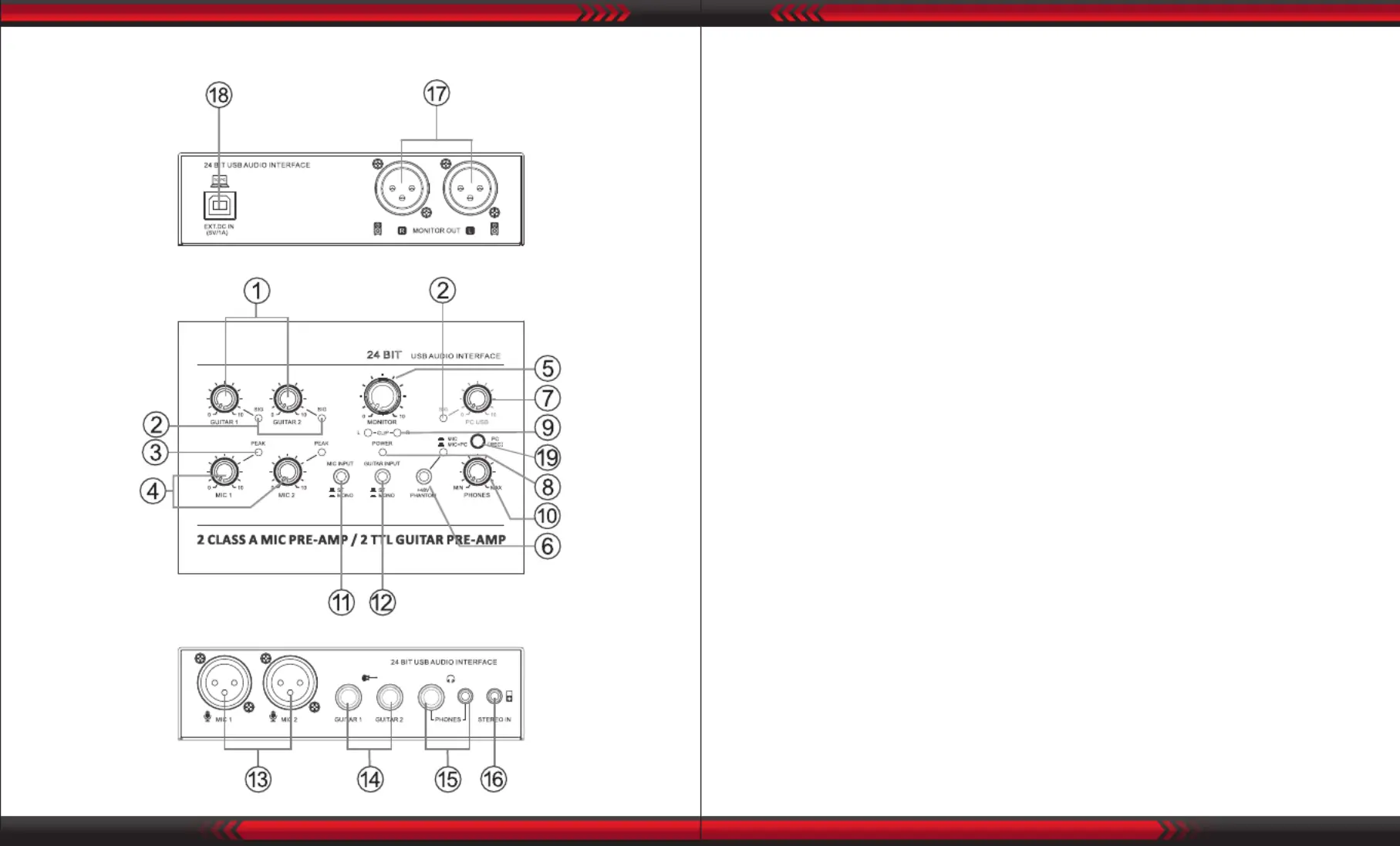

CONTROLS AND FUNCTIONS
1. [GUITAR] Controller, control the input level of guitar channel, adjust to balance the volume.
2. Signal Indicator, the brightness will change with the intensity of the signal input.[SIG]
3. , it will light up when the input signal is too high. When the LED light will keep [PEAK] LED
ashing, please rotate the [MIC] Controller counterclockwise to turn down the volume.
4. Controller, control the input level of mic channel, adjust to balance the volume.[MIC]
5. Controller, used to adjust the volume of MONITOR output.[MONITOR]
6. [+48V PHANTOM POWER] Button/LED, when the button is turned on, the LED light is on,
provide DC+48V phantom power to XLR plug on MIC mono input.
Please turn ON this button when using the condenser microphone which is powered by a
phantom power.
7. [PC USB] Controller, control the input level from PC USB port, adjust to balance the volume.
8. LED, it will light up when the mixer's power is on.[POWER ON]
9. LED, they will light up when the MONITOR output signal is too high.[CLIP L & R]
10. Controller, control the volume of earphones.[PHONES]
11. [MIC INPUT] Converting switch:
a. When it is bounce up, it is for STEREO input, connect MIC 1 and MIC 2 input, MIC 1 is
channel L, MIC 2 is channel R, compose to the stereo signal.
b. Press it down, it is for MONO input, the signal of MIC 1 and MIC 2 are separately.
12. [GUITAR INPUT] Converting switch:
a. When it is bounce up, it is for STEREO input, connect GUITAR 1 and GUITAR 2 input,
GUITAR 1 is channel L, GUITAR 2 is channel R, compose to the stereo signal.
b. Press it down, it is for MONO input, the signal of GUITAR 1 and GUITAR 2 are separately.
13. Input jack, connect the microphone with XLR PLUG.[MIC]
14. [GUITAR] Input jack, for connecting to an Instrument, such as electric guitar or electric
bass.
Termékspecifikációk
| Márka: | Pyle |
| Kategória: | Kézi turmixgép |
| Modell: | PMUX6 |
