ATTENTION
To avoid the possibility of malfunction/damage to the product, damage to data, or damage
to other property, please follow the points as below.
Operation and maintenance
• Do not use the device in the vicinity of a TV, radio, stereo equipment, mobile phone, or
other electric devices. Otherwise, the device, TV, or radio may generate noise.
• In order to prevent the possibility of panel disguration, unstable operation, or damage to
the internal components. Do not expose the device to excessive dust or vibration, or
extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day).
• Do not place vinyl, plastic or rubber objects on the device, since this might discolor the panel.
• When cleaning the device, use a dry and soft cloth. Do not use paint thinners, solvents,
cleaning uids, or chemical impregnated wiping cloths.
• Condensation can occur in the device due to rapid, drastic changes in ambient temperature
when the device is moved from one location to another, or air conditioner is turned on or o.
For example, using the device while condensation is present can cause damage. If there is
reason to believe that condensation might have occurred, leave the device for several hours
without turning on the power until the condensation has completely dried out.
• Avoid setting all controls to their maximum. Depending on the condition of the connected
devices, doing so may cause feedback and may damage the speakers.
• When turning on the power in your audio system, always turn on the power amplier LAST,
to avoid speaker damage. When turning the power o, the power amplier should be turned
o FIRST for the same reason.
Precautions when using the USB 2.0 and 5V DC terminals
When connecting the USB2.0 connector to computer, please must abide by following points.
If not, it may cause computer crash, breakdown, or losing data. If the computer or unit crash,
please restart the application software or computer operating system, or disconnect the unit,
then power on again.
• Use an AB type USB cable. USB 3.0 cable cannot be used.
• Before connecting the computer to the USB 2.0 terminal, exit from any power-saving mode
of the computer (such as suspend, sleep, standby).

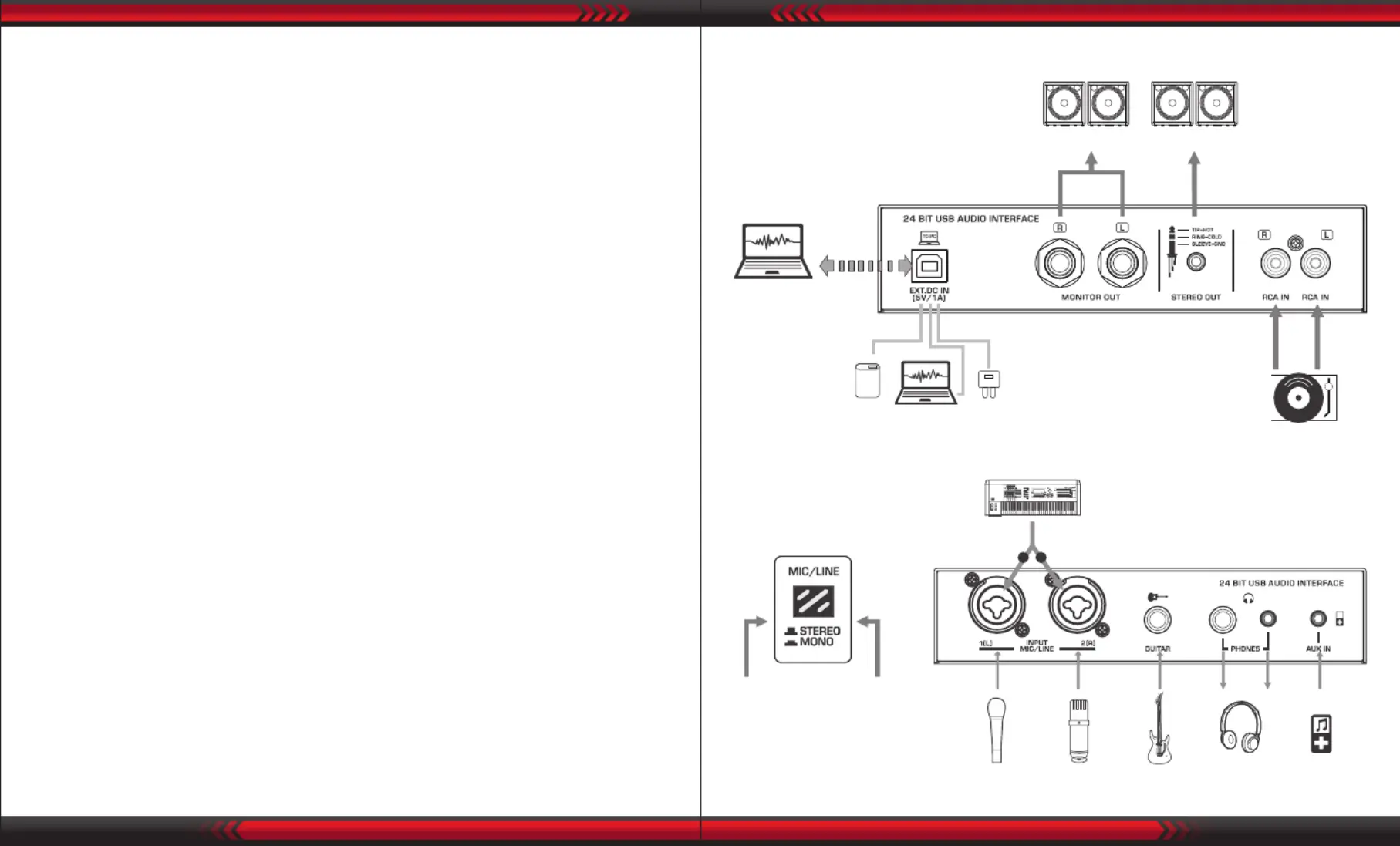

CONNECTION DIAGRAM
For MIC & LINE inputs
*Keep the buttons bounce
up, for STEREO inputs.
*Press down the buttons,
for MONO inputs.
Syntesizer
Dynamic
Microphone
Condenser
Microphone
Guitar
Headphones
External Audio
L
R
Stereo
Transfer
and
Record
Power Supply:DC 5V,1A
Power Socket
Power Bank
PC USB Power Supply
Speakers
CD Player
Speakers
www.PyleUSA.com
4
www.PyleUSA.com
5

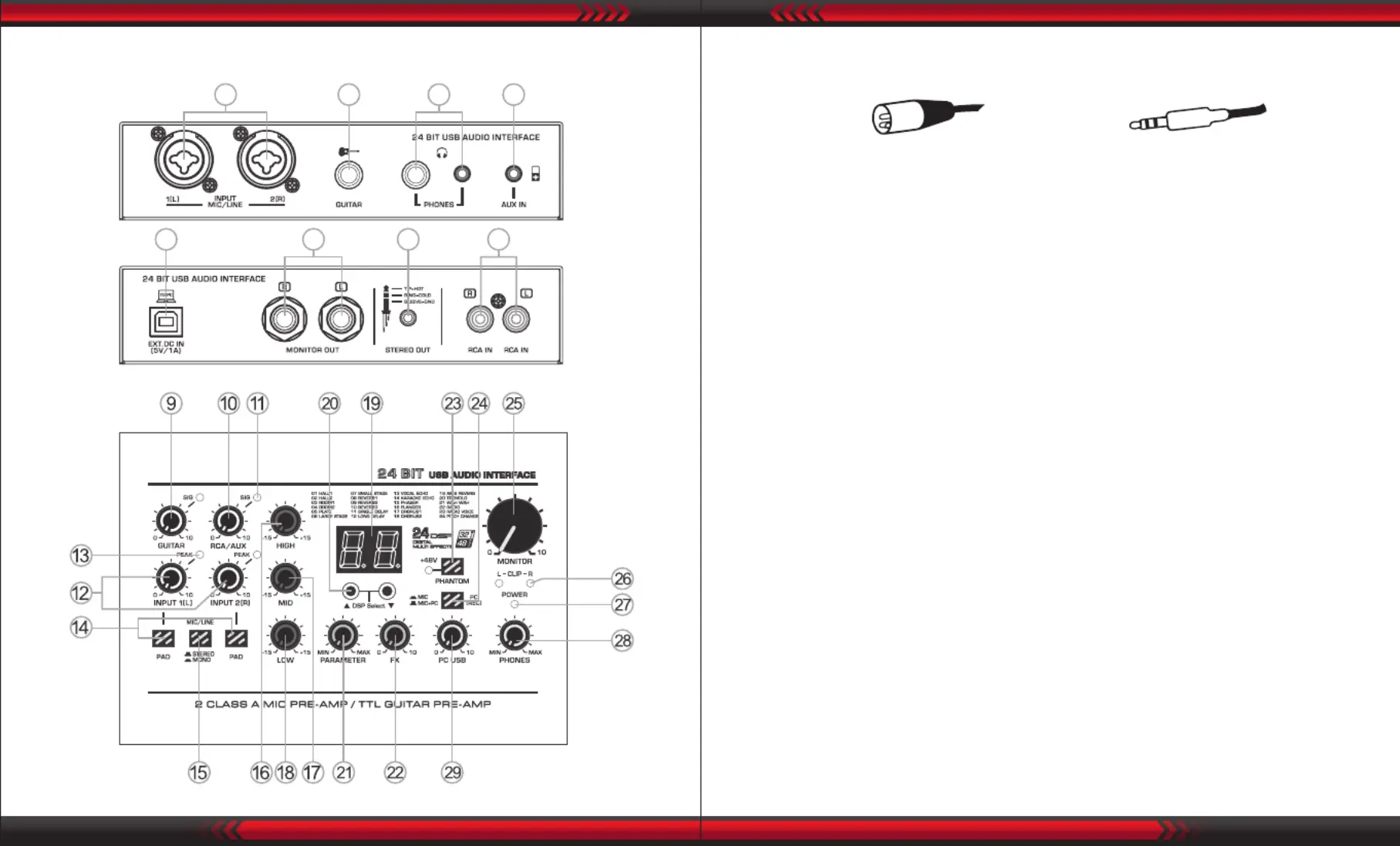

CONTROLS AND FUNCTIONS
1. Input jack, connect the microphone or musical instrument to the device. [MIC/LINE]
The sockets are supporting both XLR and UNBALANCED 1/4" PLUG.
2. [GUITAR] Input jack, for connecting to an instrument, such as electric guitar or electric bass.
3. [AUX IN] 3.5mm auxiliary input jack, exible connectivity for a variety of external devices.
The playing from AUX IN, the volume can be controlled by external audio devices or
MONITOR knob. The input signal from AUX IN can be recorded to PC only when the [PC REC]
switch is bounce up on MIC+PC recording state. The recording volume is controlled by
external audio devices only, without MONOITOR knob control.
4. Stereo input jack, allow for connection of TAPE or CD player and so on.[RCA IN]
5. [PHONES] Output jack, two kinds of jacks (6.35mm and 3.5mm jacks) for optional, connect
with earphones, they are supporting stereo phone plug.
6. 3.5mm auxiliary output jack.[STEREO OUT]
7. Output, connect the active speaker or amplier.[MONITOR OUT]
8. Terminal, for data transferring, recording and power supplying. When connect [USB 2.0]
with computer, it supply power to mixer, and the audio data can be sent between mixer
and computer. It is supporting stereo play and record with 24 Bit, 48kHz sampling rate.
If using power socket or power bank for power supplying, it must meet the following
requirements: Output voltage: 4.8V to 5.2V
Output current: 1A or even more
9. [GUITAR] Controller, control the input level of guitar channel, adjust to balance the volume.
10. Controller, control the input level of RCA and AUX inputs, adjust to balance [RCA/AUX]
the volume.
11. Signal indicator, the brightness will change with the intensity of the signal input.[SIG]
12. [INPUT 1-2 L-R] Controller, control the input level of MIC/LINE channels, adjust to balance
the volume.
13. [PEAK] LED, it will light up when the input signal is too high. When the LED light will keep
ashing, please rotate the [INPUT] Controller counterclockwise to turn down the volume.
14. [PAD] Button, it will attenuate the sound input to the device when turn on this switch.
You can turn on the switch if you hear the distortion or LED indicator light is on.[PEAK]
15. [MIC/LINE] Converting switch:
When it is bounce up, it is for STEREO input, connect the MIC/LINE inputs, 1(L) is a.
channel L, 2(R) is channel R, compose to the stereo signal.
1 2 5 3
8 7 6 4
XLR Phone
