Oldal 1/16

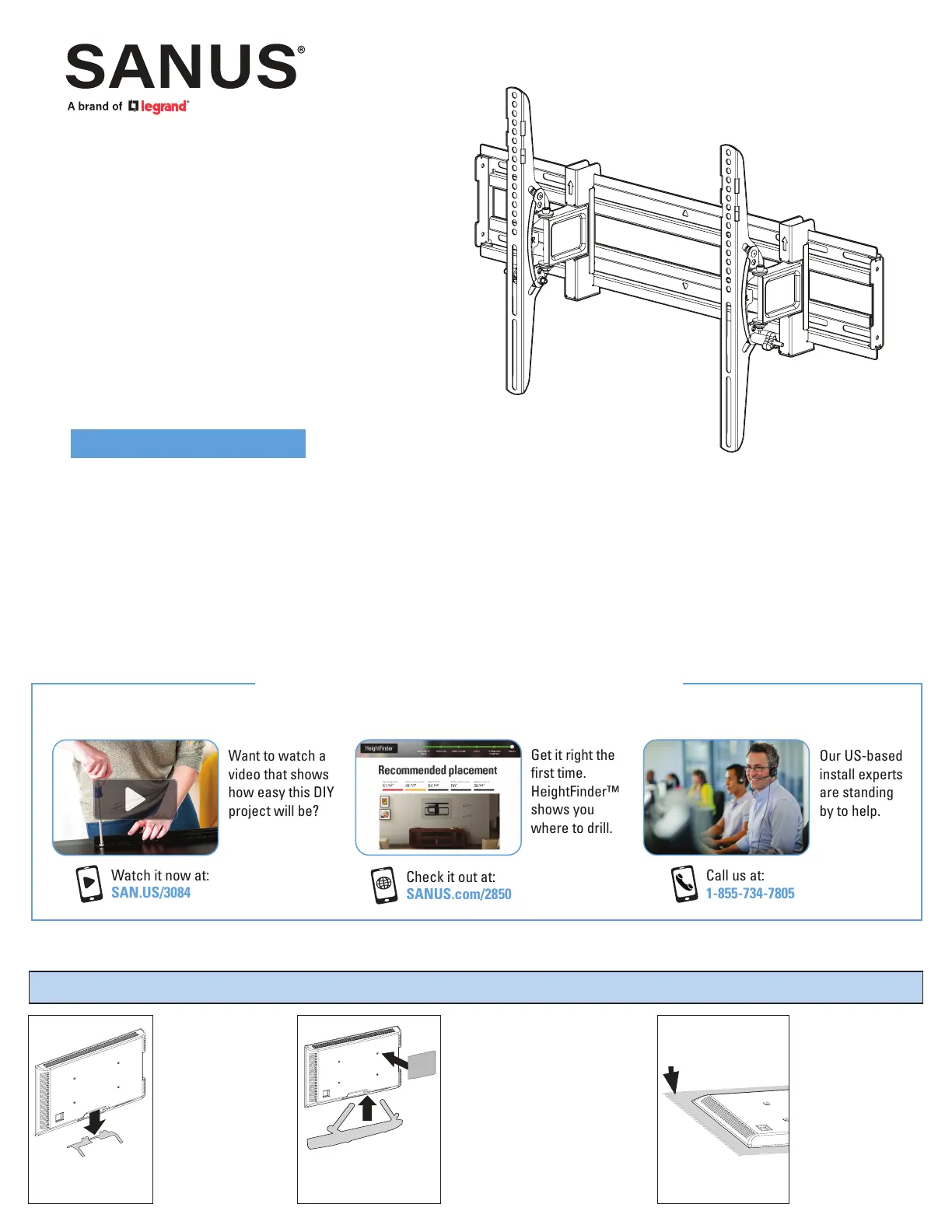

LLT

INSTRUCTION MANUAL

BEFORE YOU BEGIN

Remove the

stand

from your TV —

if attached.

Install any accessories

you may have purchased, if they

requireTV removal prior to assembly.

Note that the TV is removable for

future accessory purchases.

Protect the face

of your TV when

laying it down for

installation.

WE’RE HERE TO HELP

Para Español ver página 12

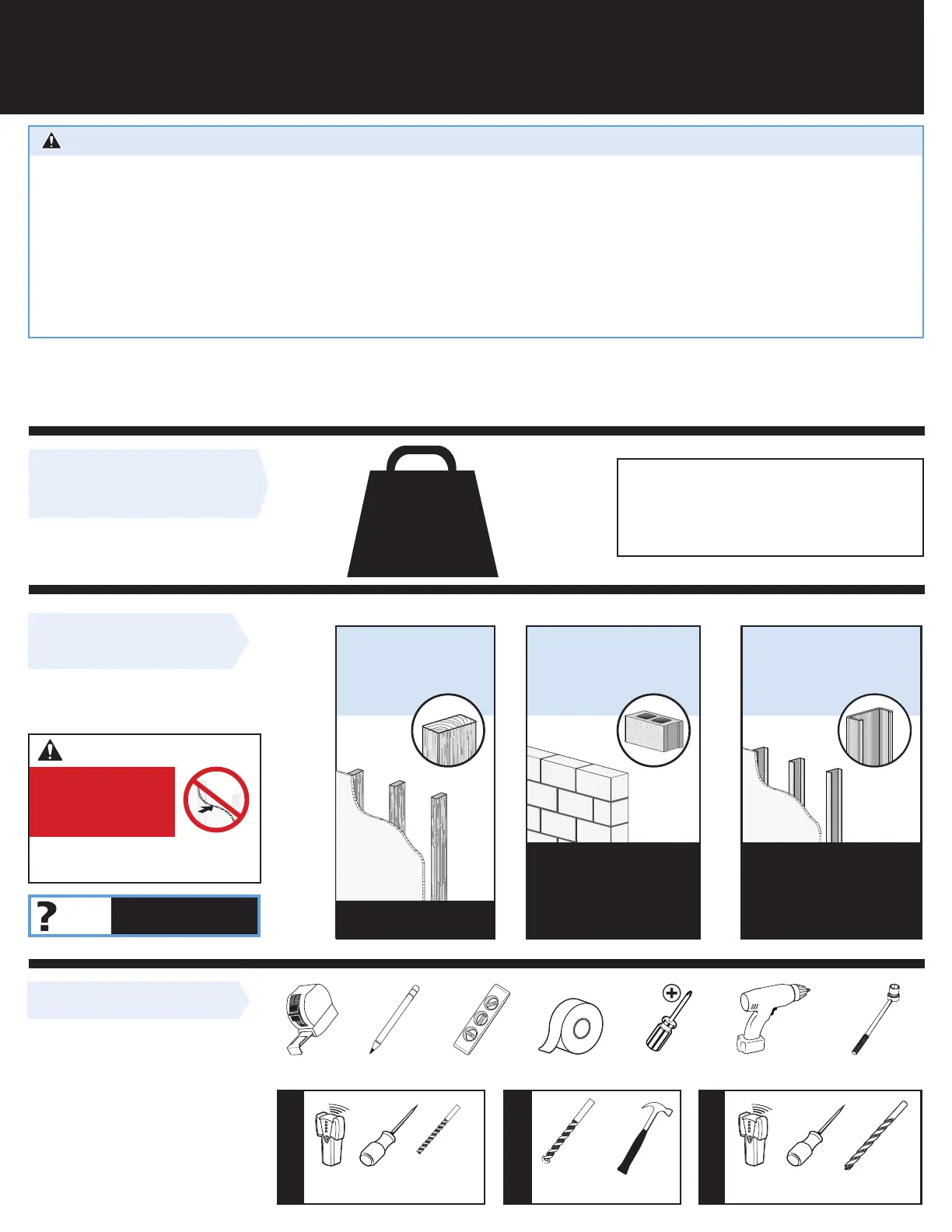

IMPORTANT SAFETY INSTRUCTIONS

– PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed ONLY to be installed into wood studs, solid concrete* or concrete block*, and steel studs*,

— DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV .

*For information on how to use this product with concrete or steel stud walls contact Customer Service and ask about the mounting kit.

●This product is designed for INDOOR USE ONLY

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

TV Weight Limit

(including accessories)

DO NOT EXCEED

Tools Needed

Wall

Construction

ONLY install on these

acceptable wall types.

Pencil Level Tape Screwdriver

Tape Measure Electric Drill Socket Wrench

Call Customer Service

Unsure

If your TV (plus accessories) weighs MORE,

this mount is NOT compatible.

Visit SANUS.com or call customer service to

ﬁnd a compatible mount.

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service.

110 lb

(49.8 kg)

Wood Stud Install

Steel Stud Install

Concrete Install

Awl Awl

Stud

Finder Stud

Finder

7/32 in.

(5.5 mm)

Wood

1/2 in.

(13 mm)

Steel

Drill Bit Drill BitHammerDrill Bit

3/8 in.

(10 mm)

Concrete

1/2 in.

(13 mm)

Drywall alone will NOT hold

the weight of your TV

CAUTION:

DO NOT

install in

drywall alone

steel studs

wood studs Solid concrete

or concrete

block

ACCEPTABLE

Steel stud kit #SSMK1 is

required [NOT INCLUDED]

Call Customer Service

Concrete kit #CMK1 is

required [NOT INCLUDED]

Call Customer Service

ACCEPTABLEACCEPTABLE

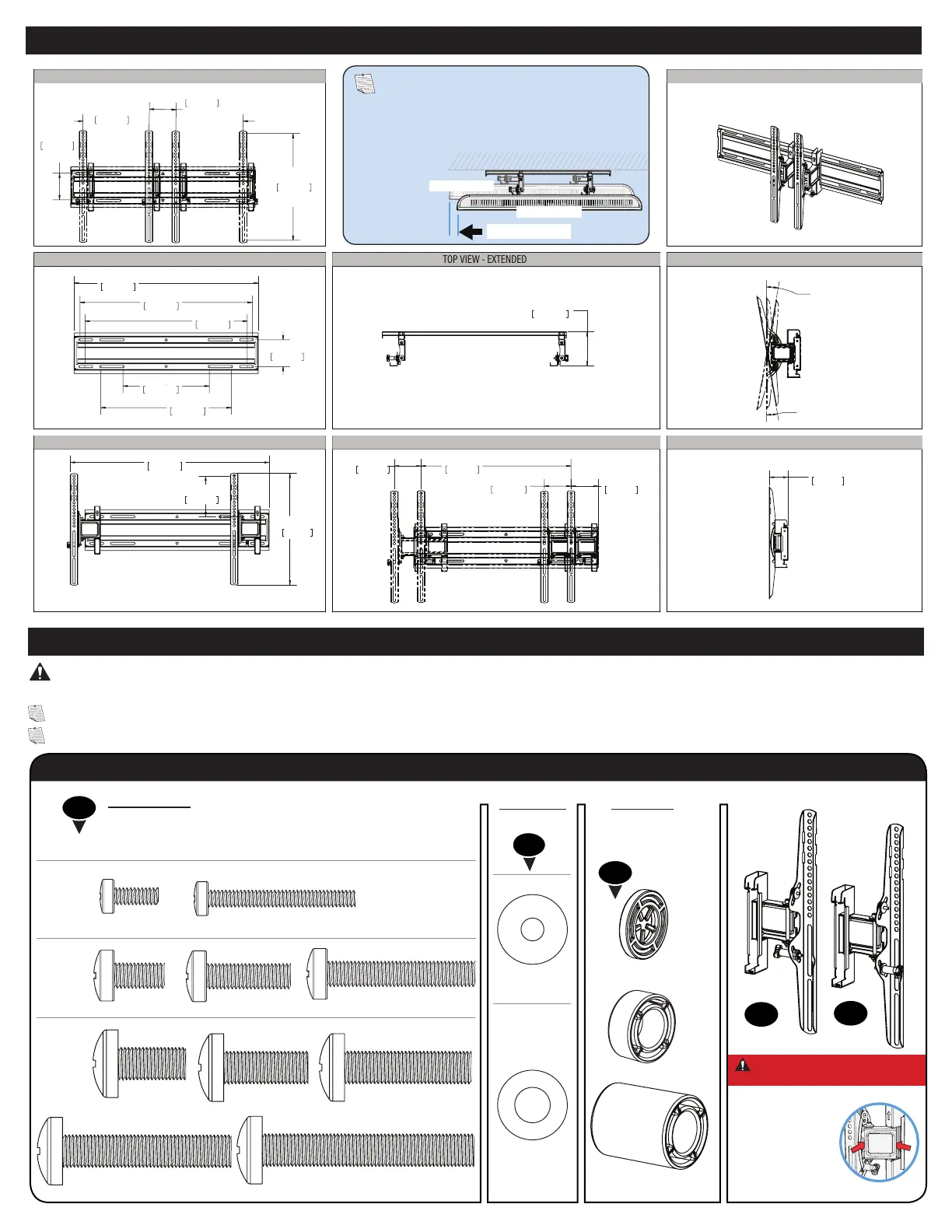

Dimensions

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts

are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

Supplied Parts and Hardware

2.5mm

22mm

5mm

M8 x 20mm

M6 x 20mmM6 x 12mm

M4 x 12mm

M6 x 35mm

M4 x 35mm

M8 x 16mm M8x30 mm

M8 x 40mm M8 x 50mm

Parts and Hardware for STEP 1

TV Brackets

TV Screws

(qty. 4 each)

[Only one size ﬁts your TV]

Washers

(qty. 4 each)

Spacers

(qty. 4 each)

[If necessary]

M4 M4

M6/M8

CAUTION: Avoid potential

personal injury or property damage!

The TV brackets

contain potential

pinch points during

operation.

Keep fingers away

from pinch points

when retracting the

TV. (arrows)

(qty. 1)

NOTE: Not all hardware included will be used.

NOTE: Illustrations may vary slightly from your actual parts.

23.6in

600mm

MAX VESA

15.7in

400mm

MAX VESA

3.9in

100mm

MIN VESA

3.94in

100mm

MIN VESA

27.2in

690mm

19.3in

489mm

23.9in

608mm

4.0in

100mm

12.8in

324mm

25.4in

645mm

29.3in

745mm

16.5in

419mm

6.0in

152mm

2.8in

70mm

10deg

12 deg

5.1in

128mm

3.94in

100mm

4.0in

101mm

22.1in

562mm

3.94in

100mm

TV INTERFACE

WALL PLATE

3-D

SIDE VIEW - EXTENDED

SIDE VIEW RETRACTED

FRONT VIEW - RETRACTED

FULLY ASSEMBLED MOUNT

NOTE: During operation, your TV shifts

2.28 in. (58 mm) when retracted or extended.

To help fine-tune the placement of your TV,

the wall plate includes slotted holes and the

TV brackets

can be located

anywhere

along the

wall plate. EXTENDED

RETRACTED

2.28 in. (58 mm)
