Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

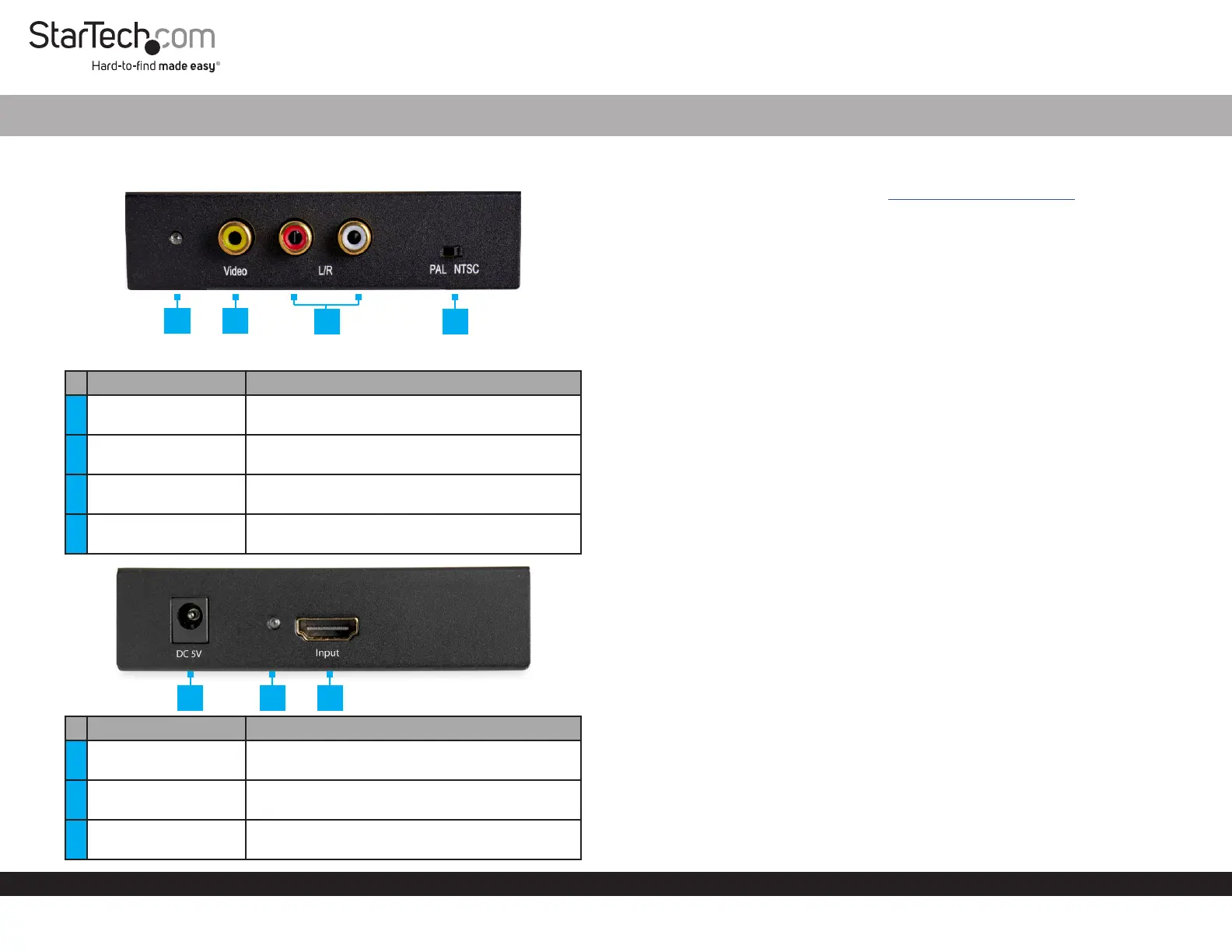

Product Diagram (HD2VID2)

Port/LEDFunction

1Composite LED

• Indicates that video is connected using the

HDMI Port.

2

Composite Video Port

(Yellow)

• Used to connect a Display Device to the

Converter.

3

Stereo Port L/R (Red/

White)

• Used to connect an Audio Device to the

Converter.

4PAL/NTSC Switch

• Used to toggle between PAL and NTSC video

modes.

Port/LEDFunction

5DC/5V Port

• Used with the Universal Power Adapter to

power the Converter.

6Power LED

• Indicates that the Converter is receiving

power.

7HDMI Input Port

• Used to connect a Video Source Device to the

Converter.

HDMI® to Composite Video Converter with Audio

1

Requirements

For the latest requirements, please visit www.startech.com/HD2VID2.

Note: All Required items are sold separately.

• HDMI Enabled Video Source x 1

• Composite Video Enabled Display Device (e.g. Monitor, Projector, HDTV, etc.) x 1

• HDMI Cable x 1

• RCA Composite Video Cable x 1

• Phillips Head Screwdriver x 1

• Composite Audio Cable x 1

Installation

Note: Power o all devices before connecting the Converter.

1. Connect an HDMI Cable to the HDMI Port on the Converter and connect the other

end of the HDMI Cable to the HDMI port on the Video Source Device.

2. Connect an RCA Composite Cable (sold separately) to the Composite Video Port

on the Converter and connect the other end of the RCA Composite Cable to the

composite video port on the Display Device.

3. If HDMI audio is being used, connect Composite Audio Cables (sold separately)

to the Stereo Port L and R Ports on the Converter and the other end of the

Composite Audio Cables to the Speakers/Audio Receiver.

4. Connect the Universal Power Adapter to the DC/5V Port on the Converter and

other end to an AC Electrical Outlet. The Power LED will light up solid.

5. Power on the Video Display Device and the HDMI Video Source.

6. Slide the PAL/NTSC Switch to adjust the video mode to either PAL or NTSC.

Connecting a Regional Power Clip

1. Select a Regional Power Clip.

2. Align the two Side Tabs on the Regional Power Clip with the notches on the face

of the Universal Power Adapter.

3. Slide the Regional Power Clip down until you hear a click, connecting the contact

prongs on the Regional Power Clip with the contact prongs on the Universal

Power Adapter.

2

4

3

56

7
