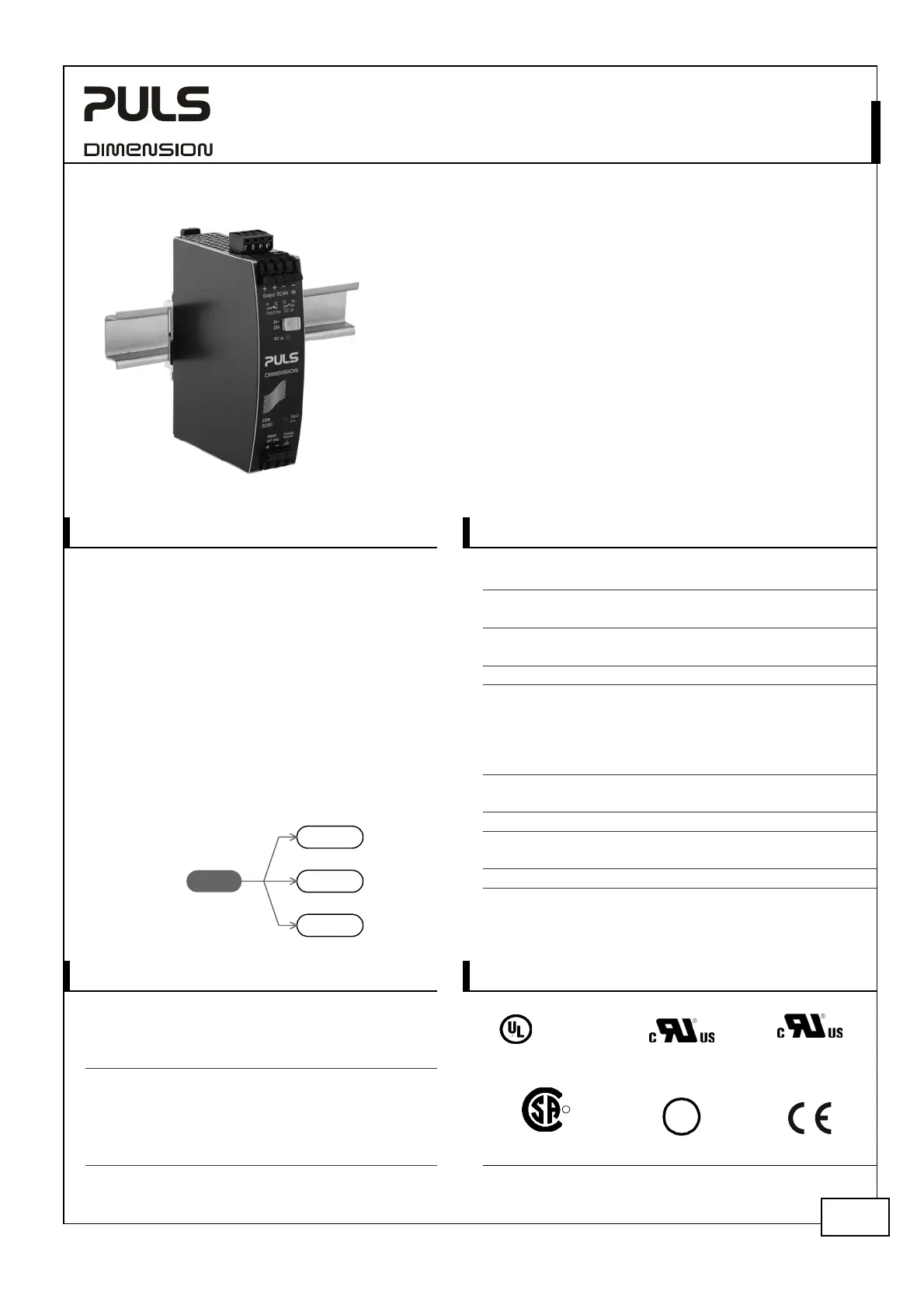

Oldal 1/22
CD5.241, CD5.241-S1
CD–Series
DC/DC Converter; 24V, 5A
Jan. 08 / Rev. 1.1 DS-CD5.241-EN / All parameters are specified at 24V, 5A and 24Vdc input at 25°C ambient unless otherwise noted.
www.pulspower.com Phone +49 89 9278 0 Germany
1/22
DC/DC CONVERTER
■ Wide Range DC Input (18-32.4Vdc)
■ Isolated 24Vdc Output
■ Efficiency up to 90.3%
■ Width only 32mm
■ 20% Output Power Reserves
■ Full Output Power Between -25°C and +60°C
■ Soft Start Function Included
■ Minimal Inrush Current Surge
■ Reverse Input Polarity Protection
■ DC-OK and Input-low Relay Contact (CD5.241-S1)
■ 3 Year Warranty
1. GENERAL DESCRIPTION
2. SHORT-FORM DATA
Output voltage DC 24V
Adjustment range 23 - 28V
Output current
5 – 4.3A
Ambient <60°C
6 – 5.1A
Ambient <45°C
Output power 120W Ambient <60°C
144W Ambient <45°C
Output ripple < 50mVpp 20Hz to 20MHz
Input voltage DC 24V 18 to 32.4Vdc
(14 to 18Vdc
with derating)
Input current typ. 5.5A At 24Vdc input
Input Inrush current typ. 1.2A peak
Efficiency typ. 90.3% At 24Vdc input
Losses typ. 12.9W At 24Vdc input
Hold-up time typ. 6ms At 24Vdc input
Temperature range -25°C to +70°C Operational
Derating 3W/°C +60 to +70°C
Dimensions 32x124x102mm WxHxD
The Dimension CD5-series offer DIN-rail DC/DC
converters in the 120W output power range in a very
compact housing.
These DC/DC converters are allowed to run from a
battery, can also be used to refresh and stabilize the
24Vdc on the end of a long cable or to isolate
specific loads from the 24V bus voltage.
The CD5.241 includes all the essential basic functions
while the CD5.241-S1 is equipped with quick-connect
spring clamp terminals, a DC-OK-contact which
monitors the output and an input-low-relay-contact.
Both devices have a power reserve of 20% and this
extra power can be used continuously up to +45°C.
CD5.241
CD5.121
CD5.242
CD5.241-S1
Spring-clamp
terminals,
Input-low,
DC-OK
contacts
CD-Series
Related products
24V->24V
24V->24V
24V->12V
48V->24V
3. ORDER NUMBERS
4. MARKINGS
DC/DC
Converter
CD5.241
Standard unit
CD5.241-S1
Unit with signals and
spring-clamp terminals
Accessories ZM1.WALL Wall mount bracket
IND. CONT. EQ.
18WM
LISTED
UL 508
UL 60950-1
Class I Div 2,
pending
ZM11.SIDE Side mount bracket
YRM2.DIODE Redundancy module
YR2.DIODE Decoupling module
R
182790
CUS
pending
GL
Marine, pending
EMC, LVD
CD5.241, CD5.241-S1
CD–Series
DC/DC Converter; 24V, 5A
Jan. 08 / Rev. 1.1 DS-CD5.241-EN / All parameters are specified at 24V, 5A and 24Vdc input at 25°C ambient unless otherwise noted.
www.pulspower.com Phone +49 89 9278 0 Germany
2/22
INDEX PAGE
INDEX PAGE
1.
General Description ............................................1
2. Short-form Data ..................................................1
3. Order Numbers....................................................1
4. Markings..............................................................1
5. Input Voltage ......................................................3
6. Soft-start and Input Inrush Current Surge .........4
7. Output .................................................................5
8. Hold-up Time.......................................................6
9. Efficiency and Power Losses................................7
10. Functional Diagram.............................................8
11. Reliability.............................................................8
12. Front Side and User Elements.............................9
13. Terminals and Wiring..........................................9
14. DC-OK Relay Contact (CD5.241-S1) ..................10
15. Input-low Relay Contact (CD5.241-S1) .............10
16. EMC....................................................................11
17. Environment ......................................................12
18. Protection Features ...........................................12
19. Safety .................................................................13
20. Dielectric Strength ............................................13
21. Approvals...........................................................14
22. Fulfilled Standards............................................ 14
23. Used Substances ............................................... 14
24. Physical Dimensions and Weight..................... 15
25. Installation and Operation Instructions .......... 15
26. Accessory........................................................... 16
27. Application Notes............................................. 17
27.1. Peak Current Capability ......................... 17
27.2. Back-feeding Loads ................................ 17
27.3. Inductive and Capacitive Loads ............. 17
27.4. Output Circuit Breakers ......................... 18
27.5. Series Operation..................................... 19
27.6. Parallel Use to Increase Output Power . 19
27.7. Daisy Chaining of Outputs..................... 19
27.8. Parallel Use for 1+1 Redundancy........... 20
27.9. Charging of Batteries............................. 20
27.10. Requirements for the Supplying Source 21
27.11. External Input Protection....................... 21
27.12. Use in a Tightly Sealed Enclosure .......... 21
27.13. Mounting Orientations.......................... 22
INTENDED USE
The DC/DC converter shall only be installed and put into operation by qualified personnel.
This DC/DC converter is designed for installation in an enclosure and is intended for the general use, such as in
industrial control, office, communication, and instrumentation equipment. Do not use this device in aircraft, trains
and nuclear equipment, where malfunctioning of the DC/DC converter may cause severe personal injury or threaten
human life.
TERMINOLOGY AND ABREVIATIONS
PE and symbol PE is the abbreviation for Protective Earth and has the same meaning as the symbol .
Earth, Ground This document uses the term “earth” which is the same as the U.S. term “ground”.
T.b.d. To be defined, value or description will follow later.
DC 24V A figure displayed with the AC or DC before the value represents a nominal voltage with
standard tolerances included.
E.g.: DC 12V describes a 12V battery regardless whether it is full (13.7V) or flat (10V)
24Vac A figure with the unit (Vdc) at the end is a momentary figure without any additional
tolerances included.
DISCLAIMER
The information presented in this document is believed to be accurate and reliable and may change without notice.
Some parts of this unit are patent by PULS (US patent No 091662,063, Des. 424,529, …).
No part of this document may be reproduced or utilized in any form without permission in writing from PULS GmbH.
CD5.241, CD5.241-S1
CD–Series
DC/DC Converter; 24V, 5A
Jan. 08 / Rev. 1.1 DS-CD5.241-EN / All parameters are specified at 24V, 5A and 24Vdc input at 25°C ambient unless otherwise noted.
www.pulspower.com Phone +49 89 9278 0 Germany

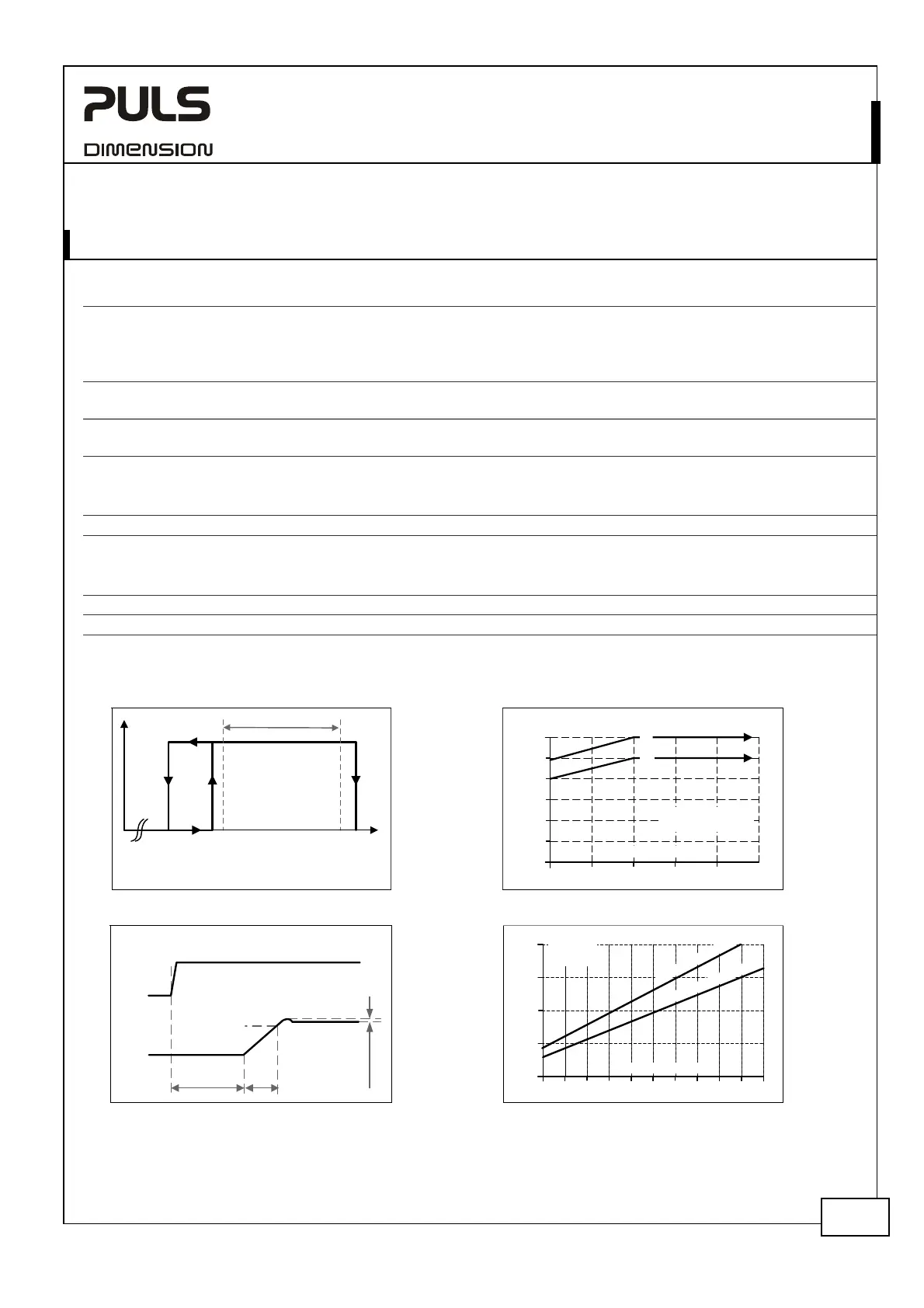

3/22
5. INPUT VOLTAGE
Input
nom. DC 24V
Input voltage range
nom. 18.0-32.4Vdc Continuous operation
14.0-18.0Vdc Max. 60 seconds or with de-rating see Fig. 5-2
max. 36.0Vdc Absolute maximum continuous input voltage with no
damage to the DC/DC converter.
Allowed voltage between input
and earth (ground)
max. 60Vdc or
42.4Vac
Allowed input ripple voltage
max. 5Vpp 47Hz-40kHz, the momentary input voltage must always be
within the specified limits.
Turn-on voltage typ. 17.5Vdc Steady-state value, see Fig. 5-1
Shut-down voltage typ. 14.0Vdc Steady-state value, see Fig. 5-1
typ. 35Vdc Steady-state value, see Fig. 5-1
Input current
typ. 5.5A At 24Vdc input and output 24V, 5A, see Fig. 5-4
Start-up delay typ.
650ms
See Fig. 5-3
Rise time typ. 80ms 0mF, 24V, constant current load 5A, see Fig. 5-3
typ. 150ms 5mF, 24V, constant current load 5A, see Fig. 5-3
Turn-on overshoot
max.
500mV
See Fig. 5-3
Input capacitance typ.
3 000µF
External capacitors on the input voltage bus are allowed without any limitations.
Fig. 5-1 Input voltage range
Fig. 5-2 Allowable output current below 18V
input voltage
Turn-on
17.5Vdc
V
IN
P
OUT
Shut-down
32.4Vdc
14.0Vdc
18.0Vdc
Rated input range
35.0Vdc
0
1
2
3
4
6A
14 16 18 20 24Vdc
Input Voltage
Output Current
5
22
(
a
)
(
b
)
(a) Ambient < 45°C
(b) Ambient < 60°C
Fig. 5-3 Turn-on behavior, definitions Fig. 5-4 Input current vs. output load
Start-up
delay
Rise
Time
Overshoot
- 5%
Output
Voltage
Intput
Voltage
6A
1
1.5 2 3
4
0
2
4
6
8A
5
Output Current
2.5
3.5
4.5
5.5
I
n
p
u
t
:
2
4
V
d
c
Input
Current,
typ.
I
n
p
u
t
:
1
8
V
d
c
