Oldal 1/8

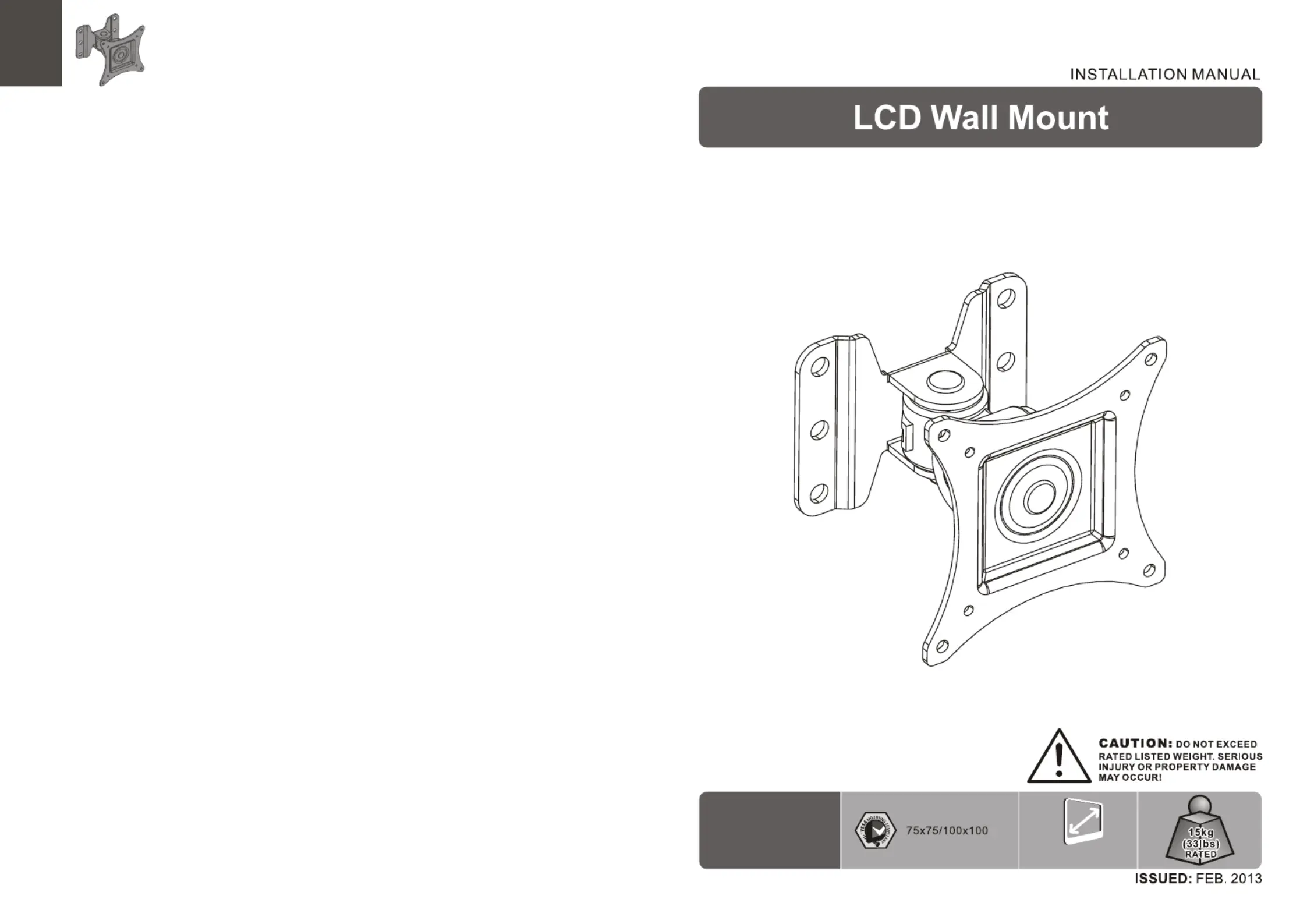

VZ-WM11
Display 10”~24”
21

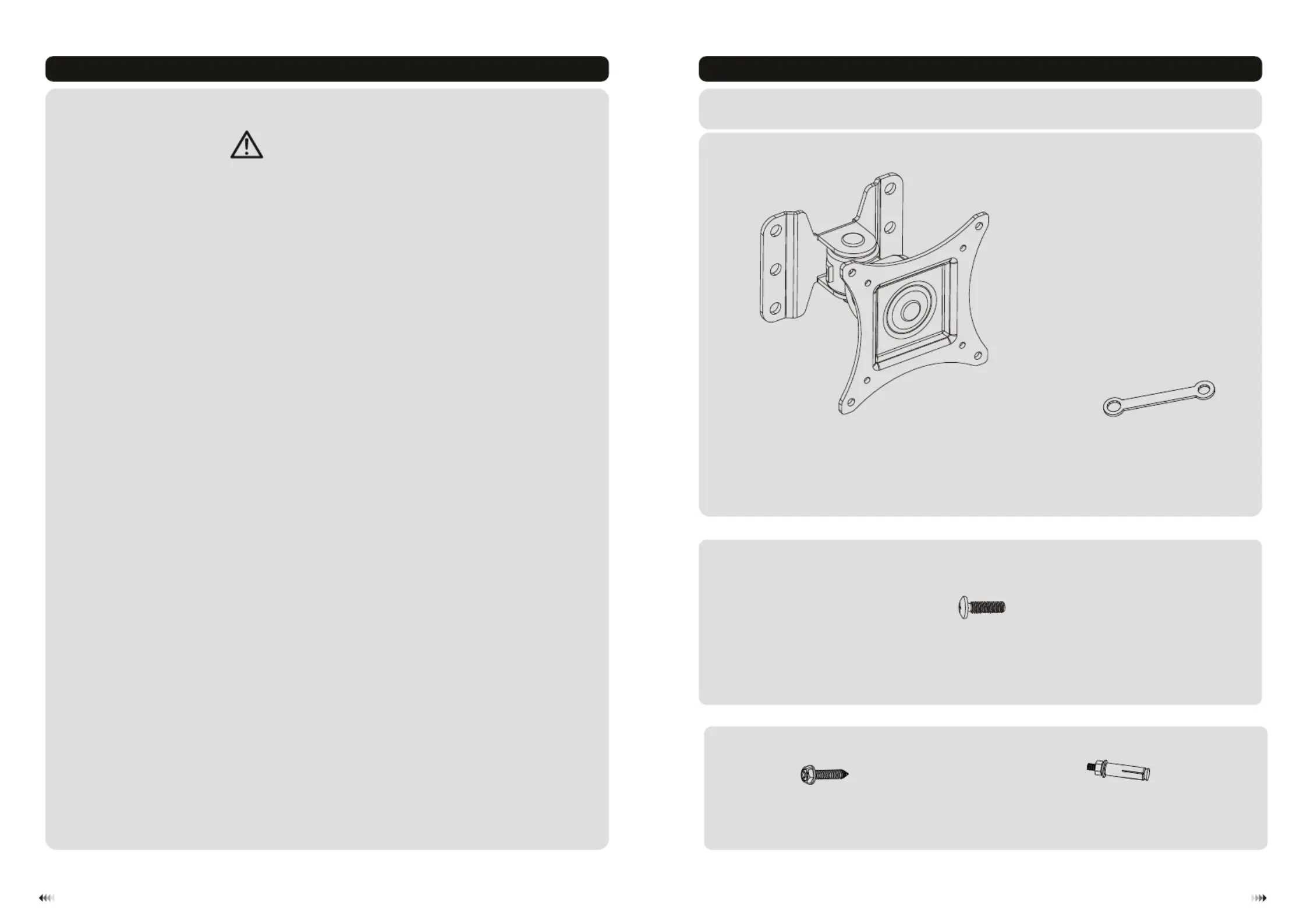

Component Checklist
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation.
If any parts are missing or faulty, telephone your local distributor for a replacement.
Package W
Package M
M6x30 (x2)
W-A
iron expansion bolt (x2)
W-B
wrench (x1)
B
wall mount (x1)
A
M4x14 (x4)
M-A
NOTE: Read the entire instruction manual before you start installation and assembly.
WARNING
• Do not begin the installation until you have read and understood all the instructions
and warnings contained in this installation sheet. If you have any questions
regarding any of the instructions or warnings, please contact your local distributor.
• This mounting bracket was designed to be installed and utilised ONLY as
specified in this manual. Improper installation of this product may cause damage
or serious injury.
• This product should only be installed by someone with good mechanical ability
who has basic building experience and fully understands this manual.
• Make sure that the supporting surface will safely support the combined weight of
the equipment and all attached hardware and components.
• If mounting to wood wall studs, make sure that mounting screws are anchored
into the center of the studs. The use of a stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position
the equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can cause damage
to the items, This greatly reduces their holding power.
• This product is intended for indoor use only. Using this product outdoors could
lead to product failure and personal injury.
4
3

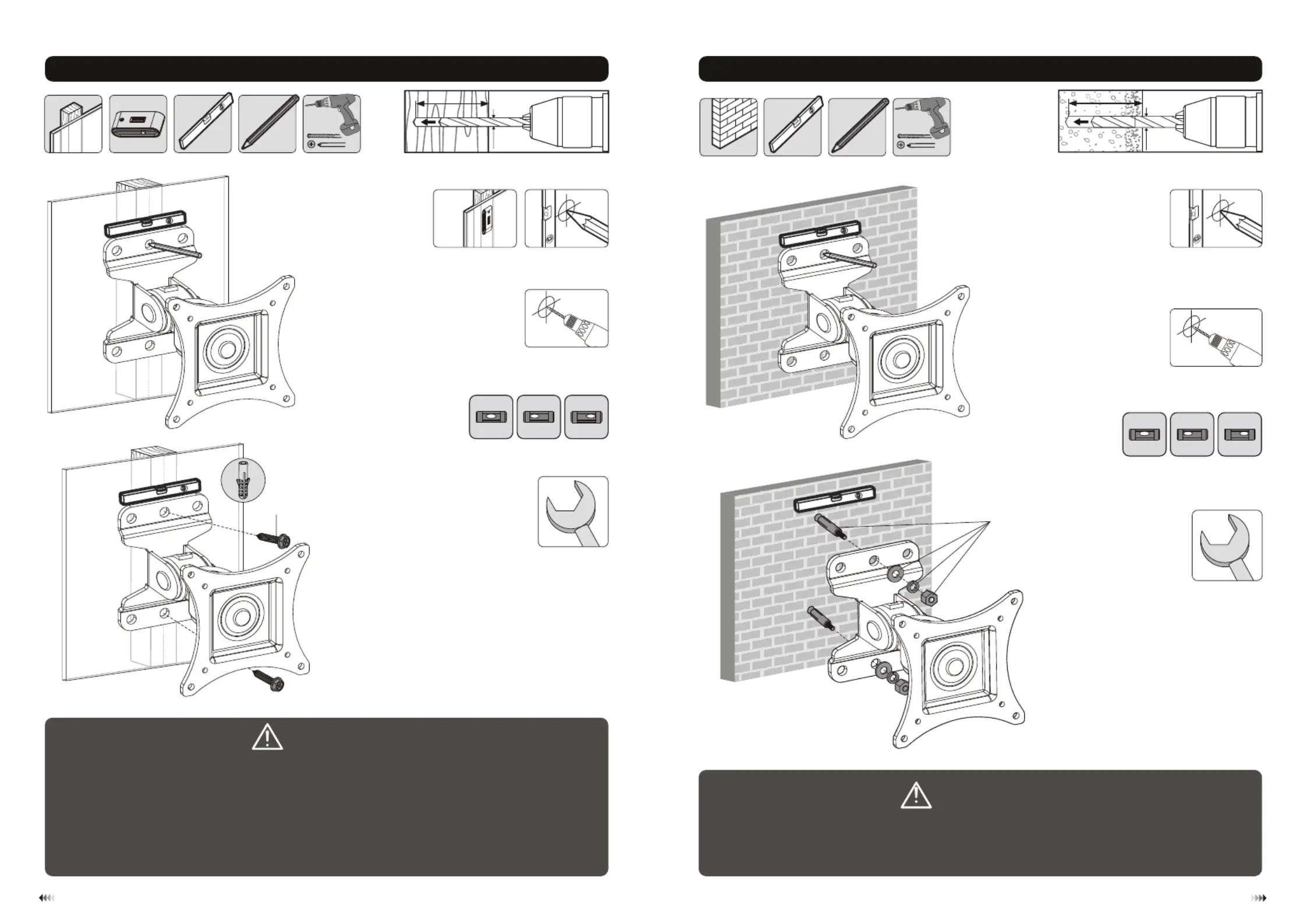

1a. For Wood Stud Wall Mounting
1b. For Solid Brick and Concrete Mounting
WARNING
• Make sure that mounting screws are anchored into the center of the studs. The use of a stud
finder is highly recommended.
• Installers are responsible to provide hardware for other types of mounting situations.
• Installers must verify that the supporting surface will safely support the combined weight of the
equipment and all attached hardware and components.
Installers must verify that the supporting surface will safely support the combined weight of
the equipment and all attached hardware and components.
WARNING
ø 4.5mm
(ø 3/16")
55mm
(2.2")
55mm
55mm
55mm
55mm
2
2
2
2.
.
.
.2
2
2
2"
"
"
"
(
(
(
()
)
)
)
30mm
(1.2")
60mm
(2.4")
60mm
60mm
60mm
60mm
2
2
2
2.
.
.
.4
4
4
4"
"
"
"
(
(
(
()
)
)
)
60mm
(2.4")
ø 10mm
(ø 3/8")
W-A
X X
√
1
2
Drill pilot holes
3
Find and mark the exact
location of mounting holes
X
X
X
X
X
X X
√
Drill pilot holes
1
2
Mark the exact
location of
mounting holes
Screw the wall
mount onto
the wall
Screw the wall
mount onto
the wall
W-B
