QUICK START GUIDE

VARIA-808” Touch Panel

Overview

AMX VARIA-80 (AMX-UTP0811) is an 8” professional-grade touch panel designed

to adapt to the unique needs of your environment by offering a selection of

personas. Varia personas are pre-loaded apps that define the entire panel

experience.

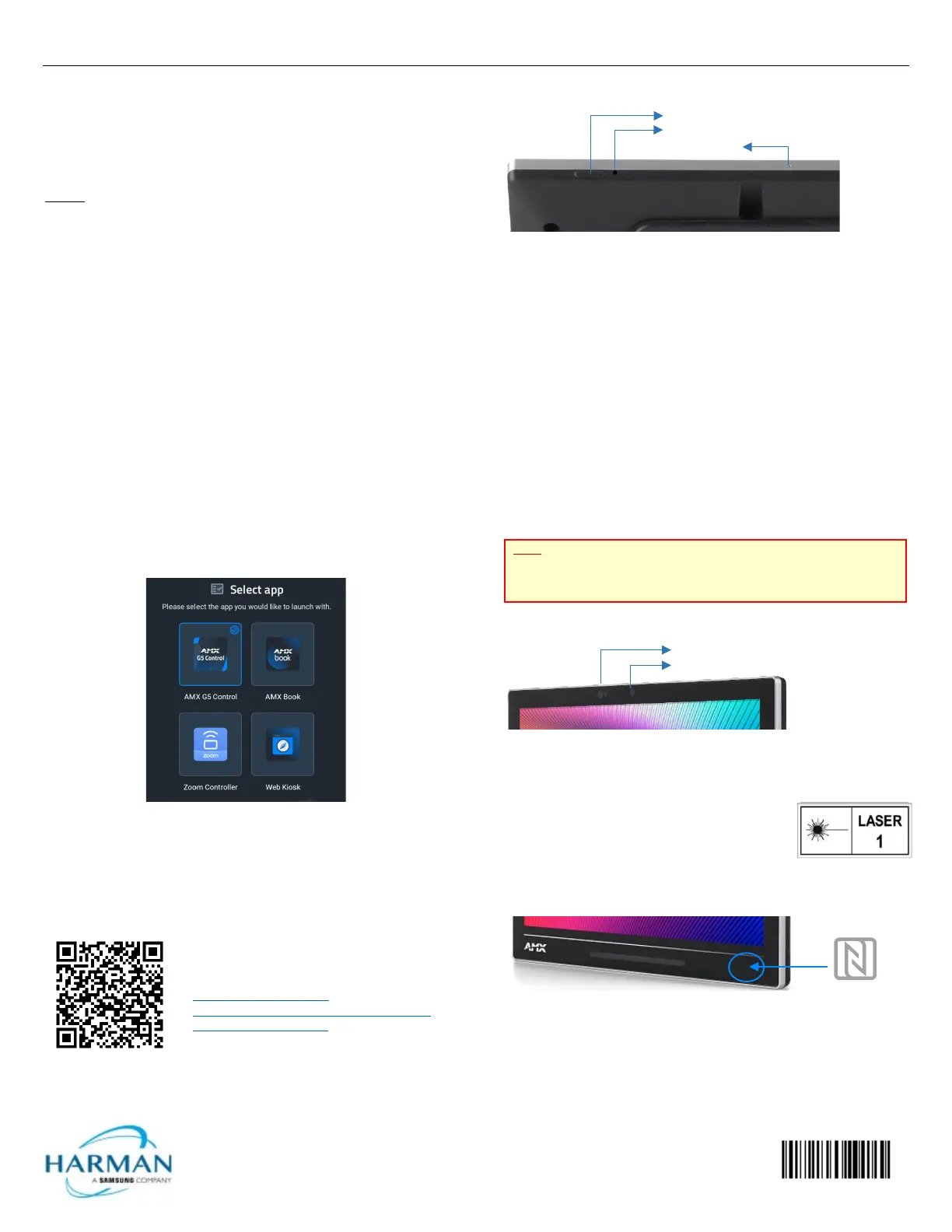

Microphones

Settings Button

Function Button

Side LED LAN/POE

USB

Speakers

FIG. 1AMX VARIA-80 Touch Panel

Product Specifications

VARIA-80 SPECIFICATIONS

Dimensions (HWD)

5 7⁄8” x 7 15⁄16” x 7⁄8”

(148.9 mm x 201.2 mm x 21.7 mm)

Product Weight

1.17 lb (532 g)

Power Consumption

PoE, 802.3af, 15.4 watt

External Power

Supply Required

Optimal performance requires use of one of the

following AMX PoE power supplies (not included):

•PS-POE-AF-TC, PoE Injector, 802.3AF

Compliant (FG423-83)

•PS-POE-AT-TC, PoE Injector, 802.3AT

Compliant (FG423-84)

Certifications &

Compliance

•UL

•CE

•CB

•FCC Class B (-5dB)

Environmental

Operating Temperature

•0°C - 40° C (32°F – 104°F)

•5% - 85% Humidity

Storage Temperature

•-20°C – 60° C (4°F – 140°F)

•5% - 90% Humidity

Included Accessories

•Mounting Plate

•Adhesive Pad

•Set Screw

•Installation Template

VARIA-80 Installation

Variacan be surface-mounted onto a wall, glass or other smooth surface, or

connect to any number of popular VESA mountswith the included mounting

bracket & hardware.

The VARIA-80 converts to a tabletop touch panel when used in conjunction with

a tabletop stand accessory (sold separately).

TABLETOP STAND ACCESSORIES

VARIA-ACS-80F

(AMX-UMT-0801)

AMX Varia Fixed Tabletop Stand

for VARIA-80

VARIA-ACS-810A

(AMX-UMT-8111)

AMX Varia Angle-Select Tabletop Stand

for VARIA-80, VARIA-100, & VARIA-100N

Power Over Ethernet

Poweris supplied via Power Over Ethernet (PoE), utilizing an AMXcertified PoE

injector such as the PS-POE-AF-TC PoE Injector (FG423-83)or compatible

network switchwhich is classified as ES1 and PS2 output in accordance with

IEC/EN/UL 62368-1. Connect the incoming Ethernet cable to the RJ-45 port on

the VARIA-80.

Mounting Plate

The included mounting plate containsa 75x75VESAhole pattern,set screw,and

dedicated area for the included adhesive pad.

Set Screw

Adhesive Pad 75x75 VESA

FIG. 2Mounting Plate

STEP 1: Installation Prerequisites

Prior to touch panel installation, identify a proper installation surfacein

accordance with local laws and building codes.Ensure that your category cable

(networking cable) has access to the location.

STEP 2: Install the Mounting Plate

If installing on wall, mark your surface using the included installation template

forthe four (4) VESA holes and one(1) desired cable pass-thru location. Drill

holes as required and screw the mounting bracketonto the surface, using

appropriate hardware for the surface (ie. drywall, concrete, brick, etc.).

If installing on glass or other smooth surfaceusing the adhesive pad, first apply

the adhesive pad to the mounting bracket, only exposing oneside of the pad.

Then adhere the mounting bracket to the surfacewith the set screw hole facing

UP and the two tabs on the BOTTOM. Make sure it is a secure fit, but do not

apply too much pressure asglass may break.

STEP 3: Route Category Cable

Remove the touch panel’s lower rearcover by removing two (2) screws and then

sliding the cover off. Pressthe rectangularholes to push the coveraway from

you.

FIG. 3Lower Cover Holes

Plug in the networking cable and route it out one (1)of the three (3) available

openings in the lower cover: left, right, or bottom.Once fully seated, reattach

the lower rear cover.

Screw Location

Screw Location
