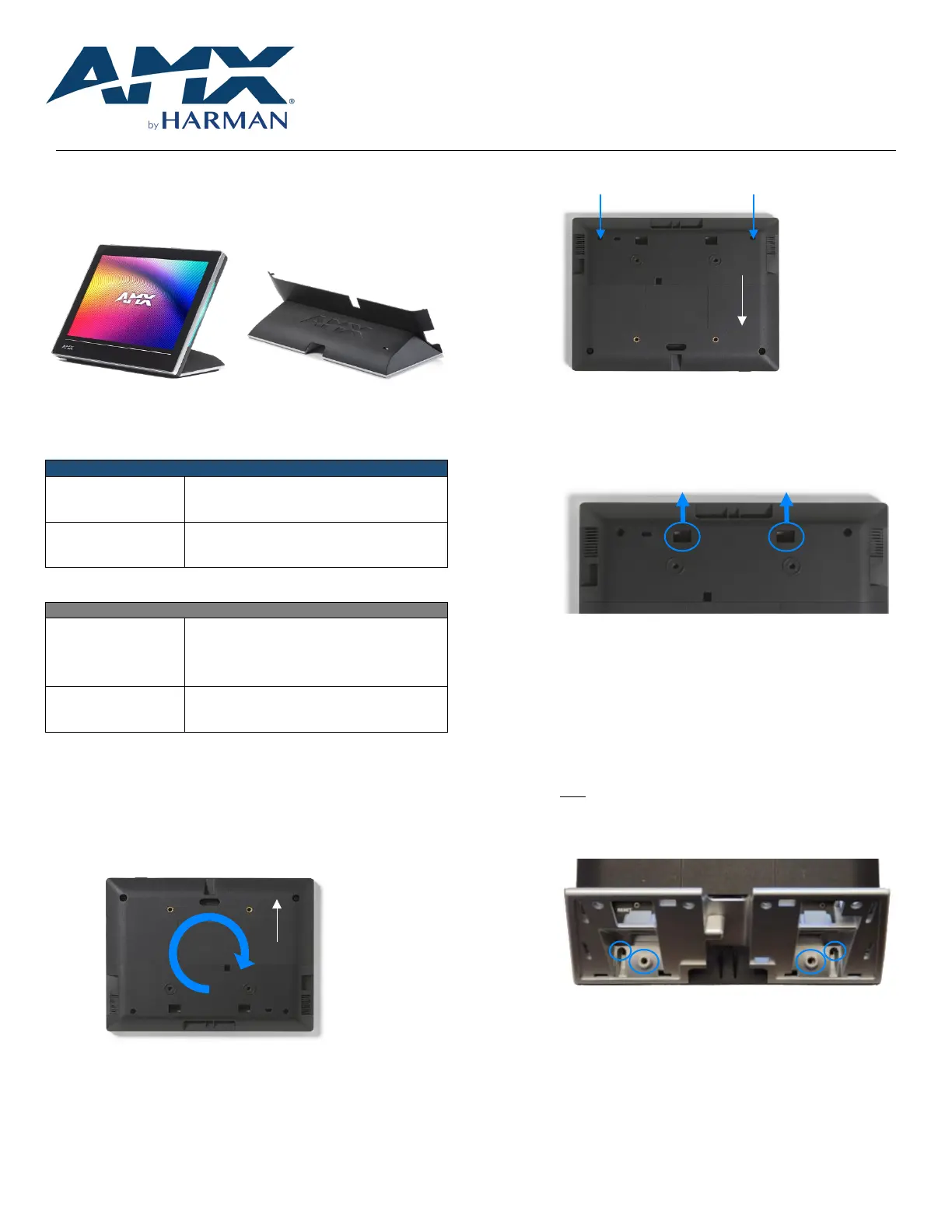

QUICK START GUIDE
VARIA-ACS-80F 8” Fixed Tabletop Stand
VARIA-ACS-100F
10.1” Fixed Tabletop Stand
Overview
The Varia Fixed Tabletop stands are designed for 8” VARIA-80 & 10.1” VARIA-100
Touch Panels, and give them a sturdy & stylish fixed-angle tabletop solution
that’s reminiscent of AMX’s Modero touch panel family.
FIG. 1 Varia Touch Panel on Fixed Tabletop Stand
Model Availability & Compatibility
FIXED TABLETOP STANDS
VARIA-ACS-80F
(AMX-UMT0801)
VARIA-80 Touch Panel (AMX-UTP0811)
VARIA-ACS-100F
(AMX-UMT1001)
VARIA-100 Touch Panel (AMX-UTP1011)
VARIA-100N Touch Panel (AMX-UTP1011N)
Other Models Available
ANGLE-SELECT TABLETOP STANDS
VARIA-ACS-810A
(AMX-UMT8111)
VARIA-80 Touch Panel (AMX-UTP0811)
VARIA-100 Touch Panel (AMX-UTP1011)
VARIA-100N Touch Panel (AMX-UTP1011N)
VARIA-ACS-150A
(AMX-UMT1511)
VARIA-150 Touch Panel (AMX-UTP1511)
VARIA-150N Touch Panel (AMX-UTP1511N)
Installation
Varia Fixed Tabletop Stands are easily installed with the supplied hardware and
a Philips-head screwdriver.
1. Place the panel face-down on a soft cloth, and orient the panel so
that the top of the touch panel is closest to you.
FIG. 2 Varia Touch Panel, rear
2. If they are installed, remove two screws from the lower back cover.
Screw Locations
FIG. 3 Rear cover screws, if installed
3. Place your thumbs on the rectangular access holes, and push the
lower cover away from you. The lower cover can then be placed
aside; it is not used with the Fixed Tabletop Stands.
FIG. 4 Rear cover removal
4. Rotate the panel back around so the bottom is closest to you.
5. On the tabletop stand, remove the black plastic cover by sliding it
away from the aluminum base. It is held on by magnets. Then
unscrew the rubber pads from the base.
6. Install the aluminum base on the back o the touch panel.
Note: In most circumstances, the networking cable can be routed in
after base installation. However, category cables with bulky strain
relief and/or hoods over the RJ-45 connector may need to be installed
before the aluminum base.
FIG.5 Fixed Tabletop Stand, aluminum base, underneath
7. Attach the base with the four (4) supplied screws.
Top
Top
QUICK START GUIDE
VARIA-ACS-80F 8” Fixed Tabletop Stand
VARIA-ACS-100F
10.1” Fixed Tabletop Stand
© 2023 HARMAN. All rights reserved. SmartScale, NetLink, Enova, AMX, AV FOR AN IT WORLD, and HARMAN, and their respective logos are registered
trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective
companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time. The
AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com .
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
1000374845 REV:D
Last Revised 2023-08-18
8. Attach the left & right rubber pads to the bottom of the base, and
then stand the unit upright to expose the screw holes. Attach with
the five (5) supplied screws.
Screw Locations
FIG. 6 Fixed Tabletop Stand, aluminum base, above
FIG. 7 Fixed Tabletop Stand, base assembled with rubber pads
Note: Certain screwdriver handles may interfere with the rear of
the touch panel, especially the VARIA-80, when attaching screws
that hold the rubber pads. Take care not to make contact.
FIG. 8 Varia Touch Panel, caution
9. Route your networking cable through the opening and plug into the
back of the panel. Then tuck your cable into the cable management
tabs attached to the rubber pad.
10. Align the black plastic cover with the tabs & slots on the aluminum
base. Slide the cover on, and it will seat automatically with its built-
in magnets.
Alignment Tab Locations
Magnets
FIG. 9 Fixed Tabletop Stand, black plastic cover
FIG. 10 Varia Touch Panels on Fixed Tabletop Stand, various angles
Removing
To remove the panel, follow the installation directions in reverse.
