INSTALLATION INSTRUCTIONS

108-FD4CH

Metra. The World’s Best Kits.

®

MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 12/8/22 INST108-FD4CH

Patent # 10,579,232

Attention!With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

KIT FEATURES

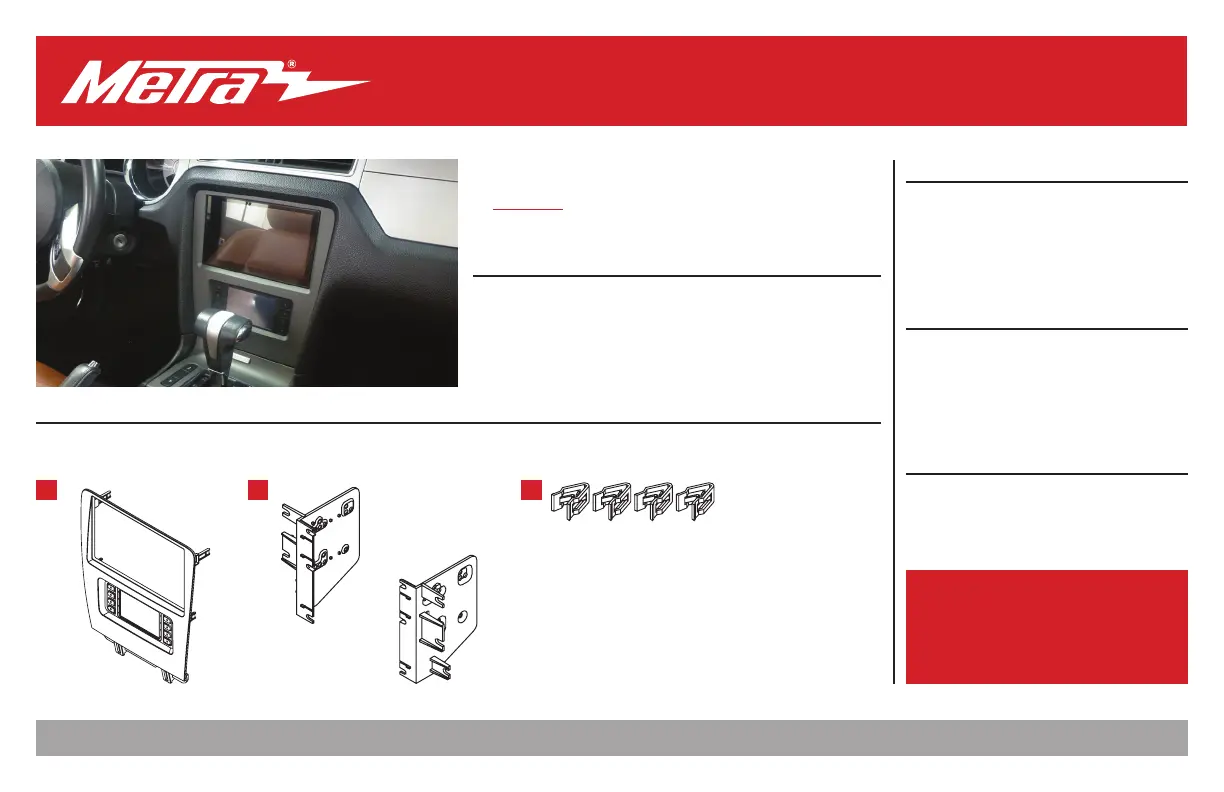

• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio

• Included interface for climate and steering wheel functions

• Touchscreen interface for climate, audio interfacing, and personalization features

• Painted charcoal to match the factory finish

KIT COMPONENTS

• A) Radio trim panel with touchscreen display • B) Radio brackets

• C) Panel clips (4) • D) Antenna adapter (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench

TABLE OF CONTENTS

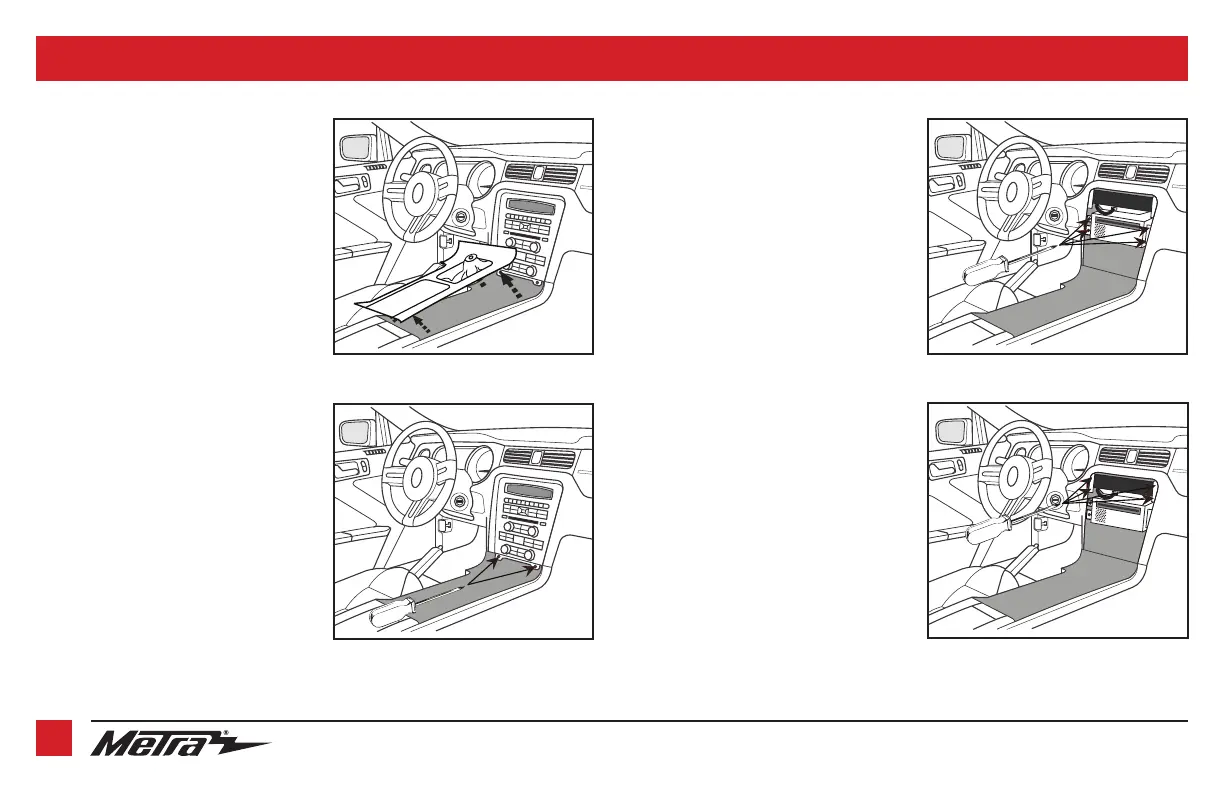

Dash Disassembly ..................................................2

Kit Assembly ..........................................................3

Axxess Interface Installation ............................4-13

Final Assembly .......................................................8

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built

into touchscreen

Antenna Adapter: Included with kit

Steering wheel control interface: Included with kit

ABC

Ford Mustang 2010-2014

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

specific applications
