INSTALLATION INSTRUCTIONS

99-5834CH

The World’s best kits.

®

MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 9/21/23 INST99-5834CH

Patent # 10,579,232

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions

included with the aftermarket radio.

KIT FEATURES

• ISO DDIN radio provision • ISO DIN radio provision w/pocket

• Touchscreen display for climate and personalization features

• Included interface for climate and steering wheel functions

• Painted charcoal • Integrated passenger airbag indicator

Note: This kit will not support the Pro Trailer Backup Assist™ feature, nor the

massaging seats.

Note: Factory B&O amplified sound systems require an additional interface,

sold separately. Part # AXA2B-FD1.

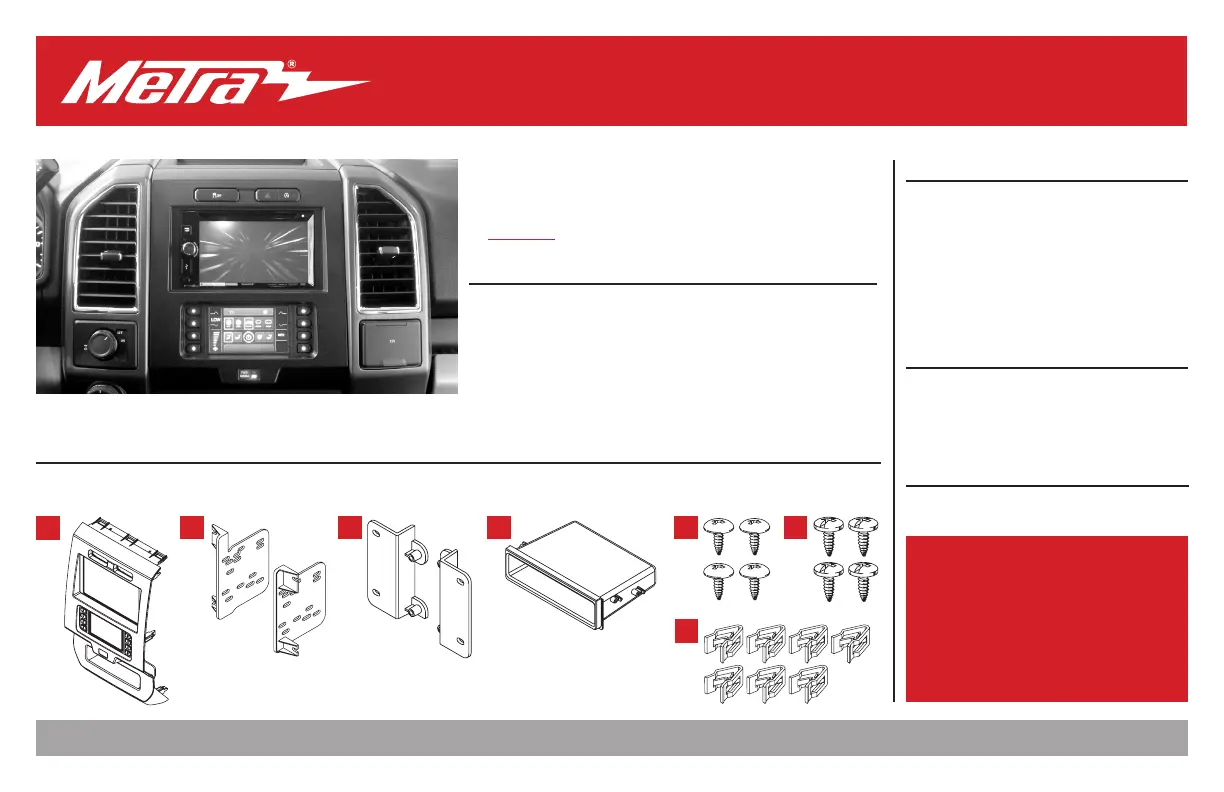

KIT COMPONENTS

• A) Radio trim panel with touchscreen display • B) Radio brackets • C) SYNC

®

module brackets • D) Pocket • E) (4) #8 x 3/8” Phillips truss-head screws

• F) (4) #4 x 1/2” Phillips pan-head screws • G) (7) Panel clips • H) HVAC interface and wiring harness (not shown) • I) Antenna adapter (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench • Cutting tool

TABLE OF CONTENTS

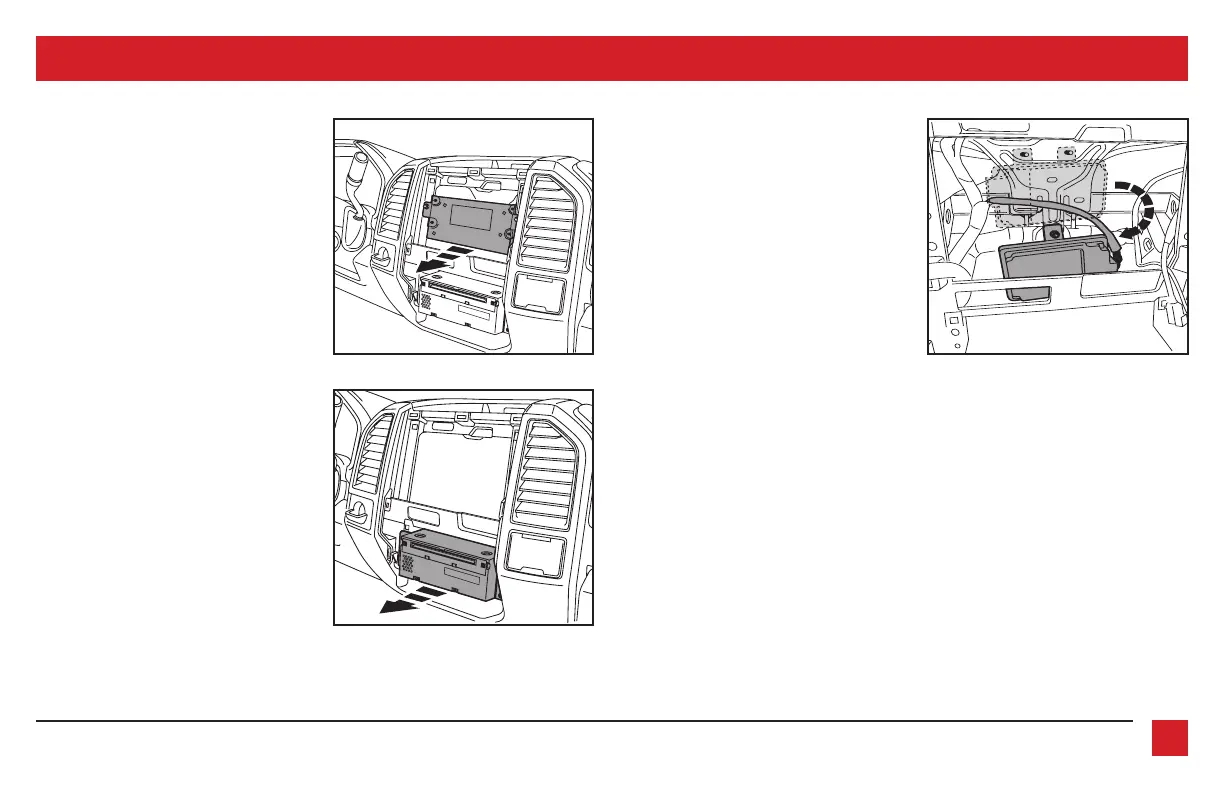

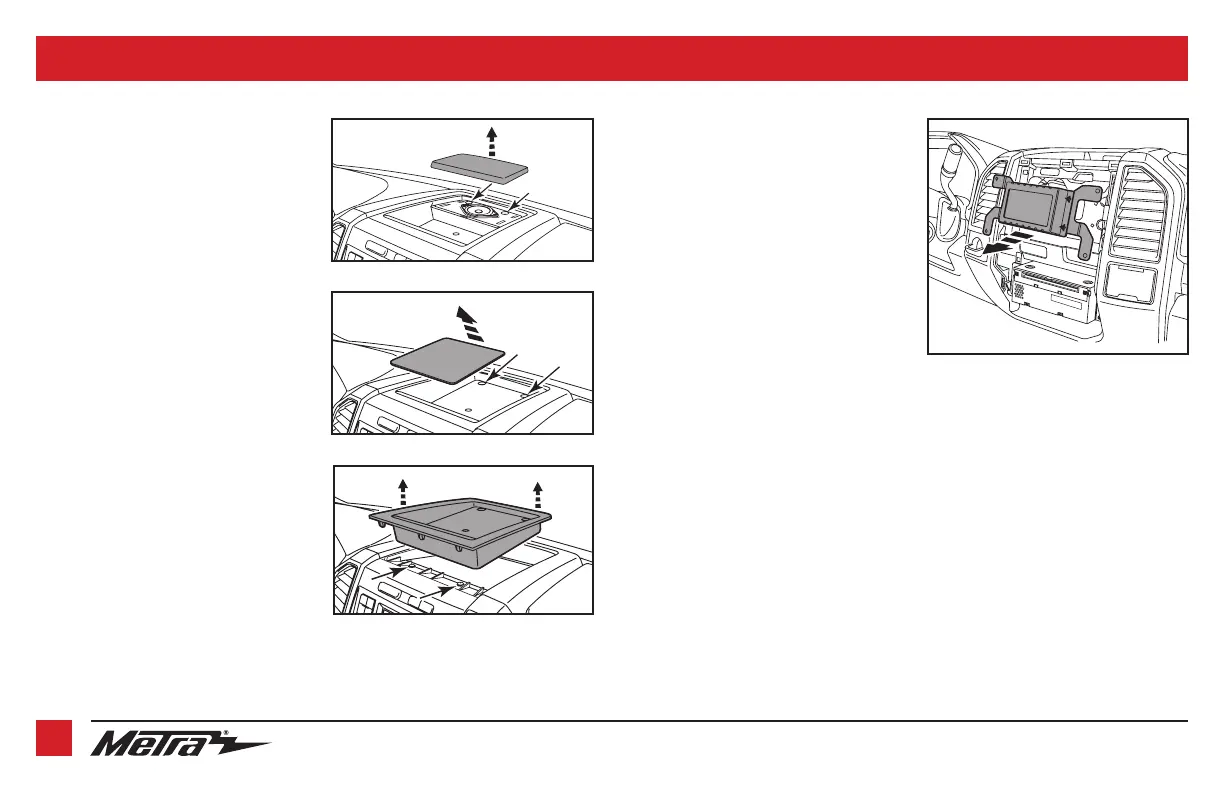

Dash Disassembly ..............................................2-3

Kit Preparation .......................................................4

Kit Assembly

– ISO DIN radio provision with pocket .................5

– ISO DDIN radio provision ...................................5

Axxess Interface Installation ...........................6-16

Final Assembly ......................................................11

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built into touchscreen

Antenna Adapter: Included with kit

USB Replacement Hubs: #AXFD-USB or #AXFD-USB2

(sold separately)

A

BCDEF

G

Ford F-150 2015-2020*

FordF250/350/450/550 2017-2022*

Visit MetraOnline.com for more detailed information about

the product and up-to-date vehicle specific applications

* With factory 4.2" screen or 8" screen.

Excluding any model with a 3 window

button setup at the top of the dash.
