Metra. The World’s Best Kits.

®

MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 2/19/24 INST99-5858CH

INSTALLATION INSTRUCTIONS

99-5858CH

Patent # 10,579,232

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Touchscreen display for climate and

most personalization features

• Included interface for climate and

steering wheel functions

• Integrated hazard switch and

passenger airbag indicator

• Painted charcoal to match the

factory finish

KIT FEATURES

KIT COMPONENTS

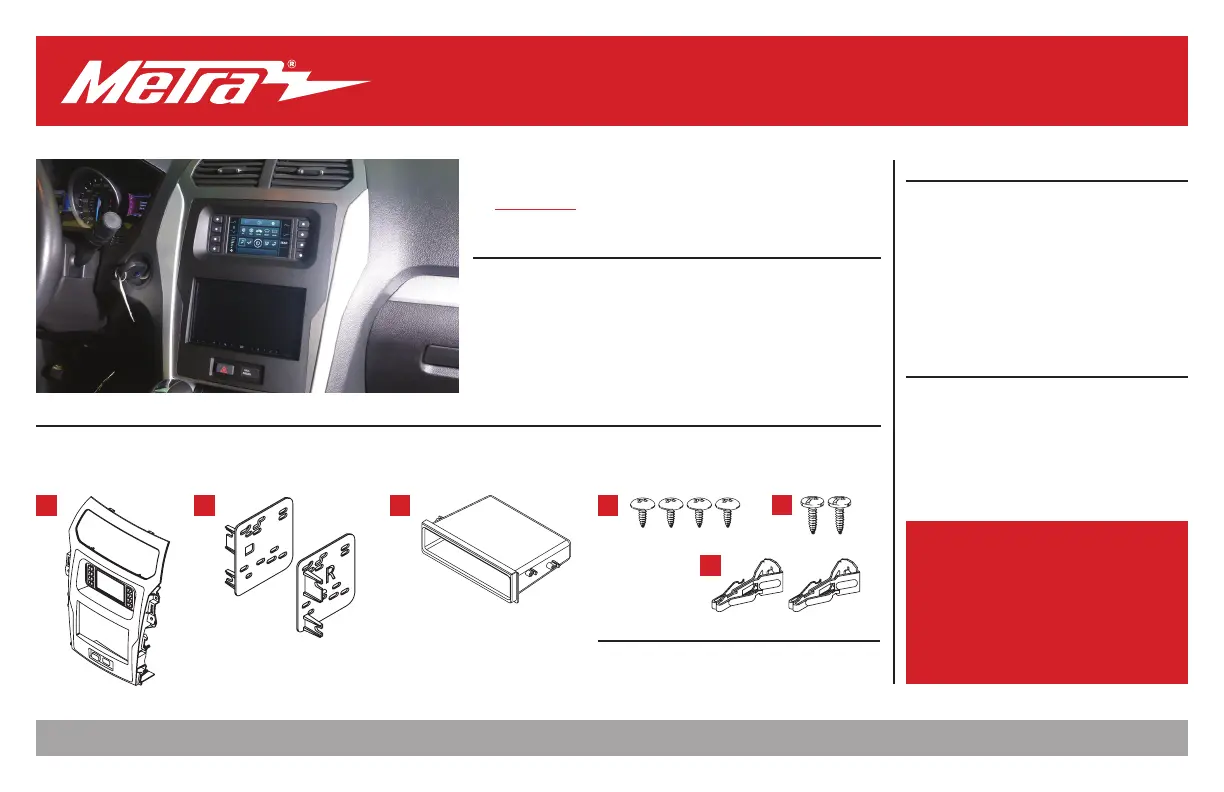

• A) Radio bezel (w/airbag light, hazard switch and touchscreen) • B) Radio brackets • C) Pocket • D) #8 x 3/8” Phillips screws (4)

• E) #4 x 1/2” Phillips screws (2) • F) Panel clips (2) • G) Axxess interface and wiring harness (not shown) • H) Antenna adapter (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” Socket wrench • Torx screwdriver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly

–ISO DIN radio provision with pocket ..................4

–ISO DDIN radio provision ....................................4

Final Assembly .......................................................9

Axxess Interface Installation ...........................5-14

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built into kit

• Antenna Adapter: Included with kit

• USB retention sold separately. AX-FDUSBAUX

for 2015-2019, AXFD-USB3 for 2011-2014.

Ford Explorer (with 8-inch touchscreen & Sony audio)2011-2019

ABCD

E

F

Visit MetraOnline.com for more detailed information about the product and up-to-date

vehicle specific applications

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product. Ensure

that all installation connections, especially the

air bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.
