INSTALLATION INSTRUCTIONS

99-6543HG

Metra. The World’s Best Kits.

®

MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 11/16/23 INST99-6543HG

ATTENTION: With the key out of the ignition, disconnect

the negative battery terminal before installing this

product. Ensure that all installation connections,

especially the air bag indicator lights, are plugged in

before reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Touchscreen display for climate and personalization features

• Painted high gloss black

Note:

Does not support surround camera (360) switching.

Note:

Does not support front dash control/visual of rear seat entertainment.

Interior car audio of rear seat entertainment is also lost.

KIT COMPONENTS

• A) Radio trim panel • B) Climate control panel with touchscreen display • C) Radio brackets • D) Pocket

• E) (4) #8 x 3/8" Phillips screws • F) (18) panel clips • G) Antenna adapter (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Cutting tool

TABLE OF CONTENTS

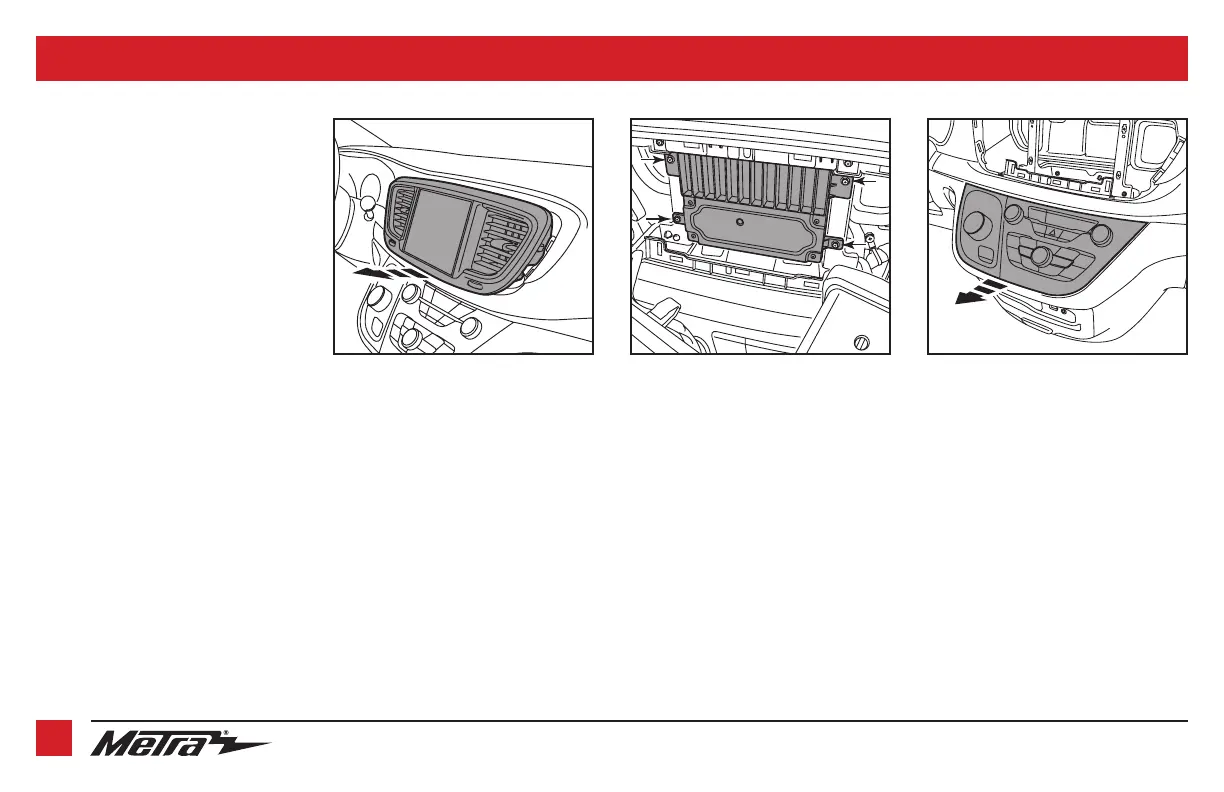

Dash Disassembly ..................................................2

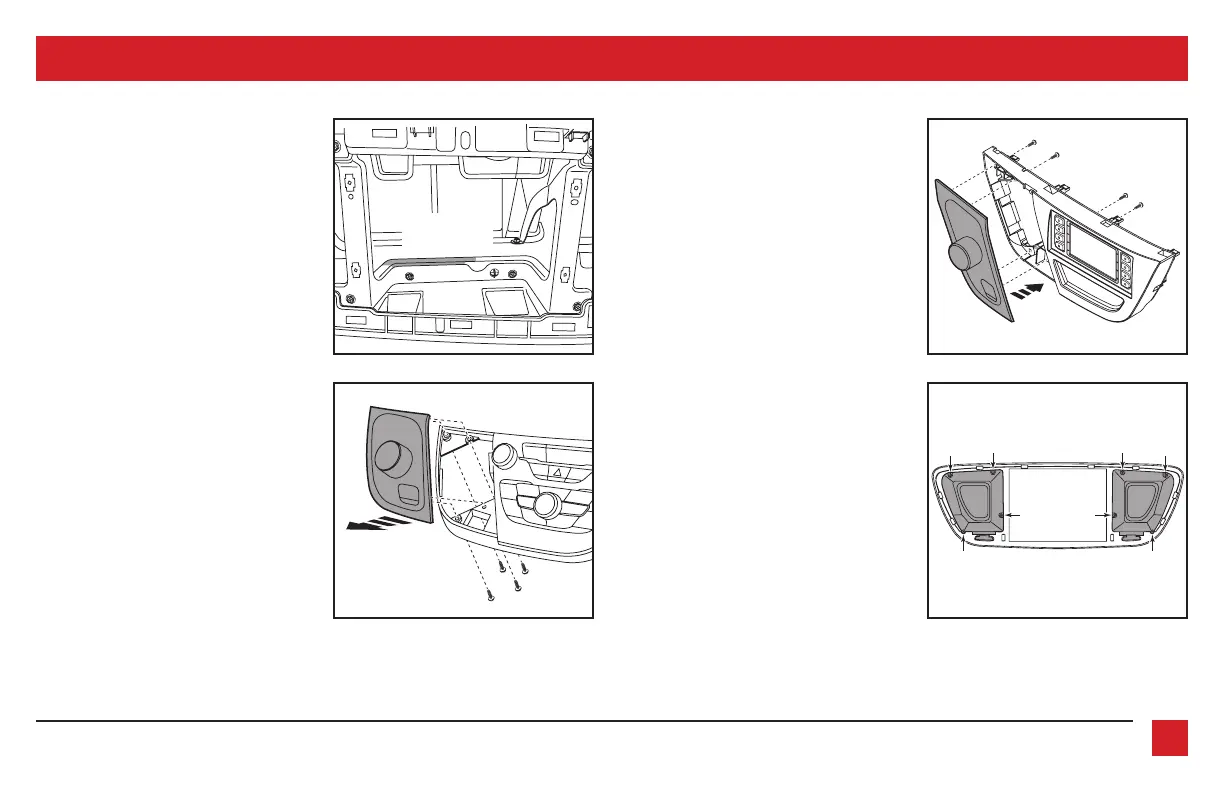

Kit Preparation .......................................................3

Kit Assembly

– ISO DIN radio provision with pocket .................4

– ISO DDIN radio provision ...................................4

Axxess Interface Installation ...........................5-13

Final Assembly .......................................................9

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built into

touchscreen

Antenna Adapter: Included with kit

ABCD

FE

Chrysler Pacifica (Limited, Touring) 2017

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

specific applications
