Metra. The World’s Best Kits.

®



MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 12/8/22 INST99-5851CH

INSTALLATION INSTRUCTIONS

99-5851CH

Attention!With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

Patent # 10,579,232

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Touchscreen display for climate and personalization features

• Included interface for climate and steering wheel functions

• Integrated hazard button and passenger airbag indicator

• Painted charcoal

Note: The self parking feature is not supported at this time.

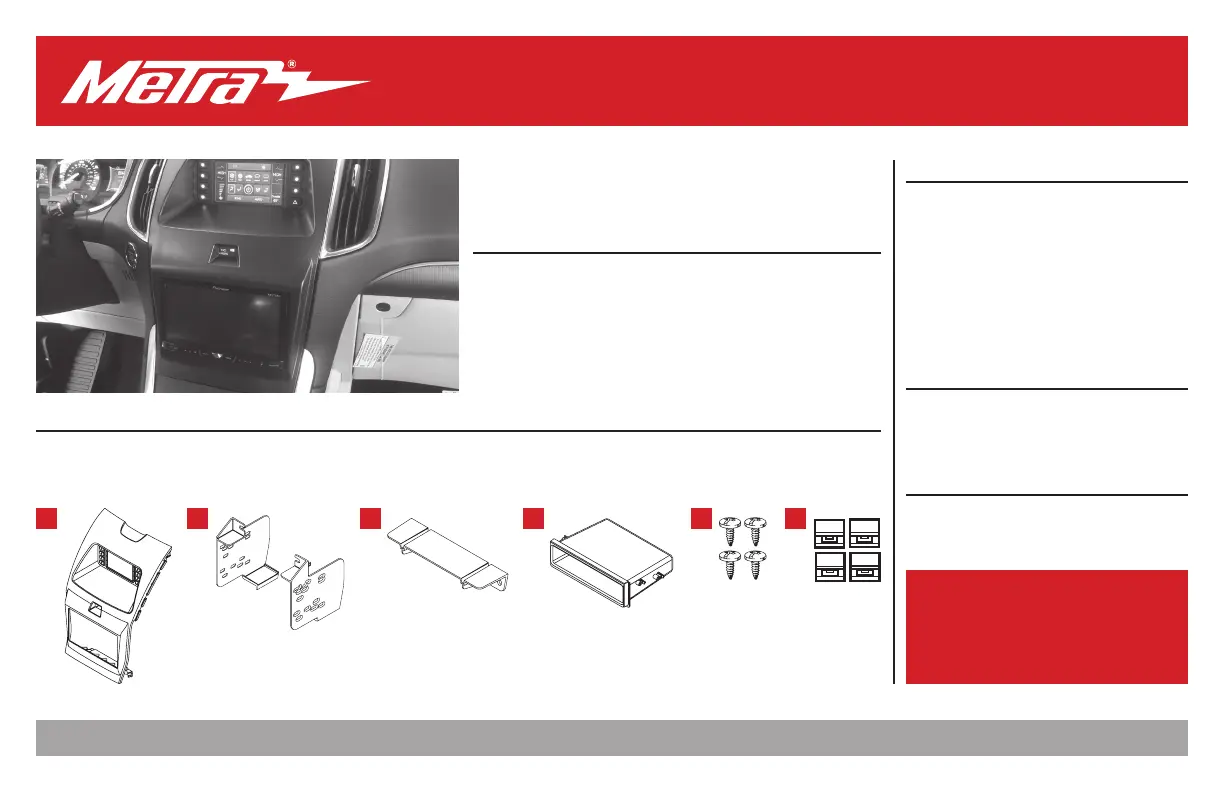

KIT COMPONENTS

• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Lower radio bracket • D) Pocket • E) (4) Phillips screws • F) (4) Panel clips

• G) HVAC interface and wiring harness (not shown) • H) Antenna adapter (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” Socket wrench • 5.5mm Socket wrench

• Cutting tool

TABLE OF CONTENTS

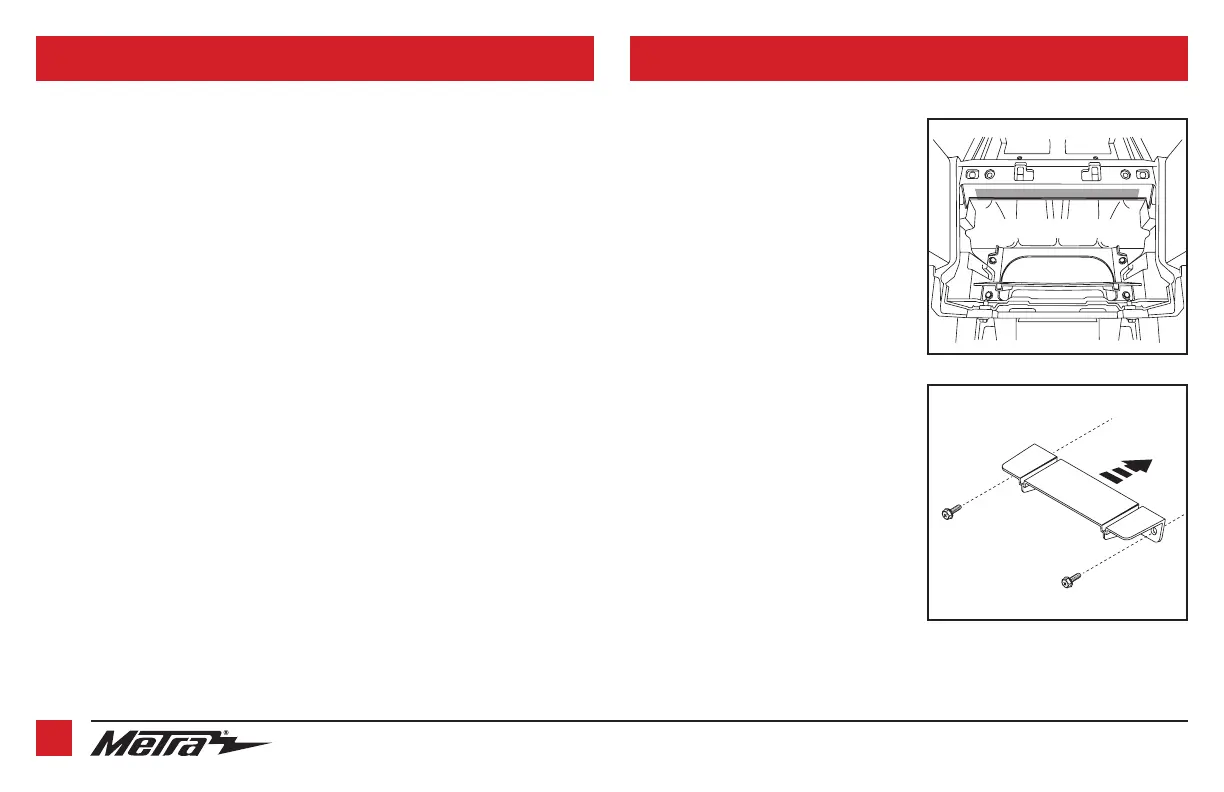

Dash Disassembly ..................................................2

Kit Preparation .......................................................2

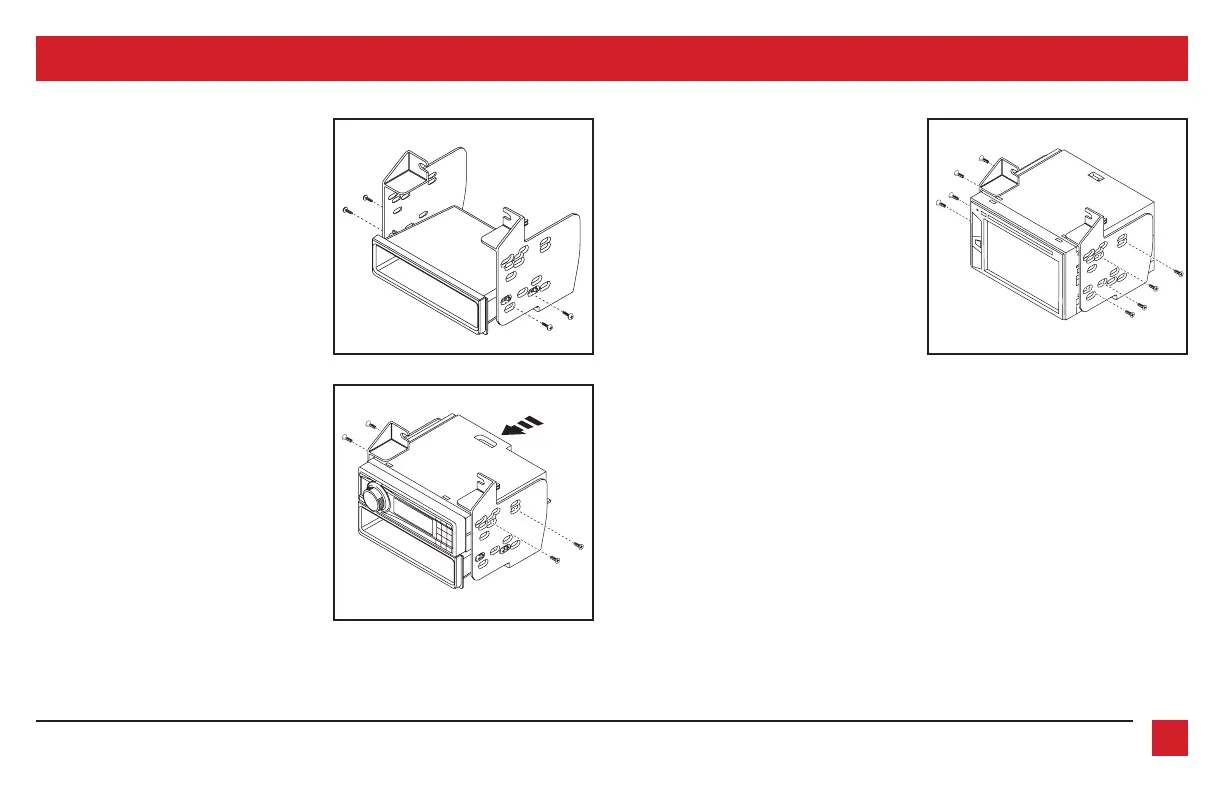

Kit Assembly

–ISO DIN radio provision with pocket ..................3

–ISO DDIN radio provision .....................................3

Axxess interface installation ............................4-14

Final assembly .......................................................9

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built into

touchscreen

Antenna Adapter: Included with kit

AB

D

C

Ford Edge 2015-2020

EF

*Visit MetraOnline.com for up-to-date vehicle specific applications.
