Metra. The World’s Best Kits.

®

MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 2/19/24 INST99-5847CH

INSTALLATION INSTRUCTIONS

99-5847CH

Patent # 10,579,232

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Touchscreen display for climate and personalization features

• Integrated hazard button and passenger airbag indicator

• Painted Charcoal Grey

KIT COMPONENTS

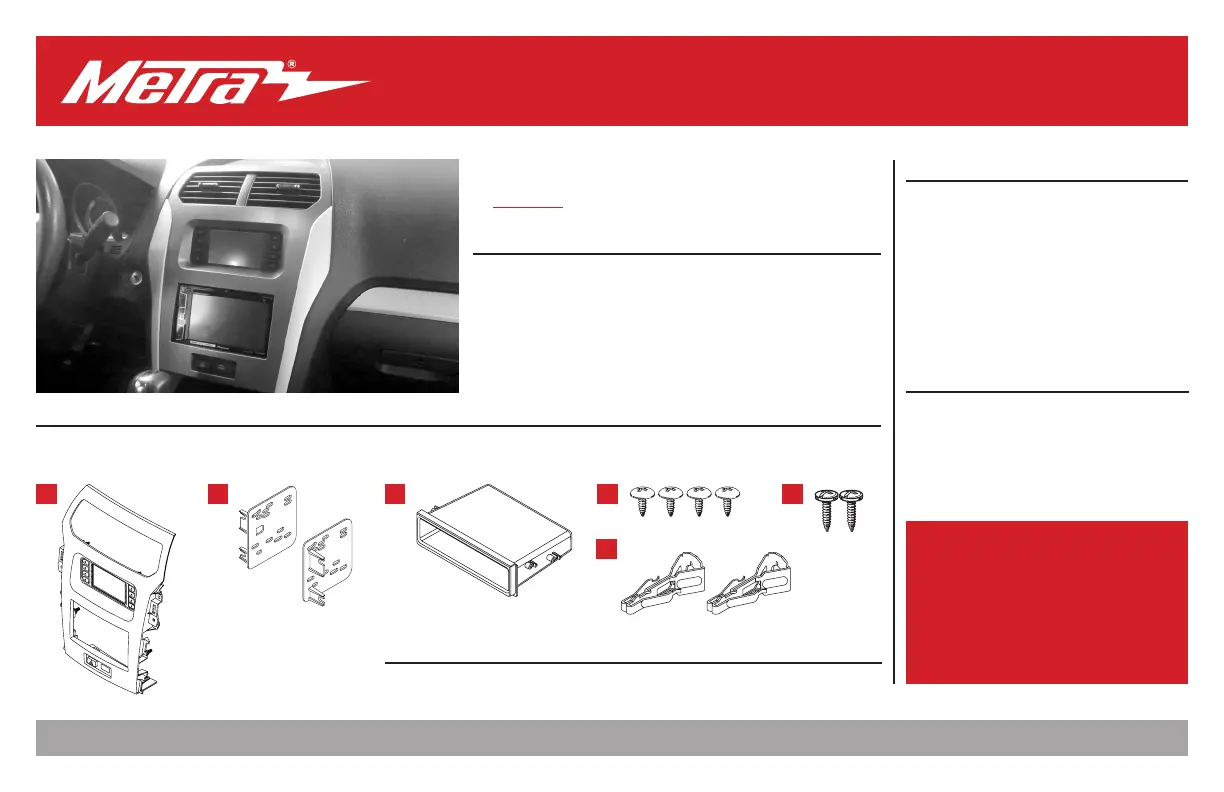

• A) Radio/Display trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws for pocket

• E) (2) #4 x 1/2” Phillips screws for A/C Vent to Housing

• F) (2) Panel clips • G) Antenna adapter and harnesses (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver • 9/32" Socket wrench • Torx screwdriver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly

–ISO DIN radio provision with pocket ..................3

–ISO DDIN radio provision ....................................3

Final Assembly .......................................................8

Axxess Interface Installation ...........................4-13

Ford Explorer

(

with 4.2-inch touchscreen

)

2011-2019

ABCDE

F

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

specific applications

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product. Ensure

that all installation connections, especially the

air bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built into kit

• Antenna Adapter: Included with kit

• USB retention sold separately. AX-FDUSBAUX

for 2015-2019, AXFD-USB3 for 2011-2014.
