CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

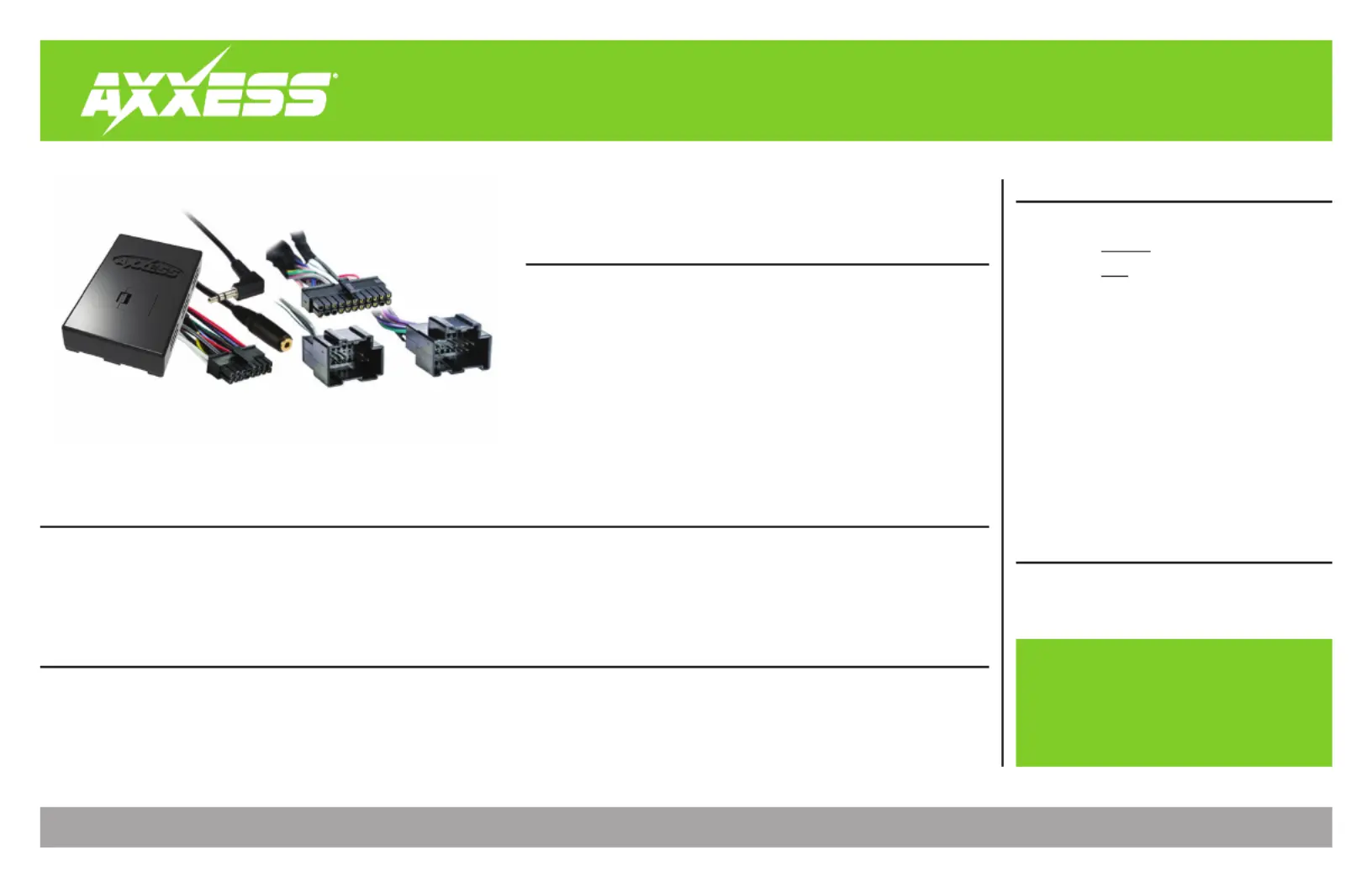

AXDIS-GMLN11

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/22/20 INSTAXDIS-GMLN11

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Wire cutter • Crimp tool • Solder gun • Tape

• Connectors (example: butt-connectors, bell

caps, etc.) • Small flat-blade screwdriver

TABLE OF CONTENTS

Connections to be made ...................................2-4

- For models

without

an amplifier .......................2

- For models

with

an analog amplifier ................3

- 3.5mm jack steering wheel control retention4 ..

Installing the AXDIS-GMLN11 .................................4

Programming the AXDIS-GMLN11....................................5

Adjusting the AXDIS-GMLN11 .................................5

Steering wheel control settings .......................6-8

- L.E.D. feedback ....................................................6

- Changing radio type ...........................................6

- Remapping the steering wheel control buttons ...7

- Dual assignment instructions (long button press) ...8

Troubleshooting .....................................................9

GM Data Interface with SWC2006-2012

APPLICATIONS

• Provides accessory power

(12-volt 10-amp)

• Retains R.A.P. (retained

accessory power)

• Provides NAV outputs (parking

brake, reverse, speed sense)

• Retains chimes

• Retains audio controls on the

steering wheel

• Retains OnStar / OE Bluetooth

• Adjustable OnStar level

• Retains the factory AUX-IN jack

• Can be used in non-amplified

or amplified models

• Retains balance and fade

• Micro “B” USB updatable

• AXDIS-GMLN11 interface • AXDIS-GMLN11 harness

• 16-pin harness with stripped leads • 4-pin to 4-pin resistor pad harness

• Female 3.5mm connector with stripped leads

CHEVROLET

Cobalt 2007-2010

HHR 2006-2011

Malibu 2008-2012

PONTIAC

G5 2007-2009

G6 (5th digit of VIN must

be a J, K, or L) 2009

PONTIAC (CONT)

G6 2010

Solstice 2006-2009

SATURN

Aura 2007-2009

Sky 2007-2009
