MEMPHI S
XTREME AUDIO
SMC2A
APP CONTROL L E D HIDEAWAY HEAD UNIT
SHOW US YOUR INSTALL
WWW.MEMPHISCARAUDIO.USA
@MEMPHISCARAUDIO
Electronics limited warranty (including Memphis accessories) When purchased from an Authorized Memphis Dealer, Memphis warrants this product to be free from
defects in material and workmanship under normal use for a period of ONE (1) YEAR from date of original purchase (receipt required),THREE (3)YEARS years if installed by
an authorized Memphis dealer (receipt required). If this product is identified as “Refurbished” or “B Goods”, the warranty is limited to a period of THREE (3) MONTHS from
date of original purchase. In all cases you must have the original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or
malfunction during the warranty period, Memphis will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replace-
ments may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products. Warranty is valid only for the original
purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the
express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product
thereafter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving
antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet or a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the part responsible for
Compliance could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement
This equipment complied with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Warranty
The SMC2A is an extremely innovative solution for creating a complete audio experience in your vehicle without the need to alter
your vehicles dash to accommodate an aftermarket head unit. Much more than a simple Bluetooth controller, this is an entire head
unit packed into a hideaway box. The SMC2A features a built-in 50x4 amplifier, 5 source options, and front /rear /subwoofer RCA
outputs allowing you to build your entire system directly off the unit. The hideaway box is controlled via the Memphis APP allowing
you to control your EQ, AM/FM presets, RGB LEDs and more. The attached wired remote fits in standard knock out locations but is not
required. This is the ultimate for powersports, marine, hot rod and classic car audio integration where you don’t want to alter the
appearance of your dash.
• 5 Source options: AUX, BT, AM/FM, Weatherband • RGB color source chart
• USB Charging
Color Source
Red FM
Yellow AM
Purple WB
Blue Bluetooth
Green AUX
• 50w x 4 built-in amplifier
• RGB LED control output
• Front/Rear/Subwoofer RCA output
• 2.5-Volt preamp output
• Conformal coated PCB IP66 rated
• Wired remote fits standard rocker switch cutout
• Wired remote w/ illuminating buttons
The Headless Unit
Features
• RGB Settings
• Custom EQ settings
• Balance, fade
• AM/FM Preset Control
• Radio search settings
• Manual/Seek/Presets
App Controls The Following
6.73”
171MM
2.067”
52.5MM
3.84”
97.5MM

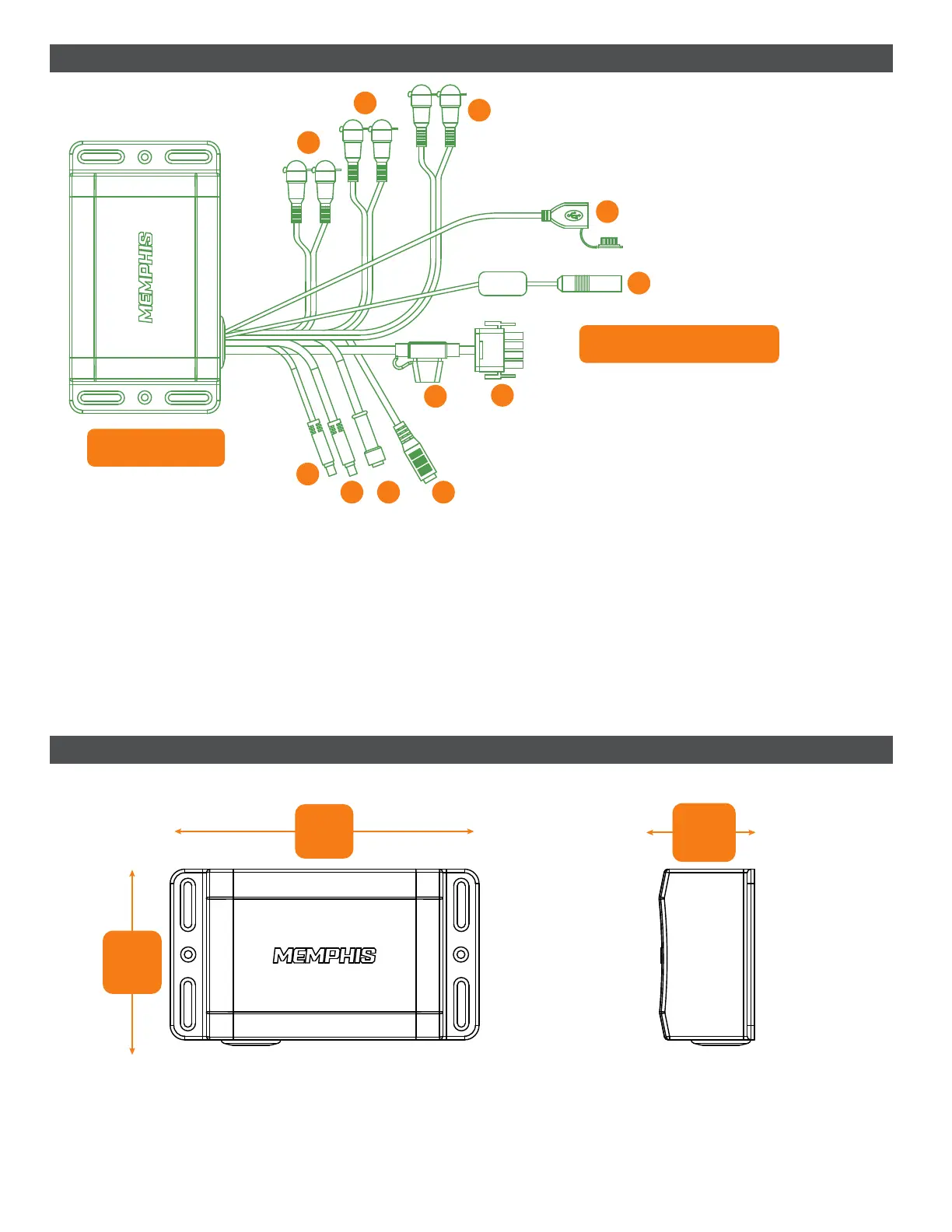

POWER/AUDIO OUTPUTS
CONNECTIONS
1. Front Outputs
2. Rear Outputs
3. Subwoofer Outputs
4. USB For Charging
5. Antenna Input
6. Power/Audio Outputs
7. Line Input
8. RGB LED Output
9. Remote Control 1
10. In-Line 15A Fuse and Fuse Holder
11. Remote Control 2
1
2
3
4
5
610
789
11
Red// 12V+ Ignition
Black // Ground
Blue // Remote Turn On
Yellow // B+ Battery
White & Black // Left Front Speaker (-)
White // Left Front Speaker (+)
Grey & Black // Right Front Speaker (-)
Grey // Right Front Speaker (+)
Green & Black // Left Rear Speaker (-)
Green // Left Rear Speaker (+)
Purple & Black // Right Rear Speaker (-)
Purple // Right Rear Speaker (+)
*Note: Mounting depth is 90mm but room is required for wires and connections. Check available depth prior to mounting.
Measure before cutting and be certain you will not be drilling into any items that will damage your vehicle.
Wiring Overview
Dimensions
