Oldal 1/12

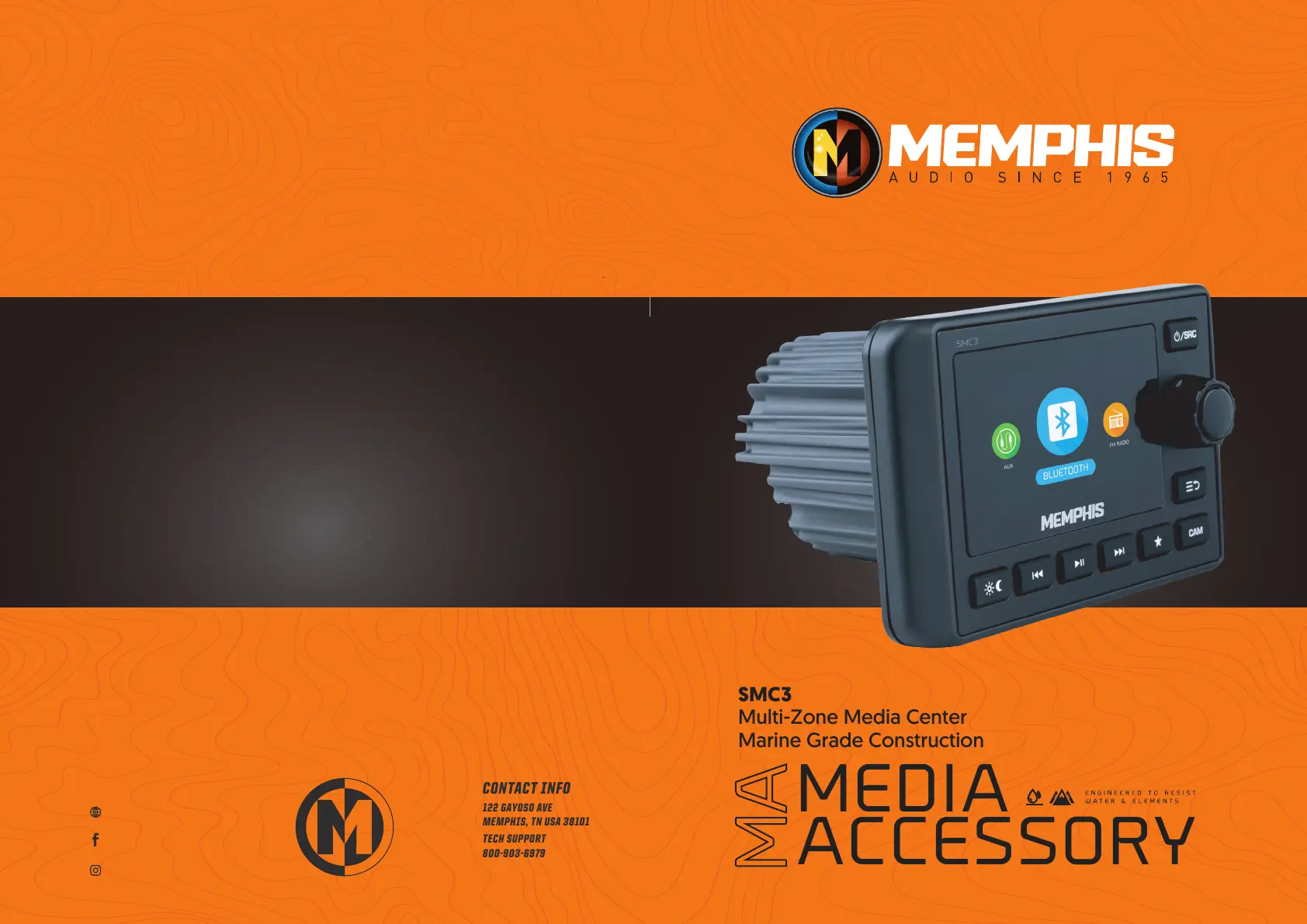

CONTACT INFO
122 GAYOSO AVE
MEMPHIS, TN USA 38101
TECH SUPPORT
800-903-6979
SHOW US YOUR INSTALL
WWW.MEMPHISCARAUDIO.USA
@MEMPHISCARAUDIO
@MEMPHISCARAUDIOUSA
-
MA
SMC3
Multi-Zone Media Center
Marine Grade Construction
MEDIA
ACCESSORY
Electronics limited warranty (including Memphis accessories) When purchased from an Authorized Memphis
Dealer, Memphis warrants this product to be free from defects in material and workmanship under normal use for
a period of ONE (1) YEAR from date of original purchase (receipt required),THREE (3)YEARS years if installed by
an authorized Memphis dealer (receipt required). If this product is identified as “Refurbished” or “B Goods”, the
warranty is limited to a period of THREE (3) MONTHS from date of original purchase. In all cases you must have the
original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or
malfunction during the warranty period, Memphis will repair or replace (at its discretion) the defective merchan-
dise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes. Discontin-
ued products may be replaced with more current equivalent products. Warranty is valid only for the original
purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable
implied warranties are limited in duration to a period of the express warranty as provided herein beginning with
the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this
product thereafter.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communication s .
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet or a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the part responsible for Compliance
could void the user's authority to operate the equipment. FCC Radiation Exposure Statement This equipment
complied with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body.
• Multi-zone with independent sub control
• 4 pair RCA pre-outputs - Front/Rear/Sub/Zone 2
• 5V Preout
• 3” TFT wet bonded color LCD display
• Video Input
• Built in 4 x 50W amplifier
• EEPROM memory
• IP66 waterproof design
• 18 FM Presets/ 12 AM Presets
• Auto dimmer w/ day/night mode
• Optional wired remote - MXA1MCR
• AM/FM, USB, Bluetooth and AUX inputs
For optimal performance, Memphis recommends using only Memphis Connection accessories. Outfitting
your system with properly sized Memphis Connection wire and accessories will dramatically boost your
listening experience and increase the durability of your Memphis Audio products.
For your safety, always inspect the mounting location carefully to ensure you are not drilling into any electrical,
hydraulic, fuel or fluid lines. Always check your speaker load with a multi-meter before connecting the amplifier.
Connecting any speaker load lower than the rated impedance of the amplifier will result in damage to the amplifier.
Damage of this nature is NOT covered under warranty. Please pay close attention to what connections are made to
the amplifier.
If you are uncertain or uncomfortable proceeding with your installation, please contact your local
Authorized Memphis Audio Dealer
SMC3
FEATURES
READY TO TURN IT UP? READ THIS FIRST!
WARNING
Memphis Audio built a 50+ year legacy in the audio industry engineering the highest quality products to produce
the best possible listening experience for our fans and loyal supporters. To fully appreciate our products we
recommend taking the time to read and follow the instructions in this manual. As always, we recommend all
installation and service to be performed by an authorized Memphis Audio dealer.
WARRANTY
MOUNTING & INSTALLATION MOUNTING & INSTALLATION
• Choose a mounting location that will not interfere with normal operation of the vehicle. Be certain the unit does
not interfere with the driver’s ability to safely operation the vehicle.
• Be certain the installation location will not cause any safety issues for drivers or passengers. Make sure there is
adequate room for both the driver and passenger to avoid contacting the unit if the vehicle were to come to an
abrupt stop.
• Avoid installing the unit where it will be subject to high temperatures such as direct sunlight, hot air from the
heater, or anywhere subject to excessive dust, dirt, water or vibration.
• Check the installation location for any electric, fuel, hydraulic or any other potentially dangerous items.
• Before installing the unit, connect the wiring temporarily and make certain the system works properly. If the
system does not work, check the connections again. Do not begin the installation process if the unit does not
function properly.
• Do not begin drilling your vehicle unless the unit is working properly and the mounting location is safe.
• Disconnect unit prior to installation and move unit away from installation area to avoid accidental damage.
• Use only the parts included with this unit to complete the installation. The use of unauthorized parts can cause
malfunctions and damage to the unit and your vehicle. Using unauthorized parts in the installation may void the
warranty.
• Consult your nearest Memphis Audio dealer if you have any concerns about cutting or drilling your vehicle,
modification of a vehicle should be left to an authorized Memphis Audio dealer to avoid accidental damage to your
vehicle.
• Once a suitable location has been located you are ready to use the included mounting template to mark the
location for your hole.
• The hole size is 3 inches (76.2mm).
• After marking and drilling the hole carefully, you will need to use the metal mounting bracket to secure the unit in
the hole. If the bracket needs to be shortened, remove the appropriate number of breakaway segments using a
pair of pliers.
DASHBOARD
HOLE SIZE: 3” (76.2MM)
BRACKET BREAK LINES
MOUNTING BRACKET
3”
76.2mm
5.51”
140MM
3.94”
100MM
3.54”
88.6MM
*Note: Mounting depth is 100mm but room is required for wires and connections.
Check available depth prior to mounting.
Measure before cutting and be certain you will not be drilling into any items that will damage your vehicle.
