Metra. The World’s Best Kits.

®

MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 3/12/19 INST99-5833B

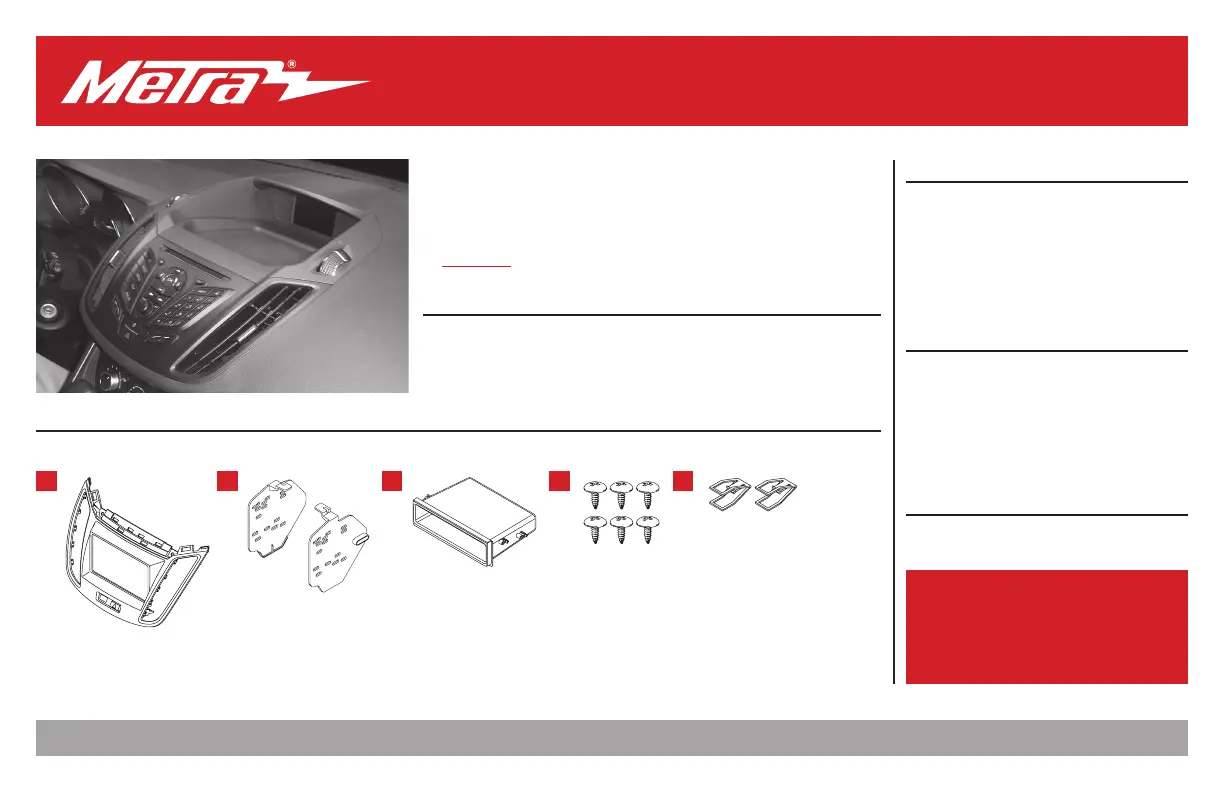

INSTALLATION INSTRUCTIONS

99-5833B

Attention!Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Painted matte black

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (6) #8 x 3/8” Phillips screws • E) (2) Metal panel clips

TOOLS REQUIRED

• Panel removal tool • T-25 Torx screwdriver

• 7mm socket wrench • Cutting tool

TABLE OF CONTENTS

Dash Disassembly ..............................................2-4

Kit Preparation .......................................................5

Kit Assembly

–ISO DIN radio provision with pocket ..................6

–ISO DDIN radio provision .....................................7

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: XSVI-5524-NAV

• AX-ADBOX2 & AX-ADFD02

Antenna Adapter: 40-EU10

Backup Camera Retention: AX-FDSYNC-SWC

Steering Wheel Control Interface: ASWC-1

Ford Escape (S Trim)2019*

Ford Escape 2013-2018*

* With 4.2-inch display screen

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications
