Metra. The World’s Best Kits.

®

MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 1/18/23 INST99-5863HG

INSTALLATION INSTRUCTIONS

99-5863HG

Attention: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

NOTE: Refer to the instructions included with

the aftermarket radio.

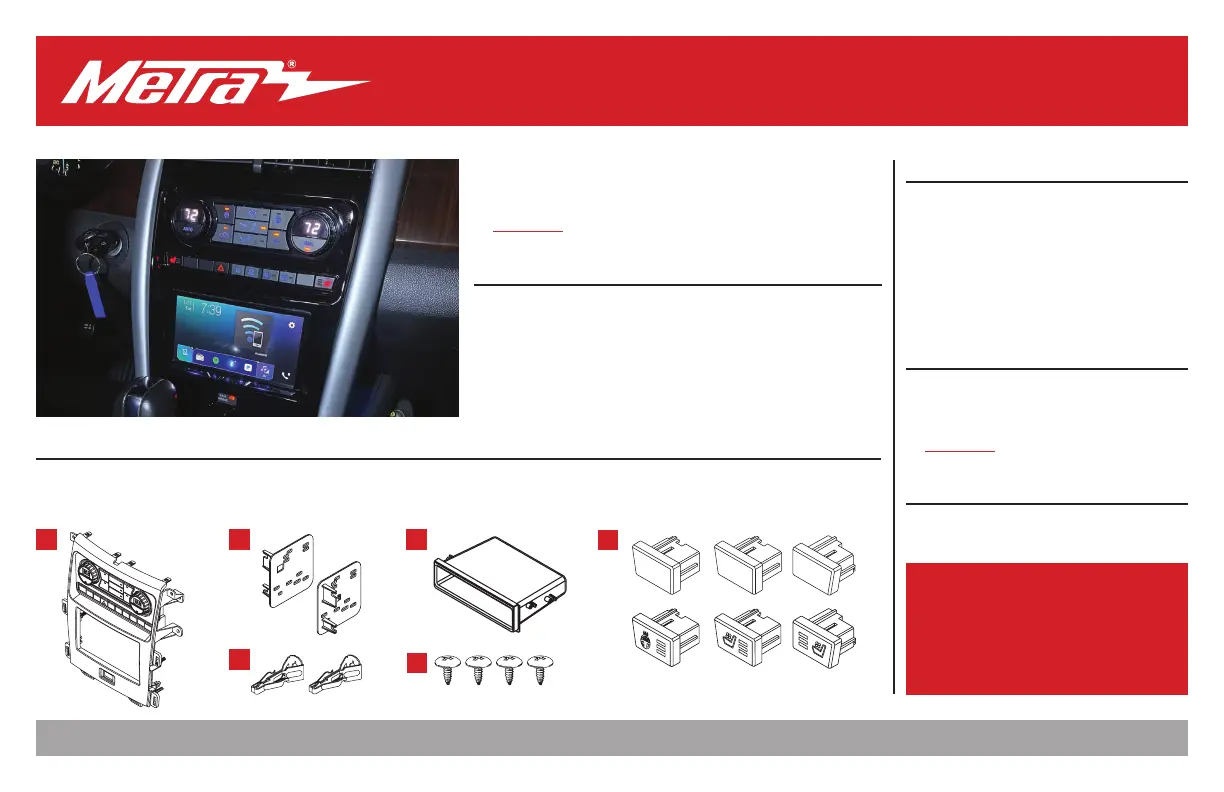

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets •C) Pocket • D) Blank panels (3), Heated steering wheel, Cooled seat buttons (L & R) • E) Panel clips (2)

• F) #8 x 3/8" Phillips truss-head screws (4) • Not shown: Wiring harness, Antenna adapter

KIT FEATURES

• Built-in control panel and interface for climate & steering wheel functions

• Painted gloss black w/matte black control panel

• Retains the factory backup camera

• Includes USB replacement harness and panel

• ISO DDIN radio provision

• ISO DIN radio provision with pocket

Ford Edge 2011-2014

With factory 8” screen and dual-zone climate controls

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

specific applications

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32" socket wrench

TABLE OF CONTENTS

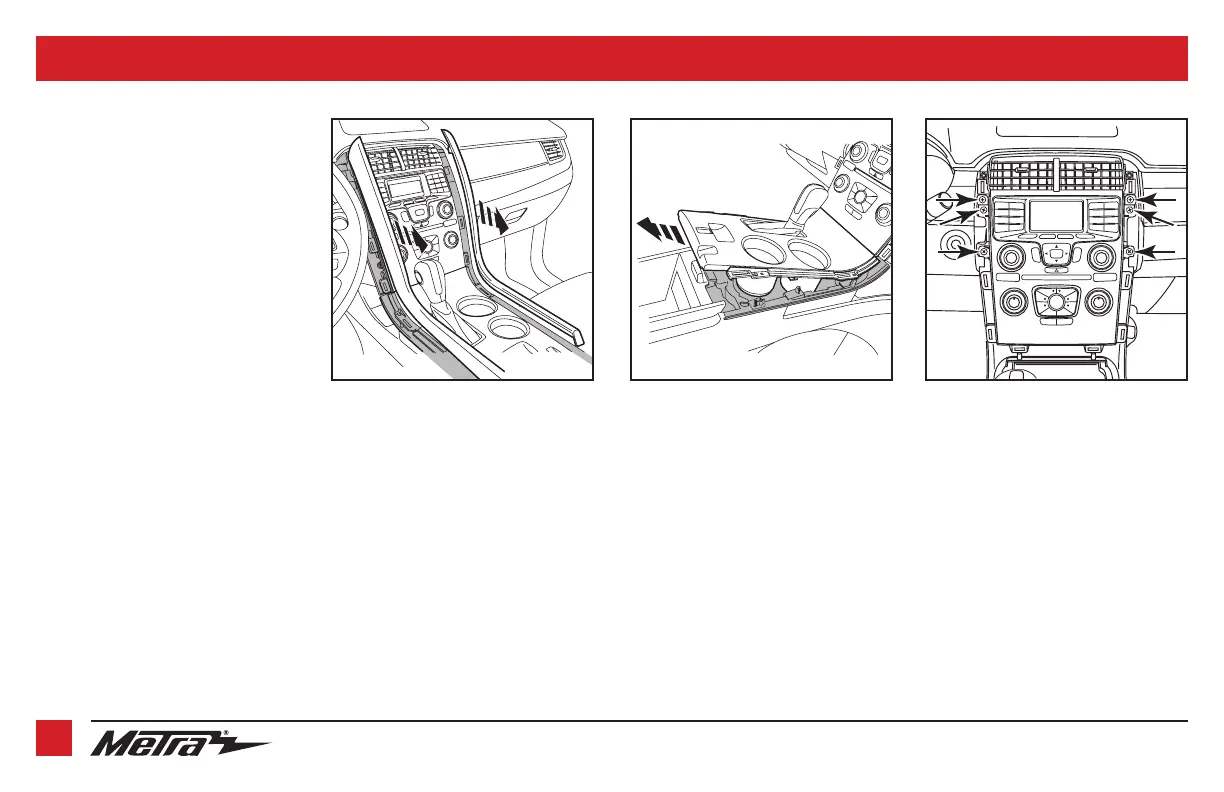

Dash Disassembly ...............................................2-3

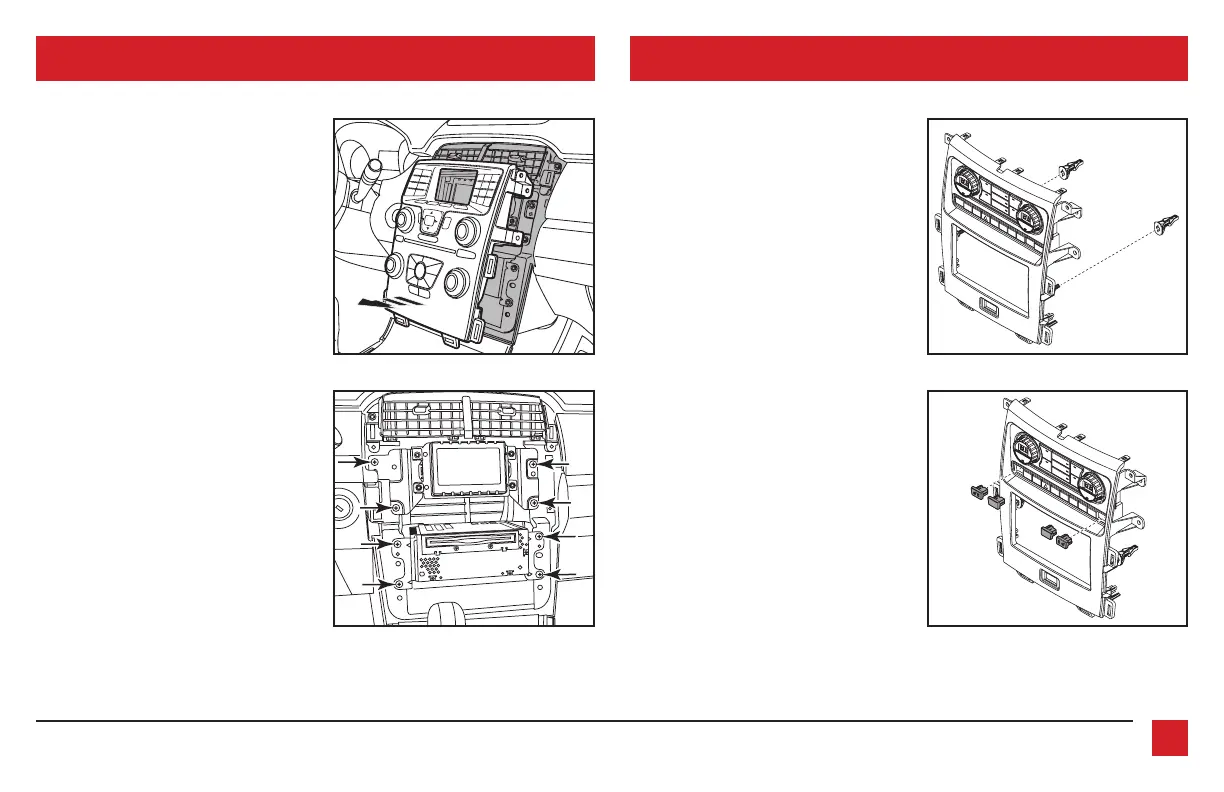

Kit Preparation .......................................................3

Kit Assembly

–ISO DIN radio provision with pocket ..................4

–ISO DDIN radio provision .....................................4

Axxess Interface Installation .............................5-11

Final Assembly .......................................................8

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built into kit

Antenna Adapter: Included with kit

Steering Wheel Control Interface: Included with

kit

ABC

F

E

D

Visit MetraOnline.com for audio/video and steering wheel control

interface options.
