INSTALLATION INSTRUCTIONS

99-5862CH

Metra. The World’s Best Kits.

Attention! With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Included interface for climate and steering wheel functions

• Retains factory USB and back-up camera (if equipped)

• Painted to match the factory finish

KIT COMPONENTS

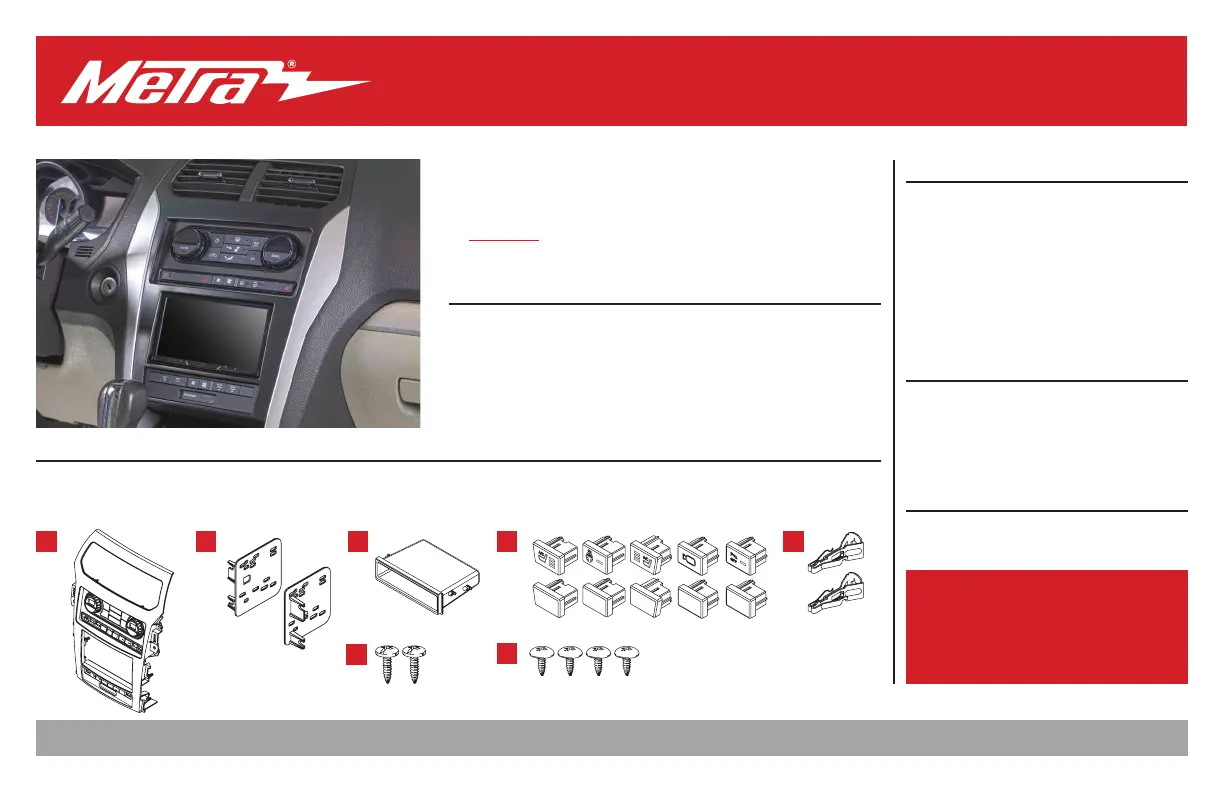

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) Buttons: Vented seats, (L & R), Heated steering wheel, Backup camera, Parking assist, Blanks (5) • E) (2) Panel

clips • F) (2) #4 x 1/2” Phillips pan-head screws • G) (4) #8 x 3/8” Phillips truss-head screws • H) Wiring harness (not shown) • I) Antenna adapter (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench • Torx screwdriver

TABLE OF CONTENTS

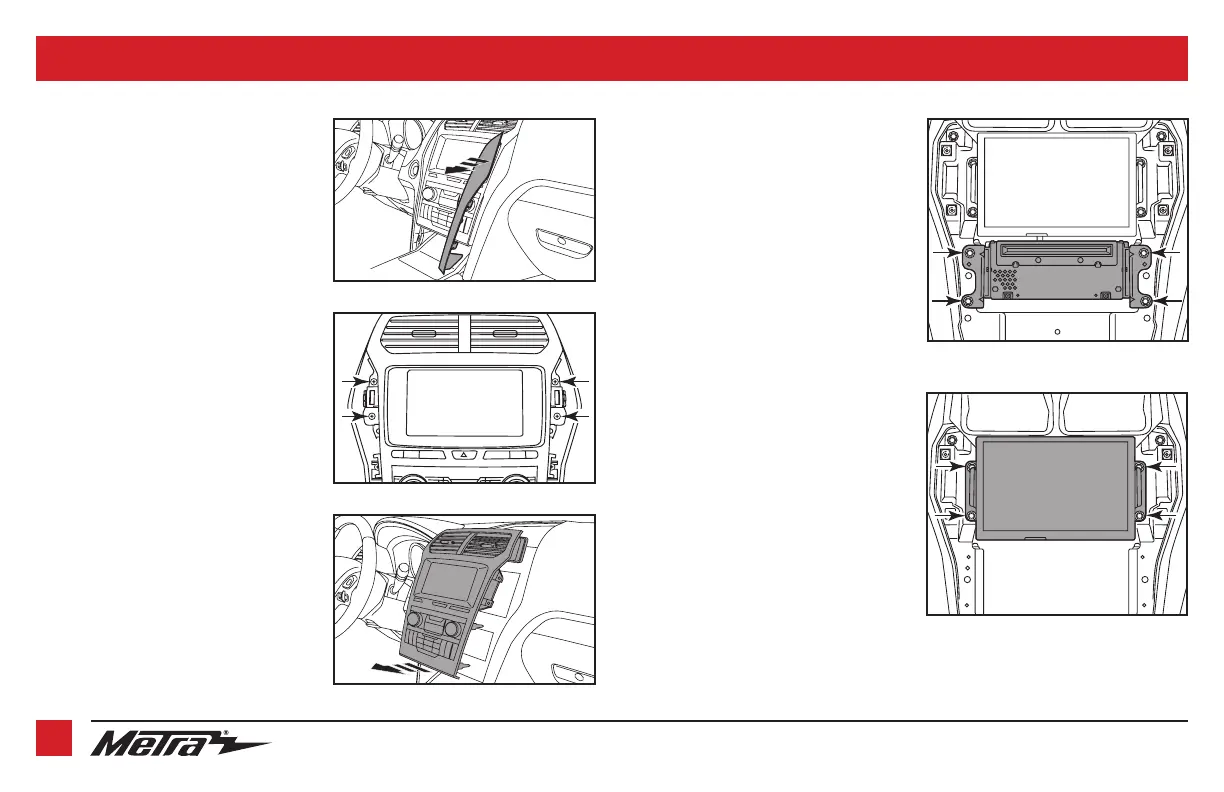

Dash Disassembly .................................................. 2

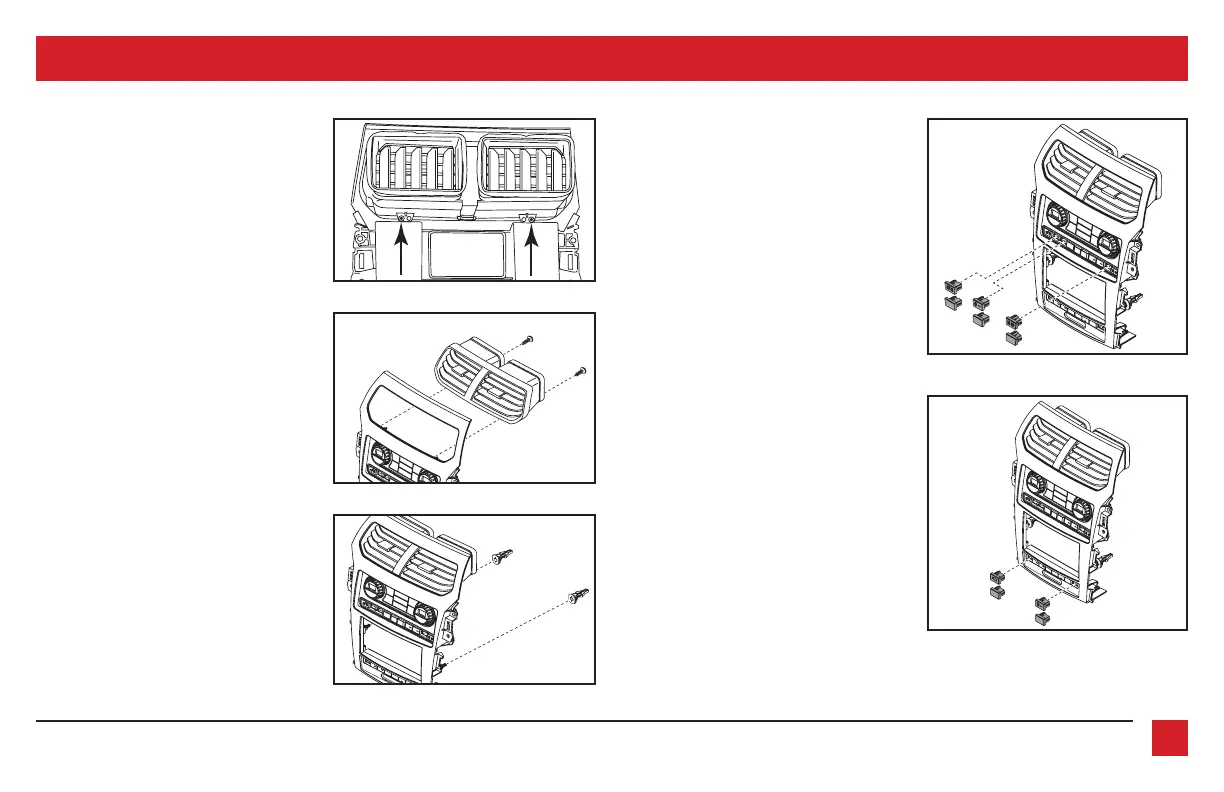

Kit Preparation .......................................................3

Kit Assembly

–ISO DIN radio provision with pocket ..................4

–ISO DDIN radio provision ....................................4

Axxess Interface Installation ...........................5-17

Final Assembly ....................................................... 9

WIRING & ANTENNA CONNECTIONS
