METRA - The World’s best kits

®

metraonline.com

REV. 12/21/2016 INST99-7510

Installation instructions for part 99-7510

®

CAUTION!

All accessories, switches, climate controls panels, and

especially air bag indicator lights must be connected before cycling

the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION

• DIN radio provision with pocket

• ISO DIN radio provision with pocket

• Two finishes available:

99-7510 = Black

99-7510HG = Gloss Black

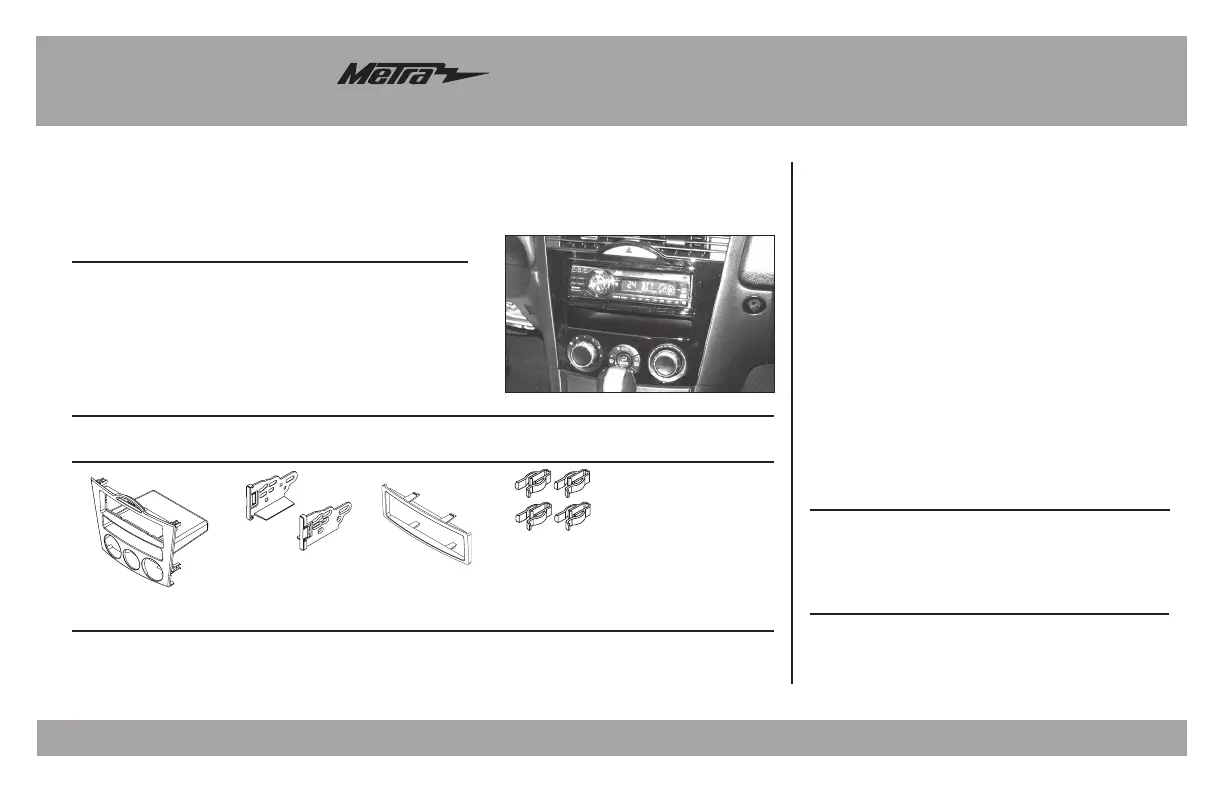

• A) Radio/climate control housing • B) ISO DIN brackets • C) ISO DIN trim plate • D) (4) Plastic panel clips

• E) Axxess Interface and wiring harness (not shown)

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS

Wiring Harness: • Axxess interface and wiring harness included

Antenna Adapter: • Not required

• Panel removal tool • Phillips screwdriver

• 10mm socket wrench • Cutting tool

TOOLS REQUIRED

Mazda RX-8 2004-2008

99-7510, 99-7510HG

A

BC

D

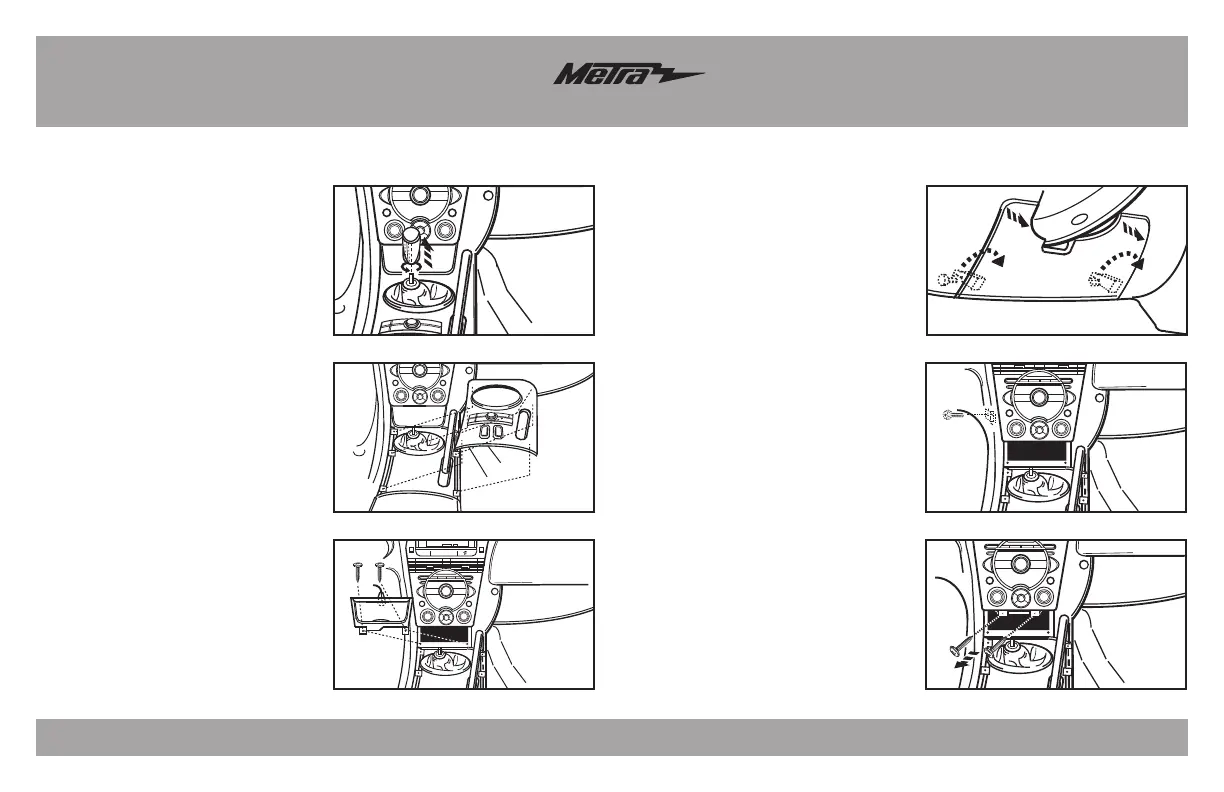

Dash Disassembly .................................................2

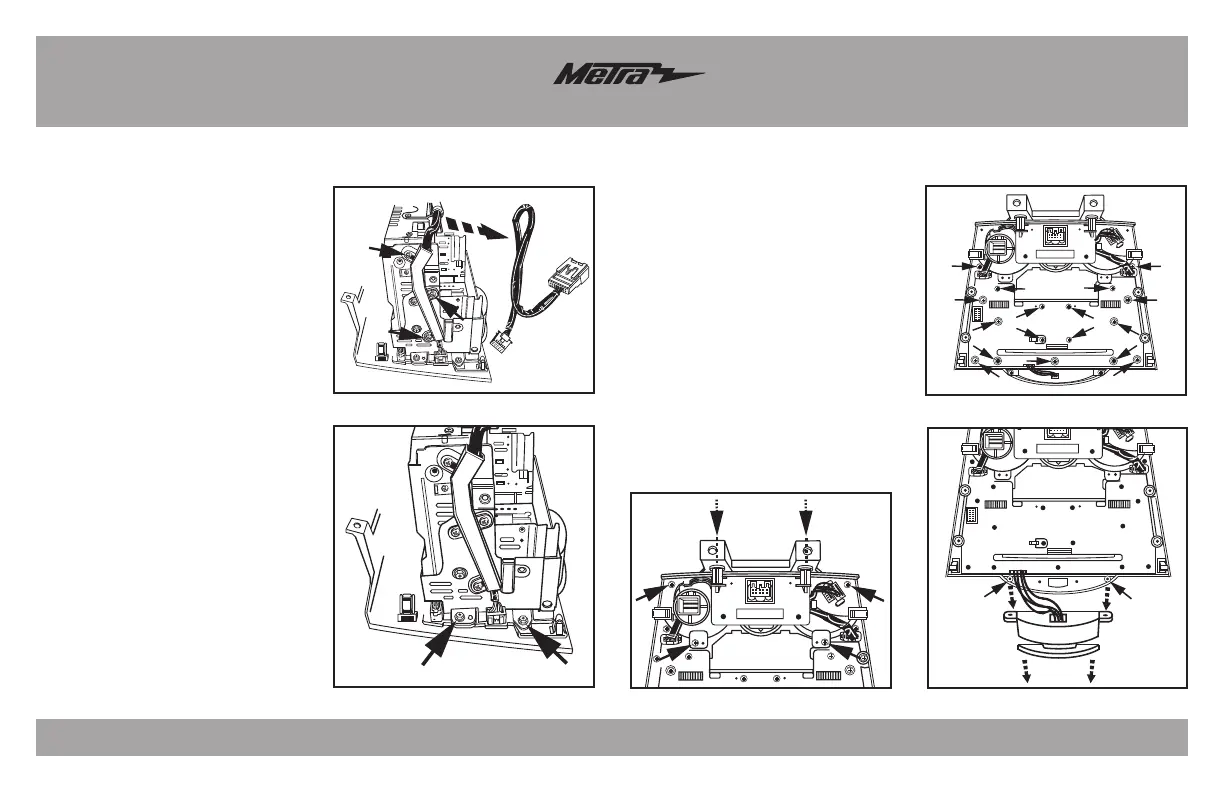

Kit Preparation ....................................................3-4

Kit Assembly

–DIN radio provision with pocket ............................4

–ISO DIN radio provision with pocket ......................5

Axxess Interface Installation .............................5-7

Display Customization ........................................7-8

Table of Contents
