CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
AXGMLN-34
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/22/20 INSTAXGMLN-34
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter •Zip ties
GM LAN-11 OnStar interface 2006-2012
APPLICATIONS
CHEVROLET
Cobalt 2007-2010
HHR 2006-2011
Malibu 2008-2012
PONTIAC
G5 2007-2009
G6 2010
G6* 2009
PONTIAC (CONT)
Solstice 2006-2009
SATURN
Aura 2007-2009
Sky 2006-2009

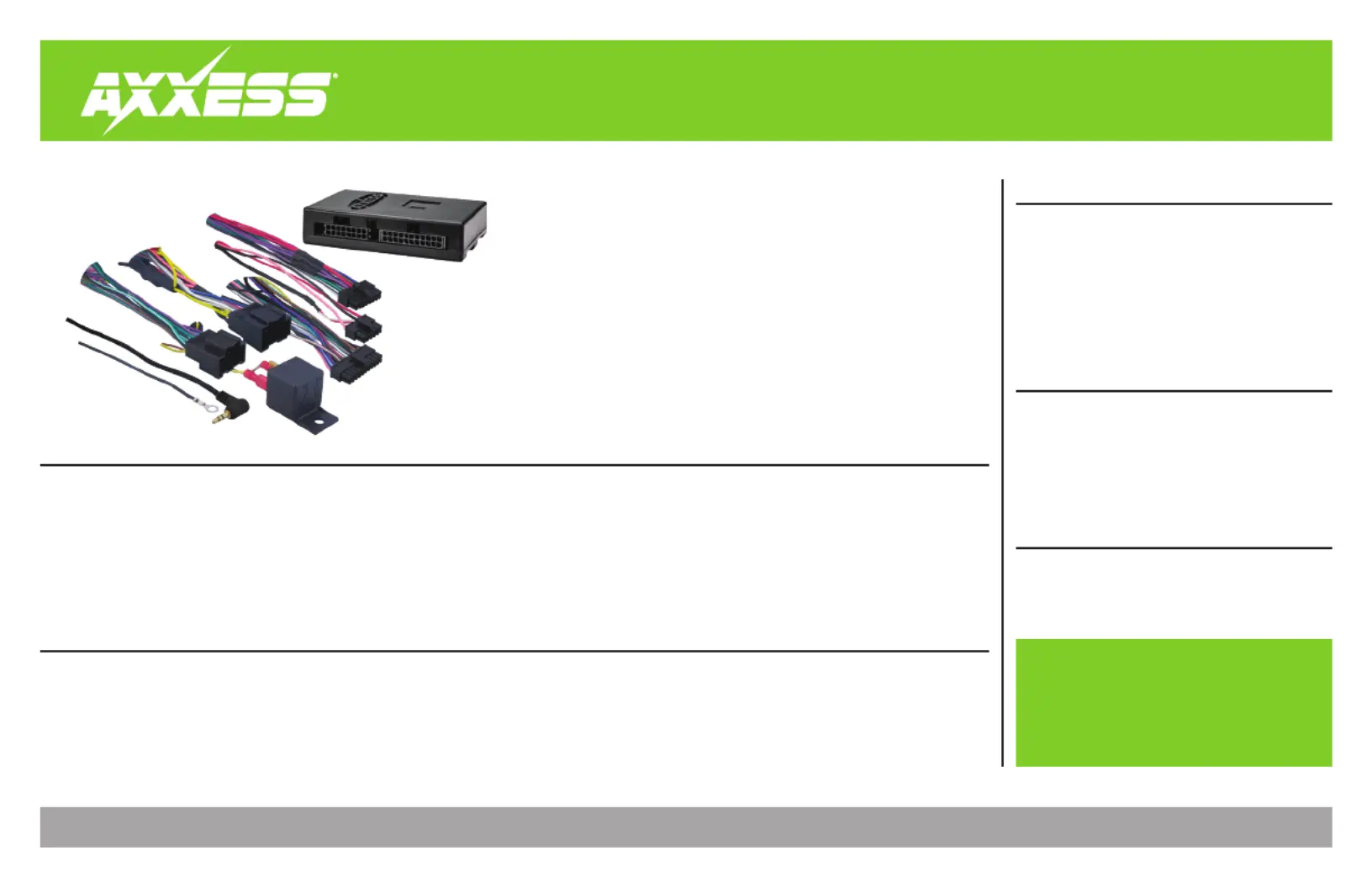

• AXGMLN-34 interface
• AXGMLN-34 harness
• 16-pin harness with stripped leads
• 4-pin to 4-pin resistor pad harnes
INTERFACE FEATURES
• Provides accessory power (12-volt 10-amp)
• Maintains the retained accessory power (R.A.P.) feature
• Can be used in non-amplified, or amplified models
• Retains warning chimes
• Provides NAV outputs (parking brake, reverse, speed sense)
• Pre-wired AXSWC harness (AXSWC sold separately)
• Retains OnStar/OE Bluetooth
• Adjustable volume for chimes and OnStar
• Retains balance and fade
• Micro “B” USB updatable
TABLE OF CONTENTS
Connections to be made ....................................2-3
Installing the AXGMLN-34 ......................................4
Programming the AXGMLN-34 ..............................4
Adjusting the AXGMLN-34 ....................................4
Troubleshooting .....................................................5
* 5th digit of VIN must be a J, K, or L
2
CONNECTIONS TO BE MADE
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the wire to the accessory wire.Red
If installing an AXSWC (sold separately), connect the (2) wires on the AXGMLN-34 Note: Red
harness as well.
• Connect the Orange/White wire to the illumination wire. (If the aftermarket radio has no
illumination wire, tape off the wire).Orange/White
• Connect the wire to the amp turn on wire (this wire must be connected to hear Blue/White
sound from the factory amplifier).
• Connect the Brown wire to the mute wire of the aftermarket radio. If the radio has no mute
wire, tape it off and disregard it.
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
• Connect the wire to the right front positive speaker output.Gray
• Connect the Gray/Black wire to the right front negative speaker output.
• Tape off and disregard the following (4) wires, they will not be used in this application:
Green Green/Black Purple Purple/Black, , , .
The following 3 wires are for an aftermarket multimedia/navigation radio that provide these wires
(if not required, tape them off and disregard them):
• Connect the wire to the parking brake wire (if applicable).Light Green
• Connect the wire to the speed sense wire (V.S.S.) (if applicable).Blue/Pink
• Connect the wire to the reverse wire (if applicable).Green/Purple
From the AXGMLN-34 harness to the aftermarket radio:
• Connect the wire to the ground wire.Black
• Connect the Yellow wire to the battery wire.
• If installing an AXSWC (sold separately), connect the (2) wires to accessory power.Red
• The Black/Yellow wire is used for OnStar level adjustment for models that do not come
equipped with steering wheel controls. See OnStar Level Adjustment for further instructions.
• Connect the and RCA jacks to the audio AUX-IN jacks from the aftermarket radio.Red White
Continued on the next page
3
REV. 1/22/2020 INSTAXGMLN-34
CONNECTIONS TO BE MADE (CONT.)
For amplified models only:
• Connect the wire to the left rear positive speaker output.Green
• Connect the wire to the left rear negative speaker output.Green/Black
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative output.Purple/Black
• Disconnect the 4-pin harness located between the 16-way and 22-way connector, and then
connect the supplied 4-pin to 4-pin resistor pad harness.
For non-amplified models only:
• Cut the resistors off from the , , , and wires below the Green Green/Black Purple Purple/Black
heat shrink.
• Connect the wire to the left rear positive speaker output.Green
• Connect the wire to the left rear negative speaker output.Green/Black
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative output.Purple/Black
The 4-pin to 4-pin resistor pad harness will not be used in this application.Note:
Note: The relay attached to the AXGMLN-34 harness is only for audible turn signal clicks.
No extra steps are required to retain this feature, so leave the relay as-is.
12-pin pre-wired AXSWC harness:
This harness is to be used in conjunction with the optional AXSWC (not included) to retain
steering wheel controls. If the AXSWC is not being used, disregard this harness. If it will
be used, please refer to the AXSWC instructions for radio connections and programming.
Disregard the harness that comes with the AXSWC.
DIN jack:
Disregard the DIN jack.
