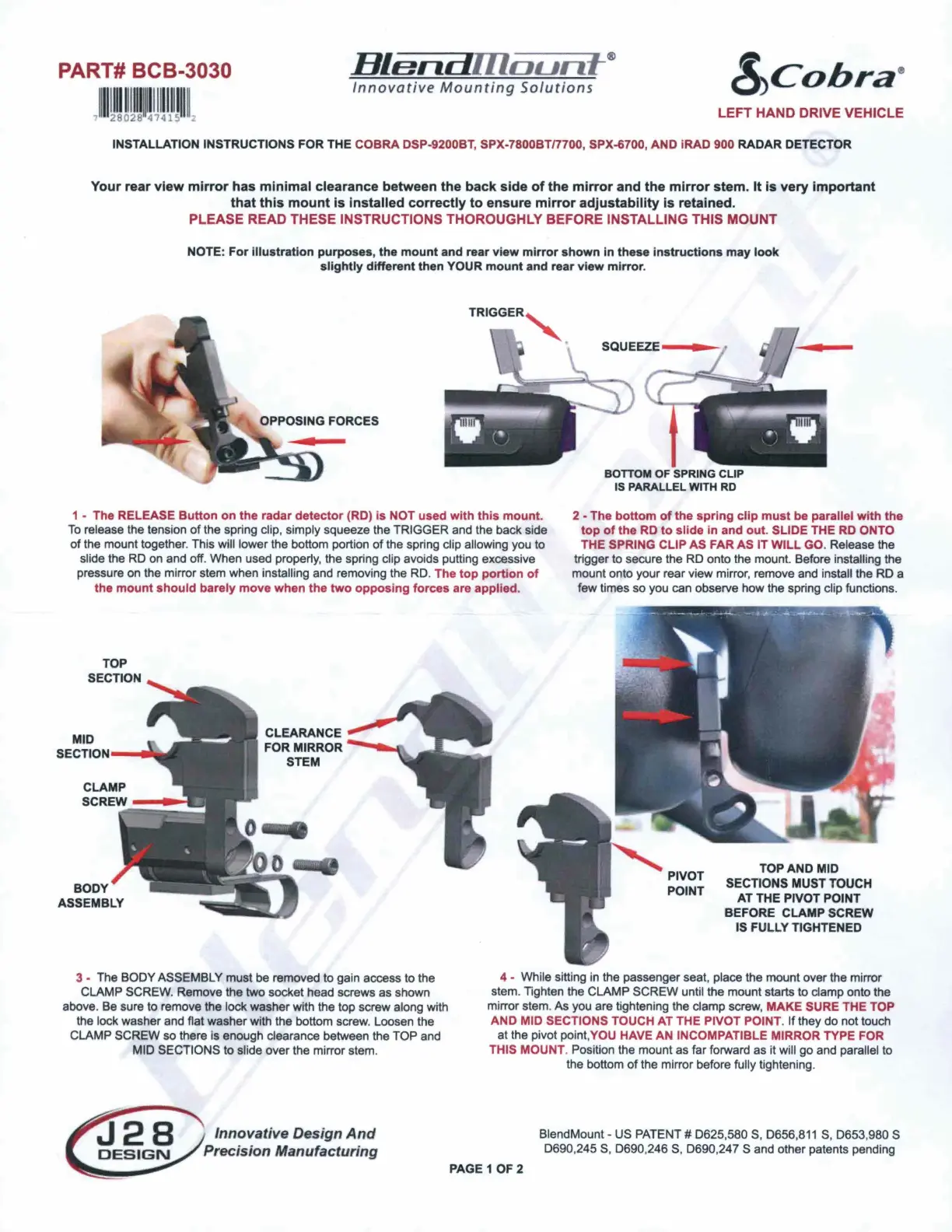

PART# BCB-3030

Blend

fflaunt®

&cobra

~111m~

111

Innovative

Mounting

Solutions

28028

47415

LEFT HAND DRIVE VEHICLE

INSTALLATION INSTRUCTIONS FOR THE COBRA DSP-9200BT, SPX-7800BTn700, SPX-6700, AND iRAD 900

RADAR

DETECTOR

Your rear

view

mirror

has minimal clearance between the

back

side

the

mirror

and the

mirror

stem. It

very

important

that

this

mount

installed

correctly

ensure

mirror

adjustability

retained.

PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT

NOTE:

For

illu

tration

purposes,

the

mount

and

rear

view

mirror

shown

these

instructions

may

look

slightly

different

then

YOUR

mount

and

rear

view

mirror.

BOTTOM OF SPRING CLIP

IS PARALLEL WITH RD

1 - The RELEASE Button on the radar detector (RD) is NOT used with this mount.

2 - The bottom

the spring clip must be parallel with the

top

the RD to slide in and out. SLIDE THE

ONTO

THE SPRING CLIP AS FAR AS IT WILL GO. Release the

trigger to secure

the

onto

the

mount Before installing the

mount onto your rear view mirror, remove

and

install the

few times

you

can

observe how the spring clip functions.

release

the

tension of the spring clip, simply squeeze the TRIGGER

and

the back

side

the

mount together. This will lower

the

bottom portion of

the

spring clip allowing

you

slide the

and

off.

When

used

properly, the spring clip avoids putting excessive

pressure

the

mirror

stem

when

installing

and

removing

the

RD.

The top portion

the mount hould barely move when the two opposing forces are applied.

TOP

SECTION

MID

SECTION

---

lllilll

BODY

ASSEMBLY

CLEARANCE

FOR MIRROR

STEM

3 •

The

BODY ASSEMBLY must

removed

gain access

the

CLAMP

SCREW.

Remove the two socket head screws

shown

above.

sure

remove the lock washer with the top screw

along

with

the

lock washer and flat washer with

the

bottom

screw.

Loosen

the

CLAMP

SCREW so

enough clearance between the

TOP

and

MID

SECTIONS

slide over the mirror

stem

Innovative D sign

And

Precision Manufacturing

PIVOT

POINT

TOP AND MID

SECTIONS

MUST

TOUCH

AT THE PIVOT POINT

BEFORE CLAMP SCREW

IS FULLY TIGHTENED

4 - While sitting

the

passenger seat, place the mount over the mirror

stem.

Tighten

the

CLAMP SCREW until the mount starts to damp onto the

mirror stem.

you

are tightening

the

clamp screw, MAKE SURE THE TOP

AND MID SECTIONS TOUCH

THE PIVOT POINT. If they do not touch

the

pivot point.YOU HAVE

INCOMPATIBLE MIRROR TYPE FOR

THIS MOUNT. Position the mount

far forward

it will go

and

parallel

the bottom of

the

mirror before fully tightening.

PAGE 1 OF 2

BlendMount -

PATENT# D625,580

D656,811

D653

980

D690,245 S, D690,246 S,

D690

,247 Sand other patents pending

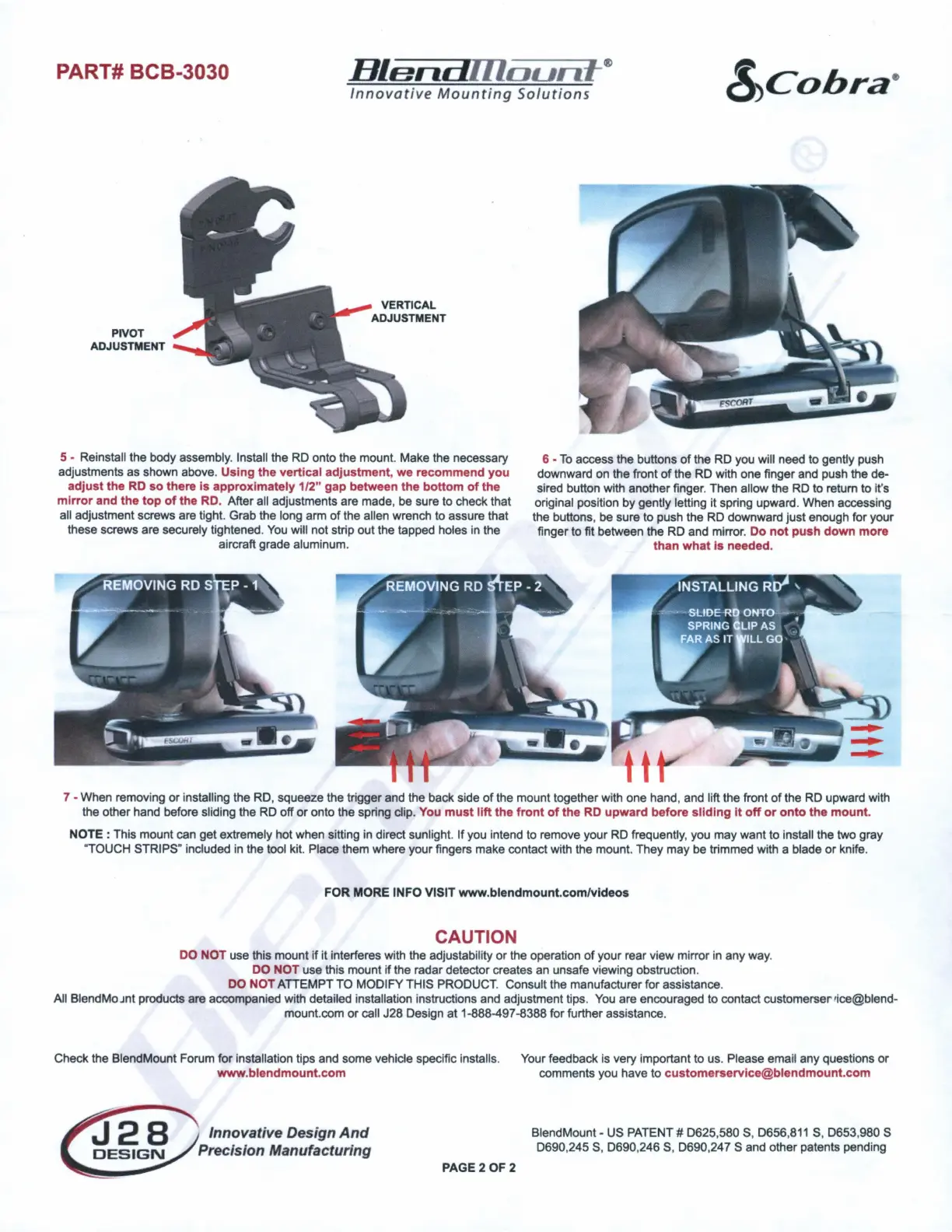

PART# BCB-3030

Blan

Innovative

Mounting

Solutions

S,cobra

PIVOT

ADJUSTMENT

5 - Reinstall the body assembly. Install the RD onto the mount. Make the necessary

adjustments as shown above. Using the vertical adju tment, we recommend you

ad ust the RD so there Is approximately 1/2" gap between the bottom

the

mirror and the top

the RD. After all adjustments are made, be sure to check that

all adjustment screws are tight. Grab the long arm

the allen wrench to assure that

these screws are securely tightened.

You

will not strip out the tapped holes in the

aircraft grade aluminum.

6 -

access the buttons

the RD you will need to gently push

downward on the front

the RD with one finger and push the de-

sired button with another finger. Then allow the RD to return to it's

original position by gently letting it spring upward. When accessing

the buttons, be sure to push the RD downward just enough for your

finger to fit between the RD and mirror. Do not pu h down more

than

what

Is n eded.

7 - When removing or installing the RD, squeeze the trigger and the back side

the mount together with one hand, and lift the front

the RD upward with

the other hand before sliding the RD off

onto the spring clip. You must

lift

the front

the RD upward before sliding It off

onto the mount.

NOTE : This mount can get extremely hot when sitting in direct sunlight. If you intend to remove your RD frequently, you may want to install the two gray

"TOUCH STRIPS" included in the tool kit. Place them where your fingers make contact with the mount. They may be trimmed with a blade

knife.

FOR MORE INFO VISIT www.blendmount.com/videos

CAUTION

DO NOT use this mount

it interferes with the adjustability

the operation

your rear view mirror in any way.

DO NOT use this mount

the radar detector creates an unsafe viewing obstruction.

DO NOT ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.

All BlendMo Jnt products are accompanied with detailed installation instructions and adjustment tips. You are encouraged to contact customerser ,ice@blend-

mount.com

call J28 Design at 1-888-497-8388 for further assistance.

Check the BlendMount Forum for installation tips and some vehicle specific installs.

www.blendmount.com

Innovative Design

And

Precision Manufacturing

PAGE20F2
