PART# BCB-2021
Bland
fflaunf-®
&cobra
1111
~I
!~IJIIII
Ill
llj
1}11
1,
Innovat
i
ve
Mount
i
ng
Solut
ions
LEFT
HAND DRIVE
VEHICLE
INSTALLATION INSTRUCTIONS FOR THE COBRA DSP-9200BT, SPX-7800BTn700, SPX-8700, AND IRAD 900 RADAR DETECTOR
Your rear view mirror ha minimal clearance between the back ide
of
the mirror and the mirror stem. It i very im•
portant that thl mount is
In
talled correctly to en ure mirror adju tablllty is retained.
PLEASE
READ
THESE
INSTRUCTIONS
THOROUGHLY
BEFORE
INSTALLING
THIS
MOUNT
NOTE: For lllu tratlon purpose , th mount and rear vi w mirror shown In the e Instructions may look
slightly different then YOUR mount and rear view mirror.
1 • The RELEASE Button on the radar d tector (RD) Is NOT used with this mount.
To
release
the
tension of
the
spring clip, simply squeeze
the
TRIGGER
and
the
back
side
of
the
mount
together.
Th
is will lower
the
bottom
portion
of
the
spring clip allowing
you
to
slide
the
RD
on
and
off.
When
used
properly,
the
spring clip
avoids
putting excessive
pre
sure
on
the mirror
stem
when
installing
and
removing
the
RD.
The top por1ion
of
the mount should barely move wh n the two oppo Ing forces are applied.
TOP
SECTION
--~
ti
TOPANDMID
SECTIONS MUST TOUCH
AT
THE
PIVOT POINT
BEFORE CLAMP SCREW
IS FULLY TIGHTENED
3 •
Loo
en
the
clamp
screw
so
the
top
ectlon separates
from
the
mid
section.
This
will
provide
the
necessary clearance
to
slide
the
mount over
the
mirror
stem
as
shown
above
.
Adju
t
the
mirror
parafl
I
to
the
windshield for
ease
of Installation.
As
you
are
tightening
the
clamp
screw,
make
sure
the top
and
mid
sections
touch
at
the
pivot
point.
If they do not
touch t the p vot point, thi mount Is lncompatlbl with your mirror type.
Tighten
the
clamp
screw until
the
mount
is
slightly
snug
around
the
mirror
stem
.
BOTTOM OF SPRING CLIP
IS PARALLEL WITH RD
2 • The bottom
of
the spring clip must be parallel with the
top
of
the RD
to
slide In and out. SLIDE THE RD ONTO
THE SPRING CLIP AS FAR AS IT WILL GO. Release the
trigger to secure
the
RD
onto
the
mount.
Before Installing the
mount
onto your rear view mirror,
remove
and
install the
RD
a
few
times
so
you
can
observe
how
the
spring
clip
functions.
4 - Position
the
mount
as
far
forward
as
you
can
.
Before
fully tightening
the
clamp
screw,
make
sure
the
bottom
of
the
mount
Is
parallel
with
the
bottom
of
the
mirror.
Innovative D
1gn
And
Pti
i Ion M nufacturlng
BlendMount -
US
PATENT# 0625,580
S,
D656,811
S,
0653,980 S
D690
,
245
S, 0690,
246
S,
D690
,
247
Sand other patents
pending
PAGE 1 OF 2

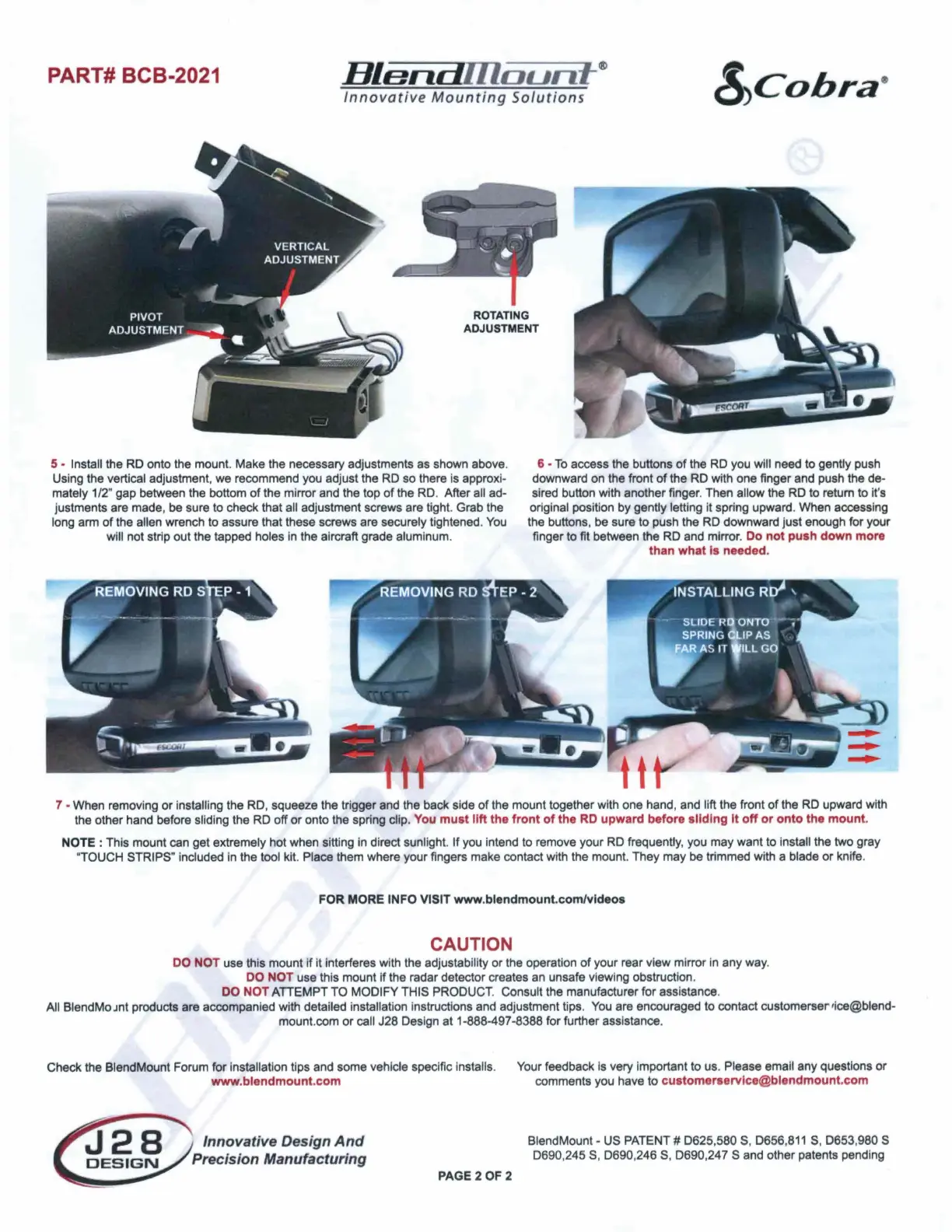

PART# BCB-2021
Blan
moun
&cobra
Innovative
Mounting
Solutions
ROTATING
ADJUSTMENT
5 • Install the RD onto the mount. Make the necessary adjustments as shown above.
Using the vertical adjustment, we recommend you adjust the RD so there is approxi-
mately 1/2" gap between the bottom
of
the mirror and the top
of
the RD. After all ad-
justments are made, be sure to check that all adjustment screws are tight. Grab the
long arm
of
the allen wrench to assure that these screws are securely tightened.
You
will not strip out the tapped holes
In
the aircraft grade aluminum.
6 •
To
access the buttons
of
the RD you will need to gently push
downward on the front
of
the RD with one finger and push the de-
sired button with another finger. Then allow the RD to return to it's
original position
by
gently letting it spring upward. When accessing
the buttons, be sure to push the RD downward just enough for your
finger to fit between the RD and mirror. Do not pu h down more
than what Is n ded.
7 • When removing
or
installing the RD, squeeze the trigger and the back side
of
the mount together with one hand, and lift the front
of
the RD upward with
the other hand before sliding the RD
off
or
onto the spring clip.
You
must
11ft
the front of the
RD
upw
rd
b fore slldlng It off or onto the mount.
NOTE : This mount can get extremely hot when sitting
In
direct sunlight. If you intend to remove your RD frequently, you may want to install the two gray
"TOUCH STRIPS" included in the tool kit. Place them where your fingers make contact with the mount. They may be trimmed with a blade
or
knife.
FOR MORE INFO VISIT www.blendmount.com/vld o
CAUTION
DO NOT use this mount if it interferes with the adjustability or the operation
of
your rear
view
mirror in any way.
DO
NOT use this mount
if
the radar detector creates an unsafe viewing obstruction.
DO
NOT
ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for
ass
i
stance
.
All BlendMo Jnt products are accompanied with detailed installation instructions and adjustment tip . You are encouraged to contact customerser
,1ce@bl
nd-
mount.com
or
call J28 Design at 1-888-497 -8388 for further assistance.
Check the BlendMount Forum
for
Installation tips and some vehicle specific Installs.
www.blendmount.com
Innovative D sign
And
Pr,
clsion Manufacturing
PAGE 2 OF 2
Your feedback
Is
very Important to us. Please email any question or
comments you have
to
cu
tom
rs
rvlc
bl
ndmount.eom
BlendMount • US
PATENT#
D625,580 S,
0656
,
811
S,
0653
,980 S
D690,245 S,
0690
,246 S, D690,247
Sand
other patents pending
