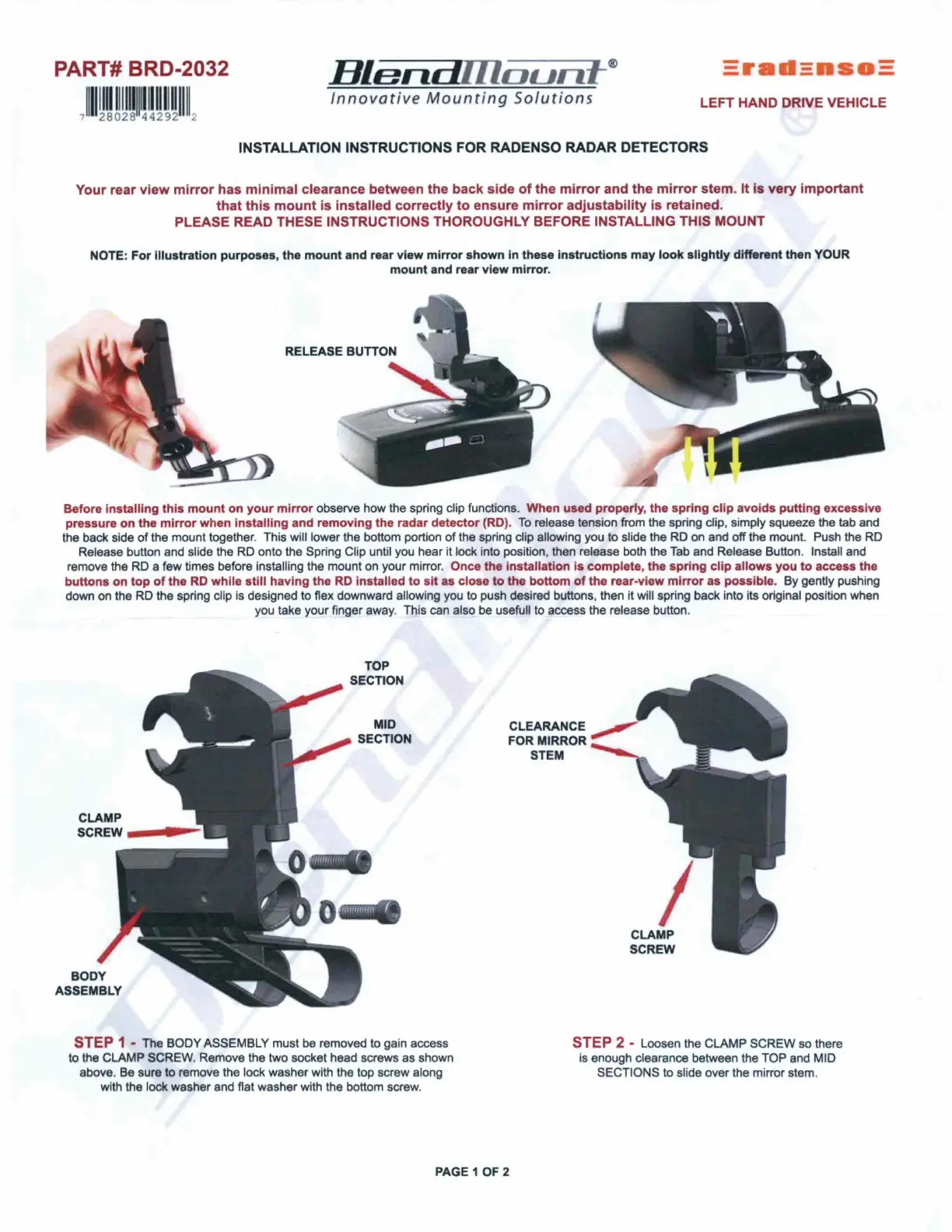

PART# BRD-2032
Blend
ffloun
Er
-
-
-
11111
IHI
fflll
11111111111
Innovative
Mount
i
ng
Solut
ions
LEFT HAND DRIVE VEHICLE
7
28028
44292
2
INSTALLATION INSTRUCTIONS FOR RADENSO RADAR DETECTORS
Your rear view
mirror
has minimal clearance between the back side
of
the
mirror
and the
mirror
stem. It i very important
that
this
mount
is
installed correctly
to
ensure
mirror
adjustability
is
retained.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT
NOTE:
For
illustration purpose , the mount and rear view mirror shown In these Instructions m y look slightly different then YOUR
mount and rear view mirror.
Befor installing this mount on your mirror observe how the spring clip functions. When us d properly, the spring clip avoids putting exce ive
pressure on the mirror when installing and
~
moving the radar detector (RD).
To
release tension from the spring
dip,
simply squeeze the tab and
the back side
of
the mount together. This will lower the bottom portion
of
the spring clip allowing you to slide the RD on and off the mount. Push the RD
Release button and slide the RD onto the Spring Clip until you hear it lock into position, then release both the Tab and Release Button. Install and
remove the RD a few times before Installing the mount on your mirror. Once the installation i complet , the spring clip llow you
to
access the
buttons on
top
of
the RD while still having th RD installed to sit as close to th bottom
of
the rear-vi w mirror a
po
Ible.
By
gently pushing
down on the RD the spring clip is designed to flex downward allowing you
to
push desired buttons, then it will spring back into its original position when
you take your finger away. This can also be useful! to access the release button.
TOP
SECTION
MID
SECTION
STEP 1 • Th BODY ASSEMBLY must be removed to gain access
to
the
CLAMP SCREW. Remove the two socket head screws as shown
above. Be sur
to
remove the lock washer with the top screw along
with the lock washer and flat washer with the bottom screw.
PAGE 1
Of
2
CLAMP
SCREW
STEP 2 • Loosen the CLAMP SCREW so there
is enough clearance between the TOP and MID
SECTIONS to slide over the mirror stem.

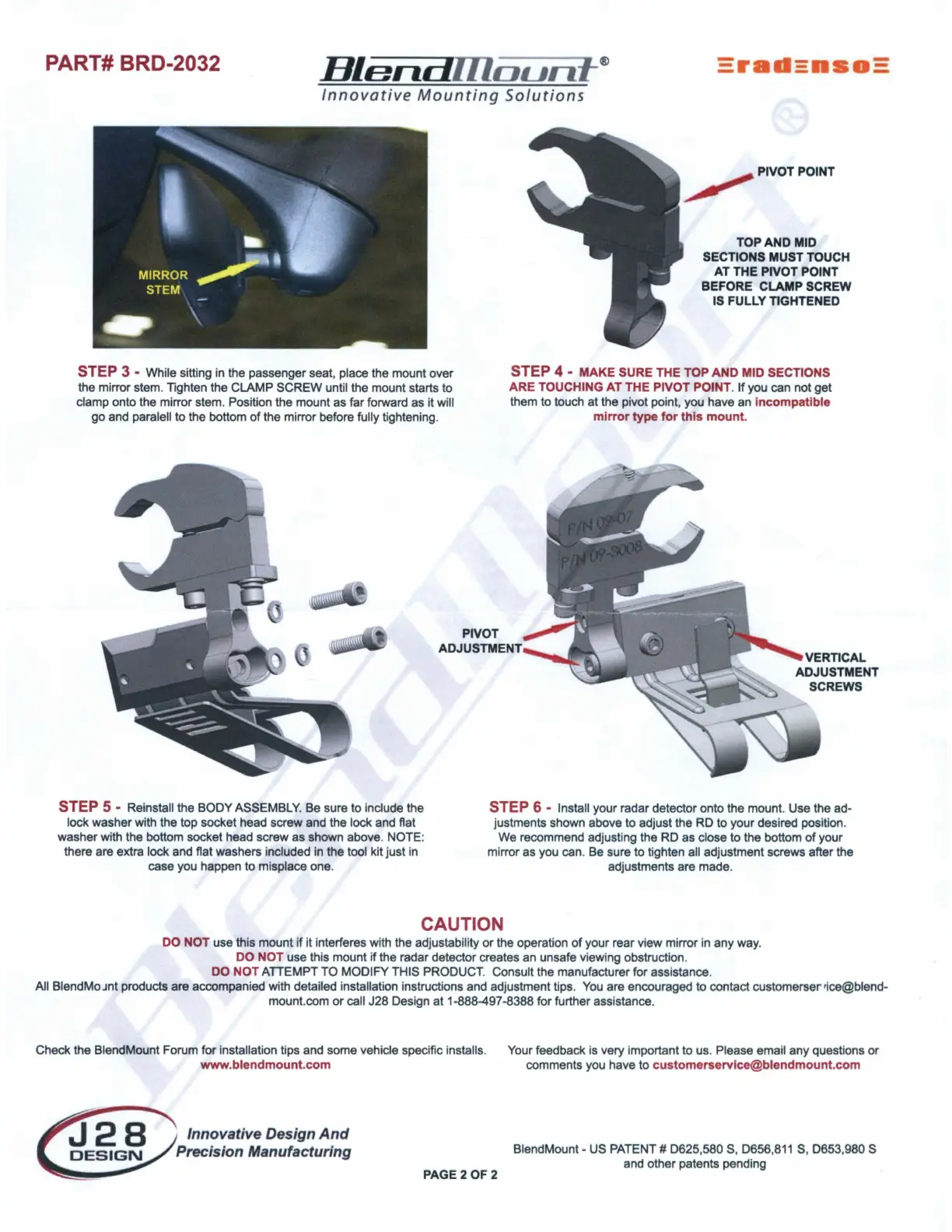

PART# BRD-2032
®
=r
Innovative
Mounting
Solutions
STEP 3 • While sitting in the passenger seat, place the mount over
the mirror stem. Tighten the CLAMP SCREW until the mount starts to
clamp onto the mirror stem. Position the mount as far forward as it will
go
and paralell to the bottom
of
the mirror before fully tightening.
PIVOT POINT
TOPANDMID
SECTIONS MUST TOUCH
AT THE PIVOT POINT
BEFORE CLAMP SCREW
IS FULLY TIGHTENED
STEP 4 •
MAKE
SURE THE TOP
AND
MID SECTIONS
ARE TOUCHING
AT
THE PIVOT POINT.
If
you can not get
them to touch at the pivot point, you have an incompatible
mirror type for this mount.
PIVOT
ADJUSTMENT
STEP 5 • Reinstall the BODY ASSEMBLY. Be sure to include the
lock washer with the top socket head screw and the lock and flat
washer with the bottom socket head screw as shown above. NOTE:
there are extra lock and flat washers included
In
the tool kit just in
case you happen to misplace one.
STEP 6 - Install your radar detector onto the mount. Use the ad-
justments shown above to adjust the RD to your desired position.
We recommend adjusting the RD as close to the bottom
of
your
mirror as you can. Be sure to tighten all adjustment screws after the
adjustments are made.
CAUTION
DO NOT use this mount if it interferes with the adjustability
or
the operation
of
your rear view mirror in any way.
DO NOT use this mount
if
the radar detector creates an unsafe viewing obstruction.
DO NOT ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.
All Blend Mo Jnt products are accompanied with detailed installation instructions and adjustment tips.
You
are encouraged to contact customerser rice@blend-
mount.com
or
call J28 Design
at
1-888-497-8388 for further assistance.
Check the BlendMount Forum
for
installation tips and some vehicle specific installs. Your feedback is very important to us. Please email any questions
or
www.blendmount.com comments you have to customerservlc @blendmount.com
Innovative Design And
Pree/.
Ion
Manufacturing
PAGE20F2
BlendMount - US PATENT# 0625,580
S,
0656,811 S, 0653,980 S
and other patents pending
