Blend

fflounf-®

Innovative

Mounting

Solutions

ESCORT

LEFT

HAND

DRIVE VEHICLE

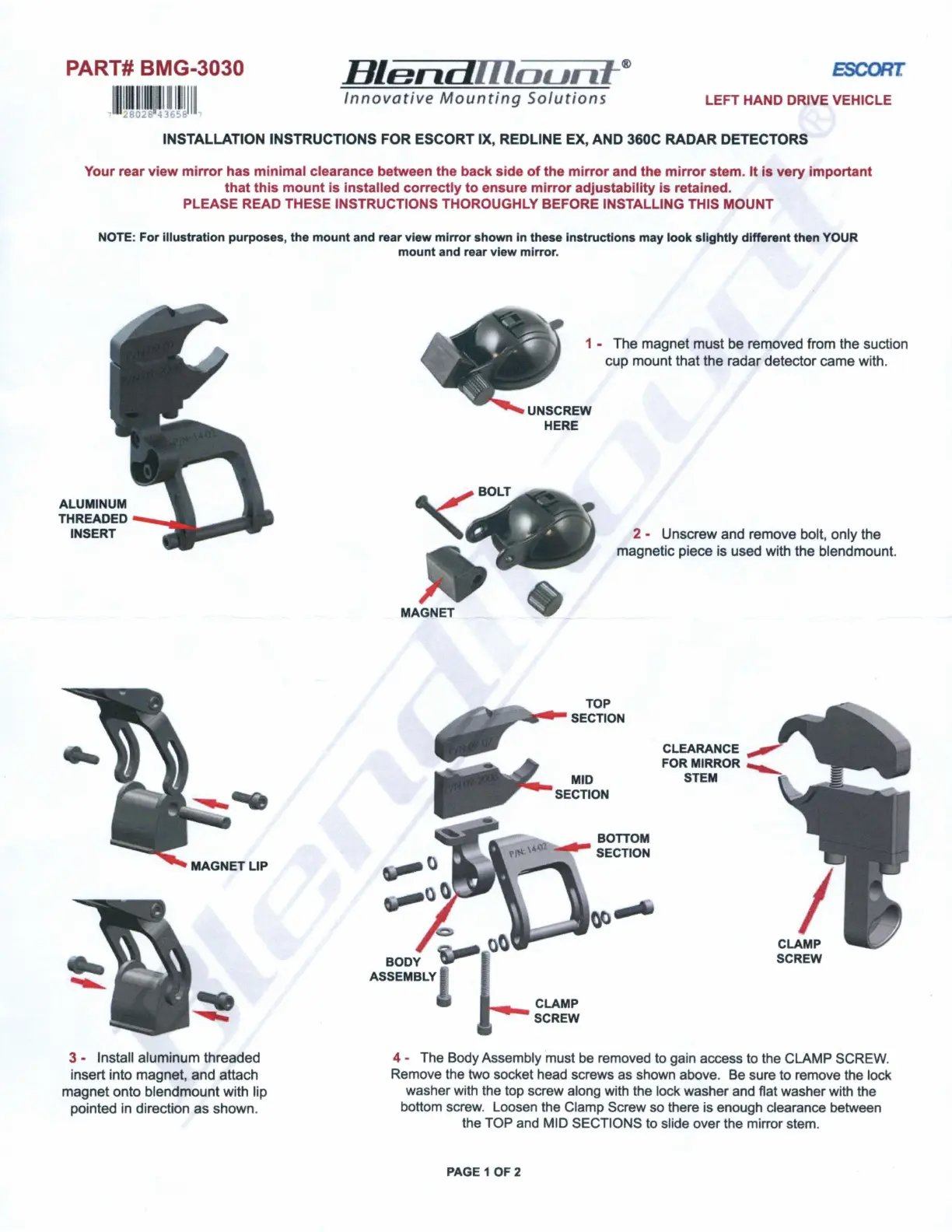

INSTALLATION INSTRUCTIONS FOR ESCORT IX, REDLINE EX, AND 360C RADAR DETECTORS

Your rear view

mirror

has minimal clearance between the back side

the

mirror

and the

mirror

tem. It

very important

that

this

mount is installed correctly

ensure

mirror

adjustability

retained.

PLEASE

READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT

NOTE: For illustration purposes, the mount and rear view

mirror

shown In these Instructions may

look

slightly different then

YOUR

mount and rear view mirror.

ALUMINUM

THREADED

INSERT

3 - Install

aluminum

threaded

insert into magnet,

and

attach

magnet

onto

blendmount

with lip

pointed in direction

shown

1 -

The

magnet

must

be removed from the suction

cup

mount

that

the

radar

detector

came

with.

UNSCREW

HERE

2 -

Unscrew

and

remove bolt,

only

the

magnetic

piece

used

with

the

blendmount.

TOP

~f-:~

SECTION

CLAMP

SCREW

4 - The Body Assembly must be removed to gain access to the CLAMP SCREW.

Remove the two socket head screws as shown above. Be sure to remove the lock

washer with the top screw along with the lock washer and flat washer with the

bottom screw. Loosen the Clamp Screw so there is enough clearance between

the TOP and MID SECTIONS to slide over the mirror stem.

PAGE 1

PART# BMG-3030

Blend

fflaun

(I)

ESCOFrC

Innovative

Mount

Solut

ions

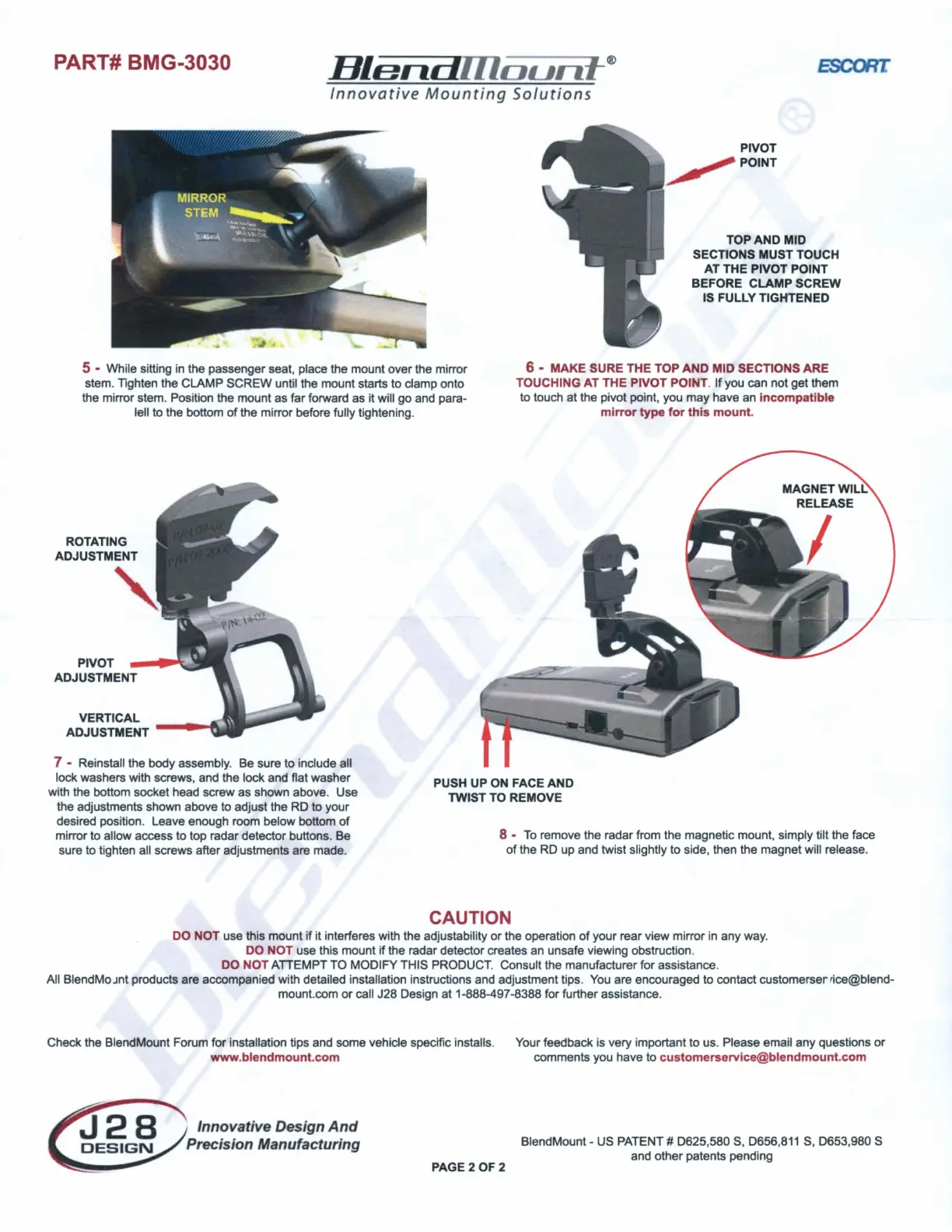

5 - While sitting in the passenger seat, place the mount over the mirror

stem.

llghten

the CLAMP SCREW until the mount starts to clamp onto

the mirror stem. Position the mount as far forward as it will go and para-

lell to the bottom

the mirror before fully tightening.

VERTICAL

ADJUSTMENT

PIVOT

POINT

TOP AND MID

SECTIONS MUST TOUCH

AT THE PIVOT POINT

BEFORE CLAMP SCREW

IS FULLY TIGHTENED

6 - MAKE SURE THE TOP AND MID SECTIONS ARE

TOUCHING AT THE PIVOT POINT.

you can not get them

to touch at the pivot point, you

may

have an incompatible

mirror type for this mount.

7 - Reinstall the body assembly. Be sure to include all

lock washers with screws, and the lock and flat washer

with the bottom socket head screw as shown above. Use

the adjustments shown above to adjust the RD to your

desired position. Leave enough room below bottom

mirror to allow access to top radar detector buttons. Be

PUSH UP ON FACE AND

TWIST TO REMOVE

sure to tighten all screws after adjustments are made.

8 -

remove the radar from the magnetic mount, simply tilt the face

the RD up and twist slightly to side, then the magnet will release.

CAUTION

DO NOT use this mount

it interferes with the adjustability

the operation

your rear view mirror

any way.

DO NOT use this mount

the radar detector creates an unsafe viewing obstruction.

DO NOT ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.

All Blend Mo Jnt products are accompanied with detailed installation instructions and adjustment tips.

You

are encouraged to contact customerser rice@blend-

mount.com

call J28 Design

1-888-497-8388 for further assistance.

Check the BlendMount Forum for Installation tips and some vehicle specific installs. Your feedback is very important to us. Please email any questions

www

.blendmount.com comments you have

customerservice@blendmount.com

Innovative Design

And

Precision Manufacturing

PAGE2OF2

BlendMount -

PATENT# D625,580 S, D656,811 S, 0653,980 S

and other patents pending
