LEFT HAND DRIVE VEHICLE

2 02

INSTALLATION INSTRUCTIONS FOR RADENSO

RADAR

DETECTORS

Your rear view

mirror

has minimal clearance between the back side

the

mirror

and the

mirror

stem. It

very Important

that

this

mount

is installed correctly

ensure

mirror

adjustability is retained.

PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT

NOTE: For Illustration purposes, the mount and rear view mirror shown in these instructions may

look

slightly different then YOUR

mount and rear view mirror.

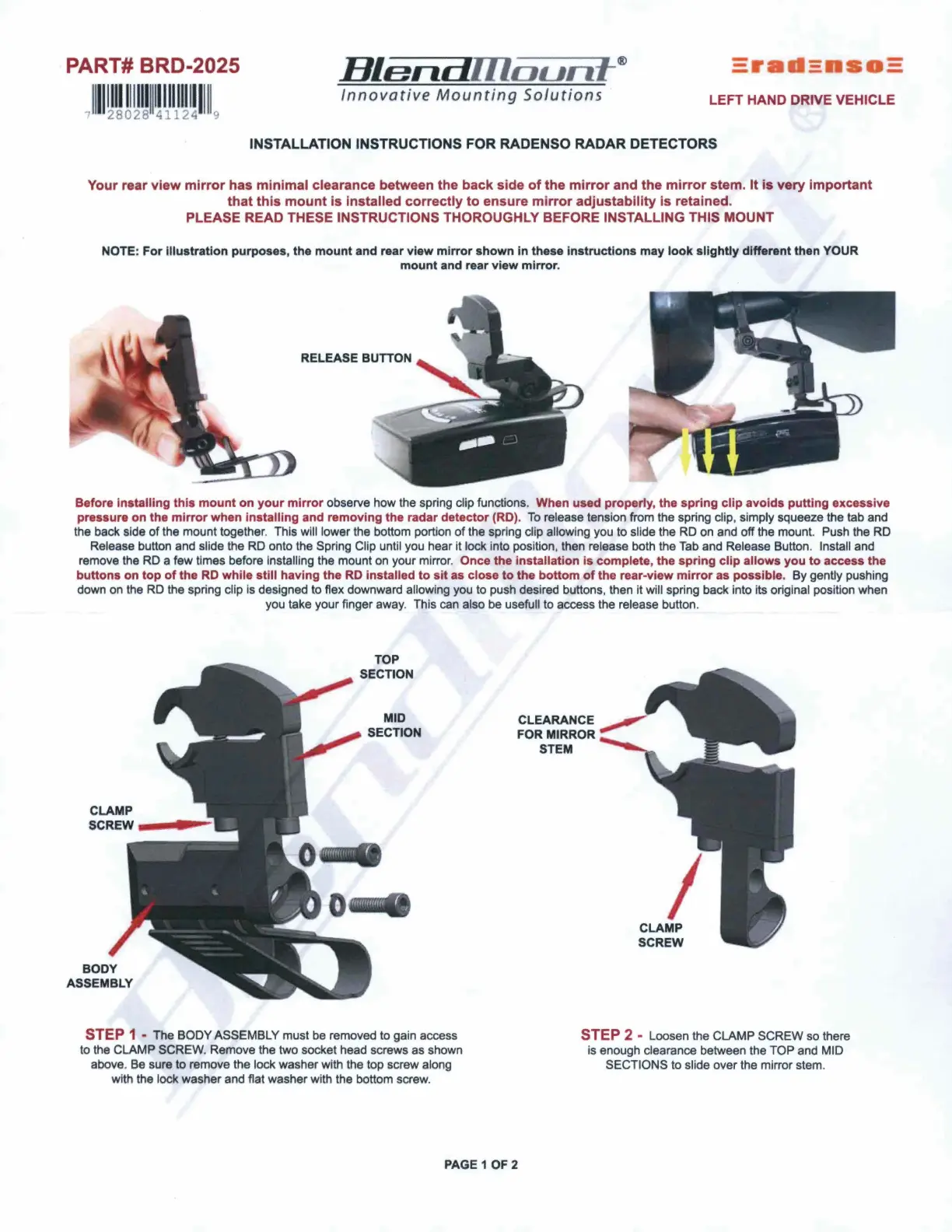

RELEASE BUTTON

Before Installing this mount on your mirror observe

how

the

spring

clip functions. When used properly, the spring cllp avoids putting excessive

pressure on the mirror when in talllng and removing the radar detector (RD).

release tension

from

the

spring clip, simply squeeze

the

tab

and

the

back

side

the

mount together. This

will

lower

the

bottom

portion of

the

spring clip allowing

you

slide

the

and

off

the

mount.

Push

the

Release

button

and

slide

the

onto

the

Spring Clip

until

you

hear it lock into position,

then

release

both

the

Tab

and

Release

Button.

Install

and

remove

the

a few times before Installing

the

mount

your mirror. Once the installation is complete, the spring clip allow you to access the

buttons on

top

the

while still having the

installed

sit

the bottom

the rear-view

mirror

as possible.

gently

pushing

down

the

spring clip

designed

flex

downward

allowing

you

push

desired buttons,

then

it will spring back into

Its

original position

when

you

take your finger away.

This

can

also

usefull to access

the

release

button

TOP

SECTION

'MID

SECTION

STEP 1 • The

BODY

AS$EMBLY must

removed

gain

access

the

CLAMP

SCREW.

Remove

the

two

socket

head

screws

shown

above

sure to

remove

the

lock washer

with

the top

screw along

with

the

lock washer

and

flat washer

with

the

bottom

screw.

PAGE 1

CLAMP

SCREW

STEP 2 •

Loosen

the

CLAMP

SCREW

there

enough

clearance

between

the

TOP

and

MID

SECTIONS

slide over

the

mirror

stem.

PART# BRD-2025

Blan

moun

nnovative

Mounting

Solut

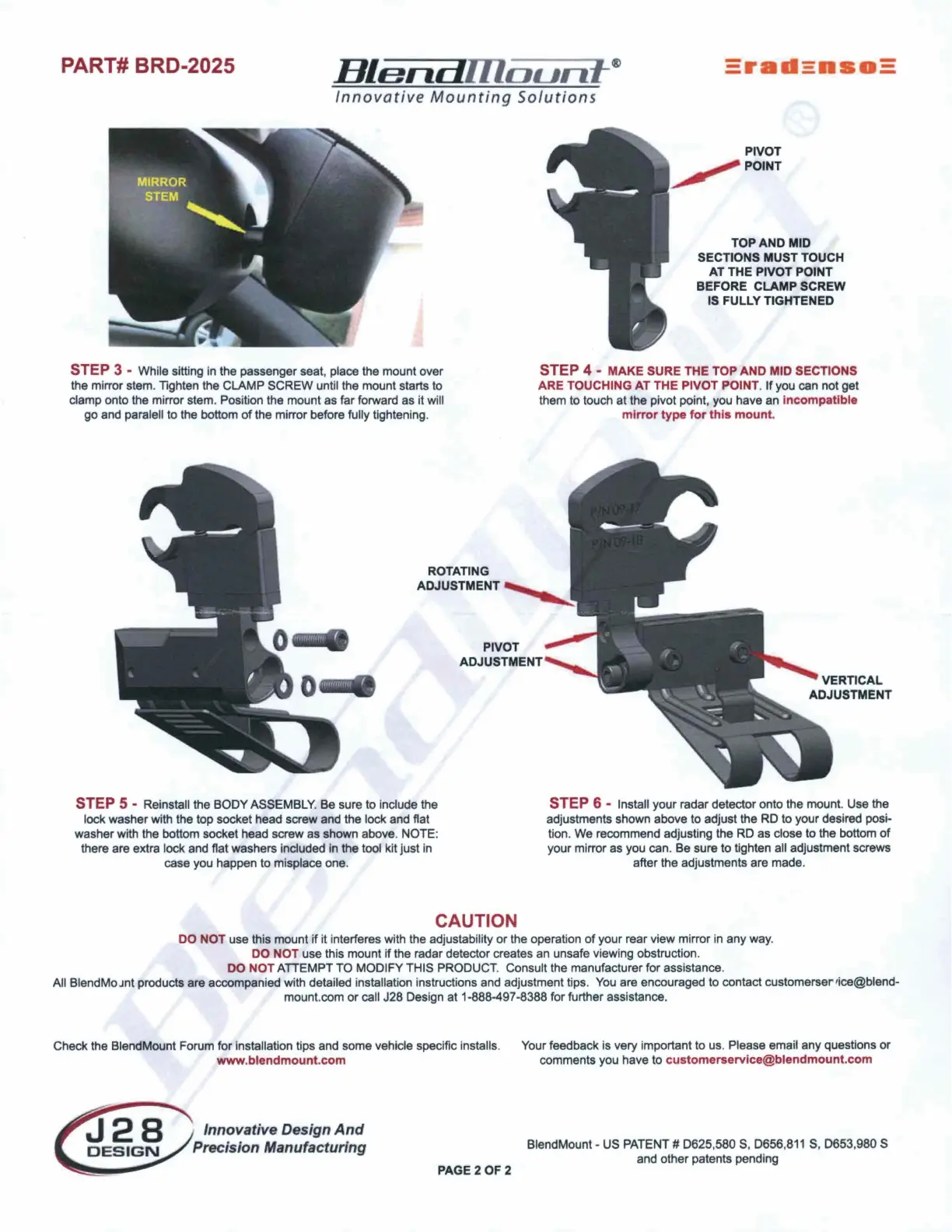

STEP 3 • While sitting in the passenger seat, place the mount over

the mirror stem. Tighten the CLAMP SCREW until the mount starts to

clamp onto the mirror stem. Position the mount as far forward as it will

go and paralell to the bottom

the mirror before fully tightening.

ROTATING

ADJUSTMENT

STEP 5 • Reinstall the BODY ASSEMBLY. Be sure to include the

lock washer with the top socket head screw and the lock and flat

washer with the bottom socket head screw as shown above. NOTE:

there are extra lock and flat washers included in the tool kit just in

case you happen to misplace one.

CAUTION

PIVOT

POINT

TOPANDMID

SECTIONS MUST TOUCH

AT THE PIVOT POINT

BEFORE CLAMP SCREW

FULLY TIGHTENED

STEP 4 • MAKE SURE THE TOP AND MID SECTIONS

ARE TOUCHING AT THE PIVOT POINT.

you can not get

them to touch at the pivot point, you have an

Incompatible

mirror

type

for

this

mount

STEP 6 • Install your radar detector onto the mount. Use the

adjustments shown above to adjust the RD to your desired posi-

tion. We recommend adjusting the

as close to the bottom

your mirror as you can. Be sure to tighten all adjustment screws

after the adjustments are made.

DO NOT use this mount

it interferes with the adjustability or the operation

your rear view mirror in any way.

DO NOT use this mount

the radar detector creates an unsafe viewing obstruction.

DO NOT ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.

All Blend Mo Jnt products are accompanied with detailed installation instructions and adjustment tips.

You

are encouraged to contact customerser rice@blend-

mount.com

call J28 Design at 1-888-497-8388 for further assistance.

Check the BlendMount Forum for installation tips and some vehicle specific installs. Your feedback is very important to us. Please email any questions

www

blendmount

com

comments you have to customerservlce@blendmount.

com

lnnovati~ De ign

And

Precision Manufacturing

PAGE 2 OF 2
