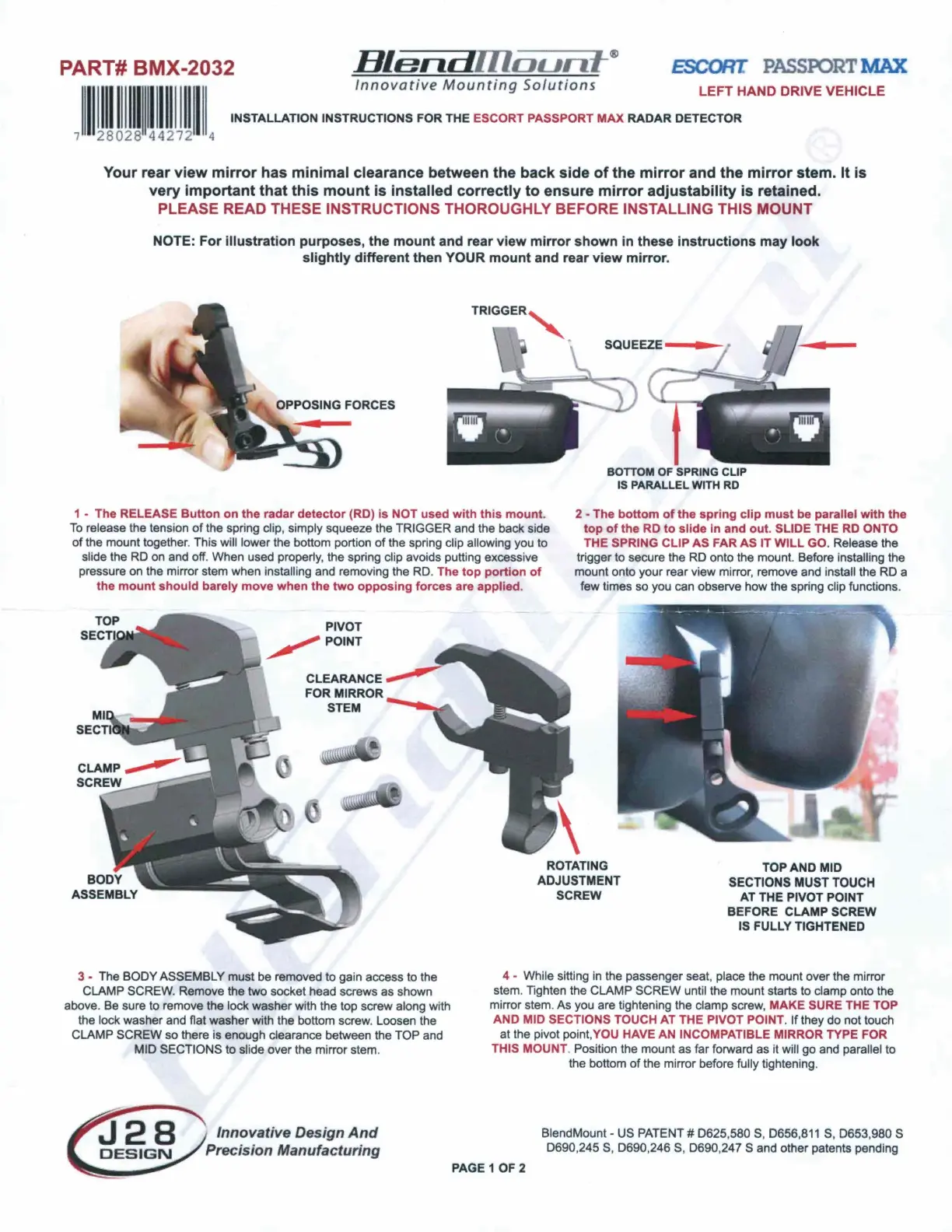

PART# BMX-2032

Blend

fflaunt-®

ESCOR'C

PASSPORT

MAX

1111111111111111111111

nno

Mount

Solu

s LEFT HAND DRIVE VEHICLE

. . INSTALLATION INSTRUCTIONS FOR

THE

ESCORT PASSPORT

MAX

RADAR DETECTOR

28028

44272

Your rear

view

mirror

has minimal clearance between the back side

the

mirror

and the

mirror

stem. It

very important

that

this

mount

is installed correctly

ensure

mirror

adjustability

retained.

PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT

NOTE: For illustration purposes, the mount and rear view mirror shown

these instructions may look

slightly different then YOUR mount and rear view mirror.

BOTTOM OF SPRING CLIP

IS PARALLEL WITH RD

1 - The RELEASE Button on the radar detector (RD) is

NOT

used with this mount.

2 -

The

bottom

the spring clip

must

be parallel with the

top

the RD to slide in and out. SLIDE THE RD ONTO

THE

SPRING CLIP AS FAR

IT WILL

. Release the

trigger

secure the RD onto the mount. Before installing the

mount onto

your

rear view mirror, remove and install the RD a

few times so you can observe

how

the spring clip functions.

release the tension

the spring clip, simply squeeze the TRIGGER and the back side

the mount together. This will lower the bottom portion

the spring clip allowing you to

slide the RD on and off. When used properly, the spring clip avoi

putting excessive

pressure on the mirror stem when installing and removing the RD. The top portion

the mount should barely move when the two opposing forces are applied.

3 • The

BODY

ASSEMBLY must be removed to gain access to the

CLAMP SCREW. Remove the two socket head screws as shown

above. Be sure to remove the lock washer with the top screw along with

the lock washer and flat washer with the bottom screw. Loosen the

CLAMP SCREW so there is enough clearance between the TOP and

MID SECTIONS to slide

over

the mirror stem.

Innovative D ign

And

Precision Manufacturing

ROTATING

ADJUSTMENT

SCREW

TOPANDMID

SECTIONS

MUST

TOUCH

AT THE PIVOT POINT

BEFORE CLAMP

SCREW

IS FULLY TIGHTENED

4 - While sitting in the passenger seat, place the mount over the mirror

stem. Tighten the CLAMP

SCREW

until the mount starts to clamp onto the

mirror stem. As you are tightening the clamp screw, MAKE SURE THE TOP

AND

MID SECTIONS TOUCH AT THE PIVOT POINT.

they

not touch

the pivot point.YOU HAVE

INCOMPATIBLE MIRROR TYPE FOR

THIS MOUNT. Position the mount as

far

forward as it will go and parallel to

the bottom

the mirror before fully tightening.

PAGE 1

BlendMount -

PATENT#

D625,580 S, D656,811 S, D653,980 S

D690,245 S, D690,246 S, D690,247

Sand

other patents pending

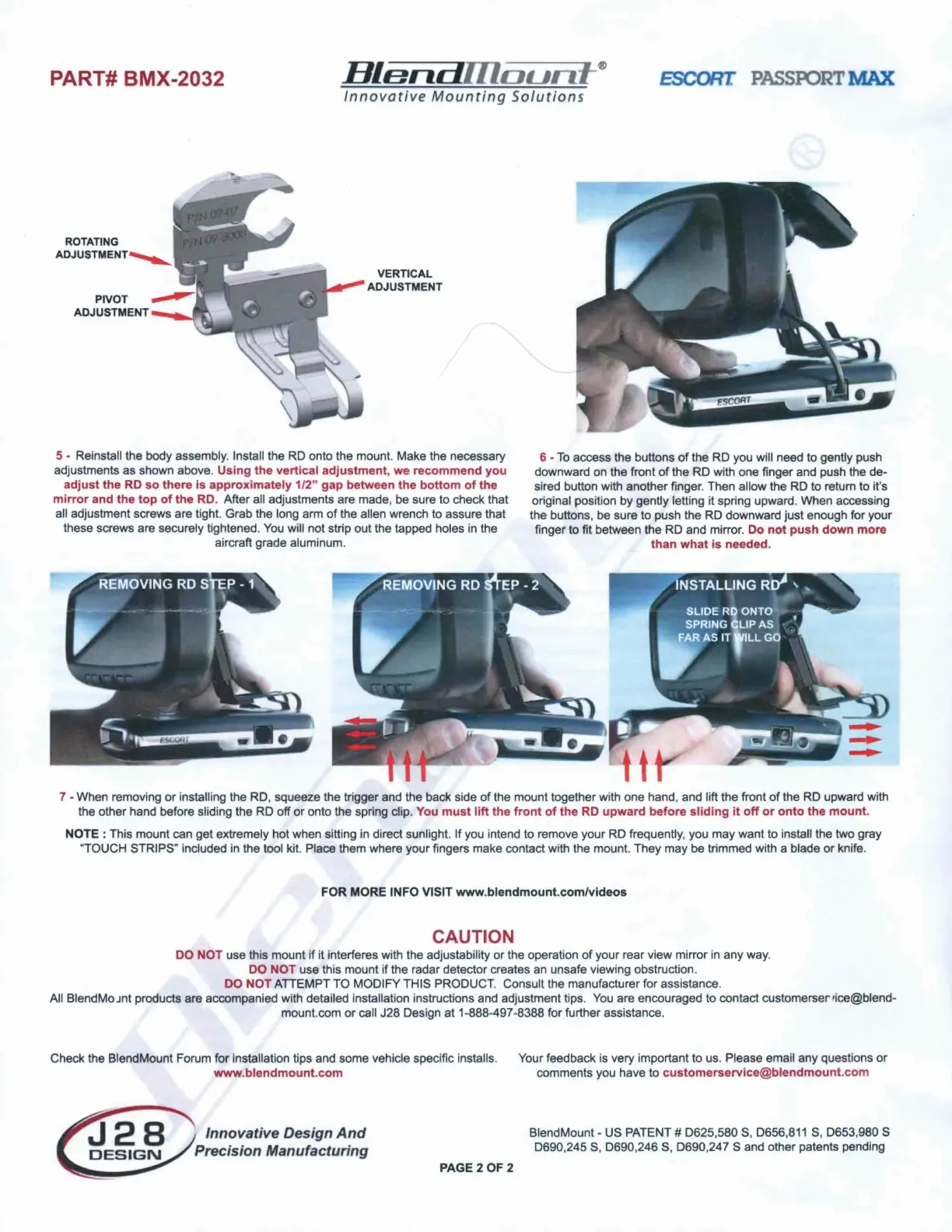

PART# BMX-2032

Blenc:l.

ffloun

ESCORT

PASSPORT

Innovative

Mount

Solut

ions

PIVOT

ADJUSTMENT

_ ~

..,.,,

VERTICAL

ADJUSTMENT

5 - Reinstall the body assembly. Install the RD onto the mount. Make the necessary

adjustments as shown above. Using the vertical adjustment, we recommend you

adjust the RD so there is approximately 1/2" gap between the bottom

the

mirror and the top

the RD. After all adjustments are made, be sure to check that

all adjustment screws are tight. Grab the long arm

the allen wrench to assure that

these screws are securely tightened.

You

will not strip out the tapped holes in the

aircraft grade aluminum.

6 -

access the buttons

the RD you will need to gently push

downward on the front

the RD with one finger and push the de-

sired button with another finger. Then allow the RD to return to it's

original position by gently letting it spring upward. When accessing

the buttons, be sure to push the RD downward just enough for your

finger to fit between the RD and mirror. Do not push down more

than what is needed.

~l NSTALLING R '

SLIDE

ONTO • - •

SPRING

tlP

F.AR

'ILL

GO .

- I

7 - When removing

installing the RD, squeeze the trigger and the back side

the mount together with one hand, and lift the front

the RD upward with

the other hand before sliding the RD

off

onto the spring cl'p. You must

lift

the front

the RD upward before sliding it off

onto the mount.

NOTE : This mount can get extremely hot when sitting in direct sunlight. If you intend to remove your RD frequently, you may want to install the two gray

"TOUCH STRIPS" included in the tool kit. Place them where your fingers make contact with the mount. They may be trimmed with a blade

knife.

FOR MORE INFO VISIT www.blendmount.com/videos

CAUTION

DO NOT use this mount

it interferes with the adjustability

the operation

your rear view mirror

any way.

DO NOT use this mount if the radar detector creates an unsafe viewing obstruction.

DO NOT ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.

All Blend Mo Jnt products are accompanied with detailed installation instructions and adjustment tips. You are encouraged to contact customerser rice@blend-

mount.com

call J28 Design at 1-888-497-8388 for further assistance.

Check the BlendMount Forum for Installation tips and some vehicle specific Installs.

www.blendmount.com

Innovative Design And

Precision Manufacturing

PAGE2OF2
