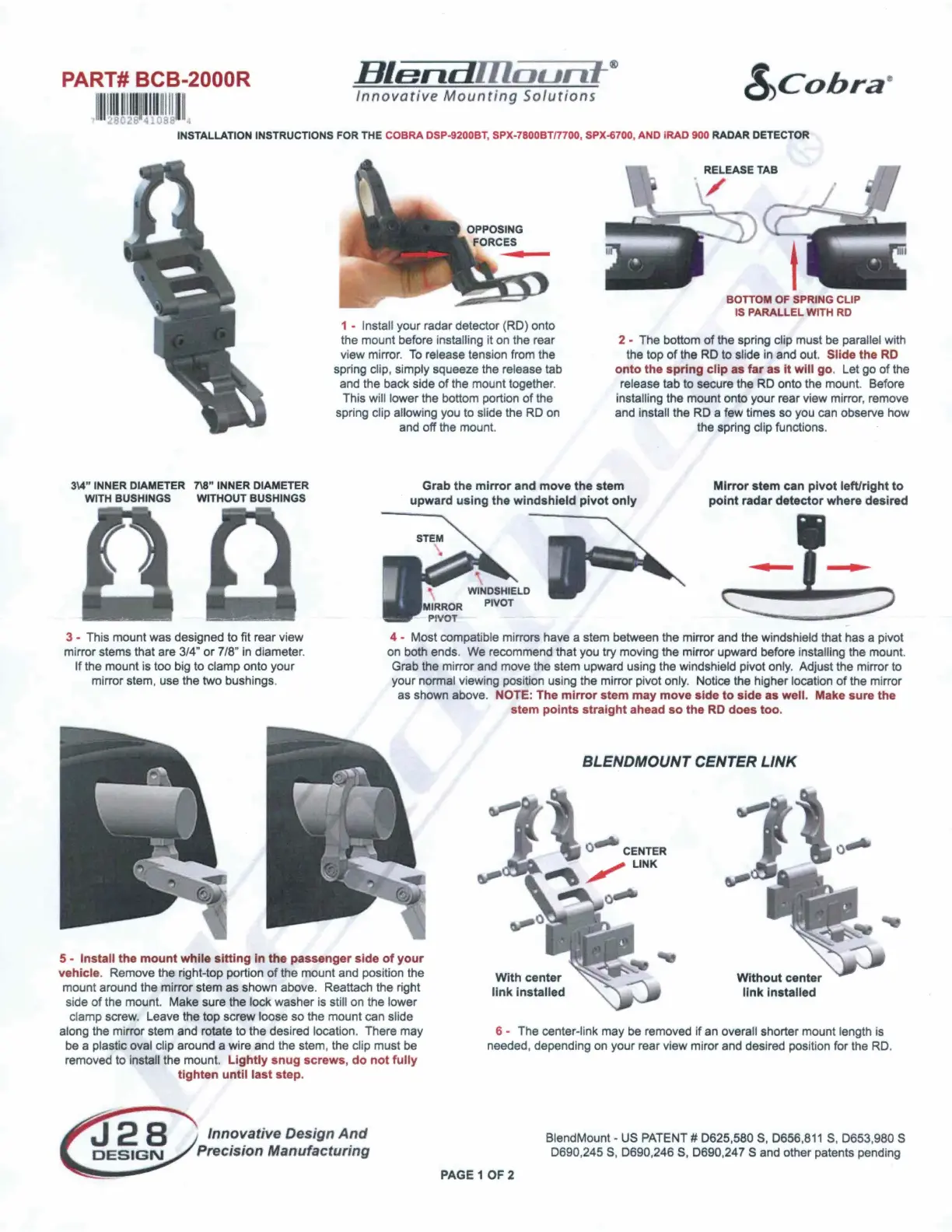

INSTALLATION INSTRUCTIONS FOR THE COBRA DSP•9200BT, SPX•7800BTn700, SPX-6700, AND iRAD 900 RADAR DETECTOR
3\4" INNER DIAMETER
7\8"
INNER DIAMETER
WITH BUSHINGS WITHOUT BUSHINGS
3 - This mount was designed
to
fit rear view
mirror stems that are 3/4" or 7/8"
in
diameter.
If the mount is too
big
to clamp onto your
mirror stem, use the two bushings.
1 - Install your radar detector (RD) onto
the mount before installing it
on
the rear
view mirror.
To
release tension
from
the
spring clip, simply squeeze the release tab
and
the back side of the mount together.
This will lower the bottom portion of
the
spring clip allowing
you
to slide
the
RD
on
and
off
the
mount.
BOTTOM OF SPRING CLIP
IS PARALLEL WITH RD
2 -
The
bottom of the spring clip must
be
parallel
with
the top of the
RD
to
slide
in
and out. Slide the
RD
onto the spring clip
as
far
as
it wlll
go
. Let go
of
the
release tab to secure the
RD
onto the mount. Before
installing the mount onto your rear view mirror, remove
and
install the
RO
a few times
so
you
can
observe how
the
pring
clip
functions.
Grab the mirror
and
move the stem
upward using the windshield pivot only
Mirror stem
can
pivot left/right to
point radar detector where desired
4 - Most compatible mirrors have a stem between the mirror and the windshield that has a pivot
on
both ends.
We
recommend that
you
try moving the mirror upward before Installing the
mount.
Grab the mirror and
move
the stem upward using the windshield pivot only. Adjust the mirror to
your normal viewing
pos
ition using the mirror pivot only. Notice the higher location of the mirror
as
shown above.
NOTE:
The mirror stem may move side to side a well. Make sure the
stem
po
ints straight ahead
so
the
RD
does too.
BLENDMOUNT CENTER LINK
5 - Install the mount while sitting
In
the passenger side of your
vehicle. Remove the right-top portion
of
the mount
and
position the
mount around the mirror stem
as
shown above. Reattach the right
side of the mount. Make sure the lock washer
is
still
on
the lower
clamp
screw.
Leave the top screw loose
so
the mount
can
slide
along the mirror stem and rotate to the desired location. There may
be
a plastic oval clip around a wire
and
the
stem
, the clip must
be
removed to install the mount. Lightly snug screws,
do
not fully
tighten until last step.
With
center
link installed
Without center
llnk Installed
6 - The center-link may
be
removed If
an
overall shorter mount length is
needed, depending
on
your rear view miror and desired position for the
RD
.
Innovative De ign And
Precision anufacturin
PAGE
1 OF 2
BlendMount -
US
PATENT# 0625,580 S,
D656
,811 S,
D653
,
980
S
D690,245 S,
D690
,246 S, D690,247
Sand
other patents
pend
i
ng
PART# BCB-2000R
TOP
CLAMP
SCREW
LOWER CLAMP/TOP
PIVOT SCREWS
Bland
ffloun
Inno
v
at
i
ve
Mounting
Solutio
ns
&
cobra
7 - Install
the
RD
onto the mount.
Make
the necessary adjustments
as
shown
above.
Using
the vertical adjustment,
we
recommend
you
adjust
the
RD
as
close
to
the
bottom of
the
mirror
as
possible.
The
spring
clip
holding
the
RD
is
designed
to
flex downward
to
allow access
to
the
RD
buttons
as
shown
below
in
step
10
.
8 - At this point your
RD
should
be
positioned where
you
want it
and
the
screws
should
be
snug. Loosen
the
top clamp screw
so
both
the lower
clamp/top pivot screws
can
be
fully tightened.
Grab
the
long
arm
of the
allen wrench
to
assure that these screws
are
securely tightened.
You
will
not strip out the
tapped
holes
in
the aircraft grade
alum
i
num
. The
bottom clamp screws should be fully tightened before tightening
the top clamp screw. If the top screw Is tightened before the
bottom screws are, the clamp will loosen over time.

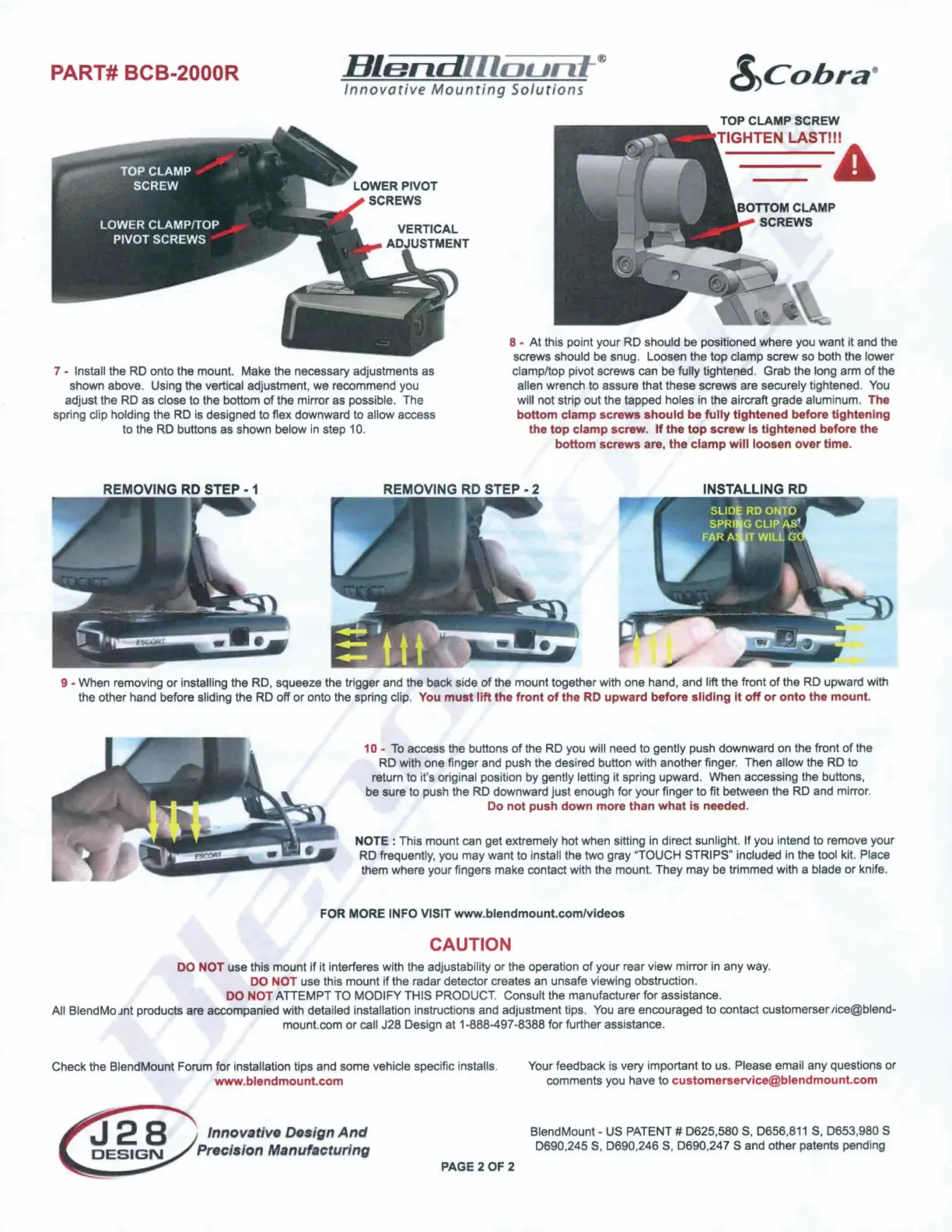

REMOVING RD STEP • 1
REMOVING RD STEP
..
2
9 -
When
removing or Installing the RD, squeeze
the
trigger
and
the
back
side of
the
mount together with one hand,
and
lift
the
front of the
RD
upward
with
the
other
hand
before sliding the
RD
off or onto
the
spring clip. You must lift the front
of
the RD upward before sliding it
off
or
onto the mount.
1 O -
To
access
the
buttons of
the
RD
you
will
need
to
gently
push
downward
on
the
front of
the
RD
with one finger
and
push
the
desired button
with
another finger.
Then
allow
the
RD
to
return
to
it's origi
nal
positi
on
by
gently letting
it
spring upward.
When
accessing the buttons,
be
sure
to
push
the
RD
downward
Just
enough
for your finger
to
flt
between
the
RD
and
mirror.
Do not push down more than what is needed.
NOTE : This mount
can
get extremely hot
when
sitting
in
direct sunlight. If
you
intend
to
remove your
RD
frequently,
you
may want
to
install the two gray "
TOUCH
STRIPS" included
in
the
tool
kit.
Place
them
where your fingers
make
contact wi
th
the
mount.
They
may
be
trimmed
with
a blade or knife.
FOR MORE INFO VISIT www.blendmount.com/videos
CAUTION
DO N
OT
use this mount if it interferes
with
the
adjustability or
the
operati
on
of your rear view mirror
in
any
way
.
DO NOT
use
this mount if the radar detector creates
an
unsafe viewing obstruction.
DO NOT
ATTEMPT
TO
MODIFY
THIS
PRODUCT. Consult
the
manufacturer for assistance.
All
Blend
Mo
Jnt
products
are
accompanied with detailed installation instructions
and
adjustment tips.
You
are encouraged
to
contact customerser
1ice@blend
-
mount.com or
call
J28
Design at 1-888-497-8388 for further assistance.
Check the BlendMount
Forum
for installation
tips
and
some
vehicle specific installs.
www
.blendmount.com
lnnov ti~ De ign
And
Preci
Ion
M
n~
cturing
PAGE20F2
