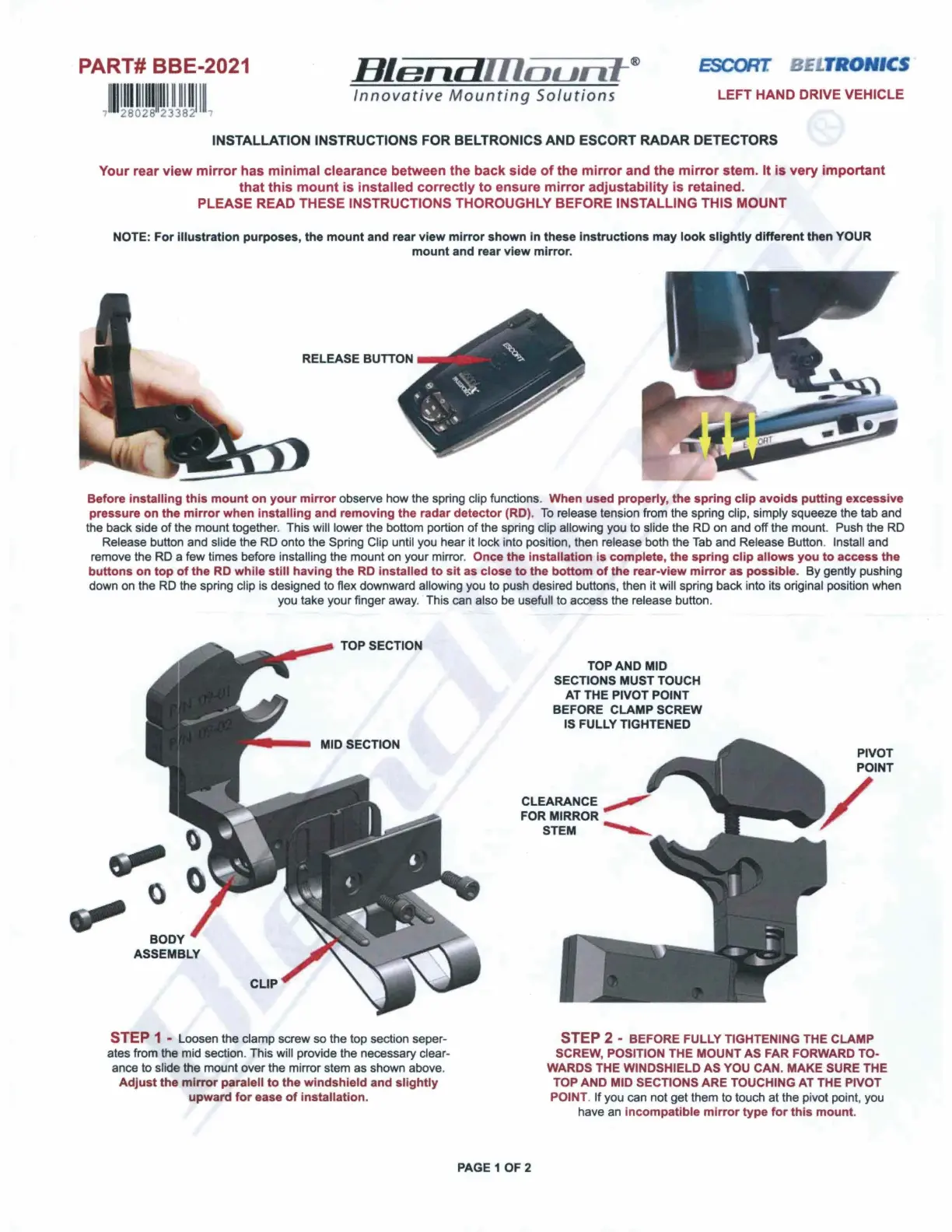

PART# BBE-2021
Hlend
fflounf-®
ESCORT.
'FRO
IC
11
11111
m
11
111
1
Innovative
Mounting
Solutions
LEFT HAND DRIVE VEHICLE
28028
23382
7
INSTALLATION INSTRUCTIONS FOR BELTRONICS AND ESCORT RADAR DETECTORS
Your rear view
mirror
has minimal clearance between the back side
of
the
mirror
and the
mirror
stem.
It
is
very important
that
this
mount
is installed correctly
to
ensure
mirror
adjustability is retained.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT
NOTE: For illustration purposes, the mount and rear view mirror shown In these Instructions may look slightly different then YOUR
mount and rear view mirror.
RELEASE BUTTON
Before installing this mount on your mirror observe how the spring clip functions. When used properly, the spring clip avoids putting excessive
pre sure on the mirror when installing and removing the radar detector (RD).
To
release tension from the spring clip, simply squeeze the tab and
the back side
of
the mount together~ This will lower the bottom portion
of
the spring clip allowing you to slide the RD on and off the mount. Push the RD
Release button and slide the RD onto the Spring Clip until you hear it lock into position, then release both the
Tab
and Release Button. Install and
remove the RD a few times before installing the mount on your mirror. Once the installation is complete, the spring clip allows you to access the
buttons on top
of
the RD while still having the RD installed to sit as close to the bottom
of
the rear-view mirror as possible. By gently pushing
down on the
RD
the spring clip is designed to flex downward allowing you to push desired buttons, then it will spring back into its original position when
you take your finger away. This can also be useful! to access the release button.
BODY
ASSEMBLY
TOP SECTION
MIDSECTION
STEP 1 • Loosen the clamp screw so the top section seper-
ates from the mid section. This will provide the necessary clear-
ance to slide the mount over the mirror stem as shown above.
Adju t th mirror paralell to the windshield and slightly
upward for ease
of
installation.
PAGE 1
OF2
TOP AND MID
SECTIONS MUST TOUCH
AT THE PIVOT POINT
BEFORE CLAMP SCREW
IS FULLY TIGHTENED
STEP 2 • BEFORE FULLY TIGHTENING THE CL.AMP
SCREW, POSITION THE MOUNT
AS
FAR FORWARD TO-
WARDS THE WINDSHIELD
AS
YOU CAN.
MAKE
SURE THE
TOP AND MID SECTIONS ARE TOUCHING AT THE PIVOT
POINT. If you can not get them to touch at the pivot point, you
have an
incompatible
mirror
type
for
this
mount
.

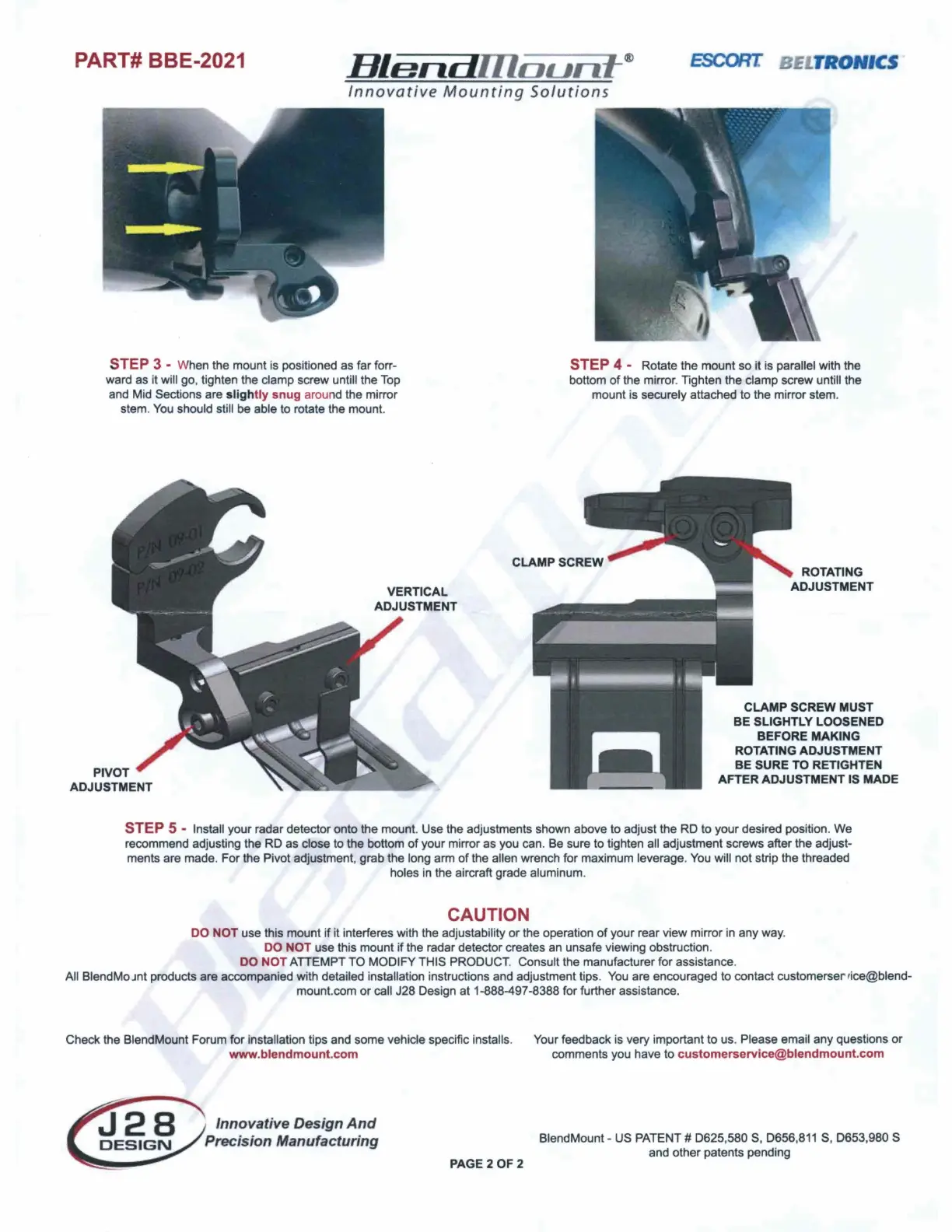

PART# BBE-2021
Blend
fflaun
®
TRONICS
Innovative
Mount,ng
Solutions
STEP 3 - W
hen
the mount
is
positioned
as
far forr-
ward
as
it will
go,
tighten the clamp screw untill the
Top
and
Mid
Sections are slightly snug around the mirror
stem.
You
should still
be
able to rotate the mount.
STEP 4 - Rotate the mount
so
it is parallel with the
bottom of the mirror. Tighten the clamp screw until! the
mount
is
securely attached
to
the mirror stem.
ROTATING
ADJUSTMENT
CLAMP SCREW MUST
BE SLIGHTLY LOOSENED
BEFORE MAKING
ROTATING ADJUSTMENT
BE SURE TO RETIGHTEN
AFTER ADJUSTMENT IS MADE
STEP 5 - Install your radar detector onto the mount.
Use
the adjustments shown above to adjust the
RD
to your desired position.
We
recommend adjusting the
RD
as close
to
the bottom of your mirror
as
you
can.
Be
sure to tighten all adjustment screws after the adjust-
ments
are
made. For the Pivot adjustment, grab the long
arm
of the allen wrench for maximum leverage.
You
will not strip the threaded
holes
in
the aircraft grade aluminum.
CAUTION
DO
NOT use this mount if it interferes with the adjustability or the operation of your rear view mirror
in
any
way.
DO
NOT
use
this mount if the radar detector creates
an
unsafe viewing obstruction.
DO
NOT
ATTEMPT
TO
MODIFY THIS PRODUCT. Consult the manufacturer for assistance.
All
BlendMo Jnt products are accompanied with detailed installation instructions
and
adjustment tips.
You
are encouraged
to
contact customerser
1ice@blend-
mount.com or call J28 Design at 1-888-497-8388 for further assistance.
Check the BlendMount Forum for installation tips
and
some vehicle specific installs.
Your
feedback
is
very important to
us.
Please email any questions or
www.blendmount.com comments
you
have to customerservice@blendmount.com
Innovative Design
And
Precision Manufacturing
PAGE 2 OF 2
BlendMount -
US
PATENT# D625,580
S,
D656,811
S,
D653,980 S
and
other patents pending
