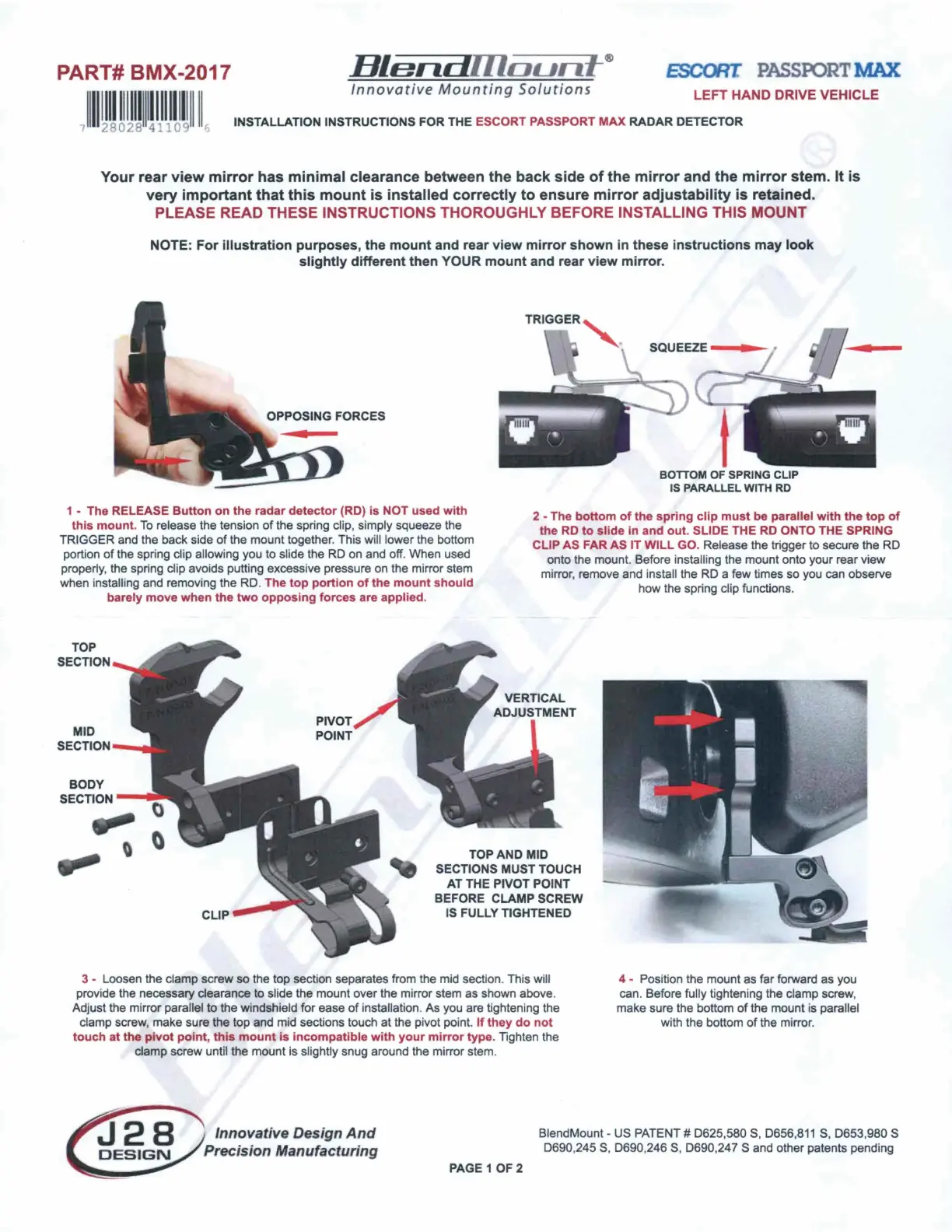

INSTALLATION INSTRUCTIONS FOR THE ESCORT PASSPORT
MAX
RADAR
DETECTOR
Your rear
view
mirror
has minimal clearance between the back side
of
the
mirror
and the
mirror
stem.
It
is
very
important
that
this
mount
is installed
correctly
to
ensure
mirror
adjustability is retained.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT
NOTE: For illustration purposes, the mount and rear view mirror shown
in
these instructions may look
slightly different then YOUR mount and rear view mirror.
OPPOSING FORCES
BOTTOM OF SPRING CLIP
IS PARALLEL WITH
RD
1 -
The
RELEASE Button on the radar detector (RD) is
NOT
used with
this mount.
To
release the tension
of
the spring clip, simply squeeze the
TRIGGER and the back side
of
the mount together. This will lower the bottom
portion
of
the spring clip allowing you to slide the RD on and off. When used
properly, the spring clip avoids putting excessive pressure on the mirror stem
when installing and removing the RD.
The
top portion
of
the
mount
should
barely
move
when the
two
opposing forces are applied.
2 -
The
bottom
of
the spring clip
must
be parallel with the top
of
the RD
to
slide
in
and
out
. SLIDE THE RD
ONTO
THE SPRING
CLIP
AS
FAR
AS
IT
WILL
GO
. Release the trigger to secure the RD
onto the mount. Before installing the mount onto your rear view
mirror, remove and install the RD a few times so you can observe
how the spring clip functions.
TOP
SECTION
MID
SECTION
BODY
SECTION
TOP
AND
MID
SECTIONS
MUST
TOUCH
AT THE
PIVOT
POINT
BEFORE CLAMP
SCREW
IS FULLY TIGHTENED
3 - Loosen the clamp screw so the top section separates from the mid section. This will
provide the necessary clearance to slide the mount over the mirror stem as shown above.
Adjust the mirror parallel to the windshield
for
ease
of
installation. As you are tightening the
clamp screw, make sure the top and mid sections touch at the pivot point.
If
they
do
not
touch at the pivot point, this
mount
Is incompatible with
your
mirror
type
. Tighten the
clamp screw until the mount is slightly snug around the mirror stem.
4 - Position the mount as far forward as you
can. Before fully tightening the clamp screw,
make sure the bottom
of
the mount is parallel
with the bottom
of
the mirror.
lnnovativ D
1gn
And
Precision Manut cturlng
BlendMount - US
PATENT#
D625,580 S, D656,811 S, D653,980 S
0690
,245 S,
0690
,246 S,
0690
,247
Sand
other patents pending
PAGE 1 OF 2
PART# BMX-2017
Bien.
ESCORT
PASSPOR
MAX
Innovative
Mounting
Solutions

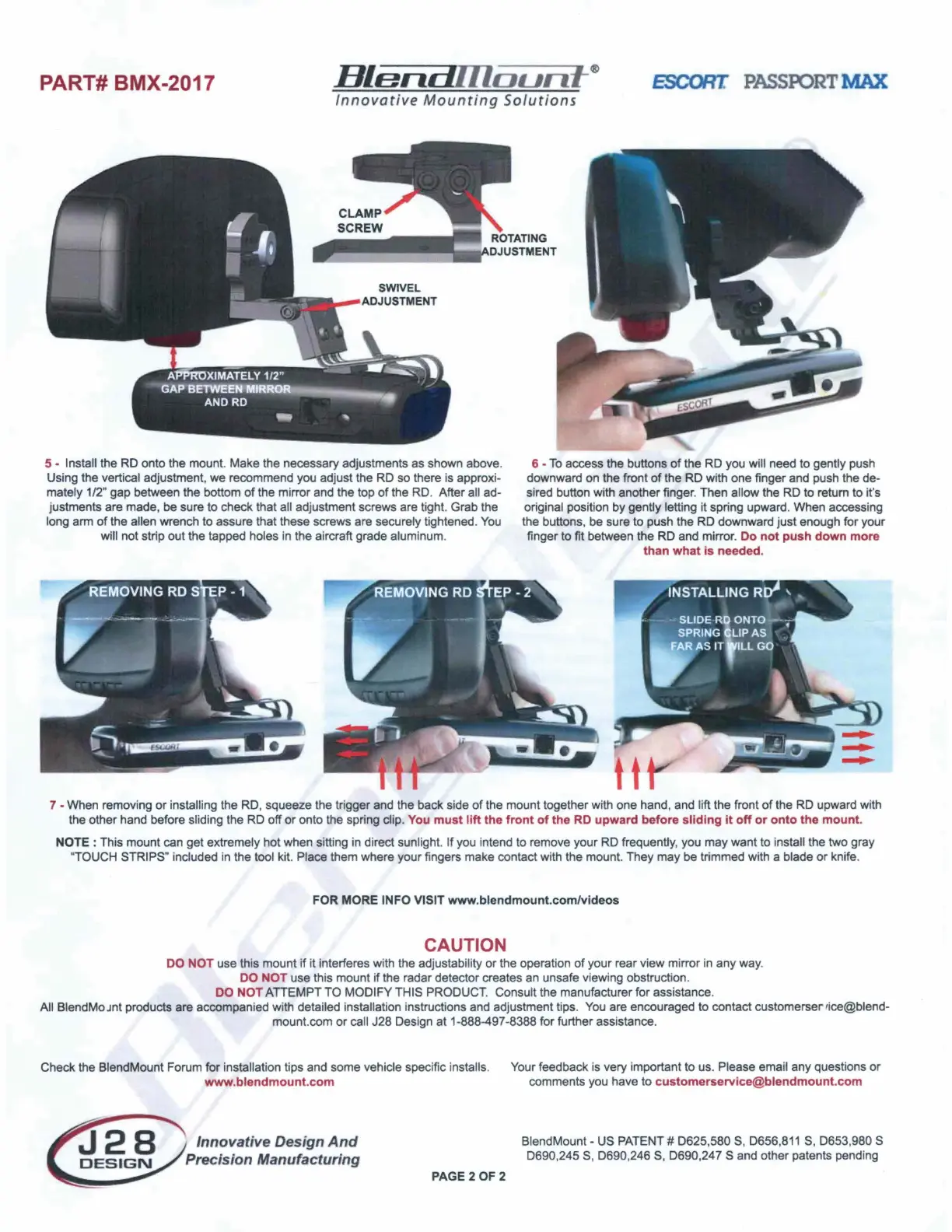

5 - Install the RD onto the mount. Make the necessary adjustments as shown above.
Using the vertical adjustment, we recommend you adjust the RD so there is approxi-
mately 1/2" gap between the bottom
of
the mirror and the top
of
the RD. After all ad-
justments are made, be sure to check that all adjustment screws are tight. Grab the
long arm
of
the alien wrench to assure that these screws are securely tightened.
You
will not strip out the tapped holes in the aircraft grade aluminum.
6 -
To
access the buttons
of
the RD you will need to gently push
downward on the front
of
the RD with one finger and push the de-
sired button with another finger. Then allow the
RD
to return to it's
original position by gently letting it spring upward. When accessing
the buttons, be sure to push the RD downward just enough for your
finger to fit between the RD and mirror. Do not push down more
than what is needed.
·'
iNSTALLING R ,
..
·
---""'
SLIDE
RQ
ONTO ~ •
~ RINGl1;1PAS
r ,AS
IT
'ILL
GO
.
t
7 - When removing
or
installing the RD, squeeze the trigger and the back side
of
the mount together with one hand, and lift the front
of
the RD upward with
the other hand before sliding the RD off
or
onto the spring clip. You must
lift
the front
of
the RD upward before sliding it off or onto the mount.
NOTE : This mount can get extremely hot when sitting in direct sunlight. If you intend to remove your RD frequently, you may want to install the two gray
"TOUCH STRIPS" included in the tool kit. Place them where your fingers make contact with the mount. They may be trimmed with a blade
or
knife.
FOR MORE INFO VISIT www.blendmount.com/videos
CAUTION
DO NOT use this mount
if
it interferes with the adjustability
or
the operation
of
your rear view mirror in any way.
DO NOT use this mount
if
the radar detector creates an unsafe viewing obstruction.
DO NOT ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.
All Blend Mo Jnt products are accompanied with detailed installation instructions and adjustment tips.
You
are encouraged to contact customerser rice@blend-
mount.com
or
call J28 Design at 1-888-497-8388 for further assistance.
Check the BlendMount Forum for installation tips and some vehicle specific installs.
www.blendmount.com
Innovative
De
ign
And
Precision Manufacturing
PAGE2OF2
Your feedback is very important to us. Please email any questions or
comments you have to customarservice@blendmount.com
BlendMount - US PATENT# D625,580 S, 0656,811
S,
D653,980 S
D690,245 S, D690,246
S,
D690,247
Sand
other patents pending
