Oldal 1/2

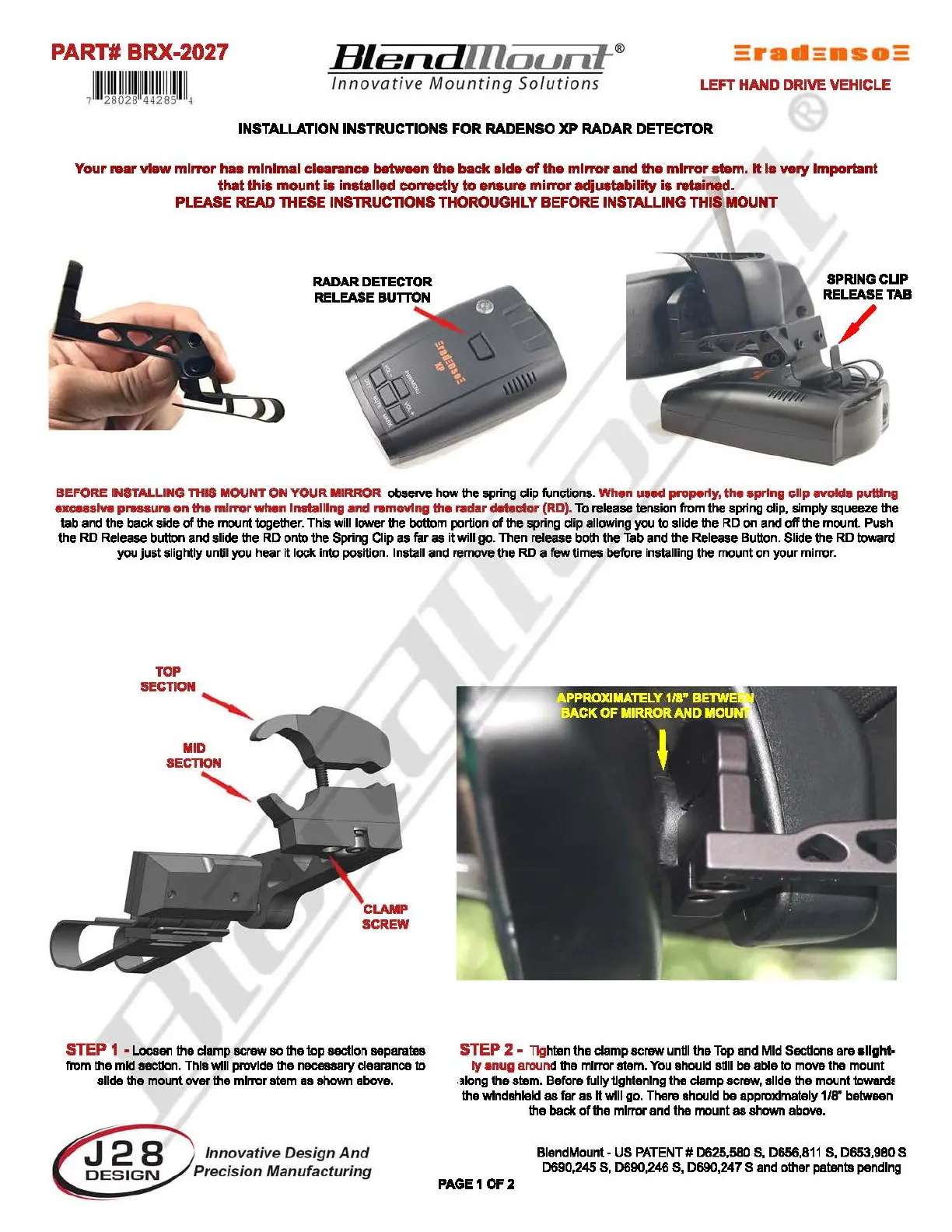

PART# BRX-2027
Blend
fflount-
®
Erad:::nsoE
LEFT
HAND
DRIVE VEHICLE
11
11
111
11
11
111
11111
111
111
111
11
Innovative
Mounting
Solutions
7
28028
4
4285
4
INSTALLATION INSTRUCTIONS
FOR
RADENSO XP
RADAR
DETECTOR
Your
rear
view
mirror
has mlnlmal clearance between
the
back
aide
of
the
mirror
and
the
mirror
stem. n la very Important
that
this
mount
ii
installed correctly to ensure
mi1TOr
adjustability
is
retained.
PLEASE
READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING
THIS
MOUNT
SPRING
CUP
RELEASE
TAB
/
BEFORE INSTALLING
THIS
MOUNT
ON
YOUR
MIRROR
observe
how
the spring clip functions.
When
usecl property,
the
spring
cllp
avoids putting
excessive pressure on the mirror
when
lnstalllng
and
removing
the radar detector (RD). To
release
tension
from
the spring clip, simply
squeeze
the
tab and the back side
of
the mount together. This will lower
lhe
bottom portion
of
the spring clip allowing you
to
slide the RD on and off the mount. Push
the RD Release button and slide the RD onto the Spring Clip as far as it will go. Then release both the Tab and the Release Button. Slide the RD toward
you
just
slightly until you hear
it
lock into position. Install and
remove
the RD a
few
times
before
installing the mount on your mirror.
TOP
SECTION
'
MID
SECTION
'
STEP
1 • Loosen the clamp IIC/'8W so the top section seperallls
from the mid aectlcn. This wlll pruvlde the necesaary clearance
to
slide the mount over the mirror stem as shown above.
In
novative
Design
And
P
re
c
ision
Manufacturing
STEP 2 • Tlghllln the clamp screw untll the Top and Mid Sections are sllght-
ly
snug around the mirror stem.
You
should stlll be able
to
mOV&
the mount
.:1long
the slllm. Before fully tightening the clamp screw, slide the mount toward!
the wlndshleld
as
far
as
It wlll go. There should
be
appmxlmately 1/8" between
the back
of
the mirror and the mount
as
shown above.
PAGE
10F2
BlendMount- US PATENT# 0625,580 S, D656,811 S, D653,9B0 S
0690,245 S, 0690,246 S, D690,247 S and other patents pending

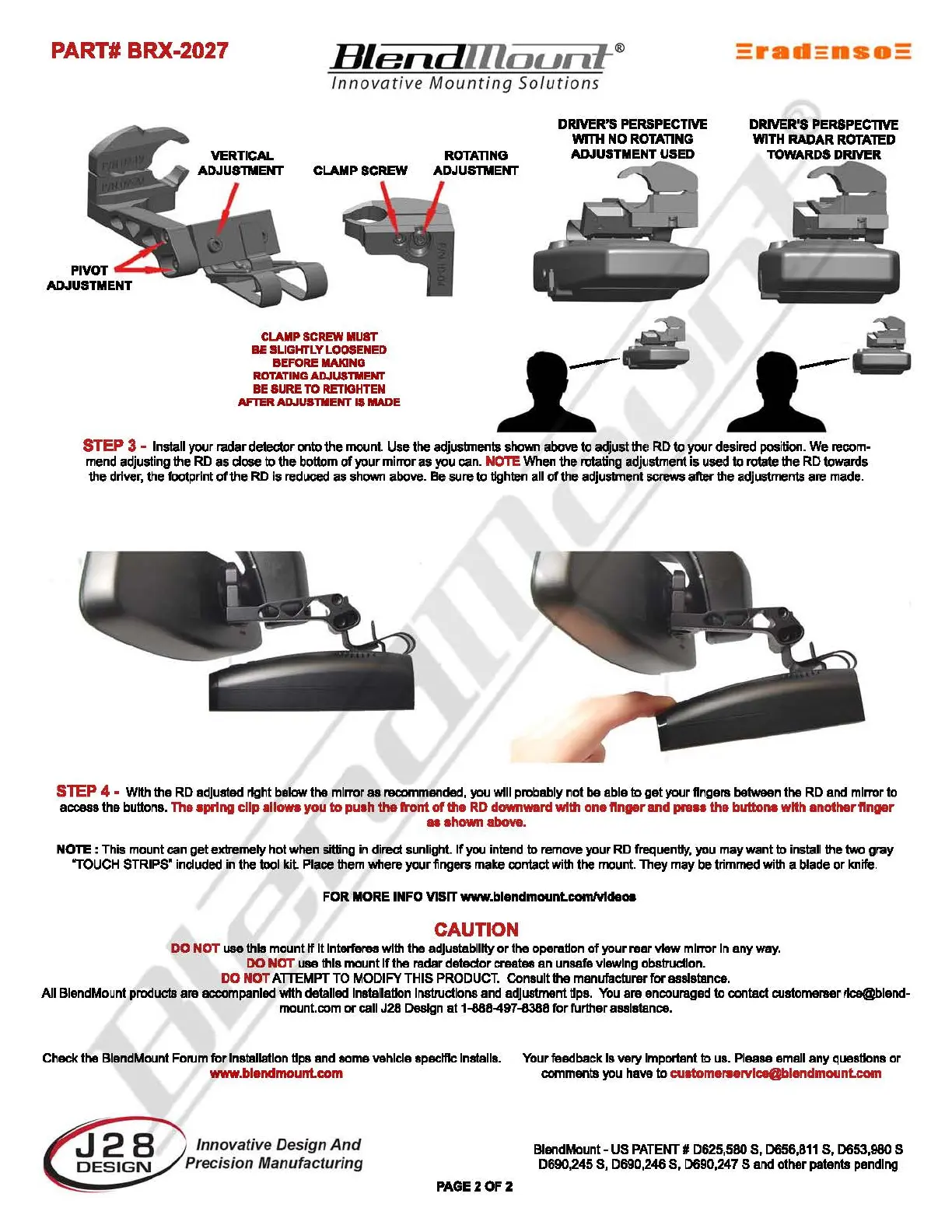

PART# BRX-2027
Blend
fflount-
®
Innovative
Mounting
Solutions
ROTATING
CLAMPSCREW
ADJUSlMENT
CLAMP
SCREW
MUST
BE
SLIGHTLY LOOSENED
BEFORE
MAKING
ROTATING
ADJUSTMENT
BE
SURE
TO
RETIGHTEN
AFTER
ADJUSTMENT IS
MADE
DRIVER'S PERSPECTIVE
Willi NO
ROTATING
ADJUSTMENT
USED
=radsnso::
DRIVER'S PERSPECTIVE
WITH RADAR
ROTATED
TOWARDS
DRIVER
STEP
3 - Install your radar detector onto the mount. Use the adjusbnents shown above
to
adjust the
RD
to
your desired position. We recom-
mend
adjusting the
RD
as
clt>R
to the bottom
of
your mirror as you can.
NOTE
When the rtllating adjustment
is
used to rotate the
RD
towards
the driver, the footprint
of
the
RD
is reduced as shown above. Be sure
to
tighten all
of
the adjusbnent screws after the adjustments are
made.
STEP
4 • With the
RD
adjusted right below the
mlrTOr
aa recommended, you wlll probably not be able
ID
get
your fingers between the
RD
and
mlrTOr
to
acoeas the buttons. Toa aprtng
cllp
allowa
you
to puah
the
front
of
Illa
RD
downward
with
one
finger
and
pniu
the
buttona
with
another
finger
aa
ahown
above.
NOTE : This mount can get extremely hot when sitting
in
direct sunlight.
If
you intend to remove your
RD
frequently, you may want to install the two gray
"TOUCH
STRIPS" included in the tool
kit
Place them where your fingers make contact with the mount.
They
may be trimmed with a blade or
knife.
FOR MORE INFO VISIT www.blendmounlcom/vldaoe
CAUTION
DO NOT use this mount If It Interferes with the adjustablllty or the
operaUon
of
your rear view
mlrTOr
In
any
way.
DO NOT use this maunt
If
the radar detector creates
an
unsafe viewing obstruction.
DO
NOT ATTEMPT
TO
MODIFY THIS
PRODUCT.
Consult the manufacturer
for
assistance.
All BlendMount products are accompanied with detalled Installation Instructions and adjustment
Ups.
You
are encouraged
to
contact customarser flce@blend-
mount.com or call
J28
Design at 1-888-497-«iBB for further assistance.
Check the BlendMount
Forum
for Installation
Ups
and aome vehicle spectflc Installs.
www.blendmount.com
Innovative Des
ign
And
Precision Manufacturing
PAGE20F2
Your feedback
Is
very Important
ID
us. Please emall any questions or
comments you have to cuatome1'98rvlce@blendmounlcom
BlendMount
- US PATENT# 0625,580 S,
0656,811
S,
D653,980
S
D690,245
S,
0690,248 S, 0690,247
Sand
other patents
pending
