Használati útmutató BlendMount BMX-2000R
BlendMount
nincs kategorizálva
BMX-2000R
Olvassa el alább 📖 a magyar nyelvű használati útmutatót BlendMount BMX-2000R (2 oldal) a nincs kategorizálva kategóriában. Ezt az útmutatót 20 ember találta hasznosnak és 10.5 felhasználó értékelte átlagosan 4.2 csillagra
Oldal 1/2
PART# BMX-2000R
7
1111~~~~~UJIJIJIJII
18
3\4" INNER DIAMETER 7\8" INNER DIAMETER
WITH BUSHINGS WITHOUT BUSHINGS
3 - This mount was designed to fit rear view
mirror stems that are 3/4"
or
7/8" in diameter.
If
the mount is too big to clamp onto your
mirror stem, use the two b·ushings.
Blend
ffluunf-
®
ESCORT
PASSPORT
MAX
Innovative
Mounting
Solutions

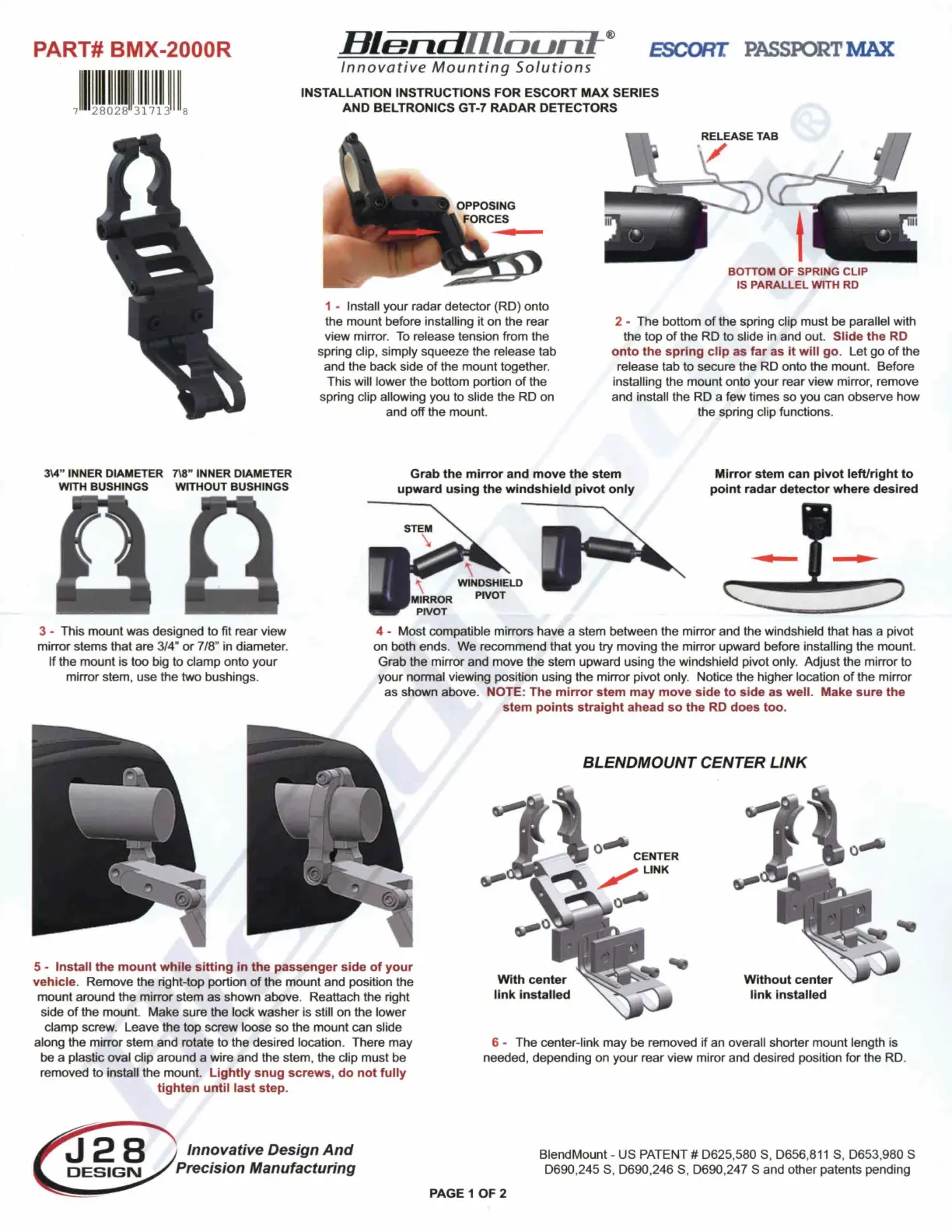

INSTALLATION INSTRUCTIONS
FOR
ESCORT
MAX
SERIES
AND
BELTRONICS GT-7
RADAR
DETECTORS
1 - Install your radar detector {RD) onto
the mount before installing it on the rear
view mirror.
To
release tension from the
spring clip, simply squeeze the release tab
and the back side
of
the mount together.
This will lower the bottom portion
of
the
spring clip allowing you to slide the RD on
and off the mount.
BOTTOM OF SPRING CLIP
IS PARALLEL WITH
RD
2 - The bottom
of
the spring clip must be parallel with
the top
of
the RD to slide in and out. Slide the RD
onto the spring clip as
far
as it will
go
. Let go
of
the
release tab to secure the RD onto the mount. Before
installing the mount onto your rear view mirror, remove
and install the RD a few times so you can observe how
the spring clip functions.
Grab the mirror and
move
the
stem
upward using
the
windshield pivot only
Mirror stem can pivot left/right
to
point radar detector where desired
4 - Most compatible mirrors have a stem between the mirror and the windshield that has a pivot
on both ends. We recommend that you try moving the mirror upward before installing the mount.
Grab the mirror and move the stem upward using the windshield pivot only. Adjust the mirror to
your normal viewing position using the mirror pivot only. Notice the higher location
of
the mirror
as shown above.
NOTE
:
The
mirror stem
may
move side
to
side as well. Make sure the
stem points straight ahead so the RD does too.
BLENDMOUNT
CENTER
LINK
5 - Install the mount while sitting in the passenger side
of
your
vehicle. Remove the right-top portion
of
the mount and position the
mount around the mirror stem as shown above. Reattach the right
side
of
the mount. Make sure the lock washer is still on the lower
clamp screw. Leave the top screw loose so the mount can slide
along the mirror stem and rotate to the desired location. There may
be a plastic oval clip around a wire and the stem, the clip must be
removed to install the mount. Lightly snug screws,
do
not
fully
tighten until last step.
With center
link installed
Without center
link installed
6 - The center-link may be removed
if
an overall shorter mount length is
needed, depending on your rear view miror and desired position for the RD.
Innovative Design
And
Precision Manufacturing
PAGE 1
OF
2
BlendMount - US PATENT# D625,580 S, D656,
811
S, D653,980 S
D690,245 S, D690,246 S, D690,247
Sand
other patents pending

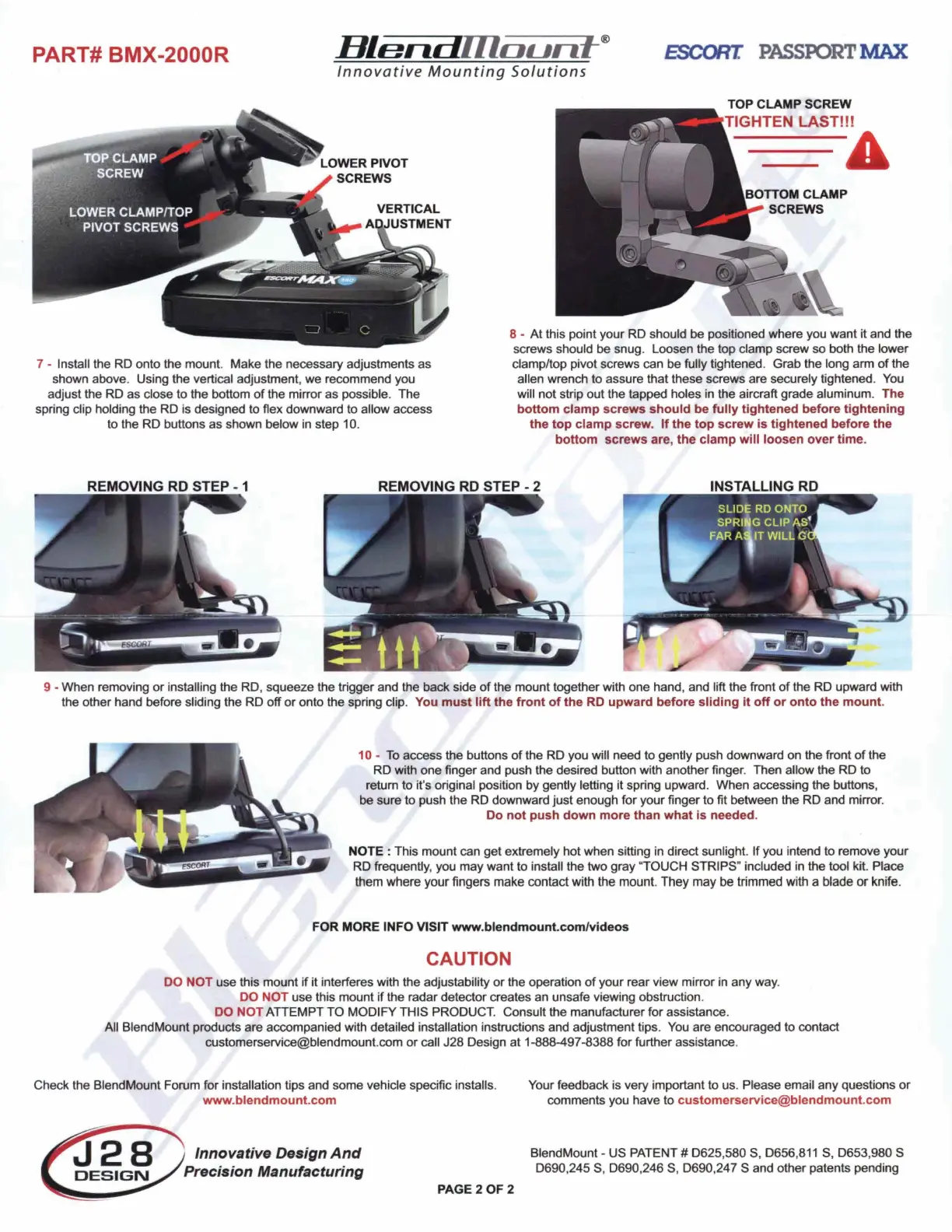

PART# BMX-2000R
Blend
ffluunf-
®
ESCORT
PASSPORT
MAX
Innovative
Mounting
Solutions
•
- ~1
.•
Q.P
""
CLAMP
~·
SCREW
f
"~
.•
1 • ,.
'~
. LOWER CLAMP/TOP
PIVOT SCREWS
7 - Install the RD onto the mount. Make the necessary adjustments as
shown above. Using the vertical adjustment, we recommend you
adjust the RD as close
to
the bottom
of
the mirror as possible. The
spring clip holding the RD is designed to flex downward
to
allow access
to the RD buttons as shown below in step 10.
8 -
At
this point your RD should be positioned where you want it and the
screws should be snug. Loosen the top clamp screw so both the lower
clamp/top pivot screws can be fully tightened. Grab the long arm
of
the
allen wrench to assure that these screws are securely tightened. You
will
not
strip out the tapped holes in the aircraft grade aluminum.
The
bottom
clamp
screws
should
be
fully tightened before tightening
the
top
clamp
screw.
If
the
top
screw
is tightened before the
bottom
screws
are,
the
clamp
will
loosen
over
time.
REMOVING RD STEP - 1 REMOVING
RD
STEP - 2
9 - When removing
or
installing the RD, squeeze the trigger and the back side
of
the mount together with one hand, and lift the front
of
the RD upward with
the other hand before sliding the RD
off
or
onto the spring clip. You
must
lift
the
front
of
the
RD upward before sliding it
off
or
onto the
mount
.
10 -
To
access the buttons
of
the RD you will need to gently push downward on the front
of
the
RD with one finger and push the desired button with another finger. Then allow the RD to
return to it's original position
by
gently letting it spring upward. When accessing the buttons,
be sure
to
push the RD downward
just
enough
for
your finger to fit between the RD and mirror.
Do
not
push
down
more than
what
is needed.
NOTE
: This mount can
get
extremely hot when sitting in direct sunlight.
If
you intend to remove
your
RD frequently, you may want to install the two gray "TOUCH STRIPS" included in the tool kit. Place
them where
your
fingers make contact with the mount. They
may
be trimmed with a blade or knife.
FOR
MORE
INFO
VISIT
www.blendmount.com/videos
CAUTION
DO NOT use this mount
if
it interferes with the adjustability
or
the operation
of
your rear vi
ew
mirror in any
way
.
DO
NOT
use this mount
if
the radar detector creates an unsafe viewing obstruction.
DO
NOT
ATTEMPT
TO
MODIFY THIS PRODUCT. Consult the manufacturer for assistance.
All BlendMount products are accompanied with detailed installation instructions and adjustment tips. You are encouraged to contact
customerservice@blendmount.com
or
call J28 Design at 1-888-497-8388
for
further assistance.
Check the BlendMount Forum
for
installation tips and some vehicle specific installs.
www.blendmount.com
Innovative Design
And
Precision Manufacturing
PAGE2OF2
Your feedback is very important to us. Please email
any
questions
or
comments you have to customerservice@blendmount.com
BlendMount - US
PATENT#
D625,580 S,
0656
,
811
S, D653,980 S
D690,245 S,
0690
,246 S,
0690
,247
Sand
other patents pending
