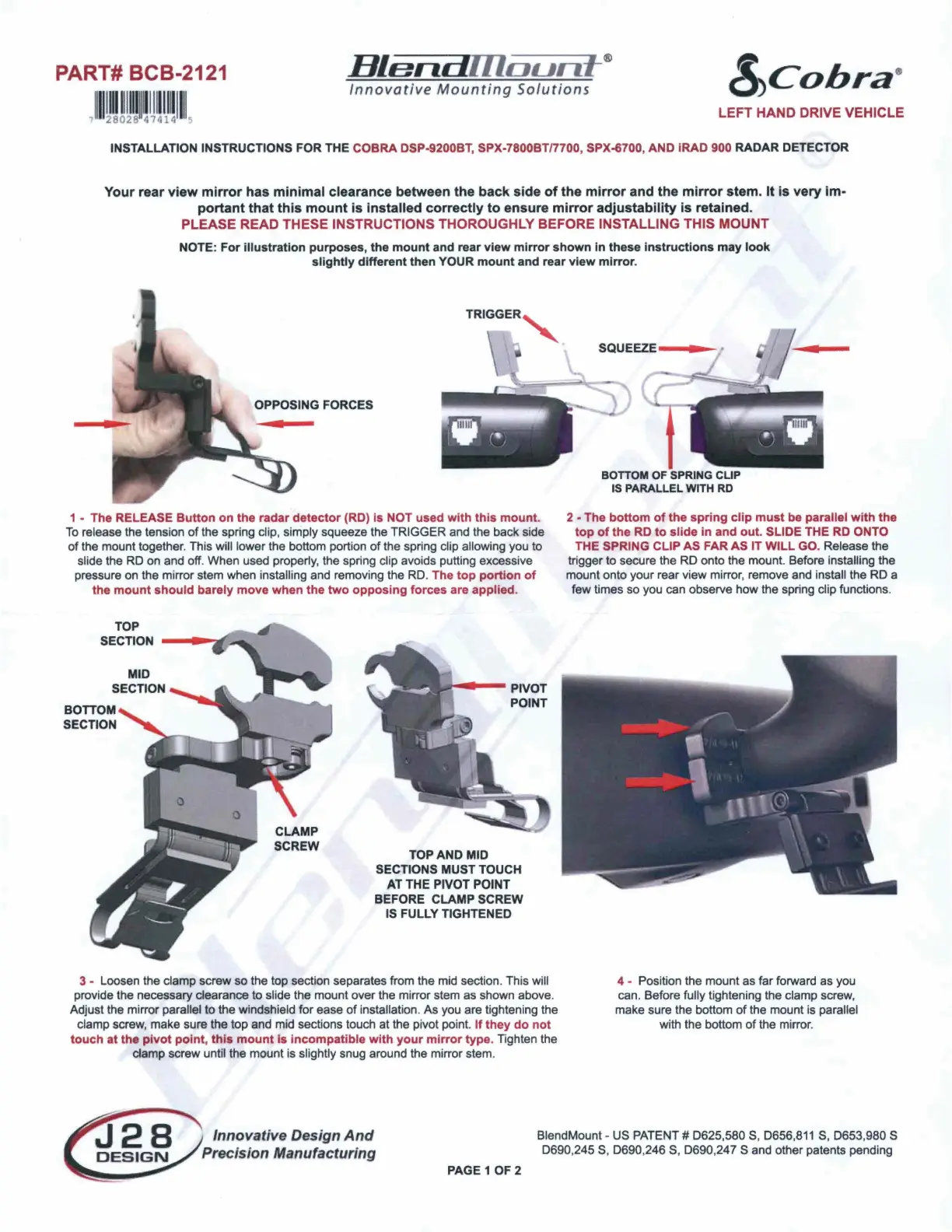

LEFT HAND DRIVE VEHICLE

INSTALLATION INSTRUCTIONS FOR THE

COBRA

DSP-9200BT, SPX-7800BTn700, SPX-6700, AND IRAD 900

RADAR

DETECTOR

Your rear view

mirror

has minimal clearance between the back side

the

mirror

and the

mirror

stem. It

very

im-

portant

that

this

mount

installed correctly

ensure

mirror

adjustability

retained.

PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT

NOTE: For illustration purposes, the

mount

and rear view

mirror

shown in these instructions may

look

slightly different then YOUR mount and rear view mirror.

OPPOSING FORCES

1 - The RELEASE Button on the radar detector (RD) Is NOT used with this mount.

release the tension

the spring clip, simply squeeze the TRIGGER and the back side

the mount together. This will lower the bottom portion

the spring clip allowing you to

slide the RD on and off. When used properly, the spring clip avoids putting excessive

pressure on the mirror stem when installing and removing the RD. The top portion

the mount should barely move when the two opposing forces are applied.

TOP

SECTION

___

.._

,._,..,.

TOP AND MID

SECTIONS MUST TOUCH

AT THE

PIVOT

POINT

BEFORE CLAMP SCREW

IS FULLY TIGHTENED

3 - Loosen the clamp screw so the top section separates from the mid section. This will

provide the necessary clearance to slide the mount over the mirror stem as shown above.

Adjust the mirror parallel to the windshield for ease

installation. As you are tightening the

clamp screw, make sure the top and mid sections touch at the pivot point. If they do not

touch at th p vot point, this mount Is incompatible with your mirror type. Tighten the

clamp

screw until the mount is slightly snug around the mirror stem.

BOTTOM OF SPRING CLIP

IS PARALLEL WITH RD

2 • The bottom

the spring clip

must

be parallel with the

top

the RD to slide in and out. SLIDE THE RD ONTO

THE SPRING CLIP AS FAR AS IT WILL GO. Release the

trigger to secure the RD onto the mount. Before installing the

mount onto your rear view mirror, remove and install the RD a

few times so you can observe how the spring clip functions.

4 - Position the mount as far forward as you

can. Before fully tightening the clamp screw,

make sure the bottom

the mount is parallel

with the bottom

the mirror.

Innovative

Design

And

Precision Manufacturing

BlendMount - US

PATENT#

D625,580 S, D656,811 S, D653,980 S

D690,245 S, D690,246 S, D690,247

Sand

other patents pending

PAGE 1 OF 2

PART# BCB-2121

Bland

fflaun-f®

!,cobra

Innovat

Mount

ions

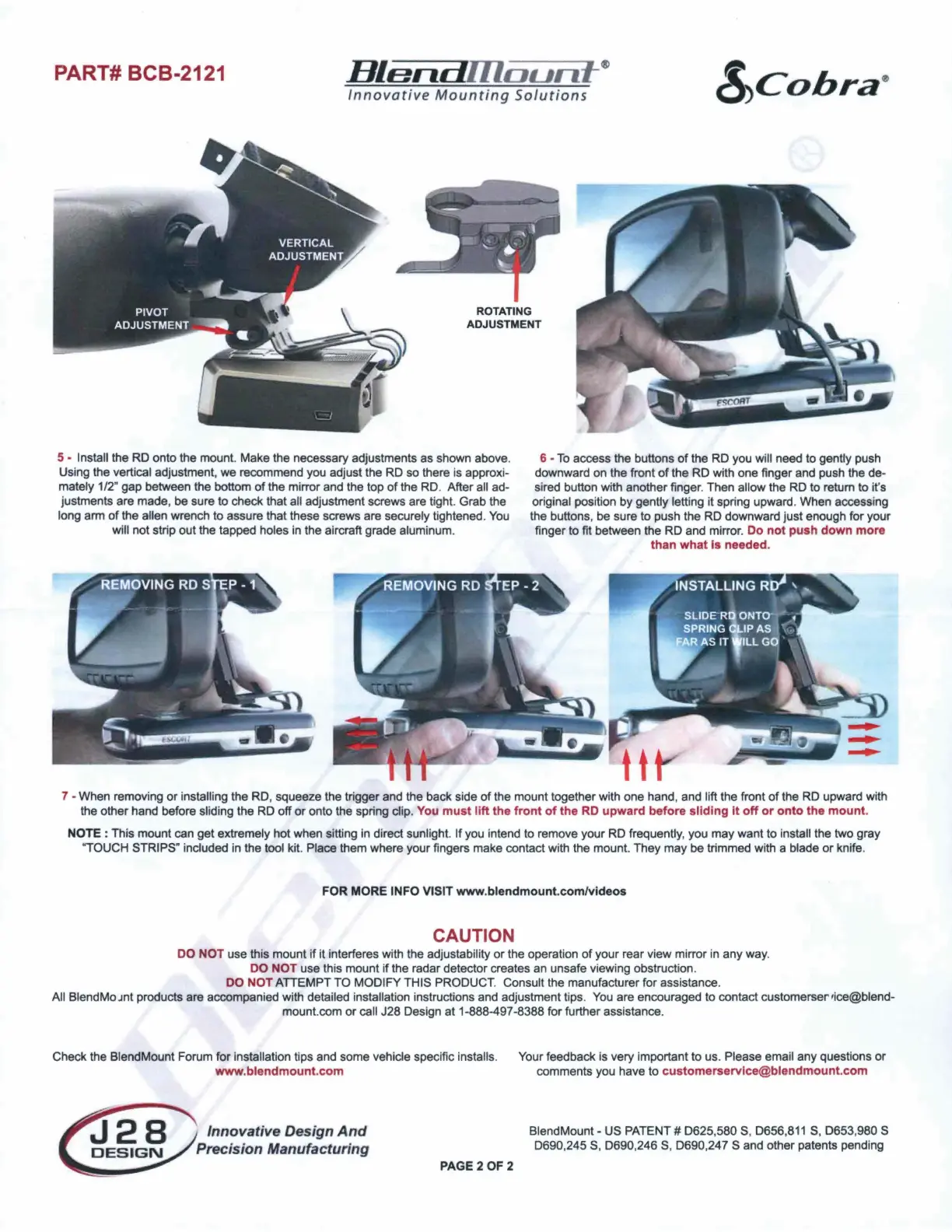

ROTATING

ADJUSTMENT

5 • Install the RD onto the mount. Make the necessary adjustments as shown above.

Using the vertical adjustment, we recommend you adjust the RD so there is approxi-

mately 1 /2" gap between the bottom

the mirror and the top

the RD. After all ad-

justments are made, be sure to check that all adjustment screws are tight. Grab the

long arm

the allen wrench to assure that these screws are securely tightened.

You

will not strip out the tapped holes in the aircraft grade aluminum.

6 •

access the buttons

the RD you will need to gently push

downward on the front

the RD with one finger and push the de-

sired button with another finger. Then allow the RD to return to it's

original position

gently letting it spring upward. When accessing

the buttons, be sure to push the RD downward just enough for your

finger to fit between the RD and mirror. Do not push down more

than what Is needed.

7 - When removing

installing the RD, squeeze the trigger and the back side

the mount together with one hand, and lift the front

the RD upward with

the other hand before sliding the RD off

onto the spring clip.

You

must

lift

the front

the RD upward before sliding It off or onto the mount.

NOTE : This mount can get extremely

hot

when sitting in direct sunlight. If you intend to remove your RD frequently, you may want to install the two gray

"TOUCH STRIPS" included in the tool kit. Place them where your fingers make contact with the mount. They may be trimmed with a blade

knife.

FOR MORE INFO VISIT www.blendmount.com/videos

CAUTION

DO NOT use this mount

it interferes with the adjustability

the operation

your rear view mirror in any way.

DO NOT use this mount if the radar detector creates an unsafe viewing obstruction.

DO NOT ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.

All BlendMo Jnt products are accompanied with detailed installation instructions and adjustment tips. You are encouraged to contact customerser rice@blend-

mount.com

call J28 Design at 1-888-497-8388 for further assistance.

Check the BlendMount Forum for installation tips and some vehicle specific insta

www.blendmount.com
