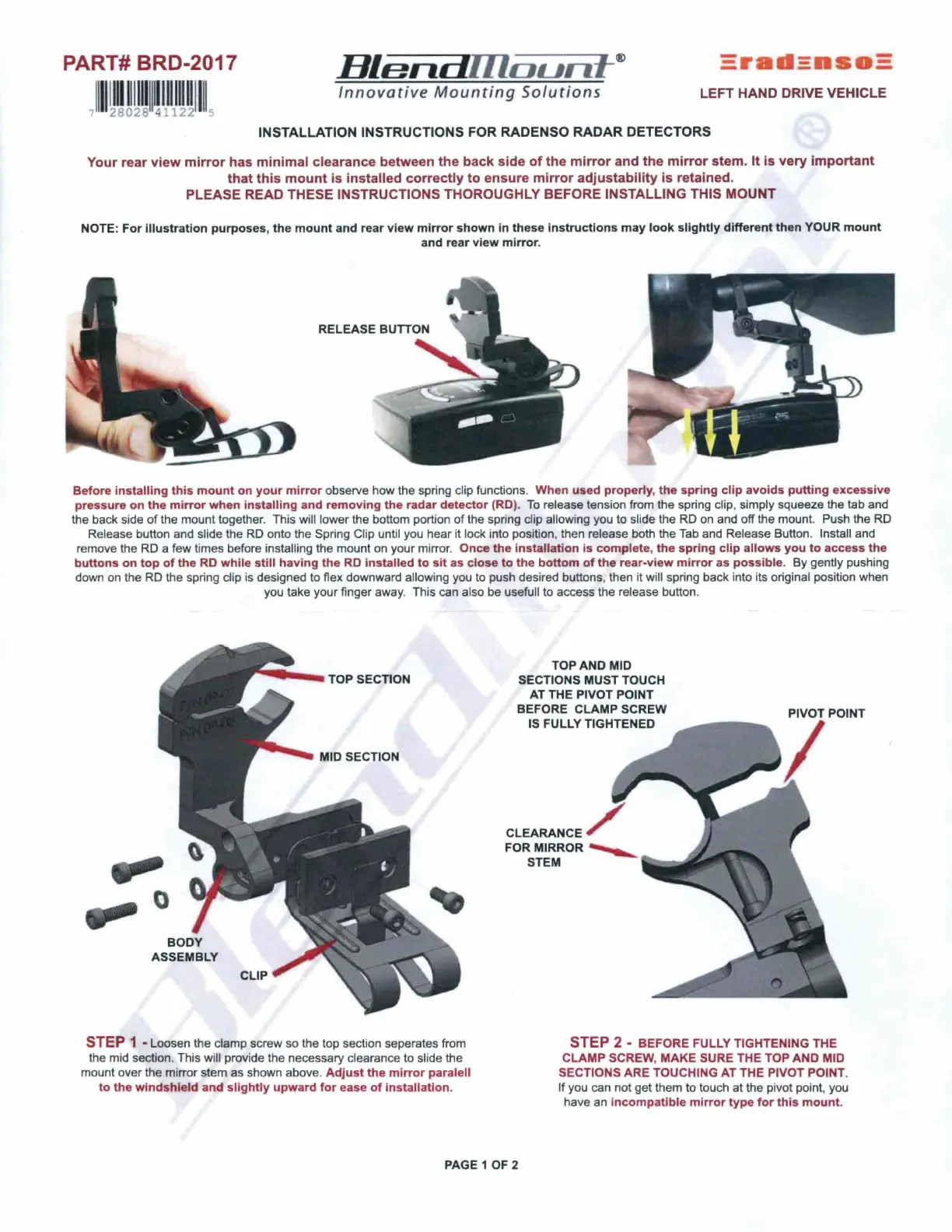

PART# BRD-2017
Bien
=r
llil
111111111~
I_I
IH
1111
Innovative
Mounting
Solutions
LEFT HAND DRIVE VEHICLE
7
2~02
'-t
~l22
INSTALLATION INSTRUCTIONS FOR RADENSO RADAR DETECTORS
Your rear
view
mirror
has
minimal
clearance between the back side
of
the
mirror
and
the
mirror
stem.
It
is
very
important
that
this
mount
is
installed
correctly
to
ensure
mirror
adjustability
is
retained.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT
NOTE:
for
illustration purposes, the mount and rear view mirror shown in these instructions may look slightly different then YOUR mount
and rear view mirror.
Before installing this mount on your mirror observe how the spring clip functions. When used properly, the spring clip avoids putting excessive
pressure on the mirror when installing and removing the radar detector (RD).
To
release tension from the spring clip, simply squeeze the tab and
the back side
of
the mount together. This will lower the bottom portion
of
the spring clip allowing you
to
slide the RD on and off the mount. Push the RD
Release button and slide the RD onto the Spring Clip until you hear it lock into position, then release both the Tab and Release Button. Install and
remove the RD a few times before installing the mount on your mirror. Once the installation is complete, the spring clip allows you to access the
buttons on top
of
the RD while still having the RD installed to sit as close to the bottom
of
the rear-view mirror as possible. By gently pushing
down on the RD the spring clip is designed to flex downward allowing you to push desired buttons, then it will spring back into its original position when
you take your finger away. This can also be useful! to access the release button.
STEP 1 - Loosen the clamp screw so the top section seperates from
the mid section. This will provi
de
the necessary clearance to slide the
mount over the mirror stem as shown above. Adjust the mirror paralell
to the windshield and slightly upward for ease
of
installation.
TOP AND MID
SECTIONS MUST TOUCH
AT
THE PIVOT POINT
BEFORE CLAMP SCREW
IS FULLY TIGHTENED
STEP 2 - BEFORE FULLY TIGHTENING THE
CLAMP SCREW, MAKE SURE THE TOP AND MID
SECTIONS ARE TOUCHING AT
THE
PIVOT POINT.
If you can not
get
them to touch at the pivot point, you
have an incompatible mirror type
for
this mount.
PAGE 1 OF 2

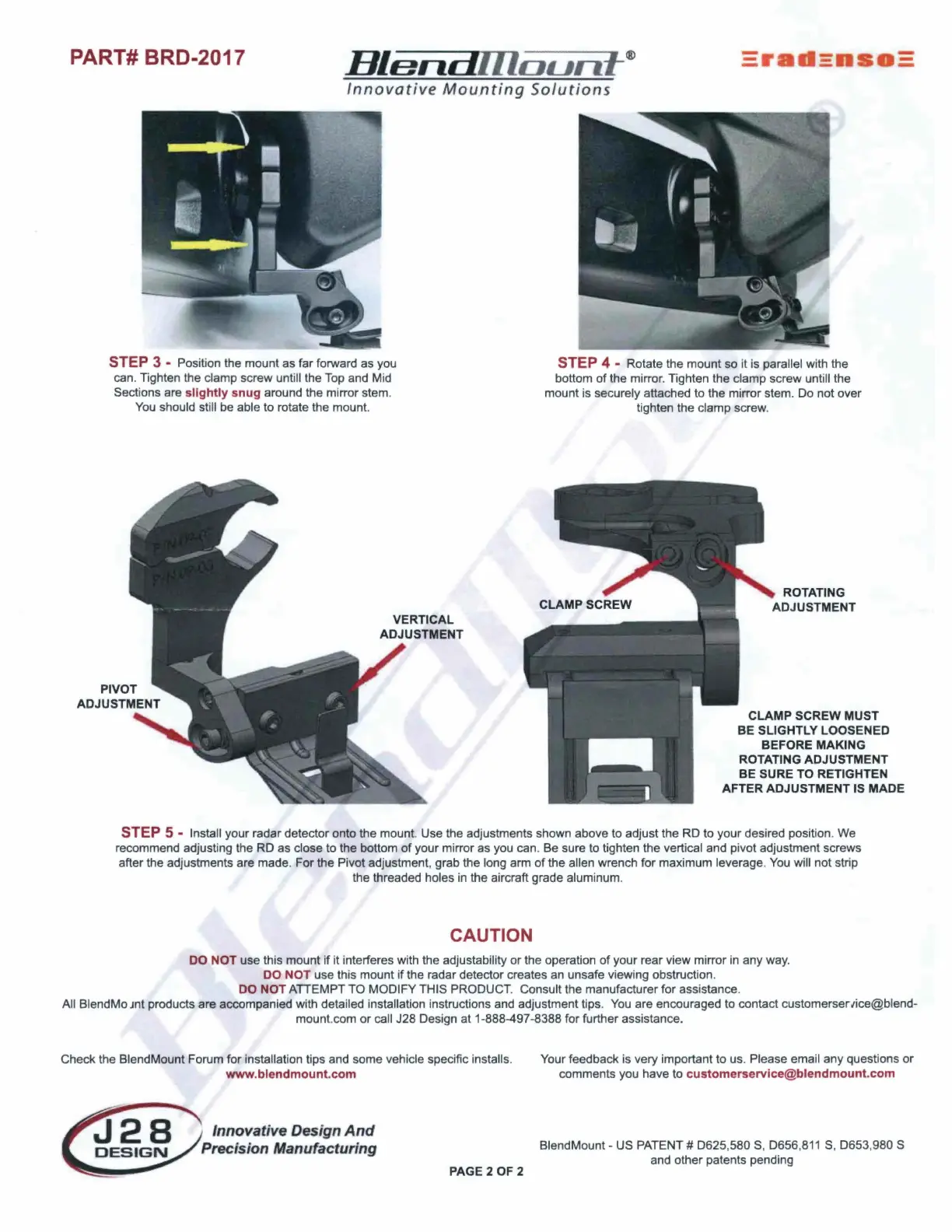

PART# BRD-2017
Bi
e n
-
-
-
-
-
-
Innovative
Mounting
Solutions
STEP 3 • Position the mount as far forward as you
can. Tighten the clamp screw untill the Top and Mid
Sections are slightly snug around the mirror stem.
You
should still be able to rotate the mount.
(,
i
~~!)·~~::
'
,.
-;--T
_..,
r:-
·/•-
'
:.::
✓':
STEP 4 - Rotate the mount so it is parallel with the
bottom
of
the mirror. Tighten the clamp screw untill the
mount is securely attached to the mirror stem. Do not over
tighten the clamp screw.
ROTATING
ADJUSTMENT
CLAMP SCREW MUST
BE SLIGHTLY LOOSENED
BEFORE MAKING
ROTATING ADJUSTMENT
BE SURE TO RETIGHTEN
AFTER ADJUSTMENT IS MADE
STEP 5 - Install your radar detector onto the mount. Use the adjustments shown above to adjust the RD to your desired position. We
recommend adjusting the RD as close to the bottom
of
your mirror as you can. Be sure to tighten the vertical and pivot adjustment screws
after the adjustments are made. For the Pivot adjustment, grab the long arm
of
the allen wrench for maximum leverage.
You
will not strip
the threaded holes in the aircraft grade aluminum.
CAUTION
DO NOT use this mount
if
it interferes with the adjustability
or
the operation
of
your rear view mirror in any way.
DO
NOT
use this mount
if
the radar detector creates an unsafe viewing obstruction.
DO NOT ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.
All Blend Mo Jnt products are accompanied with detailed installation instructions and adjustment tips.
You
are encouraged to contact customerseri1ice@blend-
mount.com
or
call J28 Design at 1-888-497-8388 for further assistance.
Check the BlendMount Forum
for
installation tips and some vehicle specific installs.
www.blendmount.com
Innovative
Design
And
Precision Manufacturing
PAG
E 2 OF 2
Your feedback is very important to us. Please email any questions
or
comments you have to customerservice@blendmount.com
BlendMount - US PATENT#
0625
,580 S, D656,
811
S, D653,980 S
and other patents pending
