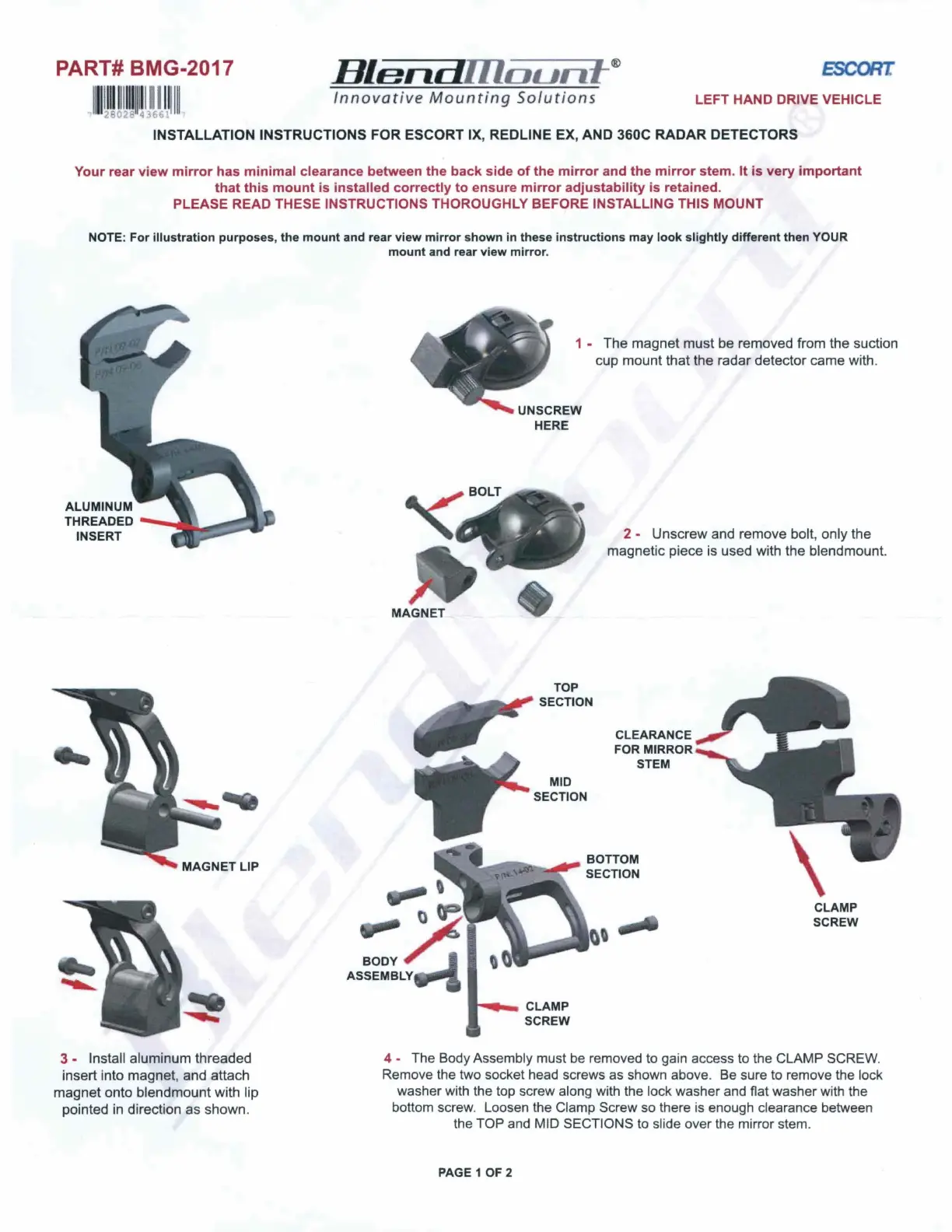

Blend

IDaunf-®

Innovative

Mounting

Solutions

ESCORT

LEFT HAND DRIVE VEHICLE

INSTALLATION

INSTRUCTIONS

FOR

ESCORT

IX, REDLINE EX,

AND

360C

RADAR

DETECTORS

Your rear view mirror has minimal clearance between the back side

the mirror and the mirror stem. It is very important

that this mount is installed correctly to ensure mirror adjustability is retained.

PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT

NOTE: For illustration purposes, the mount and rear view mirror shown in these instructions may look slightly different then YOUR

mount and rear view mirror.

3 - Install aluminum threaded

insert into magnet, and attach

magnet onto blendmount with lip

pointed in direction as shown.

1 - The magnet must be removed from the suction

cup mount that the radar detector came with.

UNSCREW

HERE

TOP

SECTION

MID

SECTION

2 - Unscrew and remove bolt, only the

magnetic piece is used with the blendmount.

CLEARANCE

FOR MIRROR

STEM

CLAMP

SCREW

4 - The Body Assembly must

removed to gain access to the CLAMP SCREW.

Remove the two socket head screws as shown above.

sure to remove the lock

washer with the top screw along with the lock washer and flat washer with the

bottom screw. Loosen the Clamp Screw so there is enough clearance between

the TOP and MID SECTIONS to slide over the mirror stem.

PAGE 1 OF 2

PART# BMG-2017

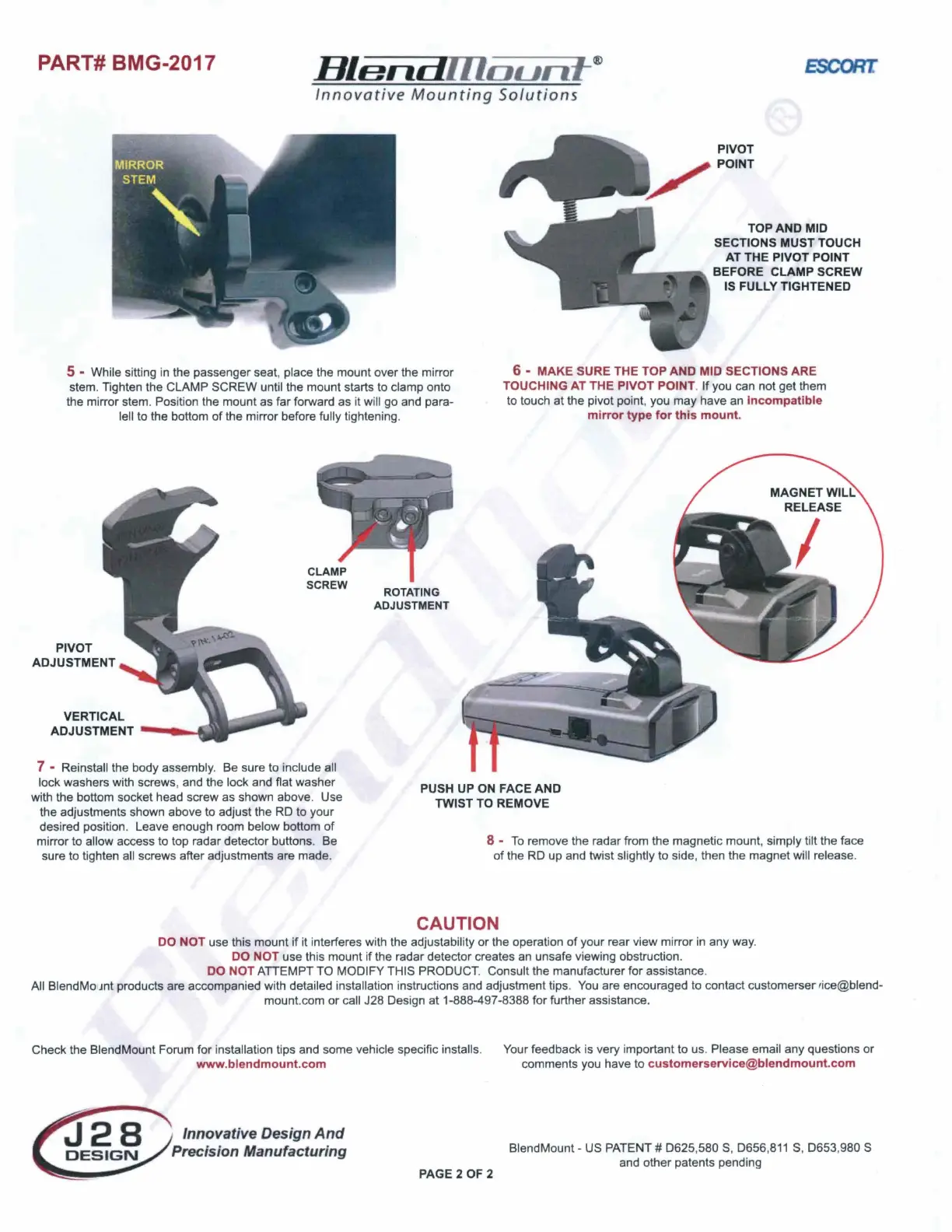

Blend

fflaunf-

Innovative

Mounting

Solutions

5 - While sitting in the passenger seat, place the mount over the mirror

stem. Tighten the CLAMP SCREW until the mount starts to clamp onto

the mirror stem. Position the mount as far forward as it will go and para-

lell to the bottom

the mirror before fully tightening.

VERTICAL

ADJUSTMENT

-.._

..........

ROTATING

ADJUSTMENT

PIVOT

POINT

TOP AND MID

SECTIONS

MUST

TOUCH

AT THE PIVOT POINT

BEFORE CLAMP SCREW

IS FULLY TIGHTENED

6 • MAKE SURE THE TOP AND MID SECTIONS ARE

TOUCHING AT

THE

PIVOT POINT.

you can not

get

them

to touch

the pivot point, you

may

have an Incompatible

mirror type

for

this mount.

7 • Reinstall the body assembly. Be sure to include all

lock washers with screws, and the lock and flat washer

with the bottom socket head screw as shown above. Use

the adjustments shown above to adjust the RD to your

desired position. Leave enough room below bottom

mirror to allow access to top radar detector buttons. Be

PUSH UP ON FACE AND

TWIST TO REMOVE

sure to tighten all screws after adjustments are made.

8 •

remove the radar from the magnetic mount, simply tilt the face

the RD up and twist slightly to side, then the magnet will release.

CAUTION

DO NOT use this mount

it interferes with the adjustability

the operation

your rear view mirror in any

way

NOT use this mount

the radar detector creates an unsafe viewing obstruction.

NOT

ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.

All BlendM01Jnt products are accompanied with detailed installation instructions and adjustment tips. You are encouraged to contact customerser 1ice@blend-

mount.com

call J28 Design

1-888-497-8388

for

further assistance.

Check the BlendMount Forum

for
