LEFT HAND DRIVE VEHICLE

28028

INSTALLATION INSTRUCTIONS FOR RADENSO RADAR DETECTORS

Your rear

view

mirror

has minimal clearance between the back side

the mirror and the

mirror

stem. It is very important

that this mount is Installed correctly

ensure

mirror

adjustabillty

retained.

PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT

NOTE:

For

Illustration

purposes,

the

mount

and

rear view

mirror

shown

these

Instructions

may

look

slightly

different

then YOUR

mount

and rear

view

mirror.

RELEASE BUTTON

Before Installing this

mount

on your mirror observe how the spring clip functions. When used properly, the spring clip avoid putting excessive

pressure on the mirror when Installing and removing

radar detector (RD).

release tension from the spring clip, simply squeeze the tab and

the back side

the mount together. This will lower the bottom portion

the spring clip allowing you to slide the

on and off the mount. Push the

Release button and slide

D onto the

Spring

Clip until you hear it lock into position, then release both the

Tab

and Release Button. Install and

remove the

a few times b ore installing the mount on your mirror. Once the installation is complet , the spring clip allows you to access the

button on top

the RD

l still having the RD installed to it as close to the bottom

the rear-view mirror

possible. By gently pushing

down on the

the spring clip is designed to flex downward allowing you to push desired buttons, then it will spring back into its original position when

you take your finger away.

is can also be usefull to access the release button.

BODY

ASSEMBLY

- /

TOP SECTION

STEP 1 - Loosen the clamp screw so the top section

seperates from the mid section. This will provide the

necessary

clearance to slide the mount over the mirror

stem as shown above. Adju t the

mirror

paralell to

the windshield and slightly upward for ease

installation.

PAGE 1 OF 2

TOP AND MID

SECTIONS MUST TOUCH

AT THE PIVOT POINT

BEFORE CLAMP SCREW

IS FULLY TIGHTENED

STEP 2 - BEFORE FULLY TIGHTENING THE

CLAMP SCREW, POSITION THE MOUNT AS FAR

FORWARD TOWARDS THE WINDSHIELD AS YOU

CAN. MAKE SURE THE TOP AND MID SECTIONS

ARE TOUCHING AT THE PIVOT POINT.

you can not

get them to touch at the pivot point, you have

incom-

patible mi

rror

type

for

this

mount

PART# BRD-2021

Erad:::

Innovative

Mountmg

Solut

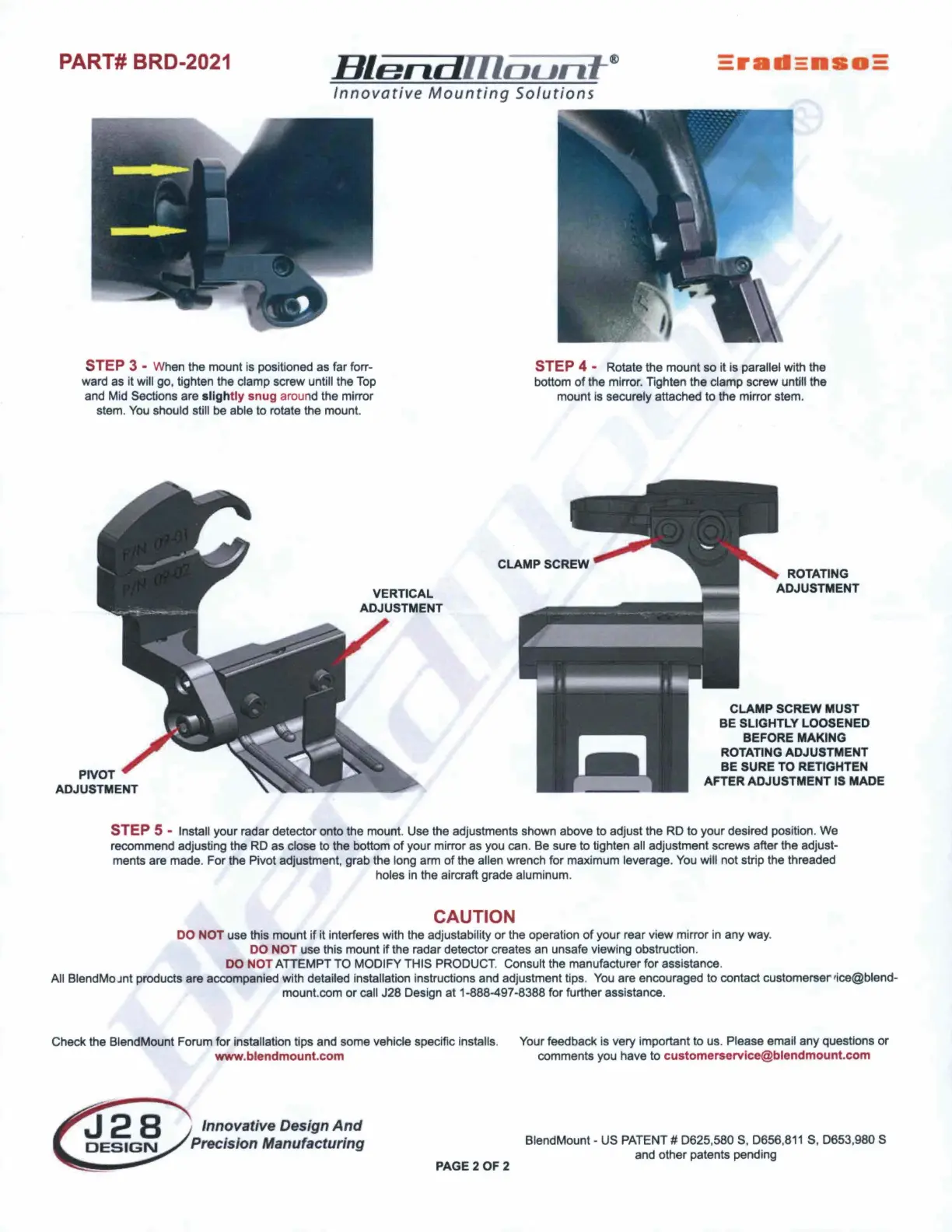

STEP 3 • When the mount is positioned as far forr-

ward as it will go, tighten the clamp screw untill the Top

and Mid Sections are

sligh

tly

snug

around the mirror

stem. You should still be able to rotate the mount.

STEP 4 • Rotate the mount

it is parallel with the

bottom

the mirror. Tighten the clamp screw untlll the

mount is securely attached to the mirror stem.

ROTATING

ADJUSTMENT

CLAMP SCREW MUST

BE SLIGHTLY LOOSENED

BEFORE MAKING

ROTATING ADJUSTMENT

BE SURE TO RETIGHTEN

AFTER

ADJUSTMENT

MADE

STEP 5 • Install your radar detector onto the mount. Use the adjustments shown above to adjust the RD

your desired position. We

recommend adjusting the RD as close to the bottom

your mirror as you can. Be sure to tighten all adjustment screws after the adjust-

ments are made. For the Pivot adjustment, grab the long arm

the allen wrench for maximum leverage. You will not strip the threaded

holes in the aircraft grade aluminum.

CAUTION

DO NOT use this mount

it interferes with the adjustability

the operation

your rear view mirror in any way.

DO NOT use this mount

the radar detector creates an unsafe viewing obstruction.

DO NOT ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.

All BlendMo Jnt products are accompanied with detailed installation instructions and adjustment tips. You are encouraged to contact customerser rice@blend-

mount.com

call

J28

Design at

1-888--497-8388

for further assistance.

Check the BlendMount Forum for installation tips and some vehicle specific installs. Your feedback is very important to us. Please email any questions

www

blendmount

com

comments you have to customer ervlce@blendmount.

com

Innovative De ign

And

Precision Manufacturing

PAGE20F2
