LEFT HAND DRIVE VEHICLE
INSTALLATION INSTRUCTIONS FOR BELTRONICS AND ESCORT RADAR DETECTORS
Your rear
view
mirror
has minimal clearance between
the
back side
of
the
mirror
and
the
mirror
stem.
It
is
very
im-
portant
that
this
mount
is
installed
correctly
to
ensure
mirror
adjustability
is
retained.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT
NOTE: For illustration purposes, the mount and rear view mirror shown in these instructions may look slightly different then YOUR
mount and rear view mirror.
RELEASE BUTTON

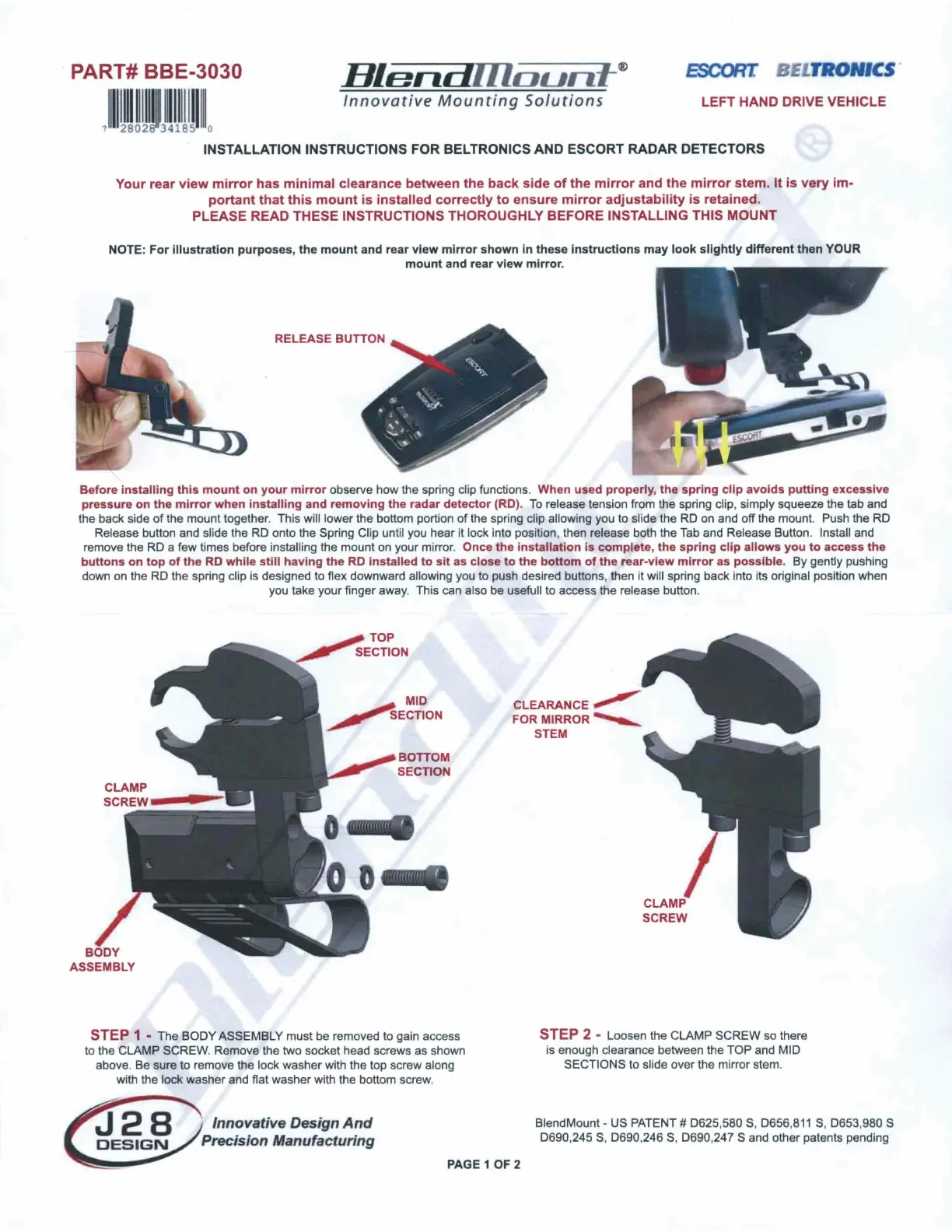

Before installing this mount on your mirror observe
how
the spring clip functions. When used properly, the spring cllp avoids putting exce slve
pressure on the mirror when installing and removing the radar detector (RD).
To
release tension from the spring clip, simply squeeze the tab and
the back side
of
the mount together. This will lower the bottom portion
of
the spring clip allowing you to slide the RD on and off the mount. Push the RD
Release button and slide the RD onto the Spring Clip until you hear it lock into position, then release both the Tab and Release Button. Install and
remove the RD a few times before installing the mount on your mirror. Once the installation is complete, the spring clip allows you to access the
buttons on top
of
the RD while still having the RD installed to sit as close to the bottom
of
the rear-view mirror as possible. By gently pushing
down on the RD the spring clip is designed to flex downward allowing you to push desired buttons, then it will spring back into its original position when
you take your finger away. This can also be useful! to access the release button.
STEP 1 • The
BODY
ASS EMBLY must be removed to gain access
to the CLAMP SCREW. Remove the two socket head screws as shown
above. Be sure to remove the lock washer with the top screw along
with the lock washer and flat washer with the bottom screw.
Innovative De ign
And
Precision Manufacturing
PAGE 1 OF 2
STEP 2 • Loosen the CLAMP SCREW so there
is enough clearance between the TOP and MID
SECTIONS to slide over the mirror stem.
BlendMount - US
PATENT#
D625,580 S, D656,
811
S, D653,980 S
D690,245 S, D690,246
S,
D690,247
Sand
other patents pending
PART# BBE-3030
Blend
fflaunt-®
ESCORT
rRO
JCS
Innovative
Mounting
Solutions

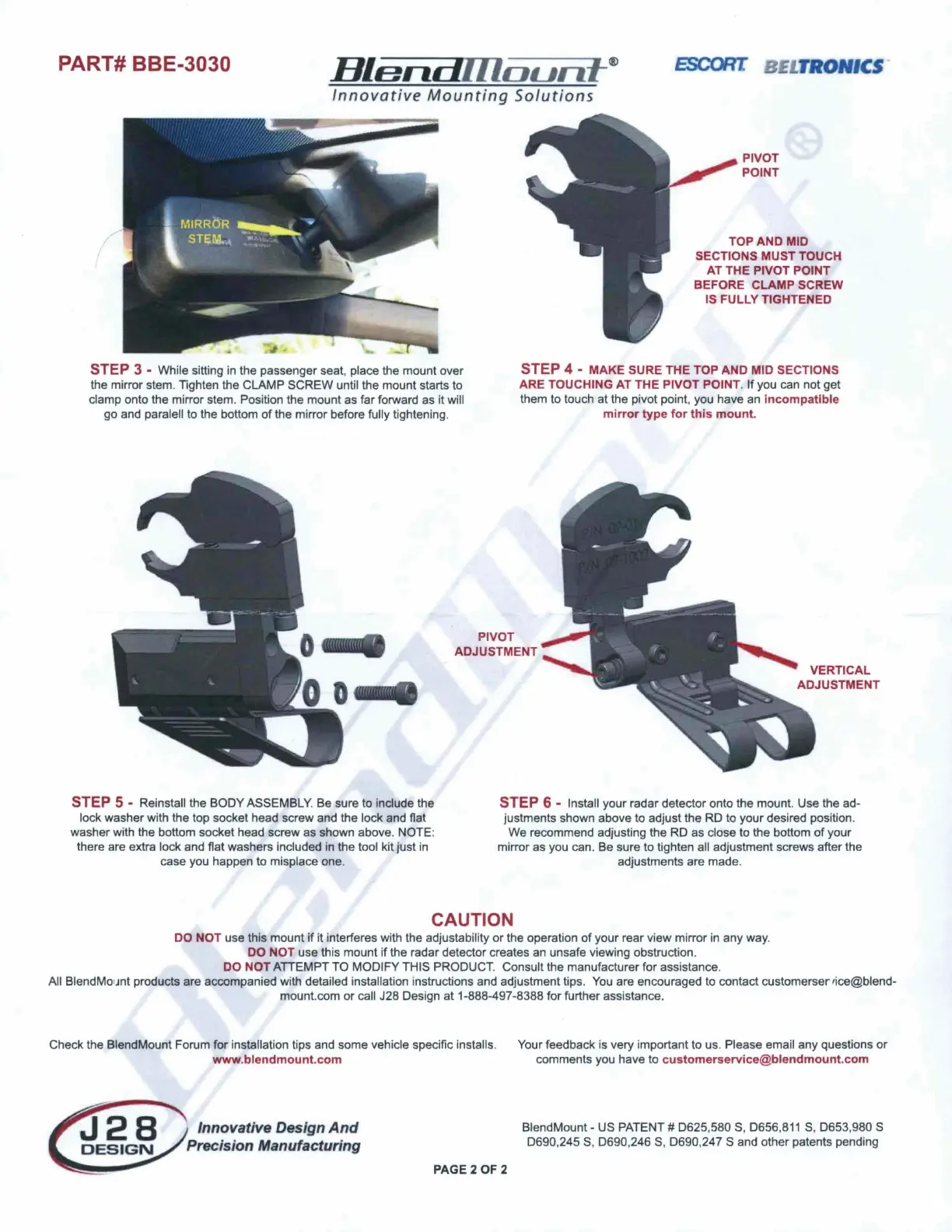

STEP 3 • While sitting in the passenger seat, place the mount over
the mirror stem. Tighten the CLAMP SCREW until the mount starts to
clamp onto the mirror stem. Position the mount as far forward as it will
go and paralell to the bottom
of
the mirror before fully tightening.
PIVOT
POINT
TOP AND MID
SECTIONS
MUST
TOUCH
AT THE PIVOT POINT
BEFORE CLAMP SCREW
IS FULLY TIGHTENED
STEP 4 • MAKE SURE THE TOP AND MID SECTIONS
ARE TOUCHING AT
THE
PIVOT POINT. If you can not get
them to touch at the pivot point, you have an incompatible
mirror type
for
this mount.
PIVOT
ADJUSTMENT
STEP 5 - Reinstall the BODY ASSEMBLY. Be sure to include the
lock washer with the top socket head screw and the lock and flat
washer with the bottom socket head screw as shown above. NOTE:
there are extra lock and flat washers included
in
the tool kit just
in
case you happen to misplace one.
VERTICAL
ADJUSTMENT
STEP 6 - Install your radar detector onto the mount. Use the ad-
justments shown above to adjust the RD to your desired position.
We recommend adjusting the RD as close to the bottom
of
your
mirror as you can. Be sure to tighten all adjustment screws after the
adjustments are made.
CAUTION
DO
NOT
use this mount
if
it interferes with the adjustability or the operation
of
your rear view mirror
in
any way.
DO
NOT use this mount
if
the radar detector creates an unsafe viewing obstruction.
DO
NOT ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.
All BlendMo,Jnt products are accompanied with detailed installation instructions and adjustment tips.
You
are encouraged to contact customerser ,ice@blend-
mount.com
or
call J28 Design at 1-888-497-8388 for further assistance.
Check the BlendMount Forum for installation tips and some vehicle specific installs.
www
.blendmount.com
Innovative Design And
Precision Manufacturing
PAGE 2 OF 2
Your feedback is very important to us. Please email any questions or
comments you have to customerservice@blendmount.com
BlendMount - US
PATENT#
D625,580
S,
D656,
811
S, D653,980 S
D690,245 S, D690,246 S,
0690
,247
Sand
other patents pending
