PART# BBE-2027

Blend

fflaunt

ESCORT

1RO

ICS

111111111111111m1

ill

Innovative

Mount

Solutions

LEFT HAND DRIVE VEHICLE

.,,

28028

32194

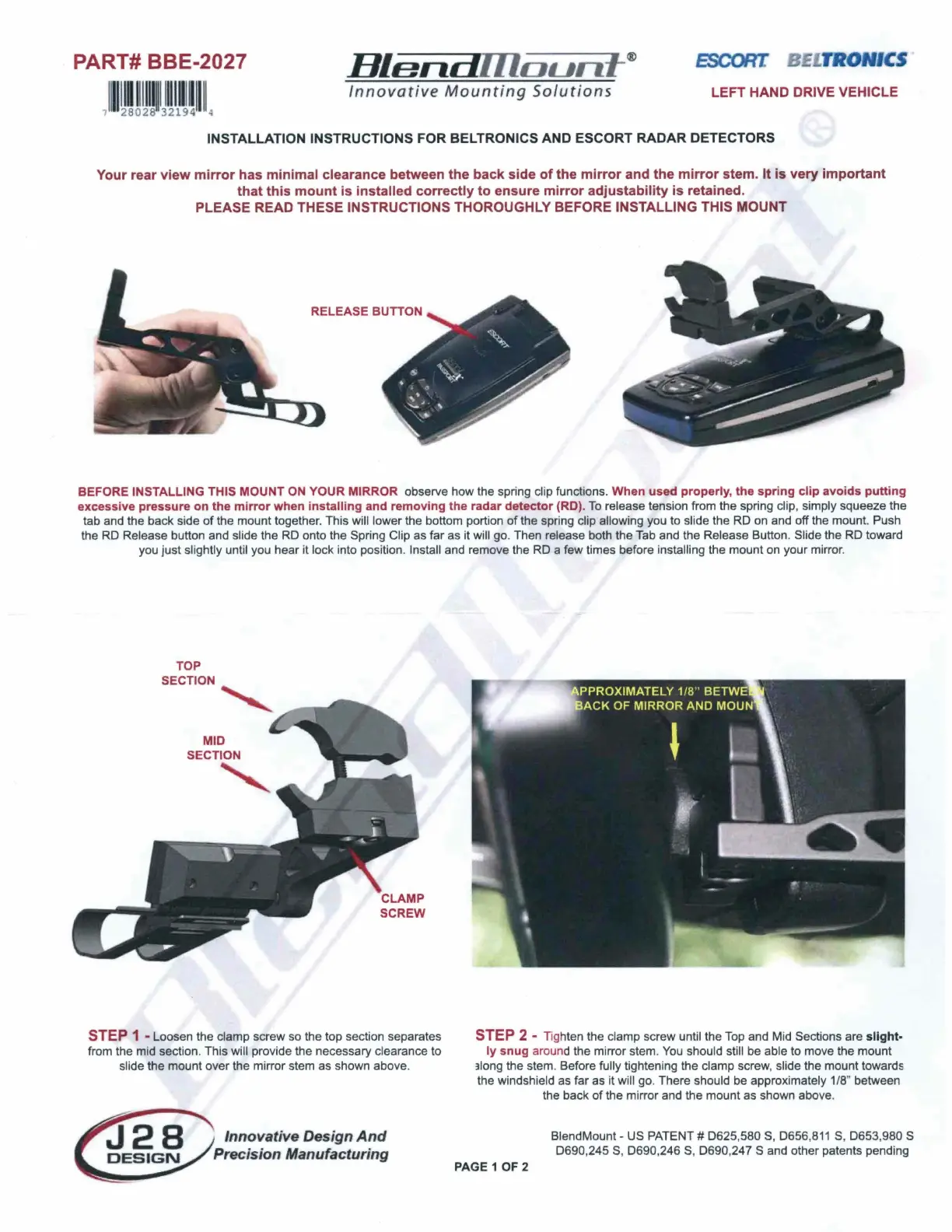

INSTALLATION INSTRUCTIONS FOR BELTRONICS AND ESCORT RADAR DETECTORS

Your rear

view

mirror

has minimal clearance between the back side

the

mirror

and the

mirror

stem. It

very

imp

ortant

that

this

mount

installed correctly

ensure

mirror

adjustability

retained.

PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT

RELEASE BUTTON

BEFORE INSTALLING THIS MOUNT ON YOUR MIRROR observe how the spring clip functions. When used properly, the spring clip avoids putting

excessive pressure on the mirror when installing and removing the radar detector (RD).

release tension from the spring clip, simply squeeze the

tab and the back side

the mount together. This will lower the bottom portion

the spring clip allowing you to slide the RD on and off the mount. Push

the RD Release button and slide the RD onto the Spring Clip as far as it will go. Then release both the Tab and the Release Button. Slide the RD toward

you just slightly until you hear it lock into position. Install and remove the RD a few times before installing the mount on your mirror.

TOP

SECTION

STEP 1 - Loosen the clamp screw so the top section separates

from the mid section. This will provide the necessary clearance to

slide the mount over the mirror stem as shown above.

Innovative Design

And

Precision Manufacturing

STEP 2 - Tighten the clamp screw until the Top and Mid Sections are slight•

ly snug around the mirror stem.

You

should still be able to move the mount

3Iong the stem. Before fully tightening the clamp screw, slide the mount towards

the windshield as far as it will go. There should be approximately 1/8" between

the back

the mirror and the mount as shown above.

PAGE 1 OF 2

BlendMount-

PATENT#

0625,580

0656

811

S, 0653,980 S

0690,245

0690,246

0690

,247

Sand

other patents pending

PART# BBE-2027

Bien

ESCORT

Innovative

Mounting

Solut

ons

CLAMP

SCREW

CLAMP

SCREW MUST

BE SLIGHTLY LOOSENED

BEFORE MAKING

ROTATING

ADJUSTMENT

SURE

RETIGHTEN

AFTER

ADJUSTMENT

MADE

ROTATING

ADJUSTMENT

DRIVER'S PERSPECTIVE

WITH NO ROTATING

ADJUSTMENT USED

DRIVER'S PERSPECTIVE

WITH RADAR ROTATED

TOWARDS DRIVER

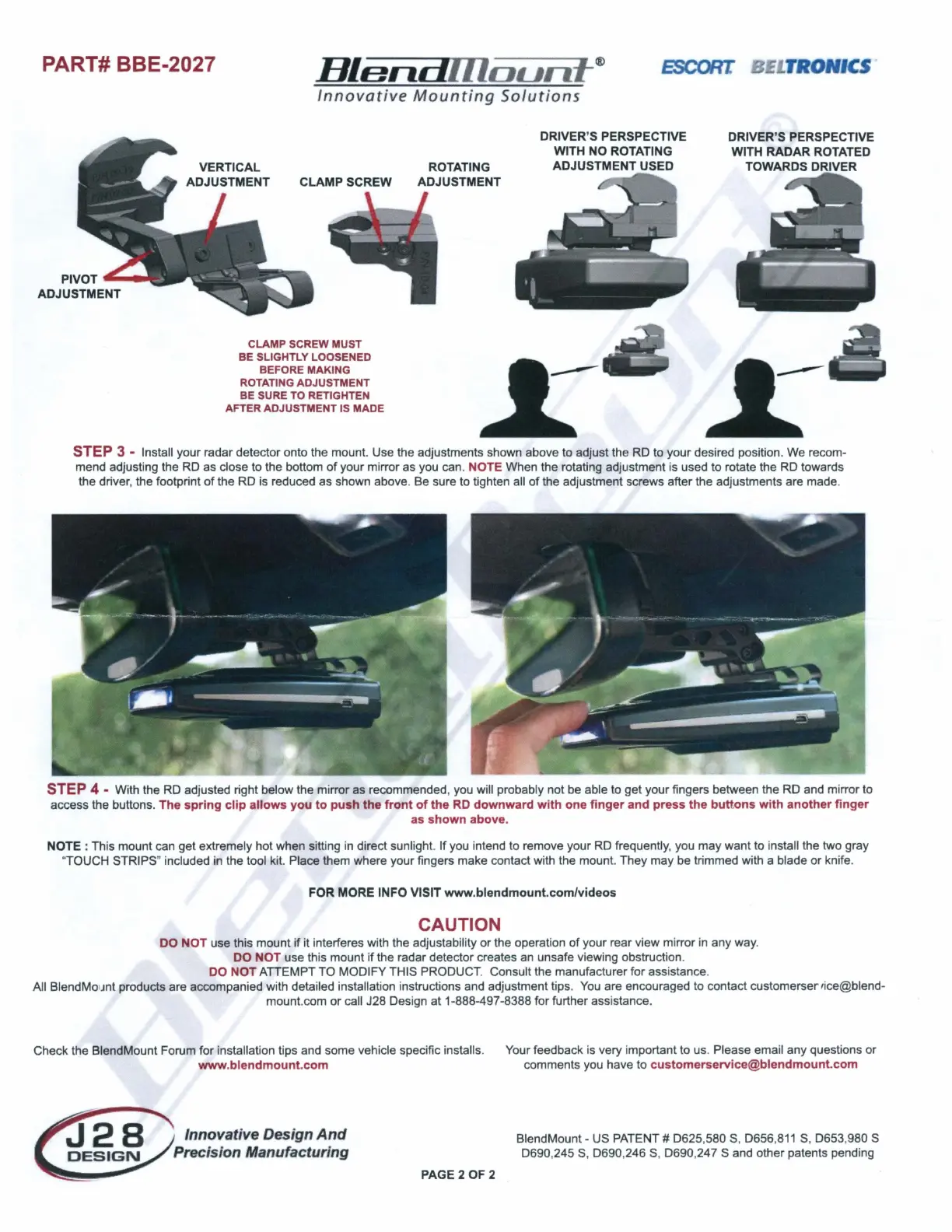

STEP 3 • Install your radar detector onto the mount. Use the adjustments shown above to adjust the RD

your desired position. We recom-

mend adjusting the RD as close to the bottom

your mirror as you can. NOTE When the rotating adjustment is used to rotate the RD towards

the driver, the footprint

the RD is reduced as shown above. Be sure to tighten all

the adjustment screws after the adjustments are made.

STEP 4 • With the RD adjusted right below the mirror as recommended, you will probably not be able to

get

your fingers between the RD and mirror to

access the buttons. The spring clip allows you to push the front

the RD downward with one finger and press the buttons with another finger

as shown above.

NOTE : This mount can

get

extremely hot when sitting in direct sunlight.

you intend to remove your RD frequently, you

may

want

to install the two gray

TOUCH

STRIPS" included in the tool kit. Place them where your fingers make contact with the mount.

They

may

be trimmed with a blade

knife.

FOR MORE INFO VISIT www.blendmount.com/videos

CAUTION

DO NOT use this mount

it interferes with the adjustability

the operation

your rear view mirror in any

way

NOT

use this mount

the radar detector creates an unsafe viewing obstruction.

DO NOT ATTEMPT

MODIFY THIS PRODUCT. Consult the manufacturer

for

assistance.

All BlendM01Jnt products are accompanied with detailed installation instructions and adjustment tips. You are encouraged to contact customerser rice@blend-

mount.com

call

J28

Design

1-888-497-8388 for further assistance.

Check the BlendMount Forum

for

installation tips and some vehicle specific installs.

www

.blendmount.com

Innovative

Design
