PART# BBE-2000R
Blend
ffluunt
®
ESCORT
TRO IC
Innovative
Mounting
Solutions
1111111
11111111111
111111111111

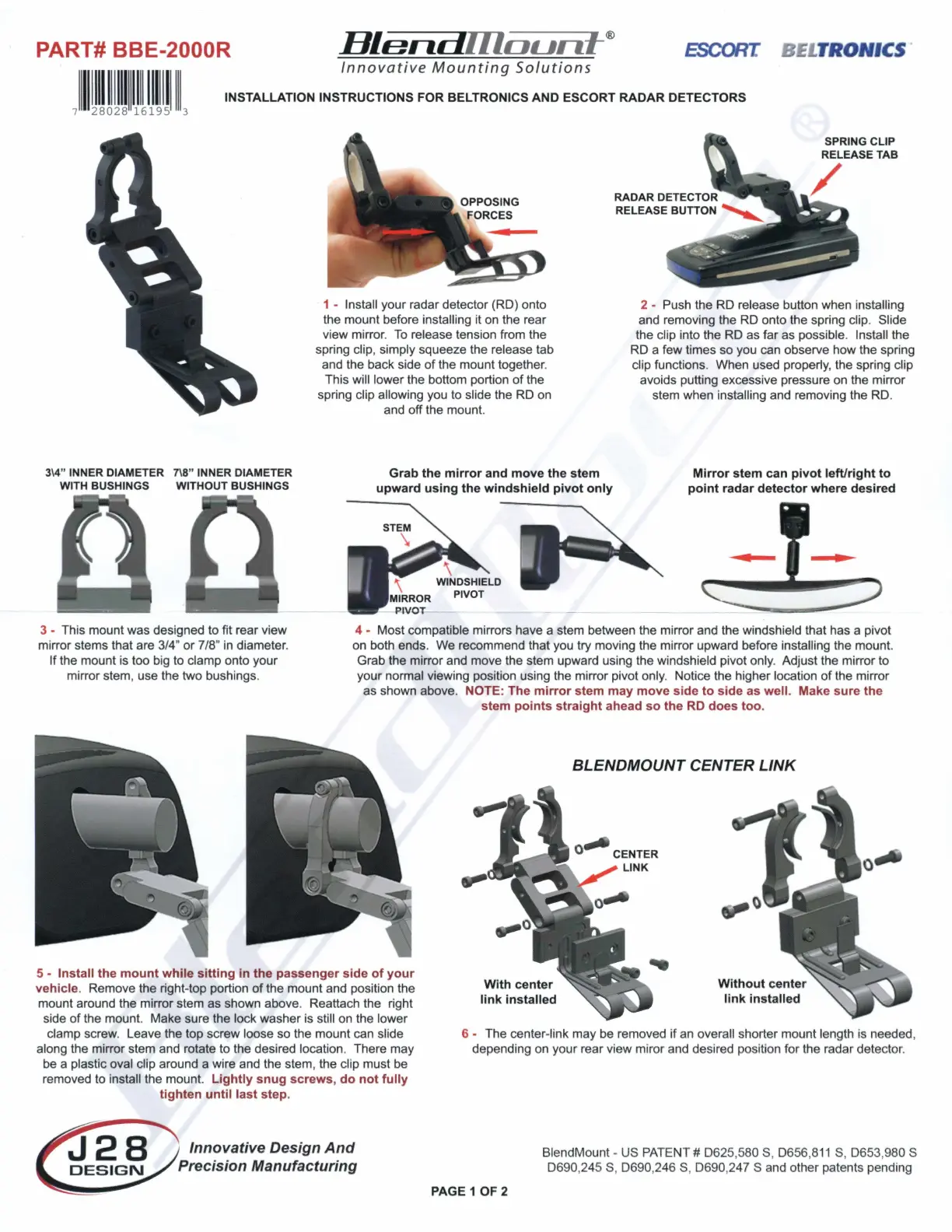

INSTALLATION INSTRUCTIONS FOR BELTRONJCS
AND
ESCORT
RADAR DETECTORS
7
28028
16195
3
3\4" INNER DIAMETER 7\8" INNER DIAMETER
WITH BUSHINGS WITHOUT BUSHINGS
1 - Install
your
radar detector (RD) onto
the
mount
before installing it on the rear
view mirror.
To
release tension from the
spring clip, simply squeeze the release tab
and the back side
of
the mount together.
This will lower the bottom portion
of
the
spring clip allowing you to slide the RD on
and
off
the mount.
Grab the mirror and move the stem
upward using the windshield pivot only
STEM
SPRING CLIP
RELEASE
TAB
/
2 - Push the RD release button when installing
and removing the RD onto the spring clip. Slide
the clip into the RD as
far
as possible. Install the
RD a few times
so
you can observe how the spring
clip functions. When used properly, the spring clip
avoids putting excessive pressure on the mirror
stem when installing and removing the RD.
Mirror stem can pivot left/right to
point radar detector where desired
3 - This mount
was
designed
to
fit rear view
mirror stems that are 3/4"
or
7/8" in diameter.
4 - Most compatible mirrors have a stem between the mirror and the windshield that has a pivot
on both ends. We recommend that you try moving the mirror upward before installing the mount.
If the mount is too big to clamp onto
your
mirror stem, use the
two
bushings.
Grab the mirror and move the stem upward using the windshield pivot only. Adjust the mirror to
your
normal viewing position using the mirror pivot only. Notice the higher location
of
the mirror
as shown above. NOTE:
The
mirror stem
may
move side
to
side as well. Make sure the
stem points straight ahead so the RD does too.
5 - Install the mount while sitting in the passenger side
of
your
vehicle. Remove the right-top portion
of
the mount and position the
mount around the mirror stem as shown above. Reattach the right
side
of
the mount. Make sure the lock washer is still on the lower
clamp screw. Leave the top screw loose so the mount can slide
along the mirror stem and rotate to the desired location. There may
be a plastic oval clip around a wire and the stem, the clip must be
removed to install the mount. Lightly snug screws,
do
not fully
tighten until last step.
Innovative Design
And
Precision Manufacturing
With center
link installed
BLENDMOUNTCENTERLINK
Without center
link installed
6 -
The
center-link may be removed
if
an overall shorter mount length is needed,
depending on
your
rear view miror and desired position
for
the radar detector.
PAGE 1 OF 2
BlendMount - US
PATENT#
D625,580 S, D656,
811
S, D653,980 S
D690,245 S, D690,246 S, D690,247 S and other patents pending
PART# BBE-2000R
Hlend
fflounf-
®
ESCORT
1RONIC
Innovative
Mounting
Solutions

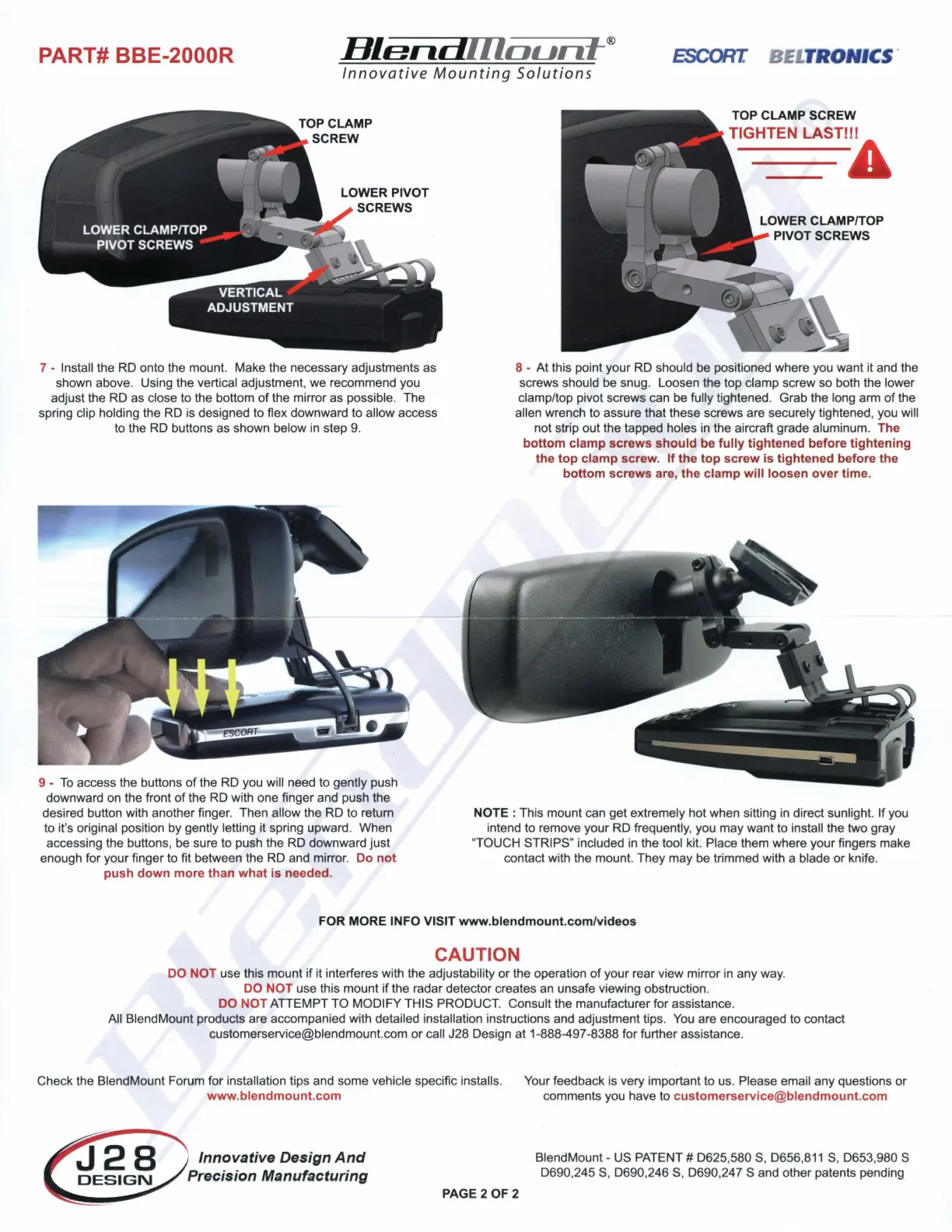

7 - Install the RD onto the mount. Make the necessary adjustments as
shown above. Using the vertical adjustment, we recommend you
adjust the RD as close to the bottom
of
the mirror as possible. The
spring clip holding the RD is designed to flex downward to allow access
to the RD buttons as shown below in step 9.
9 -
To
access the buttons
of
the RD you will need to gently push
downward on the front
of
the RD with one finger and push the
desired button with another finger. Then allow the RD to return
to it's original position by gently letting it spring upward. When
accessing the buttons, be sure to push the RD downward just
enough for your
fi
nger to fit between the
RD
and mirror. Do not
push down more than what is needed.
TOP CLAMP
SCREW
TIGHTEN LAST!!!
8 - At this point your RD should be positioned where you want it and the
screws should be snug. Loosen the top clamp screw so both the lower
clamp/top pivot screws can be fully tightened. Grab the long arm
of
the
alien wrench to assure that these screws are securely tightened, you will
not strip out the tapped holes in the aircraft grade aluminum. The
bottom clamp screws should be fully tightened before tightening
the top clamp screw.
If
the top
screw
is tightened before the
bottom screws are, the clamp will loosen over time.
NOTE : This mount can get extremely hot when sitting in direct sunlight.
If
you
intend to remove your RD frequently, you may want to install the two gray
"TOUCH STRIPS" included in the tool kit. Place them where your fingers make
contact with the mount. They may be trimmed with a blade
or
knife.
FOR
MORE INFO VISIT www.blendmount.com/videos
CAUTION
DO
NOT
use this mount if it interferes with the adjustability or the operation
of
your rear view mirror in any way.
DO
NOT
use this mount
if
the radar detector creates an unsafe viewing obstruction.
DO
NOT
ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.
All BlendMount products are accompanied with detailed installation instructions and adjustment tips. You are encouraged to contact
customerservice@blendmount.com
or
call J28 Design at 1-888-497-8388 for further assistance.
Check the BlendMount Forum for installation tips and some vehicle specific installs.
www.blendmount.com
Innovative Design
And
Precision Manufacturing
PAGE 2
OF
2
Your feedback is very important to us. Please email any questions or
comments you have to customerservice@blendmount.com
BlendMount - US PATENT# D625,580 S, D656,
811
S, D653,980 S
D690,245 S, D690,246 S,
0690
,247
Sand
other patents pending
