Bland
fflaunl-
ESCORT
1nnovarive
Mounting
Solutions

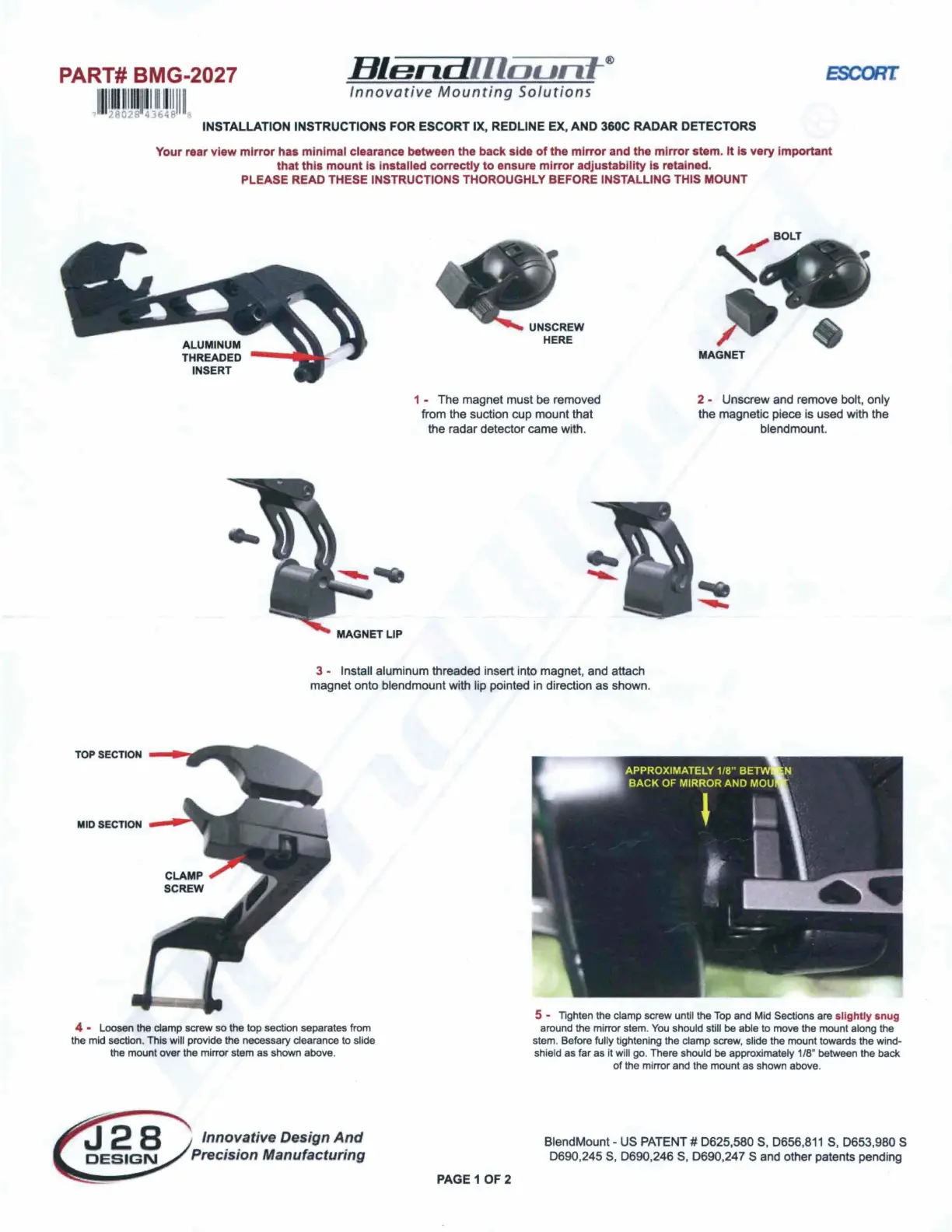

INSTALLATION INSTRUCTIONS FOR ESCORT IX, REDLINE EX, AND 360C
RADAR
DETECTORS
Your rear
view
mirror
has minimal clearance between
the
back
side
of
the
mirror
and the
mirror
stem.
It
Is
very
Important
that this mount I installed correctly to ensure mirror adju tabllity Is retained.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT
1 - The magnet must be removed
from the suction cup mount that
the radar detector came with.
MAGNET
2 • Unscrew and remove bolt, only
the magnetic piece is used with the
blendmount.
3 • Install aluminum threaded insert into magnet, and attach
magnet onto blendmount with lip pointed in direction as shown.
4 • Loosen the clamp screw so the top section separates from
the mid section. This will provide the necessary clearance to slide
the mount over the mirror stem as shown above.
Innovative De
ign
And
Precision Manufacturing
PAGE 1 OF 2
5 • Tighten the clamp screw until the Top and Mid Sections are slightly snug
around the mirror stem.
You
should still be able to move the mount along the
stem. Before fully tightening the clamp screw, slide the mount towards the wind-
shield as far as it will go. There should be approximately
11s
• between the back
of
the mirror and the mount as shown above.
BlendMount - US PATENT# D625,580 S, D656,811 S, 0653,980 S
D690,245
S,
D690,246 S, D690,247
Sand
other patents pending

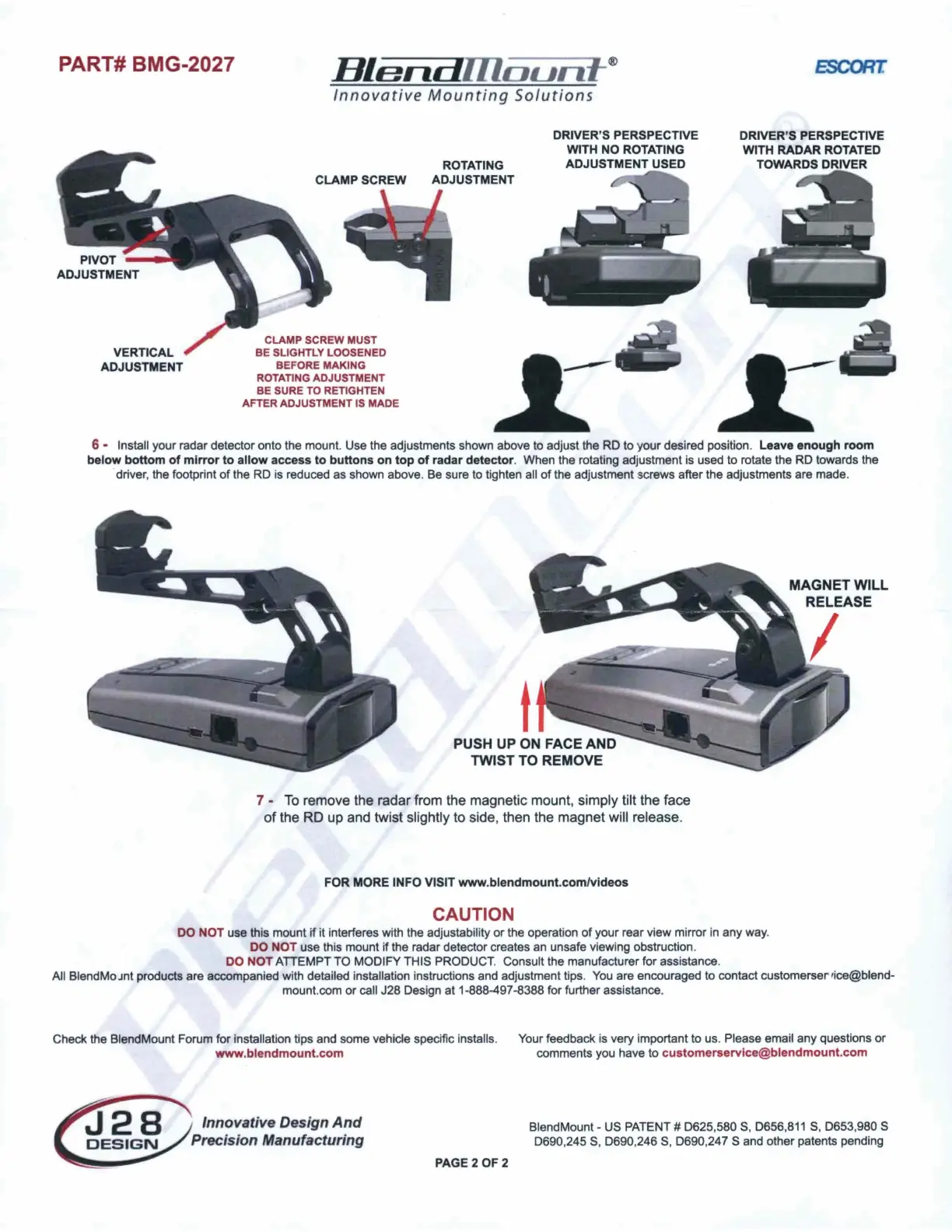

PART# BMG-2027
VERTICAL
ADJUSTMENT
Blend
illoun
®
Innova
t
ive
Mount
i
ng
So
l
ut
i
on
s
CLAMP SCREW
CLAMP SCREW MUST
BE SLIGHTLY LOOSENED
BEFORE MAKING
ROTATING ADJUSTMENT
BE SURE TO RETIGHTEN
AFTER ADJUSTMENT IS MADE
ROTATING
ADJUSTMENT
DRIVER'S PERSPECTIVE
WITH NO ROTATING
ADJUSTMENT USED
ESCORT
DRIVER'S PERSPECTIVE
WITH RADAR ROTATED
TOWARDS DRIVER
6 • Install your radar detector onto the mount. Use the adjustments shown above
to
adjust the
RD
to your desired position. Leave enough room
below bottom
of
mirror to allow access to buttons on top
of
radar detector.
When
the rotating adjustment is
used
to rotate the
RD
towards the
· driver, the footprint of the
RD
is
reduced
as
shown above.
Be
sure to tighten all of the adjustment screws after the adjustments are made.
7 -
To
remove the radar from the magnetic mount, simply tilt the face
of
the RD up and twist slightly to side, then the magnet will release.
FOR MORE INFO VISIT www.blendmount.com/videos
CAUTION
DO NOT use this mount
if
it interferes with the adjustability or the operation of your rear view mirror
in
any way.
DO NOT use this mount if the radar detector creates
an
unsafe viewing obstruction.
DO
NOT
ATTEMPT
TO
MODIFY THIS PRODUCT. Consult the manufacturer for assistance.
All
Blend
Mo
Jnt
products are accompanied with detailed installation instructions
and
adjustment tips.
You
are encouraged to contact customerser rice@blend-
mount.com or
call
J28 Design at 1-888-497-8388 for further assistance.
Check the BlendMount
Forum
for installation tips
and
some
vehicle specific installs.
www.blendmount.com
Innovative Design
And
- Precision Manufacturing
PAGE2OF2
Your feedback
is
very important to
us
. Please email any questions or
comments you have to customerservlce@blendmount.com
BlendMount -
US
PATENT# D625,580
S,
D656
,
811
S, D653,980 S
D690
,245 S, D690,
246
S, D690,247
Sand
other patents pending
