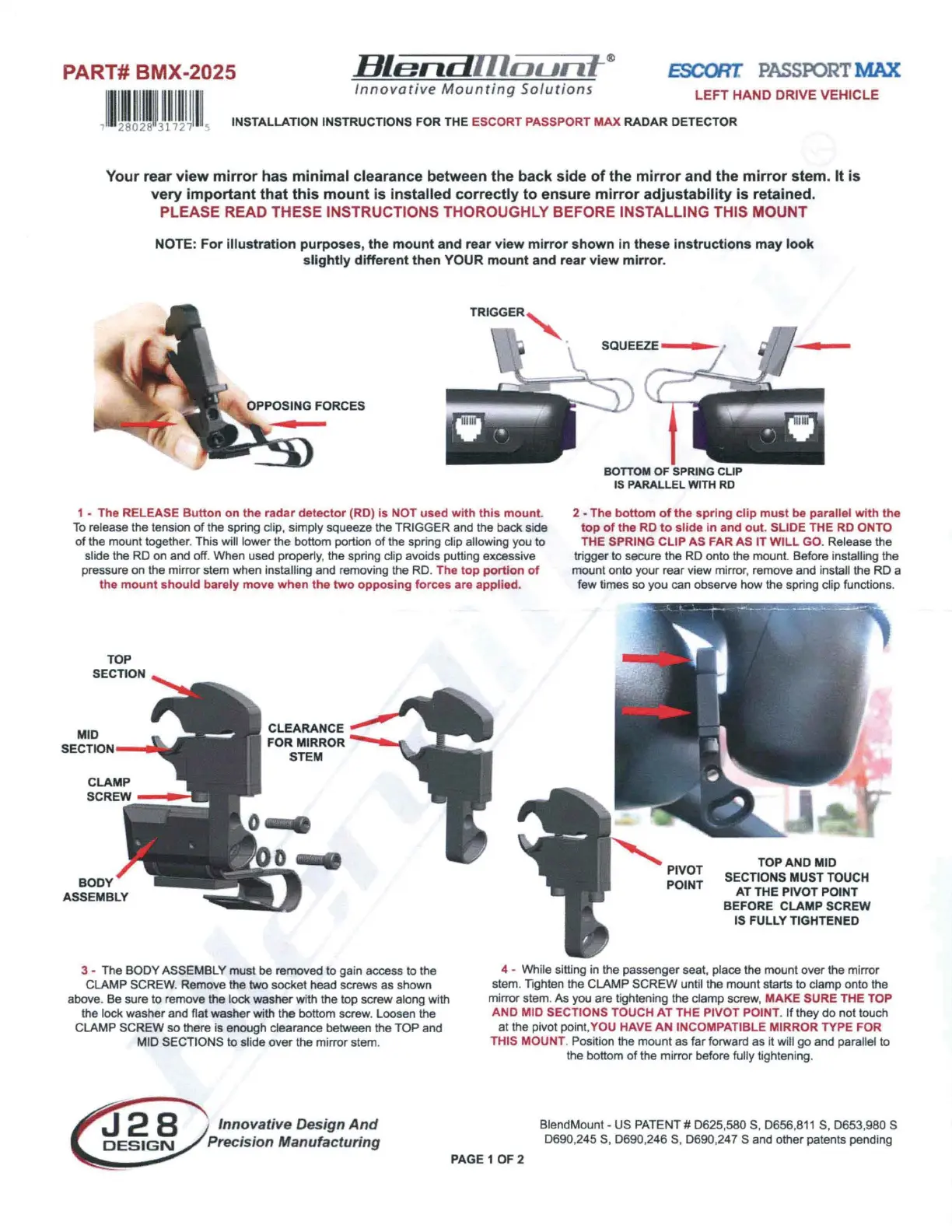

PART# BMX-2025
Hlend
lllount-®
ESCORr
PASSPORT
MAX
LEFT HAND DRIVE VEHICLE
7
lll~!l~IJ
t
~,
1
11
111
1
11
5
Innovative
Mounting
Solutions
INSTALLATION INSTRUCTIONS FOR
THE
ESCORT PASSPORT MAX RADAR DETECTOR
Your rear
view
mirror
has minimal clearance between the back side
of
the
mirror
and the
mirror
stem. It
is
very
important
that
this
mount
is
installed correctly
to
ensure
mirror
adjustability
is
retained.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT
NOTE:
For
illustration
purposes, the
mount
and rear
view
mirror
shown
in
these
instructions
may
look
slightly
different
then YOUR
mount
and
rear
view
mirror.
BOTTOM
OF
SPRING CLIP
IS
PARALLEL
WITH
RD
1 • The
RELEASE
Button
on
the
radar
detector
(RD)
is
NOT
used
with
this
mount
. 2 •
The
bottom
of
the
spring
clip
must
be
parallel
with
the
top
of
the
RD
to
slide
in
and
out.
SLIDE THE RD ONTO
THE SPRING
CLIP
AS FAR AS IT
WILL
GO
. Release the
trigger to secure the RD onto the mount. Before installing the
mount onto your rear view mirror, remove and install the RD a
few times so you can observe how the spring clip functions.
To
release the tension
of
the spring clip, simply squeeze the TRIGGER and the back side
of
the mount together. This will lower the bottom portion
of
the spring clip allowing you to
slide the RD on and
off
. When used properly, the spring clip avoids putting excessive
pressure on the mirror stem when installing and removing the RD. The
top
portion
of
the
mount
should
barely
move
when
the
two
opposing
forces
are
applied
.
TOP
SECTION
MID
SECTION
---
liillll
BODY
ASSEMBLY
CLEARANCE
FOR MIRROR
STEM
3 • The
BODY
ASSEMBLY must be removed
to
gain access to the
CLAMP
SCREW
. Remove the two socket head screws as shown
above. Be sure to remove the lock washer with the top screw along with
the lock washer and flat washer with the bottom screw. Loosen the
CLAMP SCREW so there is enough clearance between the TOP and
MID SECTIONS to slide
over
the mirror stem.
Innovative Design And
Precision Manufacturing
TOP
AND
MID
SECTIONS MUST TOUCH
AT
THE
PIVOT POINT
BEFORE CLAMP SCREW
IS FULLY TIGHTENED
4 • While sitting in the passenger seat. place the mount over the mirror
stem. Tighten the CLAMP
SCREW
until the mount starts to clamp onto the
mirror stem. As you are tightening the clamp screw, MAKE SURE THE TOP
AND MID SECTIONS TOUCH
AT
THE PIVOT POINT.
If
they do not touch
at the pivot point.YOU HAVE AN INCOMPATIBLE MIRROR TYPE FOR
THIS MOUNT. Position the
mount
as far forward as it will
go
and parallel to
the bottom
of
the mirror before fully tightening.
PAGE 1 OF 2
BlendMount • US
PATENT#
D625,580 S, D656,
811
S,
D653,980 S
D690,245 S, D690,246 S, D690,247 S and other patents pending

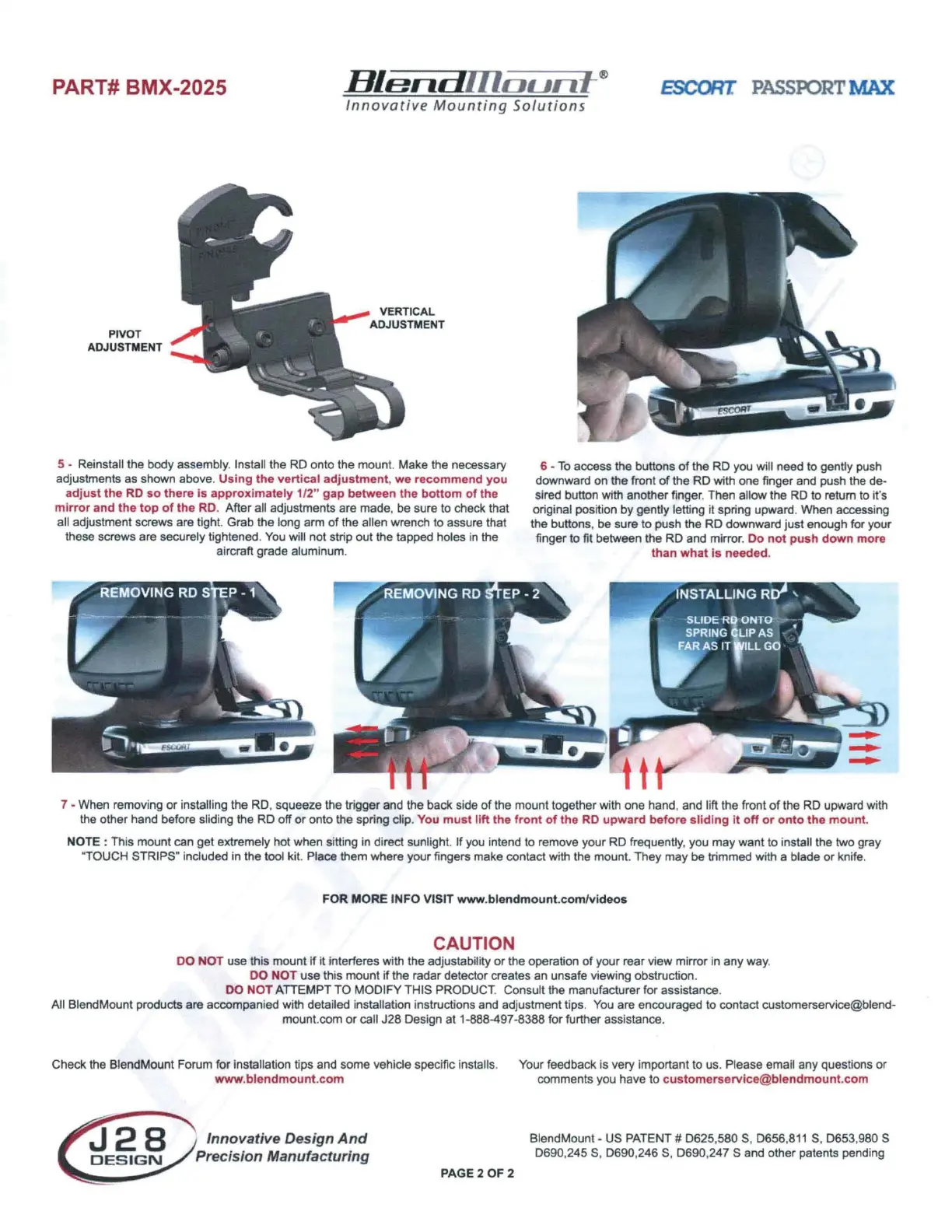

PART# BMX-2025
Blend
lllounf-
®
ESCORT
PASSPORT
MAX
Innovative
Mounting
Solutions
PIVOT
ADJUSTMENT
5 - Reinstall the body assembly. Install the RD onto the mount. Make the necessary
adjustments as shown above.
Using
the
vertical
adjustment
,
we
recommend
you
adjust
the
RD
so
there
is
approx
i
mately
1/2"
gap
between
the
bottom
of
the
mirror
and
the
top
of
the
RD. After all adjustments are made, be sure to check that
all adjustment screws are tight. Grab the long arm
of
the alien wrench to assure that
these screws are securely lightened.
You
will not strip out the tapped holes
in
the
aircraft grade aluminum.
6 -
To
access the buttons
of
the RD you will need to gently push
downward on the front
of
the RD with one finger and push the de-
sired button with another finger. Then allow the RD to return to it's
original position by gently letting it spring upward. When accessing
the buttons, be sure to push the RD downward just enough for your
finger to flt between the RD and mirror. Do
not
push
down
more
than
what
is
needed.
REMOVING
RD
l·
E;
- 2
,- '
·'
INSTALLING R ,
SLID
E RD
ONTO
: --
- SPRING CLIP AS
11
••
,r
f
'"
GO
t
7 - When removing
or
installing the RD, squeeze the trigger and the back side
of
the mount together with one hand, and lift the front
of
the RD upward with
the other hand before sliding the RD off
or
onto the spring clip. You
must
lift
the
front
of
the
RD
upward
before
sliding
it
off
or
onto
the
mount.
NOTE : This mount can get extremely hot when sitting in direct sunlight.
If
you intend to remove your RD frequently, you may want to install the two gray
"TOUCH STRIPS" included in the tool kit. Place them where your fingers make contact wi
th
the mount. They may be trimmed with a blade or knife.
FOR MORE INFO VISIT www.blendmount.com/videos
CAUTION
DO NOT use this mount
if it
interferes with the adjustability or the operation
of
your rear view mirror in any way.
DO
NOT use this mount if the radar detector creates an unsafe viewi
ng
obstruction.
DO NOT ATTEMPT TO MODIFY THIS PRODUCT. Consult the manufacturer for assistance.
All BlendMount products are accompanied with detailed installation instructions and adjustment tips.
You
are encouraged to contact customerservice@blend-
mount.com
or
call J28 Design at 1-888-497-8388 for further assistance.
Check the BlendMount Forum for installation tips and some vehicle specific installs.
www
.blendmount.com
Innovative Design
And
Precision Manufacturing
PAGE2OF
2
Your feedback is very important to us. Please email any questions or
comments you have to customerservice@blendmount.com
BlendMount - US PATENT# D625,580 S,
0656
,
811
S,
0653
,980 S
D690,245 S, D690,246 S, D690,247
Sand
other patents pending
